IMG STAGE LINE LC-8PRO Instruction Manual

Professional rgb led dmx controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Professional
RGB LED DMX Controller
LC-8PRO
Order No. 38.0010
INSTRUCTION MANUAL
ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-8PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IMG STAGE LINE LC-8PRO

Summary of Contents for IMG STAGE LINE LC-8PRO

  • Page 1 Professional RGB LED DMX Controller LC-8PRO Order No. 38.0010 INSTRUCTION MANUAL ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS...

  • Page 3: Table Of Contents

    Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Controller Front ................................6 Controller Backside..............................7 Set Up and Operation ............................... 7 1.

  • Page 4: Warning

    Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling.

  • Page 5: Operating Determinations

    Do not switch the device on and off in short intervals, as this would reduce the device’s life.  Do not shake the device. Avoid brute force when installing or operating the device. The LC-8PRO reacts very sensitive to movement.

  • Page 6: Return Procedure

    Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN...

  • Page 7: Description Of The Device

    Description of the device Features LC-8PRO is a light controller from img Stage Line and features: • The LC-8PRO is the successor of the LC-8LED • The upgrade is simple but unique and very useful • Easy to use • Control 8 RGB fixtures •...

  • Page 8: Controller Front

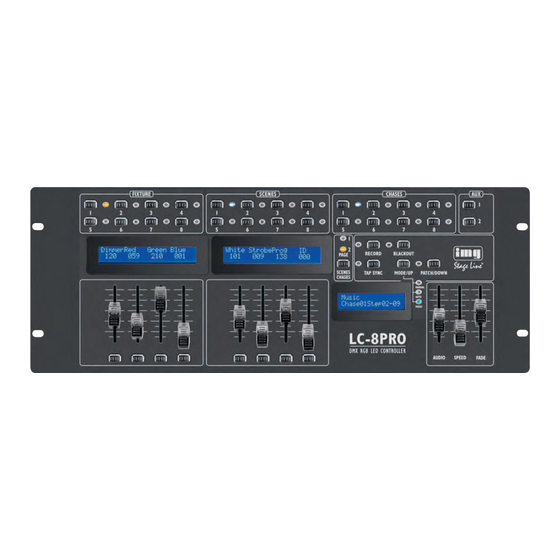

    Controller Front Fig. 2 1) Fixture buttons and LED indicators 1-8: Use Fixture button 1-8 to select a fixture. 2) Scenes buttons and LED indicators 1-8: Push a scene button to activate a scene. 3) Chase buttons and LED indicators 1-8: Push a chase button to activate a chase. 4) Aux Buttons: AUX 1 and AUX 2 5-12) 8 Faders: Use the faders to manually set the intensity.

  • Page 9: Controller Backside

    Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the LC-8PRO. Check that all foam and plastic padding is removed. Always disconnect from electric mains power supply before cleaning or servicing.

  • Page 10: Patch Modes

    Patch Modes There are 4 Patch Modes: 1) Patch Address Patch Name MIDI 4) AUX 1.1 Patch Address 1. Press and hold the Patch/Down button (20) for 3 seconds to enter Patch Mode. 2. The red LED next to the button lights up. 3.
  • Page 11 5. With the 7 slider you are able to set the desired preset name table: 6. With the 8 slider you are able to set the 8 different preset names: Tables and Preset Names Table 1 Table 2 Table 3 Dim 1 Green Satur...

  • Page 12: Midi

    4. Release the 2 buttons and wait for 15 seconds. All LEDs will flash 3 times, indicating your operation has been successful. The LC-8PRO is now back to its original factory default settings. After the factory reset, the fixture is auto patched...

  • Page 13: Scenes

    Scenes Record a Scene 1. Press and hold down the the Record button (15) for 3 seconds to enter Record Mode. 2. The red LED next to the button lights up. 3. Select the fixture you want to program by pressing the desired Fixture button (1). 4.

  • Page 14: Chases

    Chases Record a Chase 1. Press and hold down the the Record button (15) for 3 seconds to enter Record Mode. 2. The red LED next to the button lights up. 3. Select the proper Page by pressing the Page button (14). You can choose Page 1 or Page 2. The orange LED above the button lights up.

  • Page 15: Delete A Chase

    Delete a Chase 8. Deselect all fixtures, scenes and chases. 9. Press and hold down the the Record button (15) for 3 seconds to enter Record Mode. 10. The red LED next to the button lights up. 11. Select the proper Page by pressing the Page button (14). The orange LED next to the button lights up 12.

  • Page 16: Manual/Auto / Music Mode

    Manual/Auto / Music Mode Manual 1. Press the Mode button (19) until the LED in front of Manual (number 1)lights up green. 2. With Tap Sync you can manually go through the chase steps. Fade Time (16) is available in Manual Mode Auto 1.

  • Page 17: Maintenance

    4. If all of the above appears to be O.K., plug the unit in again. 5. If nothing happens after 30 seconds, unplug the device. 6. If you are unable to determine the cause of the problem, do not open the LC-8PRO, as this may damage the unit and the warranty will become void.

  • Page 18: Product Specification

    Product Specification Model: img Stage Line LC-8PRO • The LC-8PRO is the successor of the LC-8LED • The upgrade is simple but unique and very useful • Easy to use • Control 8 RGB fixtures • Adjustable Speed control • Adjustable fade time •...
