- Page 1 EX70UHD User manual EX70UHD User Manual HomeCinemaSolution Contact: info@homecinemasolution.it...
- Page 2 EX70UHD User manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
EX70UHD User manual Table of Contents Intr oduc tion..................4 Features....................4 Panel Description..................4 C o n n e c t i o n D i a g r a m ..............8 Spec ifications............ -
Page 4: Introduction
EX70UHD User manual Introduction EX70UHD (Transmitter + Receiver) is a 70m (230ft) HDBaseT Extender. It transmits 1080P@60HZ at 48bit deep color via single Cat5e up to 70 meters (230ft). Bi-directional IR and RS232 can also be transmitted over the same Cat5e cable. With support of POH (power over HDBaseT), only one power supply is needed at either transmitter or receiver. -
Page 5: Panel Description

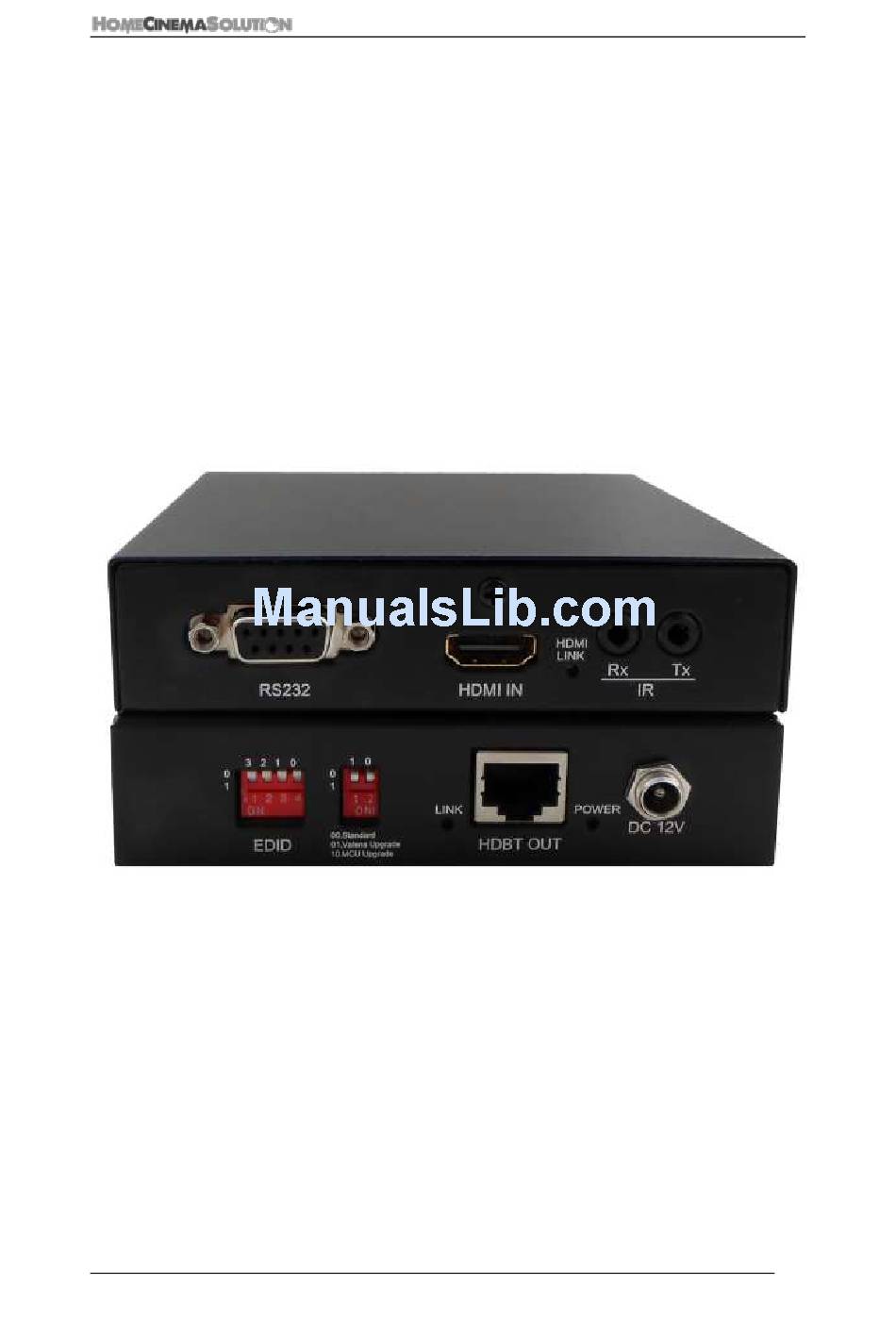

EX70UHD User manual Panel Description EX70UHD (Trasmitter) RS232 connector HDMI link indicator IR TX jack HDMI input IR RX jack HomeCinemaSolution Contact: info@homecinemasolution.it... - Page 6 EX70UHD User manual Signal Link indicator Power status indicator EDID DIP switch ( UP=0, DOWN=1) [DIP]=0000: HDMI 1080p@60Hz, Audio 2CH PCM [DIP]=0001: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY [DIP]=0010: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD [DIP]=0011: HDMI 1080i@60Hz, Audio 2CH PCM [DIP]=0100: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY [DIP]=0101: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD...
- Page 7 EX70UHD User manual Signal Link indicator Power status indicator Standard/Upgrade mode switch HDBT input DC 12V screw type connector RS232 connector HDMI link indicator IR TX jack HDMI output IR RX jack HomeCinemaSolution Contact: info@homecinemasolution.it...
-
Page 8: Connection Diagram
EX70UHD User manual Connection Diagram Specifications 2.97Gbps per Color Bandwidth Video input EX70UHD (Trasmitter) EX70UHD (Receiver) 1XHDMI Type A, 19-pin, female 1xRJ45 Video output EX70UHD (Trasmitter) EX70UHD (Receiver) 1xRJ45 1XHDMI Type A, 19-pin, female IR input 2x3.5mm stereo jack IR output 2x3.5mm stereo jack... -
Page 9: Package Contents
EX70UHD User manual Package Contents 1x EX70UHD (Trasmitter) 1x EX70UHD (Receiver) 1x 12V/2A DC power supply 1x IR Transmitter, 1x IR Receiver. 4x mounting brackets. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
