- Page 1 EX100UHD User manual EX100UHD User Manual HomeCinemaSolution Contact: info@homecinemasolution.it...
- Page 2 EX100UHD User manual Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
EX100UHD User manual Table of Contents Introduc tion..................4 Features....................4 Panel Descriptions................. 5 A p p l i c a t i o n D i a g r a m ..............7 Spec ifications.................. -
Page 4: Introduction
EX100UHD User manual Introduction EX100UHD Extender (Transmitter + Receiver) is a Dual HDMI and VGA/Audio to HDBaseT Switcher Extender. It switches between HDMI and VGA/audio inputs, digitizes, and transmits via HDBaseT. It offers manual/auto-switching between both HDMI and VGA inputs. By using... -
Page 5: Panel Descriptions

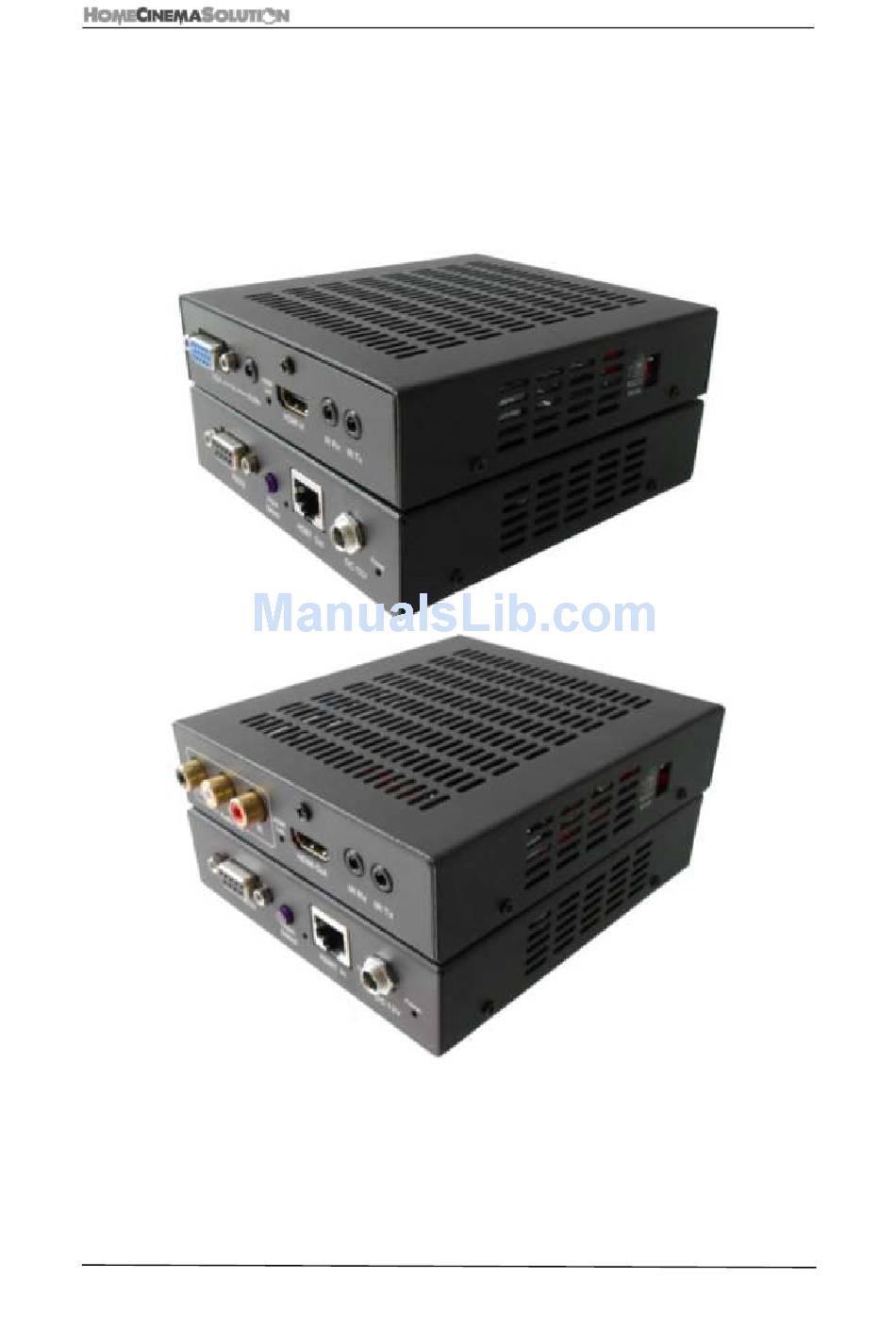

EX100UHD User manual Panel Descriptions EX100UHD (Trasmitter): VGA input Audio input(go with VGA input) HDMI input IR Receiver jack IR Transmitter jack RS232 port Input select button Inputs indicator light, red for VGA input, blue for HDMI input HDBaseT output 10. - Page 6 EX100UHD User manual EX100UHD (Receiver): RS232 port Input select button Inputs indicator light, red for VGA input, blue for HDMI input HDBaseT input DC power input Coaxial Digital Audio output,SPDIF RCA L: Left channel of stereo analog audio output RCA R: Right channel of stereo analog audio output HDMI output 10.
-
Page 7: Application Diagram
EX100UHD User manual Application Diagram Specifications EX100UHD (Trasmitter): Bandwidth: 2.97Gbps per color 1 x HDMI Type A, 19-pin, female, locking Video Input Connectors: 1 x VGA Type A, 15-pin, female, locking Video Output Connectors: 1x RJ-45 RS-232 serial port: DB-9, female IR Input ports: 1x 3.5mm stereo jack... -
Page 8: Package Contents
EX100UHD User manual EX100UHD (Receiver): Bandwidth: 2.97Gbps per color Video Input Connectors: 1x RJ-45 Video Output Connectors: 1 x HDMI Type A, 19-pin, female, locking Audio Output Connectors: 3x RCA, female RS-232 serial port: DB-9, female IR Input ports: 1x 3.5mm stereo jack IR Output ports: 1x 3.5mm stereo jack... -
Page 9: Maintenance
EX100UHD User manual Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit. Exclusive Remedies HCS warranty, as stated is in lieu of all other warranties, expressed, implied, or statutory, including those of merchantability and fitness for a particular purpose.
