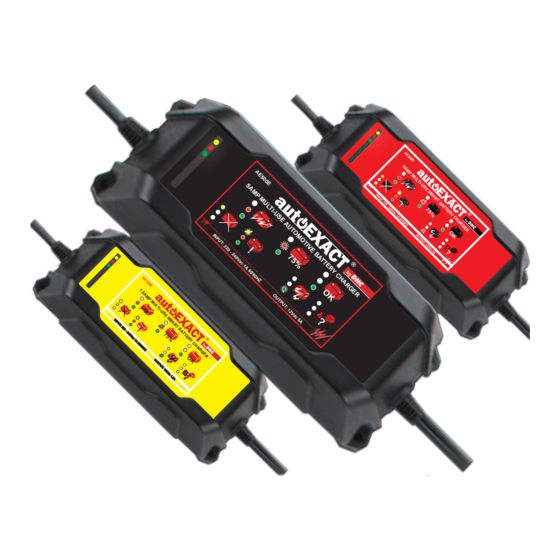

- Page 1 Model AE150/AE300/AE500 MULTI-USE SMART BATTERY CHARGER Certified by Californiia BCS Regulations 1.5A Voltage: 12V Amperage: by Models OWNER’S MANUAL READ ENTIRE MANUAL BEFORE USING THIS PRODUCT...
-
Page 2: Specifications
MODEL NO. AE150/AE300/AE500 MULTI-USE SMART BATTERY CHARGER SPECIFICATIONS Input Voltage 220V - 240V AC 50Hz (E) 110V - 120V AC 60Hz (A) Output Current Rating 12V - 1.5A/3A/5A Max. Maximum Charge Voltage 14.8V 17’’ L x 7.3’’ W x 4.8’’ H Size 1.1 lbs... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THIS SAFETY AND INSTRUCTION MANUAL 1. This manual contains important safety and operating instructions for this battery charger/maintainer. Please read, understand and follow these instructions and precautions carefully. 2. Use this charger only on 12 volts LEAD ACID, AGM and GELLED ELECTROLYTE (GEL-CELL) batteries. -
Page 4: Personal Precautions
charger from the wall outlet. Use a slightly dampened cloth to clean the housing and lead sets. Do not use solvents or soaps. 12. Place the power cords in a location where will not be stepped on, tripped over, or subjected to stress or abuse of any kind. 13. -
Page 5: Preparing To Charge
parts and could cause an explosion. 8. Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead acid battery. It can produce a short circuit current high enough to weld a ring or the like to metal causing a severe burn. - Page 6 removing or not removing cell caps while charging and recommended rates of charge. 7. Determine voltage of battery by referring to car owner’s manual and make sure it matches output rating of battery charger. 8. If the battery and terminals have a white or bluish crust on them, the charging system may be having problem.
- Page 7 Use the following table to more accurately determine the time it will take to bring a battery to full charge. Identify where your battery fits into the chart. BATTERY SIZE (RATING) AE150 AE300 AE500 100 CCA 5 hrs 3 hrs Motorcycle, Garden Tractor, etc.
- Page 8 CHARGING WHEN BATTERY IS INSTALLED IN VEHICLE 1. Position the AC and DC cables to reduce the risk of damage by the hood, door and moving or hot engine parts. NOTE that if it is necessary to close the hood during the charging process, ensure that the hood does not touch the metal part of the battery clips or cut the insulation of the cables.
- Page 9 CHARGING WHEN BATTERY IS OUTSIDE VEHICLE 1. Connect the POSITIVE (red) charger clip to the POSITIVE (POS, +) post of the battery. 2. Connect the NEGATIVE (black) charger clip to the NEGATIVE (NEG, -) post of the battery. 3. Connect the AC supply cord to the electrical outlet. 4.
- Page 10 CHARGING INDICTION When the charger is being used, it shows LED lights as follows, indicating the status of the charging. NO AC Power (all lights off) There is no AC power applied. Check the AC end. STAND BY (green blinking only) The clamps are not connected to battery properly.
-
Page 11: Troubleshooting
TROUBLESHOOTING 1. Problem: No LED lit. Possible Cause: AC end is not making a good connection. Solution: Check for poor connection at AC side. 2. Problem: Green LED keeps blinking. Possible Cause: Clamps are not making a good connection. Solution: Check for poor connection at battery and frame. 3.
