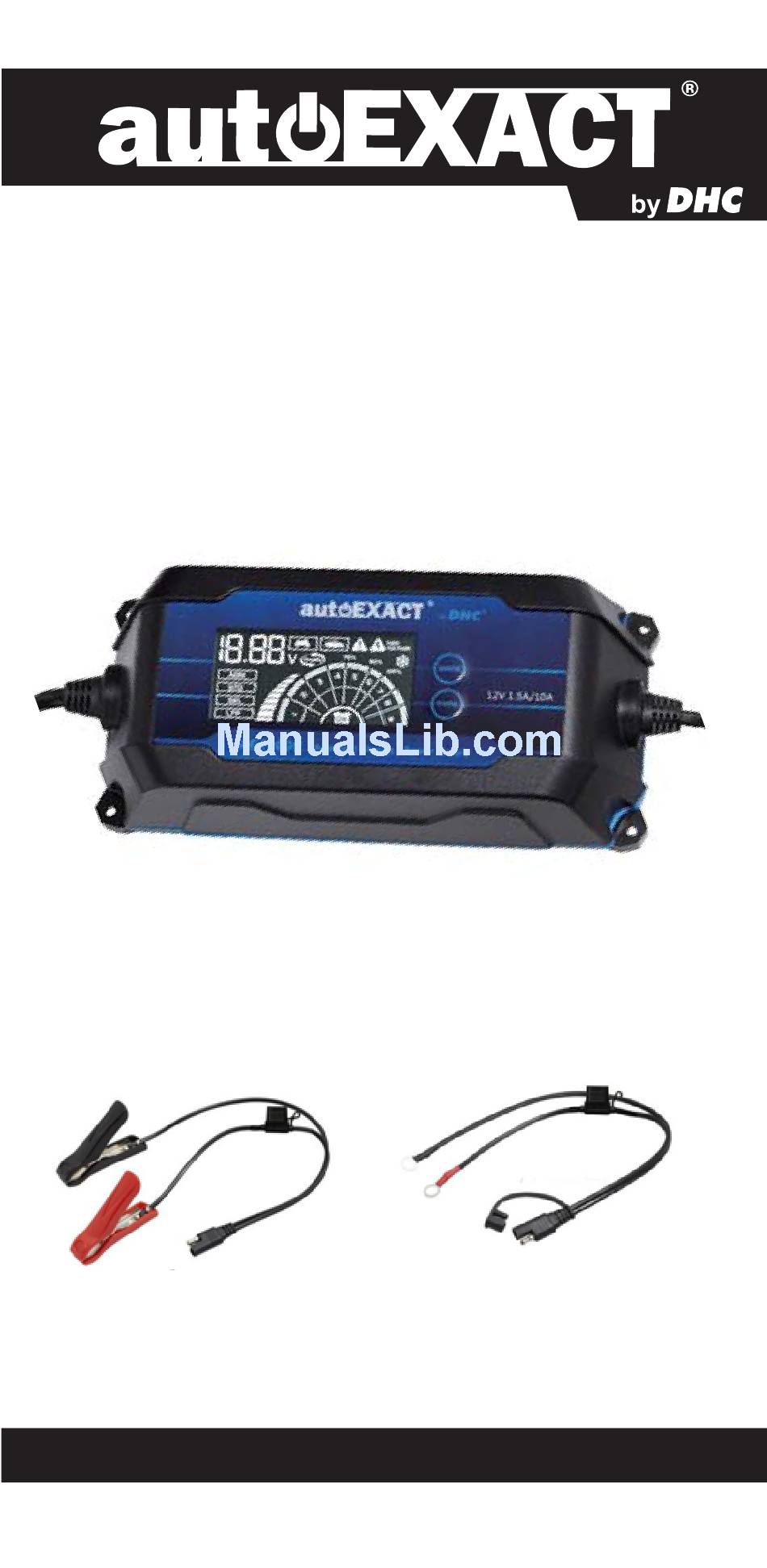

- Page 1 Model AE1000E MULTI-USE SMART BATTERY CHARGER OWNER’S MANUAL READ ENTIRE MANUAL BEFORE USING THIS PRODUCT...

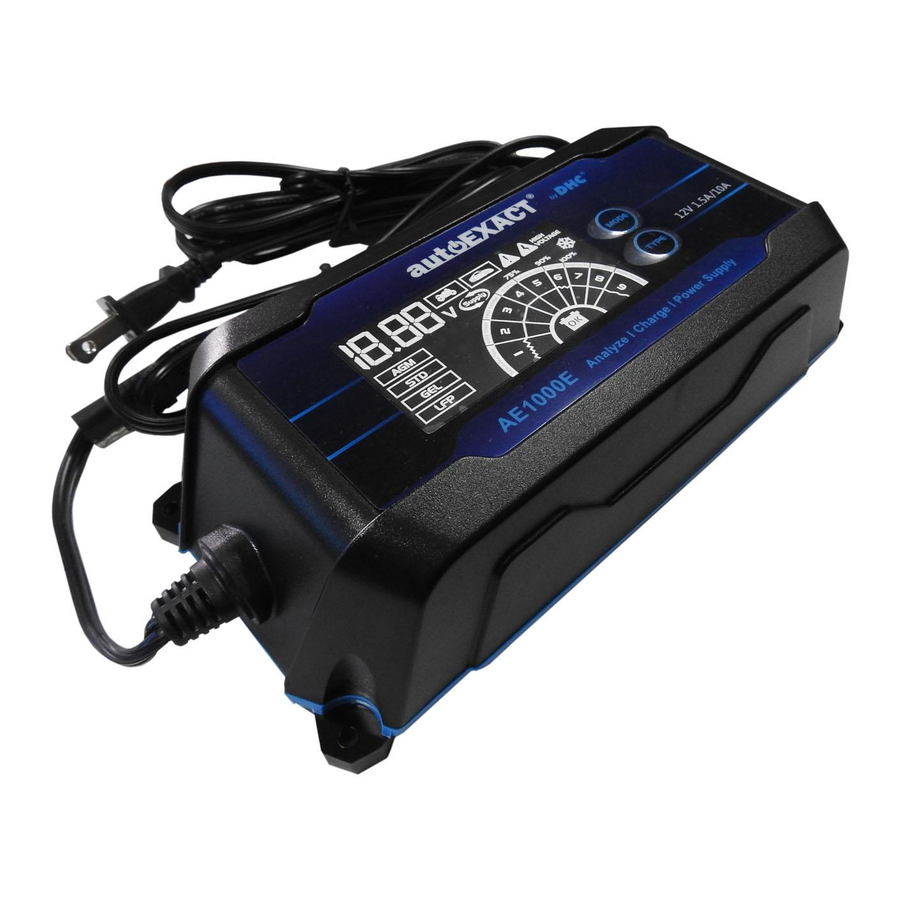

- Page 2 LCD monitor Ecran LCD (LCD-Monitor Pantalla LCD Mode Bouton Mode Button Botón de Modo Modus-Taste Type Button “Typ”-Taste Botón de Tipo Type de Bouton AC socket Plug Prise AC WS-Stecker Conector AC Set de Clamp set Jeu de pinces Klemmen-Set abrazaderas Ring terminal Set de terminal...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS： READ AND SAVE THIS SAFETY AND INSTRUCTIONMANUAL 1. This manual contains important safety and operating instructions for this battery charger/maintainer. Please read, understand and follow these instructions and precautions carefully. 2. Use this charger only on 12 volts, SLI, AGM SPIRAL, AGM FLATPLATE, GEL, VRLA, CAL/CAL and START-STOP LEAD ACID battery &... -
Page 4: Personal Precautions
charger from the wall outlet. Use a slightly damp cloth to clean the housing and lead sets. Do not use solvents or soaps. 13. Place the power cords in a location where will not be stepped on, tripped over, or subjected to stress or abuse of any kind. 14. - Page 5 h) Children should be supervised to ensure that they do not play with the appliance. i) If battery acid contacts skin or clothing, wash immediately with soap and water. If acid enters eye, immediately flood eye with running cold water for at least 10 minutes and get medical attention immediately.
-
Page 6: Dc Connection Precautions
c) Never allow battery acid to drip on charger when reading specific gravity or filling the battery. d) Do not operate charger in a closed area with restrict ventilation in any way. e) Do not set a battery on top of charger. 22. - Page 7 a) Position the AC and DC cables to reduce the risk of damage by the hood, door and moving or hot engine parts. b) NOTE that if it is necessary to close the hood during the charging process, ensure that the hood does not touch the metal part of the battery clips or cut the insulation of the cables.
-
Page 8: How To Charge
2. Press the Mode/Type button to select the charging program. AE1000E has 3 charging modes and 4 battery types. (Both can be selected only if the device isn’t connected to the battery) 3.Connect the clamps (+/-) to the battery for charging... -
Page 9: Risk Of Damage
5. After making sure AE1000 & Car’s ECU is actively connected, disconnect the battery terminal from the old battery and remove the old battery. The AE1000 will supply power to maintain car’s ECU memory during this process. Note: 1. Please don't let the battery terminal (+) (-) touch any metal part of the car, or it could disrupt or damage the circuits in the vehicle. -
Page 10: Charging Indication
Power supply function: 13.6V – 10A This function is used to keep vehicle- computer’s memory active while the battery is being changed or whenever the battery is disconnected from the vehicle’s circuit. CAUTION: IN THIS FUNCTION, THE RISK OF DAMAGE! BATTERY CHARGER IS NOT PROTECT- ED AGAINST POLARITYREVERSAL. - Page 11 It is a bad battery, battery is less than please replace it. (You are attempting to charge 24V or more battery). The AE1000E is for Wrong battery 12V battery only. voltage. Please use a battery charger with correct voltage output.
- Page 12 INTELIGENT 9-STAGE CHARGING PROGRAMS (for 12V Lead-acid battery) Desulfation: Recovers a deeply discharged or a lightly sulfated battery. Soft start: Tests that the battery is in a suitable condition to receive a charge. Fast Charge (ready to use): Charges the battery to 75% in the fastest and most efficient manner.
- Page 13 Top off: Fully charge the battery without overcharging the battery. Maintenance: Maintains the battery in a full state of charge. Specification Charger model AE1000E Rated voltage AC 220-240VAC, 50-60Hz Battery type All types of 12V LEAD ACID Batteries, (AGM, GEL, STD,VRLA, MF, CAL/CAL and START-STOP) &...
