x7722271404 / x772000164

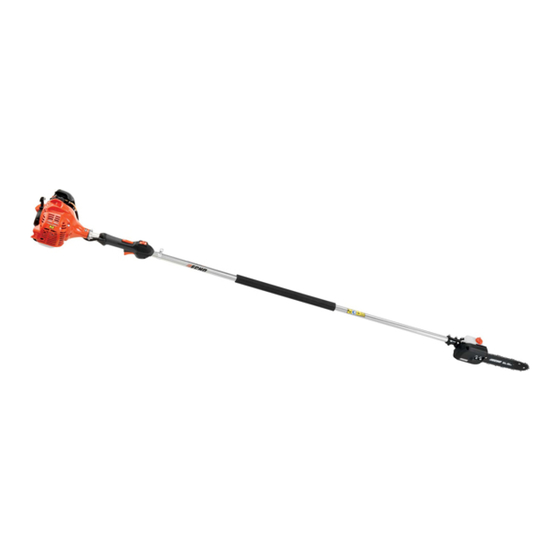

POWER PRUNER
Operator's Manual
The muffler or catalytic muffler and surrounding cover may become extremely hot.
Always keep clear of exhaust and muffler area, otherwise serious personal injury may
occur.
The engine exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects or other reproductive harm.
Users of this equipment risk injury to themselves and others if the unit is used
improperly and/or safety precautions are not followed. ECHO provides an operator's
manual and a safety manual. Both must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
Specifications, descriptions and illustrative material in this literature are as accurate as known at the time
of publication, but are subject to change without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
X7502308206
©7/2015 ECHO Inc.
PPF-225
Burn Hazard
TM

Advertisement

Table of Contents
loading

Related Manuals for Echo Power Pruner PPF-225

Summary of Contents for Echo Power Pruner PPF-225

  • Page 1 Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. ECHO provides an operator’s manual and a safety manual. Both must be read and understood for proper and safe operation.

  • Page 2: Table Of Contents

    The Operator’s Manual..........................3 The Safety Manual ............................3 Servicing Information ............................3 Parts/Serial Number ............................ 3 Service................................. 3 Echo Consumer Product Support........................ 3 Product Registration ............................ 3 Additional or Replacement Manuals......................4 Safety ................................. 4 Manual Safety Symbols and Important Information..................4 International Symbols ..........................

  • Page 3: Introduction

    Service of this product during the warranty period must be performed by an Authorized ECHO Service Dealer. For the name and address of the Authorized ECHO Service Dealer nearest you, ask your retailer or call: 1-800-432-ECHO (3246). Dealer information is also available on our Web Site. When presenting your unit for Warranty service/repairs, proof of purchase is required.

  • Page 4: Additional Or Replacement Manuals

    ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-673-1558). Always check the ECHO Web Site for updated information. Safety Videos are available from your Echo dealer. A $5.00 shipping charge will be required for each video. SAFETY Manual Safety Symbols and Important Information Throughout this manual and on the product itself, you will find safety alerts and helpful, informational messages preceded by symbols or key words.

  • Page 5: International Symbols

    ON / OFF resistant footwear near fuel Closed) Do not operate Keep bystanders Choke Control closer than 15 M at least “RUN” Position Chain Lubrication. (50 ft.) from 4.5 meters (15 ft.) (Choke Open) electrical hazards. away. X7502308206 ©7/2015 ECHO Inc.

  • Page 6: Personal Condition And Safety Equipment

    Hearing/Ear Protection ECHO recommends wearing hearing protection whenever unit is used. Breathing Protection Operators who are sensitive to dust or other common airborne allergens may need to wear a dust mask to prevent inhaling these materials while operating unit.
  • Page 7 ECHO does not recommend the use of this machine by anyone who has a pacemaker.
  • Page 8 • Spectators and fellow workers must be warned, and children and animals prevented from coming nearer than 15 m (50 ft.) while the unit is in use. Use Proper Clothing & Equipment • Always wear head protection with full face shield to help protect against falling branches and debris. X7502308206 ©7/2015 ECHO Inc.

  • Page 9: Kickback

    Avoid contact of the guide bar tip with any object while the saw chain is moving. Cut only wood. Avoid striking concrete, metal, wire, or other obstructions which could cause kickback or damage to the saw chain. X7502308206 ©7/2015 ECHO Inc.

  • Page 10: Equipment

    Use only ECHO attachments. Serious injury may result from the use of a non-approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.

  • Page 11: Emission Control (Exhaust & Evaporative)

    The 50 or 300 hour emission compliance period is the time span selected by the manufacturer certifying the engine emissions output meets applicable emissions regulations, provided that approved maintenance procedures are followed as listed in the Maintenance Section of this manual. X7502308206 ©7/2015 ECHO Inc.

  • Page 12: Description

    Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information.
  • Page 13 22. TOP GUARD - Provides arm rest during operation and protects arm from hot engine. 23. GUIDE BAR COVER - Used to cover guide bar and saw chain during transport and storage. Remove guide bar cover before using unit. X7502308206 ©7/2015 ECHO Inc.

  • Page 14: Contents

    The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.

  • Page 15: Assembly

    (C) in the housing. (It may be necessary to rotate the saw chain slightly to align the internal pinion and drive shaft.). 3. Insert locator screw (B) into hole (C) and tighten to snug. 4. Tighten bolts (A), clamping the cutting attachment onto the housing. X7502308206 ©7/2015 ECHO Inc.

  • Page 16: Saw Chain Tension Adjustment

    Metal cutters can create sparks if the cutter strikes rocks, metal, or other hard objects. Contact local fire authorities for laws or regulations regarding fire prevention requirements. X7502308206 ©7/2015 ECHO Inc.

  • Page 17: Fuel

    OPERATION Fuel Alternative fuels, such as E-15 (15% ethanol), E-85 (85% ethanol) or any fuels not meeting ECHO requirements are NOT approved for use in ECHO 2-stroke gasoline engines. Use of alternative fuels may cause performance problems, loss of power, overheating, fuel vapor lock, and unintended machine operation, including, but not limited to, improper clutch engagement.

  • Page 18: Lubricating The Guide Bar And Saw Chain

    1. Wipe debris from around oil fill cap. 2. Remove oil fill cap and fill reservoir with a quality, low viscosity guide bar and saw chain oil. To prevent plastic deterioration, do not use synthetic or silicone based oil. X7502308206 ©7/2015 ECHO Inc.
  • Page 19 Firmly grasp throttle handle and throttle trigger lockout with left hand and fully depress throttle trigger to wide open position. Rapidly pull recoil starter handle/rope (D) until engine fires (or maximum five [5] pulls). X7502308206 ©7/2015 ECHO Inc.

  • Page 20: Starting Cold Engine

    The attachment should not move at idle, otherwise serious personal injury may result. Note: If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. 1. Stop Switch Move stop switch button (A) forward away from the STOP position.

  • Page 21: Stopping Engine

    If engine does not stop when stop switch is moved to STOP position, close choke - COLD START position - to stall engine. Have your ECHO dealer repair stop switch before using unit again. Pruning Techniques Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a poison gas. Breathing CO can cause unconsciousness, serious injury, or death.
  • Page 22 OPERATION PPF-225 • DO NOT use for felling or bucking. Blade Hits Rear Branch Not Correct X7502308206 ©7/2015 ECHO Inc.

  • Page 23: Maintenance

    If you are unsure or are not equipped with the necessary tools, you may want to take your unit to an ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded.

  • Page 24: Air Filter

    When servicing model year 2012 and later equipment, only fuel supply hoses certified by EPA can be used to replace the original equipment supply hose. Fines up to $37,500 may be enforced for using an un-certified replacement part. X7502308206 ©7/2015 ECHO Inc.

  • Page 25: Spark Plug

    Removal of cooling passage blockages or cleaning of cooling fins is considered “Normal Maintenance.” Any failure attributed to lack of maintenance is not warranted. 1. Remove spark plug lead. X7502308206 ©7/2015 ECHO Inc.
  • Page 26 4. Use brush to remove dirt from the cylinder fins. 5. Remove ignition wires from clip for cleaning. 6. Remove grass and leaves from the grid between the recoil starter and fuel tank. 7. Assemble components in reverse order. X7502308206 ©7/2015 ECHO Inc.

  • Page 27: Exhaust System

    6. Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm (80-95 in•lbf). 7. Install engine cover and attach spark plug lead. 8. Start engine, and warm to operating temperature. 9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications. X7502308206 ©7/2015 ECHO Inc.

  • Page 28: Carburetor Adjustment

    This engine has been factory adjusted to maintain satisfactory starting, emission, and durability performance up to 1,100 feet above sea level (ASL) (96.0 kPa). To maintain proper engine operation and emission compliance above 1,100 feet ASL the carburetor may need to be adjusted by an authorized ECHO service dealer.

  • Page 29: Lubrication

    2. Remove sprocket guard (D). 3. Remove guide bar and saw chain from gear case and sprocket. 4. Remove chain from guide bar and check guide bar for damage and excessive or uneven wear. Replace guide bar if necessary. X7502308206 ©7/2015 ECHO Inc.

  • Page 30: Guide Bar And Saw Chain Replacement

    91VXL39CQ 3/8” 0.050 10A0CD3739 12" regular bar P/N 91VXL44CQ 3/8” 0.050 12A0CD3744 Check bar Part Number on your Power Pruner. Chain and guide bar gauge size must be identical. Use Bar/Chain combinations shown in table above. X7502308206 ©7/2015 ECHO Inc.

  • Page 31: Filing Standard Saw Chain

    (0.025 in.) slot and end against front cutter raker. File cutter raker with flat file until flush with top of depth gauge.. 5. Finish cutter sharpening by rounding front raker edge (C) ° with flat file 6. Properly filed cutter is as shown. X7502308206 ©7/2015 ECHO Inc.
  • Page 32 7. Apply clean oil and rotate saw chain slowly to wash away Top Plate Angle filings. 8. If saw chain is coated or clogged with resin, clean in kerosene, then soak in oil. Top Plate Cutting Angle Depth Gauge X7502308206 ©7/2015 ECHO Inc.

  • Page 33: Troubleshooting

    Fuel strainer clogged Clean or replace Fuel at carburetor No fuel at carburetor Fuel line clogged Clean or replace Carburetor See your Echo dealer No fuel at cylinder Carburetor See your Echo dealer OPEN choke Fuel at cylinder Clean/replace air filter...

  • Page 34: Storage

    Observe the piston location through the spark plug hole. Pull the recoil handle slowly until the piston reaches the top of its travel and leave it there. 8. Install the spark plug (do not connect ignition cable). 9. Install the sprocket guard on the guide bar and saw chain during storage. X7502308206 ©7/2015 ECHO Inc.

  • Page 35: Specifications

    Spark Plug NGK BPMR-8Y (Gap 0.65 mm (0.026 in.) Fuel Mixed (Gasoline and Two-stroke Oil) 50 : 1 Power Blend X or ECHO Red Armor ® ISO-L-EGD (ISO/CD 13738) and J.A.S.O. Fuel/Oil Ratio M345- FD, two-stroke, air-cooled engine oil. Use 89 Octane unleaded. Do not use fuel containing methyl alcohol, more than 10% ethyl Gasoline alcohol or 15% MTBE.

  • Page 36: Warranty Statements

    Any misuse from contact with concrete, rocks, or other structures is not covered by this warranty. • ECHO’s Rapid Loader String Head carries a lifetime warranty on the line locking system, parts only; no labor. Refer to your operator’s manual for string head installation and maintenance instructions.
  • Page 37 10% ethanol (grain alcohol) or 15% MTBE (methyl/tertiary/butyl/ether) is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual. engine speeds as listed in your operator’s manual.

  • Page 38: Notes

    NOTES PPF-225 NOTES X7502308206 ©7/2015 ECHO Inc.

  • Page 39: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product on-line. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Inc. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.

  • Page 40: Notes

    NOTES PPF-225 NOTES X7502308206 ©7/2015 ECHO Inc.
  • Page 41 PPF-225 NOTES X7502308206 ©7/2015 ECHO Inc.
  • Page 42 NOTES PPF-225 X7502308206 ©7/2015 ECHO Inc.
  • Page 43 PPF-225 NOTES X7502308206 ©7/2015 ECHO Inc.
  • Page 44 ECHO, INCORPORATED S63413001001/S63413999999 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
