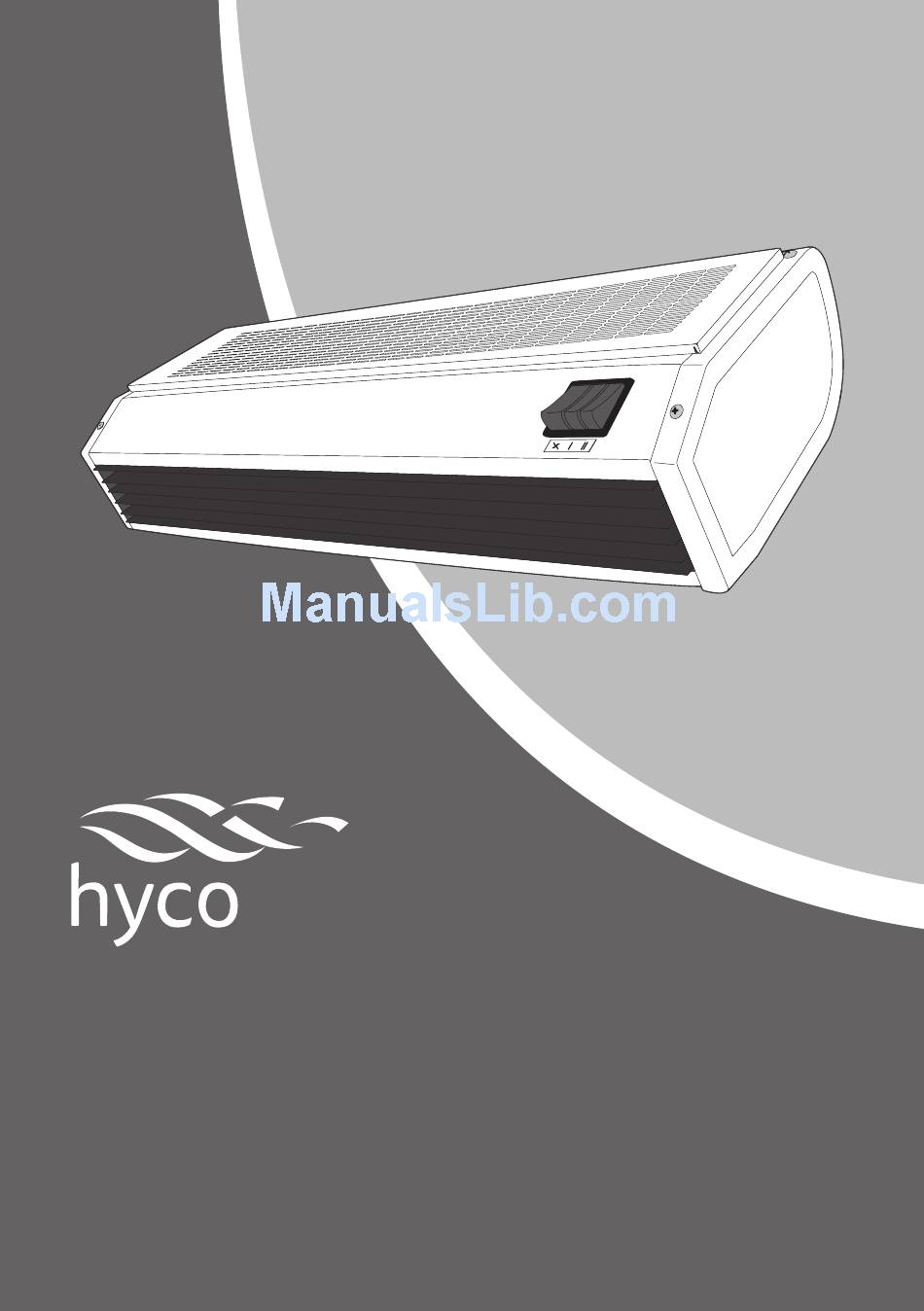

- Page 1 Maestro 3kW Air Curtain MAC3X Instruction Manual Version 1.0 September 2014...
- Page 2 LEFT WITH THE USER/MAINTAINER OF THE PRODUCT. Maestro 3kW Air Curtain MAC3X 1. INTRODUCTION Thank you for purchasing a Hyco Maestro air curtain heater.With its three heat settings, including fan only, the Maestro air curtain provides heating for all conditions throughout the year.
-
Page 3: Important Safety Points
2. IMPORTANT SAFETY POINTS THE APPLIANCE MUST ONLY BE CONNECTED TO A SINGLE PHASE SUPPLY. THE PRODUCT SHOULD ONLY BE CONNECTED TO A SUPPLY THAT MEETS THE SPECIFICATIONS DETAILED ON THE RATING LABEL. THE APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION... -
Page 4: Installation
3. INSTALLATION SELECT A SUITABLE SURFACE TO MOUNT THE HEATER ON. THE HEATER MUST NOT BE LOCATED IMMEDIATELY BELOW A SOCKET. THE HEATER MUST BE MOUNTED AT LEAST 1 METRE AWAY FROM ANY COMBUSTIBLE MATERIALS SUCH AS FURNITURE, CURTAINS, BEDDING ETC... WARNING:THIS HEATER IS NOT EQUIPPED WITH A DEVICE TO CONTROL THE ROOM TEMPERATURE. - Page 5 Loosen the bolts retaining the bracket inside the heater and remove the bracket from the heater completely. ENSURE THERE ARE NO HIDDEN CABLES OR PIPES BEFORE COMMENCEMENT OF DRILLING. Choose the final mounting position of the heater. Consider the orientation required for the heater to ensure it will adhere to all previous warnings.
- Page 6 Ensuring a horizontal level, offer up the bracket and mark the mounting holes onto the surface. Drill the marked holes and insert the wall plugs before screwing the bracket firmly to the surface (ensure the bracket is the correct way up as per the diagram). Offer up the heater to the bracket and locate the mounting bolts into the bracket lugs.Tighten the lugs enough to aid the orientation of the heater before tightening them firmly to prevent any future movement.
-
Page 7: Electrical Connection
4. ELECTRICAL CONNECTION ELECTRICAL INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH THE LATEST EDITION OF THE IEE WIRING REGULATIONS. IF THE HEATER IS TO BE CONNECTED TO THE FIXED WIRING OF THE PROPERTY THEN INSTALLATION MUST INCLUDE A DOUBLE POLE ISOLATING SWITCH WITH A BREAK CONTACT DISTANCE OF AT LEAST 3MM. -
Page 8: Operation
5. OPERATION Fan ON/OFF I Heating ON/OFF II Heating ON/OFF Settings Fan only = Fan ON, I OFF, II OFF Half power (1500W) = Fan ON, I ON, II OFF Half power (1500W) = Fan ON, I OFF, II ON Full power (3000W) = Fan ON, I ON,... -
Page 9: Cleaning And Maintenance
For technical faults contact Hyco on 01924 225200. -
Page 10: Specifications
8. SPECIFICATIONS MAC3X Supply 230V ~ 50Hz IP rating IPX0 Power 1500/3000W Sound level 60 decibels Airflow 254m Weight 5.2kg CEILING CEILING 205mm 105mm 580mm... - Page 11 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Defects arising from incorrect installation are excluded.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court, Express Way Castleford,WF10 5NR Sales: 01924 225 200...
