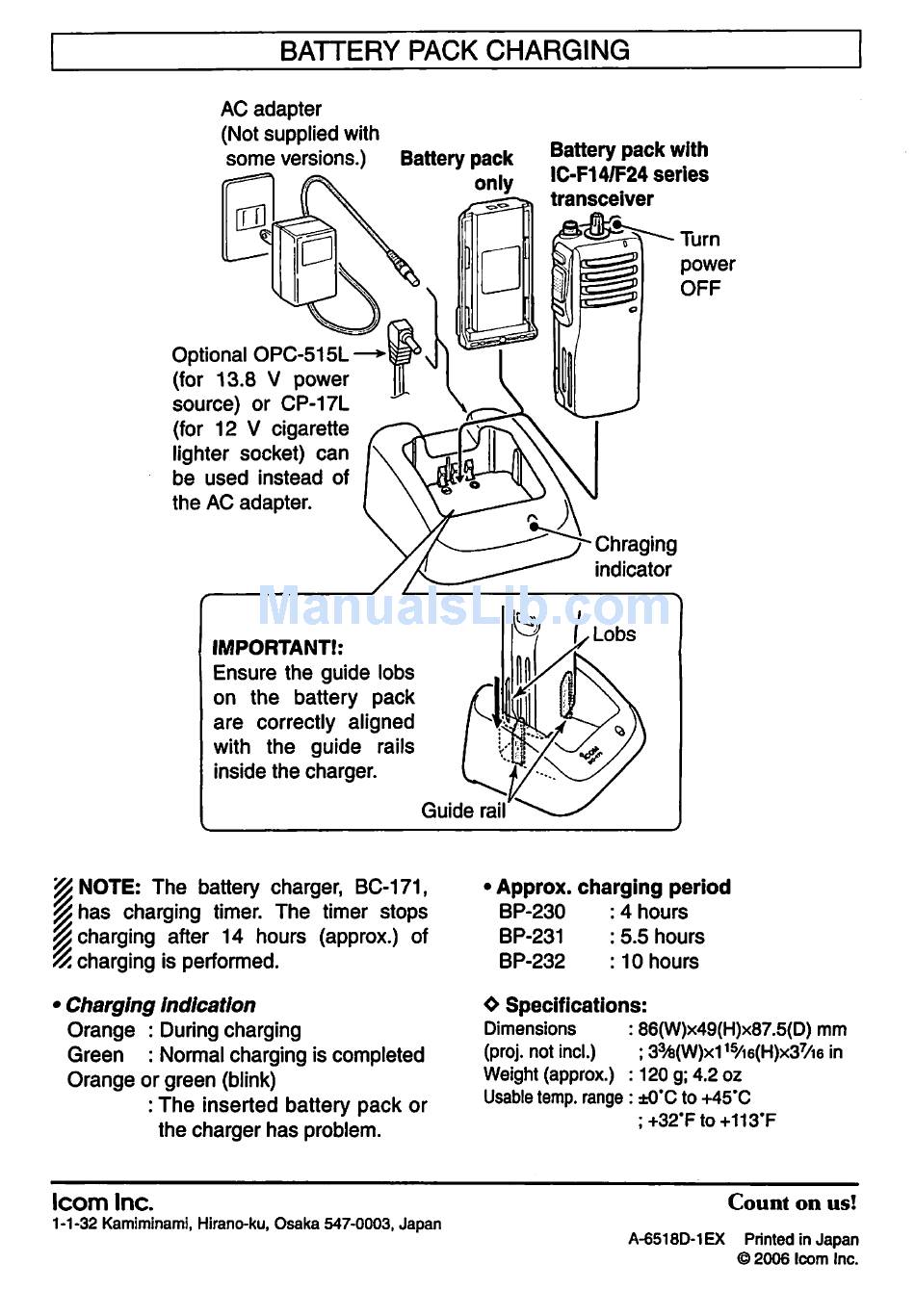

Icom BC-171 Instructions For Use page 2

BATTERY PACK CHARGING
AC adapter
(Not supplied with
some versions.)
Battery pack
only
Battery pack with
IC-F14/F24 series
transceiver
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
IMPORTANT!:
Ensure the guide lobs
on the battery pack
are correctly aligned
with the guide rails
inside the charger.
Guide rail
3* NOTE: The battery charger, BC-171,
^has charging timer. The timer stops
% charging after 14 hours (approx.) of
% charging is performed.
• Charging indication
Orange : During charging
Green : Normal charging is completed
Orange or green (blink)
: The inserted battery pack or
the charger has problem.
Icom Inc.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
• Approx. charging period
BP-230 :4 hours
BP-231 :5.5 hours
BP-232 :10 hours
O Specifications:
Dimensions : 86(W)x49(H)x87.5(D) mm
(proj. not incl.) ; 3%(W)x115/ie(H)x37/i6 in
Weight (approx.) : 120 g; 4.2 oz
Usabletemp, range : ±0'C to +45"C
;+32Tto+113T
