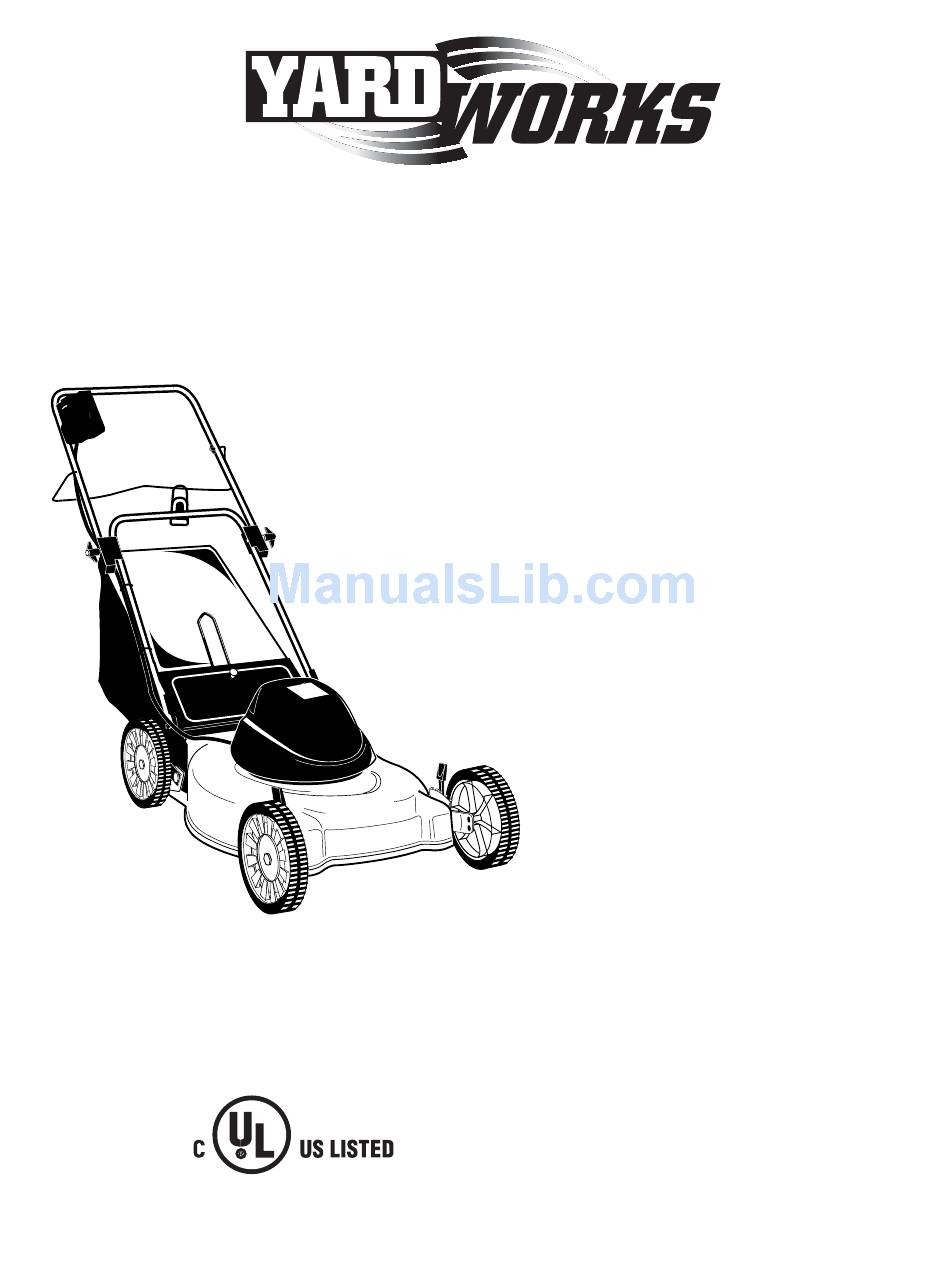

Page 1: Lawn Mower

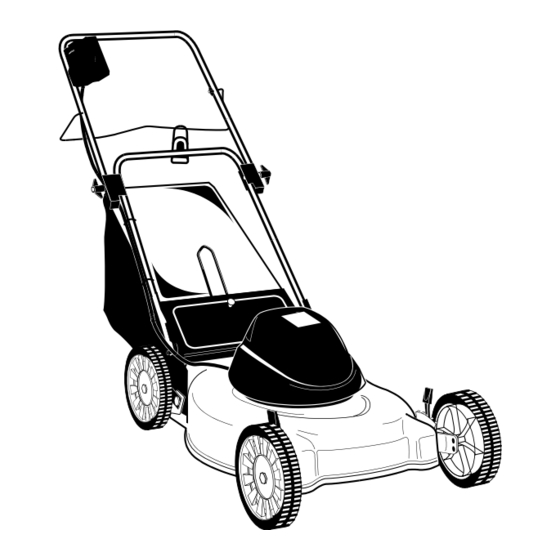

OPERATOR’S MANUAL 60-1769-2 19” Electric Lawn Mower IMPORTANT: Read safety rules and instructions carefully before operating equipment. This symbol on the product’s nameplate means it is listed by UNDERWRITERS LABORATORIES INC. YardWorks Canada, Toronto, Canada M4S 2B8 772C0755 (11/04) -
Page 2: Table Of Contents
TABLE OF CONTENTS Content Page Important Safe Operation Practices ..............3 Slope Gauge ....................6 Unpacking Instructions ..................7 Assembling Your Lawn Mower................7 Know Your Lawn Mower ..................9 Operating Your Lawn Mower ................10 Making Adjustments ..................12 Maintenance ...................... -
Page 3: Important Safe Operation Practices
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES READ ALL INSTRUCTIONS! WARNING: This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to oper- ate this machine. -
Page 4: Slope Operation
16. Home circuit – This mower should be operated on a 15 31. Only use parts and accessories made for this machine by AMP circuit. If you experience difficulty in starting with a the manufacturer. Failure to do so can result in personal standard 15 AMP fuse or circuit breaker, contact your injury. - Page 5 Service 10. Never tamper with safety devices. Check their proper operation regularly. When servicing use only identical replacement parts 11. After striking a foreign object, stop the motor and listed in this manual. “Use of parts which do not meet the disconnect the power cord.
-
Page 6: Slope Gauge
SECTION 2: SLOPE GAUGE Use this page as a guide to determine slopes where you may not operate safely. Do not operate your lawn mower on such slopes. -
Page 7: Unpacking Instructions
SECTION 3: UNPACKING INSTRUCTIONS Remove Unit From Carton Roll or slide the unit out of carton. Check the carton thoroughly for loose parts. NOTE: Reference to the right or left hand side of the REMOVE MANUAL & LOOSE PARTS mower is observed from the operating position. •... -
Page 8: Attaching The Grass Catcher
1. Slide front frame 2. Place frame into rear frame Hand Knob Insulator inside bag Rear Frame Upper Handle Lower Hook Handle Hook (Align marks here) Front Frame Figure 4 4. Slip plastic channel 3. Slip handle out of notch over frame •... -
Page 9: Know Your Lawn Mower
• Place the hooks of the grass catcher into the slots Grass Catcher Bag Rear Discharge Door in the handle bracket assembly on each side of the lower handle as shown in Figure 8. Release the rear discharge door. To remove the grass catcher, lift the rear discharge door on the mower. -
Page 10: Operating Your Lawn Mower
Cord Restraint Height Adjustment Lever The cord restraint is located on the back of the upper A height adjustment lever at each wheel provides handle and when used properly, helps to protect the cutting height adjustment. Each adjuster has nine motor/blade control assembly and also the extension height positions. -
Page 11: Stopping The Motor And Blade
To engage the motor and blade, first be certain to follow T = Obstacles the previous steps for connecting a suitable extension cord, then referring to Figure 10: • Stand behind the unit and depress the locking button. • While holding the locking button down, pull the blade/motor control lever and hold it against the upper handle. -
Page 12: Making Adjustments
SECTION 7: MAKING ADJUSTMENTS Cutting Height Adjustment Handle Height Adjustment • The upper handle may be adjusted to three different height positions. To adjust the handle to the desired position, align one of the three marks on the top of the lower handle insulators with the Cutting Height mark on the upper handle insulators. -
Page 13: Mower Deck
• Reinstall the blade as described earlier in this Motor Shaft section making certain to torque the cutting blade to specifications. Cutting Blade 1. Insert screwdriver through hole Locking Plate Blade Bolt 2. Balanced blade will be parallel to ground Screwdriver Blade Figure 13... -
Page 14: Off-Season Storage
SECTION 9: OFF-SEASON STORAGE The following steps should be taken to prepare the lawn • Store mower indoors, in a cool, dry place, out of mower for storage. reach of children. Do not cover lawn mower with a solid plastic sheet. Any plastic covering traps •... -
Page 15: Troubleshooting
SECTION 10: TROUBLE SHOOTING GUIDE Trouble Possible Cause(s) Corrective Action Handle not in position. Carriage bolts not seated in the handle Adjust the height of the handle and make sure that insulators. the carriage bolts are seated properly into the handle insulators. -
Page 16: Parts List
SECTION 11: PARTS LIST/LISTE DES PIÈCES... - Page 17 PART N° DE N° DE RÉF PIÈCE DE SCRIP TION DE SCRIP TION 782-0054B-0638 19" Deck Corps 19 po 731-2425 Motor Support Support du moteur 710-1756 Screw 724-0309 Electric Motor 115V, 1500W Moteur électrique 115V, 1500W 710-1756 Screw 731-2400 Air Guide Cover Couvercle-guide d’air 731-2383-0637 Hood...
-
Page 18: Warranty
SECTION 12: YARDWORKS 4 YEAR LIMITED WARRANTY For FOUR YEARS from the date of retail purchase within Canada, YARDWORKS CANADA will, at its option, repair or replace, for the original purchaser, free or charge, any part or parts found to be defective in material or workmanship. -
Page 19: Safety And Decorative Labels
SECTION 13: SAFETY AND DECORATIVE LABELS / ÉTIQUETTES...
