Yard Works 060-1776-4 Instruction Manual

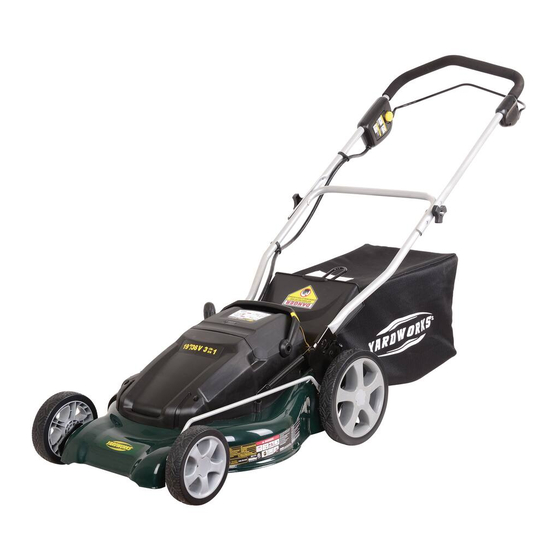

Cordless lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

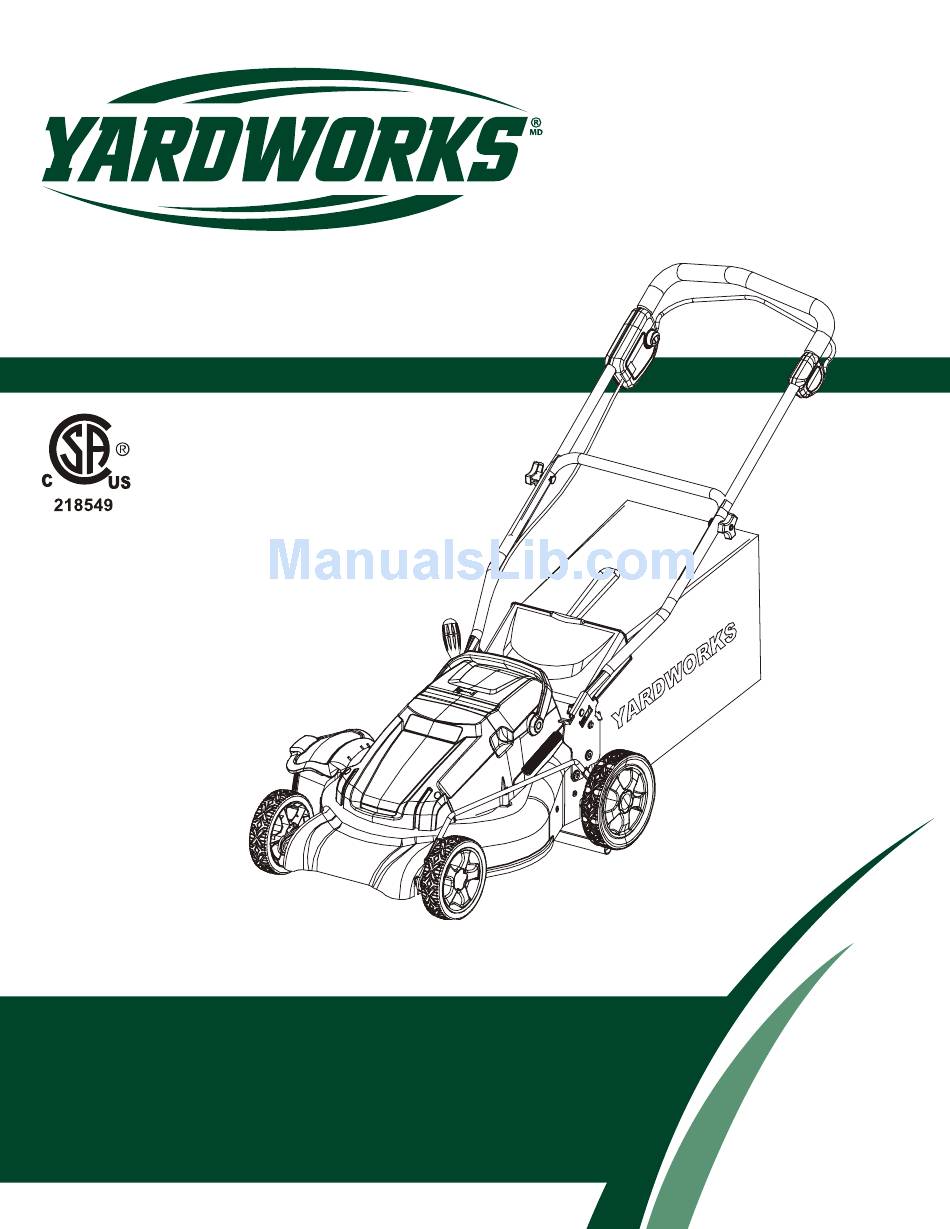

Cordless Lawn Mower
model no. 060-1776-4
Toll-free: 1-866-523-5218
IMPORTANT:
IMPORTANT:
Read and follow all safety rules and operating instructions
Read and follow all safety rules and
before using this product.
operating instructions before using
this product.
Instruction
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 060-1776-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Yard Works 060-1776-4

Summary of Contents for Yard Works 060-1776-4

  • Page 1 Cordless Lawn Mower model no. 060-1776-4 Toll-free: 1-866-523-5218 IMPORTANT: IMPORTANT: Read and follow all safety rules and operating instructions Read and follow all safety rules and before using this product. operating instructions before using this product. Instruction Manual...
  • Page 2 060-1776-4 | contact us: 1.866.523.5218 SPECIFICATIONS KNOW YOUR MOWER EXPLODED VIEW PARTS LIST ASSEMBLY OPERATION MAINTENANCE TROUBLESHOOTING SYMBOLS BATTERY & CHARGER SAFETY INFORMATION WARRANTY Battery type: 36 V, 10 Ah sealed lead-acid Charger time: 10-13 hours No-load speed:...

  • Page 3: Know Your Mower

    060-1776-4 | contact us: 1.866.523.5218 1. Power lever 2. Upper handle 3. Grass catcher bag 4. Rear chute cover 5. Wheel 6. Safety lock-out button 7. Lower handle 8. Height adjustment lever 9. Battery 10. Side discharge cover 11.
  • Page 4 060-1776-4 | contact us: 1.866.523.5218 13 14 27.1 27.4 27.2 27.3 30 31...
  • Page 5 060-1776-4 | contact us: 1.866.523.5218 Item Description Drawing Upper handle assy. 31102496 Knob 3410835-4 Lower handle 33301467-1 Bolt 3220436-1 Cord guide 34135469 Retaining ring 32901131 Battery, 36 V 10 Ah 31101496 M5×15 screw 3220435 Motor cover 34102496 31201470-1...
  • Page 6 060-1776-4 | contact us: 1.866.523.5218 Item Description Drawing M5 lock nut 3220439 M5×12 screw 32206250 M10×1.25 nut 3221037 Spacer 3331435 Blade insulator 3410535 19” Blade 33301487 Blade holder 34117470 Spindle bushing 3320238 Rear baffle 34102238-1 ST6.3×16-F screw 32205234 ST6.3×12-F screw...
  • Page 7 060-1776-4 | contact us: 1.866.523.5218 UNFOLDING AND ADJUSTING HANDLE 1. Fully loosen the handle knobs on both sides of the handle. 2. Pull up and back on the upper handle to raise the handle into operating position. Make certain the lower handles snap into place securely.

  • Page 8: Installing The Grass Catcher Bag

    060-1776-4 | contact us: 1.866.523.5218 INSTALLING THE GRASS CATCHER BAG 1. Lift the rear discharge door (1). 2. Lift the grass catcher by its handle (2) and place under the rear door so that the hooks (3) on the grass catcher frame are seated into the slots (4) in the handle bracket.

  • Page 9: Installing Side Discharge Chute

    060-1776-4 | contact us: 1.866.523.5218 INSTALLING SIDE DISCHARGE CHUTE 1. Lift the side discharge cover (1). 2. Align the grooves on the discharge chute (2) with the pins on the underside of the discharge cover (1). 3. Lower the discharge chute (2) until the hooks on the mower deck are secured in the openings in the discharge chute (2).

  • Page 10: Installing The Mulching Plug

    060-1776-4 | contact us: 1.866.523.5218 INSTALLING THE MULCHING PLUG 1. To remove the mulching plug, lift the chute cover (1). 2. Grasp the handle (2) of the mulching plug and pull the mulching plug out using the handle.

  • Page 11: Starting/Stopping The Mower

    060-1776-4 | contact us: 1.866.523.5218 STARTING/STOPPING THE MOWER 1. Insert the isolator key (1) into the slot on the motor/shroud assembly. 2. Press and hold the start button (2). Pull the power lever (3) toward the handle and release the button to start the mower.

  • Page 12: Cutting Height Adjustment

    060-1776-4 | contact us: 1.866.523.5218 CUTTING HEIGHT ADJUSTMENT When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be approximately 1 1/2 to 2”...
  • Page 13 060-1776-4 | contact us: 1.866.523.5218 ADJUST THE UPPER HANDLE HEIGHT 1. Loosen the upper handle knob (1). 2. Adjust the upper handle to the most comfortable of the 3 positions. 3. Snug the upper handle knob to secure.

  • Page 14: Emptying The Grass Catcher Bag

    060-1776-4 | contact us: 1.866.523.5218 EMPTYING THE GRASS CATCHER BAG 1. Stop mower, allow blades to completely stop, and remove key. 2. Lift the rear chute cover. 3. Lift the grass catcher bag by its handle to remove from mower.

  • Page 15: Slope Operation

    060-1776-4 | contact us: 1.866.523.5218 SLOPE OPERATION • Slopes are a major factor related to slip and fall accidents that can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. For your safety, do not attempt to mow slopes greater than 15 •...

  • Page 16: Mowing Tips

    060-1776-4 | contact us: 1.866.523.5218 MOWING TIPS • Verify that the lawn is free of stones, sticks, wires, and other objects that could damage the blades or the motor. These objects could be accidentally thrown by the mower in any direction, and could cause serious personal injury to the operator and to others.

  • Page 17: Replacing The Cutting Blade

    060-1776-4 | contact us: 1.866.523.5218 REPLACING THE CUTTING BLADE Use only a YARDWORKS replacement blade. 1. REMOVE BATTERY. 2. While wearing leather padded gloves, wedge a block of wood between the blade and the mower deck in order to prevent the blade from turning when the nut is being removed.

  • Page 18: Replacing The Battery

    060-1776-4 | contact us: 1.866.523.5218 REPLACING THE BATTERY The mower battery is designed for maximum life; however, like all batteries, it will eventually need to be replaced. Charge the new battery pack before use. See Battery & Charger section of this manual.

  • Page 19: Storing The Mower

    060-1776-4 | contact us: 1.866.523.5218 STORING THE MOWER The following steps should be taken in order to prepare the lawn mower for storage. 1. Clean the mower as described in the previous section. 2. Inspect the blade, and replace it or sharpen it, if required (refer to the Maintenance section).
  • Page 20 060-1776-4 | contact us: 1.866.523.5218 SERVICE • When servicing the mower, use only replacement parts that are available from the manufacturer. In order to obtain replacement parts, call the toll-free helpline, at 1-866-523-5218. The use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety.
  • Page 21 060-1776-4 | contact us: 1.866.523.5218 PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. The switch is defective. Replace the switch (call the toll free helpline, at 1-866-523-5218 Grass jammed at blade. Remove battery; check under deck for jams.

  • Page 22: Environmental Protection

    060-1776-4 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
  • Page 23 060-1776-4 | contact us: 1.866.523.5218 The lawn mower comes with a maintenance-free, spill-proof, sealed 36 V battery pack. • The battery charger is only for use indoors, it must not be used in wet or damp environments. Do not operate the charger near petrol/gasoline or other explosive gases or vapours.

  • Page 24: Charging The Battery Pack

    060-1776-4 | contact us: 1.866.523.5218 CHARGING THE BATTERY PACK • Make sure the power supply is normal household voltage, 120 V, 60 Hz, AC only. • Remove the isolator key and store in separate location out of reach of children.
  • Page 25 060-1776-4 | contact us: 1.866.523.5218 Since the mower battery is shipped in a low charge condition, the battery must be charged before use. The battery has four LED lights to indicate battery capacity. These lights will illuminate when the button is pressed.

  • Page 26: General Safety Rules

    060-1776-4 | contact us: 1.866.523.5218 GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY • Carefully read all instructions on the mower and in the manual before attempting to assemble and operate the mower. Keep this manual in a safe place for future reference, and consult it regularly.
  • Page 27 060-1776-4 | contact us: 1.866.523.5218 • Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) that will be used to charge the lawn mower battery. Outlets with built-in GFCI protection are available, and may be used as an added safety measure.

  • Page 28: Child Safety

    060-1776-4 | contact us: 1.866.523.5218 CHILD SAFETY Tragic accidents can occur if the operator is not aware of the presence of children. • Keep children out of the mowing area and under the watchful care of a responsible adult.

  • Page 29: Safety Rules For Charger

    060-1776-4 | contact us: 1.866.523.5218 • If electrolyte contacts the skin, wash it off immediately with water. • If electrolyte contacts the eyes, flush thoroughly and immediately with water. Seek medical attention. • In case of damage and improper use of the battery, vapour may be emitted. Provide for fresh air and seek medical help in case of complaints.
  • Page 30 060-1776-4 | contact us: 1.866.523.5218 • An extension cord should not be used for the charger unless absolutely necessary. Use of improper extension cord could result in a risk of fire or electric shock. If extension cord must be used, make sure: •...

  • Page 31: Year Limited Warranty

    060-1776-4 | contact us: 1.866.523.5218 2-YEAR LIMITED WARRANTY Transportation Charges: Transportation charges for the movement of any power equipment unit or For TWO YEARS from the date of purchase within attachment are the responsibility of the purchaser. Canada, YARDWORKS® CANADA will, at its...
  • Page 32 Made in China. Imported by YardWorks Canada Toronto, Canada M4S 2B8...
