Wildfire Long-Throw LT-400(F)(WS)(S)12 Operation Manual
  1. Manuals
  2. Brands
  3. Wildfire Manuals
  4. Lighting Equipment
  5. Long-Throw LT-400(F)(WS)(S)12
  6. Operation manual

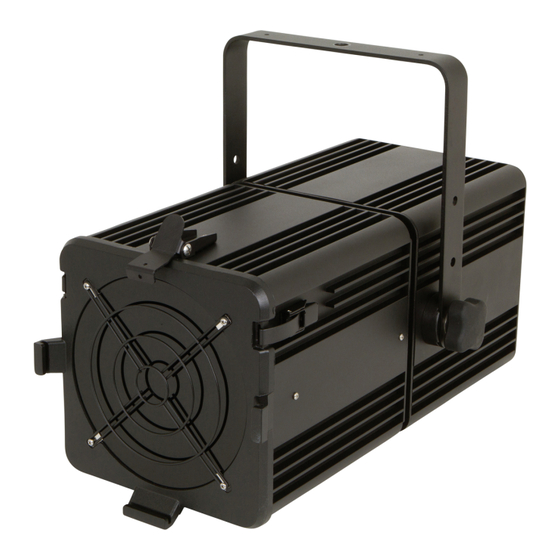

Wildfire Long-Throw LT-400(F)(WS)(S)12 Operation Manual

Lighting series high intensity uv-a lighting fixture
Hide thumbs
Table of Contents

Advertisement

Quick Links

LT-400(F)(WS)(S)12
LT-400(F)(WS)(S)22
LT-400(F)(WS)(S)32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Long-Throw LT-400(F)(WS)(S)12 and is the answer not in the manual?

Questions and answers

Related Manuals for Wildfire Long-Throw LT-400(F)(WS)(S)12

Summary of Contents for Wildfire Long-Throw LT-400(F)(WS)(S)12

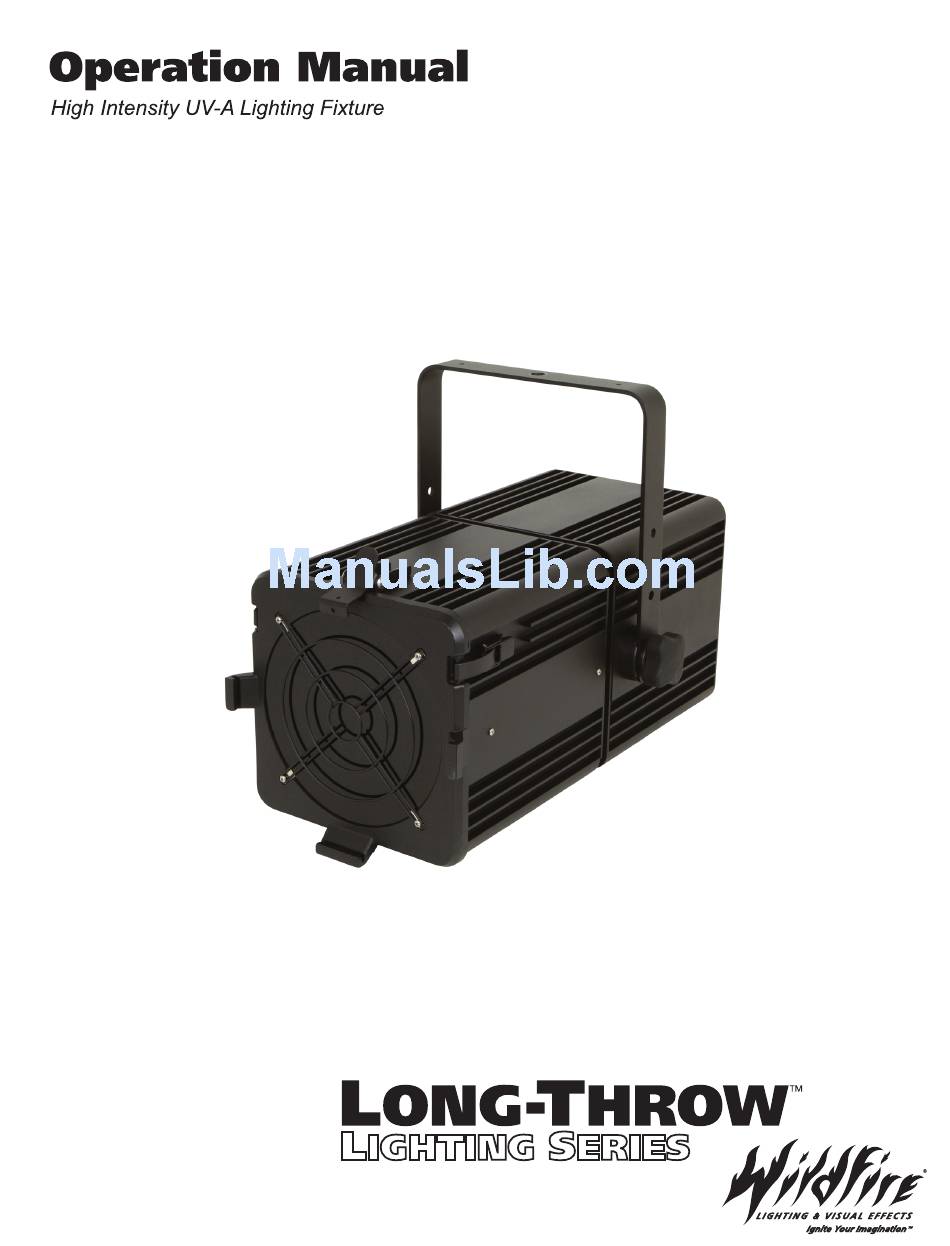

  • Page 1 LT-400(F)(WS)(S)12 LT-400(F)(WS)(S)22 LT-400(F)(WS)(S)32...

  • Page 2: Table Of Contents

    Table of Contents Introduction Safety Statements Specifications Setup & Operation Unpacking Optional Accessories Installation Operation DMX Address Mode Lamp Timer Mode DMX Data Mode Dark Mode Changing Reflectors Maintenance & Troubleshooting Lamp Replacement Cleaning Troubleshooting Diagrams Isometric & Line Views Exploded View Part List Schematic...

  • Page 3: Introduction

    Long-Throw Series line. Its powerful throw, quiet operation and smooth even light distribution, has made the Wildfire 400 Series the world’s best selling UV lighting fixture. Features include advanced interchangeable reflectors, smart electronic ballasting and state-of-the-art digital DMX control with four user selectable modes for easy integration with intelligent lighting systems.

  • Page 4: Specifications

    Automatic Hot Re-strike Prevention Circuit Protection: 100 or 120V Models: 7 Amp Magnetic Over-current Breaker Switch 200-240V Models: 5 Amp Magnetic Over-current Breaker Switch Lamp: ® Wildfire IronArc 400-Watt Metal Halide Model LMP-400D (1000 Hr. Rated) Beam: LT-400F 90° LT-400WS 50°...

  • Page 5: Setup & Operation

    Setup & Operation Unpacking Unpack the fixture and carefully inspect for any signs of physical damage. Report any damage to Wildfire or your local distributor immediately. Included with each unit should be the following items: 1. Pipe mounting clamp, designed to attach the fixture to a 11/2” to 2” pipe truss 2.

  • Page 6: Dmx Address Mode

    DMX Address Mode Select the DMX address mode by pressing the select button until the yellow DMX Address LED is lit. The display will read the last DMX address selected. Set the desired DMX address (001 to 512) by pressing the up or down buttons.

  • Page 7: Maintenance & Troubleshooting

    Wildfire technical support at (310) 755-6780 or your local distributor. The effect is not working anymore: – Try changing the lamp. The lamp in your Wildfire fixture is rated at 1000 hours. This does not necessarily mean that the lamp will “burn out” or not light after 1000 hours. It may continue to burn for much longer period of time;...

  • Page 8: Diagrams

    Isometric & Line Views 18.62" 15.62" 9.37" 10.37" 9.5" 12.75" 13.00" 20.37" 20.87"...

  • Page 9: Exploded View

    Exploded View 6 or...

  • Page 10: Part List

    Part List QTY. PART # PART NAME QTY. PART # PART NAME 102-005-01 Housing, Ballast, LT-400F 147-002 Cable, Safety, 1/8" 102-006-05 Housing, Lamp, LT-400 Series 2 121-060 Washer, Flat, 1.25" OD, 13/32 ID, .13 Thk, 18-8 SS 104-044-03 Control Plate, Rear, LT-400 103-002-07 Lens Door, 8"...

  • Page 11: Schematic

    Schematic, LT-400(F)(WS)(S) Series II POWER SWITCH / CIRCUIT BREAKER SAFETY SWITCH BLACK 100-240V WHITE GREEN 24VDC GRND POWER SUPPLY POWER CONTROL BOARD GREEN WHITE CONTROL BLACK DMX IN DMX OUT DMX CONTROL BOARD BLUE WHITE 400W ELECTRONIC BALLAST LAMP 200-277VAC 50-60Hz 400W WHITE SELECT DOWN...

  • Page 12: Spectral Transmission Graph

    Spectral Transmission Graph UV-B UV-A VISIBLE LIGHT INFRARED WAVELENGTH /NM Photometrics Chart LT-400F Photometrics Chart ° 90 Flood Distance in Feet Meters Beam Diameter Feet Beam Diameter Meters 3.05 6.10 12.19 18.29 24.38 30.48 36.57 42.67 48.77 54.86 60.96 67.05 73.15 Peak UV-A Intensity W/cm 570.0...

  • Page 13: Limited Warranty

    Limited Warranty Wildfire, Inc. warrants to the original owner or retail customer, that for a period of three years from the date of delivery of any Wildfire Fixture; whether used in a portable or permanent installation, such fixtures will be free from defects in material and workmanship under normal use and conditions.
  • Page 14 310-755-6780 800-937-8065 Fax: 310-755-6781 www.wildfirefx.com mail@wildfirefx.com Wildfire and its symbol are registered trademarks of Wildfire, Inc. Torrance, CA IronArc and its symbol are registered trademarks of Wildfire, Inc. Torrance, CA Ignite Your Imagination is a registered trademark of Wildfire, Inc. Torrance, CA 2004 - 2009 Wildfire, Inc.
