DVR Installation & User's Guide
BL-1680A / BL-32960M
(v 1.4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL-32960M and is the answer not in the manual?

Questions and answers

Related Manuals for Blunet BL-32960M

Summary of Contents for Blunet BL-32960M

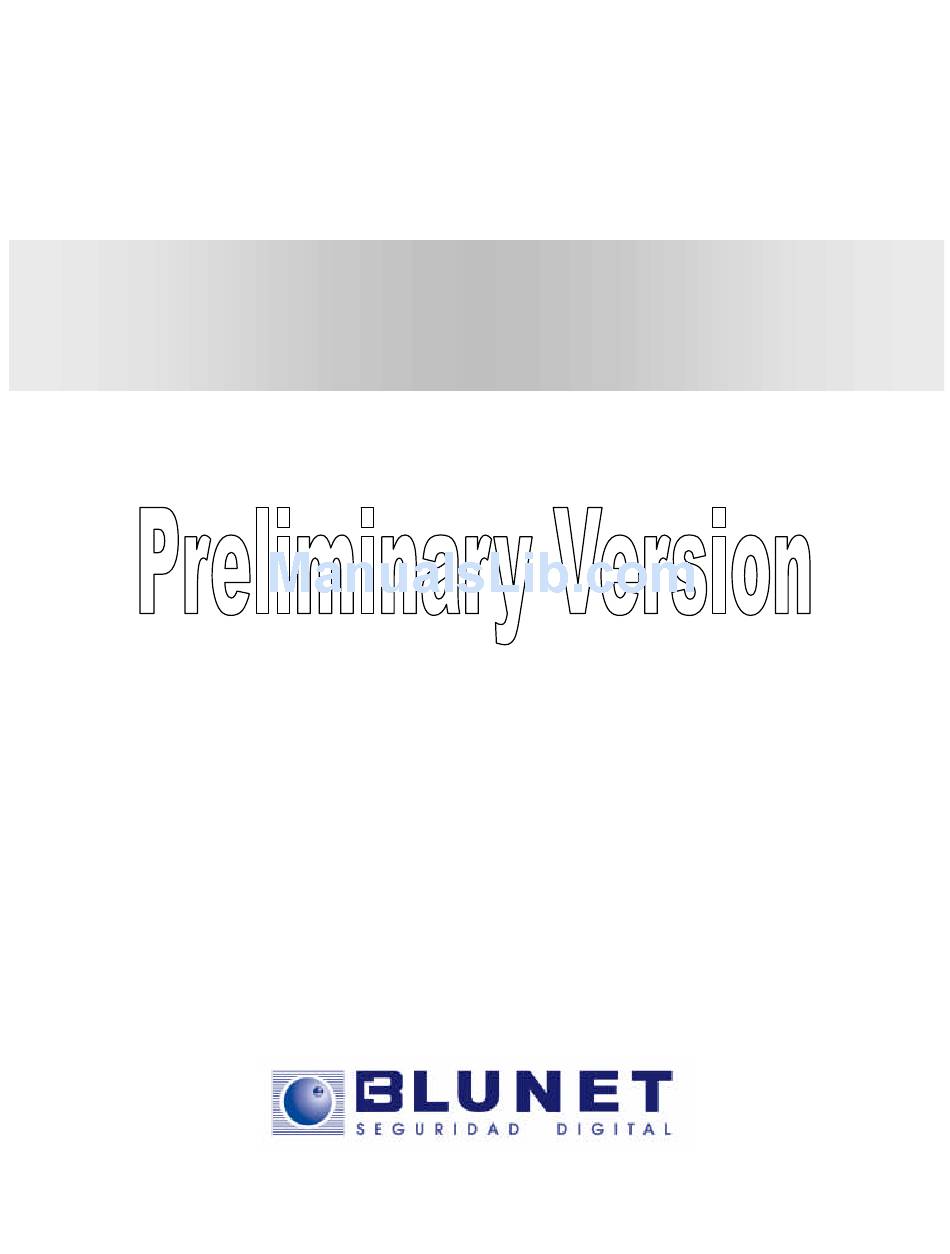

  • Page 1 DVR Installation & User’s Guide BL-1680A / BL-32960M (v 1.4)

  • Page 2: Fcc Compliance Statement

    Caution Since this device is operation purpose and registered as suitable electromagnetic waves, seller or user should be cautios on this point. If the device is sold or purchased wrongly, it is required to replace as Home use. FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 3: Important Notice

    When installing product, be cautious to locate on safe places where children are unreachable. 6. If Product does not operate properly, please contact the closest BLUNET distributor for after sales service. Tampering or disassembling the product will void the warranty.

  • Page 4: Table Of Contents

    Contents Installation Guide ........................11 Overview ............................. 11 Introduction ........................11 Supplied accessories ......................14 Description & Function ......................15 Installation and Connection ......................17 Connecting & Running......................17 4.1. Connecting camera .......................17 4.2. Connecting monitor ......................17 4.3. Connecting Audio......................18 4.4. Supplying power ......................18 Running OSD menu......................20 5.1.
  • Page 5 8.2.5. Date ........................28 Time ........................28 8.2.6. 8.2.7. Apply Date/Time....................28 8.3. Setting recording condition ...................29 Configuration Status ....................29 8.3.1. Recording Speed/Quality ..................30 8.3.2. Speed(ips) ......................30 8.3.3. 8.3.4. Quality .........................30 8.3.5. Audio Recording....................30 8.3.6. Alarm Recording....................30 8.3.7. Apply........................30 Connecting and configuring DIO ports ..................31 9.1.
  • Page 6 11.1. Connecting Ethernet....................47 11.2. Configuring Network infomraiton of eDVR ..............48 Using Control Center Lite ....................49 12.1. Starting ........................49 PC system requirements for running Control Center Lite ..........49 12.1.1. 12.2. Installing Control Center Lite..................49 12.3. Log-In ........................50 12.4. Configuration Tool....................51 12.5. Monitor........................51 12.6.
  • Page 7 14.10. Relay control ......................63 14.11. Screen Lock control ....................63 14.12. Utilizing Quad monitor .....................64 MD1600H Monitoring ..................64 14.12.1. 14.12.2. MD1600H Monitoring & Playback ..............65 14.12.3. MD1600M Monitoring ..................65 14.12.4. MD1600M Monitoring & Playback..............66 MD3200M Monitoring ..................67 14.12.5. 14.12.6. MD3200M Monitoring & Playback..............68 Playback .........................69 15.1.
  • Page 8 16.4.2. Time Schedule Setup ................... 118 Special Time....................... 118 16.4.3. 16.4.4. Security Setup..................... 119 16.4.5. Disk Setup......................122 Network Setup ....................123 16.4.6. Serial Setup ......................128 16.4.7. Status Overview ....................128 16.4.8. 16.4.9. Miscellaneous .....................130 16.5. Disk Manager (Utility) ....................132 16.5.1. Disk Manager .....................132 USB Utility ......................134 16.5.2.
  • Page 9 17.4.8. Searching Calander .....................155 Functional function at the buttom of monitor ............155 17.4.9. Control Center Lite-D Configuration Tools ..............157 18.1. Log in Configuration Tool ..................157 18.2. Interface.........................158 18.2.1. Site Tree......................158 Menu .........................158 18.2.2. 18.2.3. Configuration page....................159 18.3. Setting DVR......................159 18.3.1. System Setting ....................159 18.3.2.
  • Page 10 19.1.3. Setup in Alarm Rec .....................189 Setup in Recording ....................190 19.1.4. 19.2. Using Keyboard......................191 19.2.1. Setup in COM1 menu of Serial Setup..............191 Setup in PTZ menu of Serial Setup ...............191 19.2.2. 19.3. Using PTZ ......................192 19.3.1. Serial Setup at COM port..................192 19.3.2.

  • Page 11: Installation Guide

    Installation Guide Overview 1. Introduction eDVR Series is DVR(Digital Video Recorder) that can record analog video channel, Audio, text data, alarm info. etc in regard to all channel simultaneously. Also using MPEG-4 algorithm increases the quality and video file size innovatively. Quick Setup menu in eDVR Series makes possible to direct recording by only connection between Power &...

  • Page 12: Main Features

    Main features - It supports 16ch (32ch) video - Supports 4 ch bi-directional audio - Supports recording, playback, network recording, network playback simultaneously (Pentaplex) - Recording speed D1, 480(MD1600H) ips Half, 480(MD1600M) ips Half, 960(MD3200M) ips - Real-time display speed Max.
  • Page 13 <Note> It supports only DVD backup. CD backup will be supported later. For the details, please contact to local distributor. <Note> Extension through NVS04, IEEE 1394b will be supported later. For the details, please contact to local distributor.

  • Page 14: Supplied Accessories

    2. Supplied accessories Unpack and check all the items as below; 1. eDVR (1EA) 2. AC Power Cord (1EA) 3. CD (Including Software) (1EA) 4. Remote Controller (1EA) 5. RACK FIXING KIT (1SET) 6. R-HDD screw (8EA) <Note> Attention for the system without HDD installed In case of system without HDD, HDD only can only be installed in R-HDD(Removable Hard disk rack).

  • Page 15: Description & Function

    3. Description & Function front (1) Power switch (2) Function buttons (3) LED (4) USB port (5) Remote controller receiver (6) CD/DVD-RW ROM (7),(8) Built-in Hard Disk Rack...
  • Page 16 rear (9) AC power connector (10) BNC connector for video input (11) BNC connector for video output(MD1600H,MD1600M)/BNC connector for video input(MD3200M) (12) Terminal block for sensor, relay, and serial input/output (13) RS232 connector (14) VGA connector (15) IEEE1394 connector (16) eSATA connector (17) Network Storage connector(RJ45) (18) GND (19) Ethernet connector...

  • Page 17: Installation And Connection

    Installation and Connection 4. Connecting & Running 4.1. Connecting camera (1) Connect CCTV camera to eDVR with BNC cable as below. <Note> The video type for all channels should be either NTSC or PAL, not be combined both. eDVR sets video signal’s impedance (75O) automatically. Impedance is set as 75O basically.

  • Page 18: Connecting Audio

    <Note> eDVR’s monitor output divided into Video Out 1~4(H1600L, H3200M) / 1~2(H1600M), and connect to Video Out 1 for the use of 1 monitor only 4.3. Connecting Audio (1) Connect auto signal to eDVR with using RCA cable. 4.4. Supplying power (1) Connect power cable as shown below...
  • Page 19 <Note> When supplying power, eDVR starts booting automatically. 2. In order to cut off power, press the power switch on eDVR front during 4 seconds and enter admin password after appearing a pop window. 3. For supplying again, push the power switch.

  • Page 20: Running Osd Menu

    5. Running OSD menu 5.1. Using menu Press the [MENU] in keypad of front to open the OSD Configuration Menu ? Main Menu ? Sub-menu ? Setting Page (1) Main Menu : The selected tab is shown in blue and the related sub-menu will be shown below the tab.
  • Page 21 (1) Entering words Move pressing [?] arrow button to enter next word until the word is looking for is shown using [? /? ] arrow buttons. In case of spacing words, press [?] to move one space and enter the word. To exit the Dialogue box, press the [?] arrow button.

  • Page 22: Setting Remote Controller

    6. Setting remote controller When controlling several eDVRs with one remote controller, set Remote Contorl ID as follows. 6.1. Setting ID of eDVR (1) Press the [MENU] button (2) Select “System” with using [?] button and press the [?] or [? ] button (3) Select “Miscelleaneous”...

  • Page 23: Selecting Edvr

    6.2. Selecting eDVR If several eDVRs are set with unique ID numbers, they can be controlled with one remote controller. To select a specific eDVR, Keep pressing the ID button of remote controller until a buzzer sounds during 2 seconds. <Note>...

  • Page 24: Edvr Configuration

    7. eDVR configuration 7.1. Basic configuration 7.2. Advanced configuration...

  • Page 25: External Storage & Back Up Configuration

    7.3. External storage & Back up configuration 7.4. Internet/ Intranet configuration...

  • Page 26: Edvr Basic Setting

    8. eDVR basic setting 8.1. Viewing Image When power is on, eDVR starts automatically and images are displayed in basic 16ch-split screen after the booting. <Note> If user password is set, a prompt for entering the password will appear. Facotry default is reserved as not responding key pad on eDVR front (It is not set from factory default)

  • Page 27: Setting Date & Time

    8.2. Setting Date & Time (1) Press [MENU] button and select “Quick Setup” tab. (2) Select “Date/Time” using the [?] or [? ] and press [EXIT] button. 8.2.1. Time Zone (1) Select “Time Zone” using the [?/?] or [? /? ] buton and press [?] to configure. (2) Select Time Zone using the [?/?] button and press [EXIT].

  • Page 28: Time Format

    8.2.4. Time Format (1) Select “Time Format” using the [?/?] or [? /? ] button and press [?] button.. (2) Two time formats are available; ‘DD/MM/YYYY,’ ‘MM/DD/YYYY’, ‘YYYY/MM/DD’; Select a value using [? /? ] buttons and press the [EXIT] button when it is finished. (Factory default is set as ‘MM/DD/YYYY’) 8.2.5.

  • Page 29: Setting Recording Condition

    8.3. Setting recording condition Recording conditions under the “Quick Setup” menu tab apply the same values to all analog channels 1~16(32). All settings are applied for 24 hours/ day regardless of the value set for “Time Schedule” or “Alarm Rec.” (1) Press [MENU] button and select “Quick Setup”...

  • Page 30: Recording Speed/Quality

    8.3.2. Recording Speed/Quality (1) Select “Recording Speed/ Quality using [? /? ] buttons and press [?]. (2) Select a value using the[?/?] button. Press the [EXIT] button when it is finished. <Note> Recording Speed/Quality means Low : Speed=7.5(6)ips and Quality=Q3 and Resolution=CIF Standard.

  • Page 31: Connecting And Configuring Dio Ports

    9. Connecting and configuring DIO ports <Note> Wire Handling Trimming Wire When connecting a wire to a terminal block, follow the instructions below. Note the different types of wire that can be used. Standard Wire : Peel off the wiring, cover 8~10mm and solder it.

  • Page 32: Connecting Sensor Input

    Connect S1 ~ S16 with referring to the followings. It shows to connect a dry contact (Please refer to “<Note> Wire Handling” on page 27). When connecting a non-dry contact type of sensor (e.g. Open collector output) please contact BLUNET’s customer Support team.

  • Page 33: Configuring Sensor At Osd Menu

    9.1.3. Configuring sensor at OSD menu (1) Press the[Menu] button and select “Alarm Source”. (2) Press [?] or [? ] button to move to Sub-Menu, select “Sensor” and press [?]. 9.1.3.1. Global Use when selecting all 16 sensors simultaneously, which can be selected as “Do not use”(Off). “Normal Open”...

  • Page 34: Connecting & Configuring Relay Out

    <Note> Configuration a sensor is to set On/Off usage and type. Please refer to “Alarm Rec” for saving and “Alarm Act” for relay-out on the “eDVR User’s Guide” 9.2. Connecting & configuring relay out 9.2.1. Specifications In order to run relay output of eDVR normally, the following conditions are required. Output Ch.
  • Page 35 “<Note> Wire Handling” on page 27.

  • Page 36: Configuring Relay Out As Osd Menu

    9.2.3. Configuring relay out as OSD menu. Relay can run by sensor or MD and its condition can be set differently according to schedule. When using the [Relay] button + [Number] button on the front panel or Control Center Lite-D S/W, relay can be operated from remote site.

  • Page 37: Connecting Serial Port

    9.3. Connecting serial port 9.3.1. Configuring serial ports for Pan/Tilt/Zoom The eDVR have most major PTZ protocols already pre-programmed. Makes and models not supported can still be controlled using the Transparent Protocol. For a list of supported protocols, refer to the list on the OSD Configuration menu.

  • Page 38: Diagram Of Serial Ports

    9.3.2. Diagram of serial ports 9.3.2.1. Diagram of COM1(RS232) 9.3.2.2. Diagram of COM2/COM4 9.3.2.3. Diagram of COM3...

  • Page 39: Configuring Serial

    9.3.3. Configuring Serial Configure PTZ COM ports and available models at “System/ Serial Setup” in eDVR. After completing serial setup, configure base address or port for each channel at “ Camera menu” tab. When connecting PTZ devices to several cameras, be sure base address matches address for the camera.

  • Page 40: Connecting External Device With Serial Port

    9.4. Connecting external device with serial port 9.4.1. Connecting text inout device (ATM / POS / Access Control) The eDVR can record text data received from POS/ATM through the COM/RS232 serial port. Connect to COM1/RS232 (9Pin D-Sub) of eDVR and configure the “Serial Setup” sub-menu under the “System”...

  • Page 41: Configuring Serial Setup (Com1) At Osd Menu

    9.4.2. Configuring serial setup (COM1) at OSD menu (1) Set the “System” in OSD menu and move to “Serial Setup” menu. (2) Select COM in “Serial Setup”, set Devices as “Text”. (3) Set Baud Rate/ Parity/ Stop bit with referring to manual of the connected external device.

  • Page 42: Configuring Text

    9.4.3. Configuring text (1) Select the “Alarm Source” menu among OSD menus. (2) Select the “Text” and set each value. <Note> Before installing any external device, consult with the local BLUNET distributor. Some external devices may not be compatible with the eDVR.

  • Page 43: Connecting Usb Device

    9.5. Connecting USB device USB port can be used to copy up to 1 minute of images to a USB Flash memory disk. When connecting USB Device, do not exceed the rated values of USB device as below; USB Spec. Ver 1.1 (Max 12M bps) Available Device USB Memory Stick,...

  • Page 44: Connecting Video In/Output

    9.6. Connecting video in/output eDVR’s video in/output is composed of Loop Through. eDVR recognizes the connection status and video impedance automatically. For example, when eDVR is connected by only video input, the video impedance is set as 75O. And when video in/output is connected simultaneously, the video impedance is changed as Hi-z.

  • Page 45: Connecting External Storage

    <Note> Some IEEE 1394 Bay may not be recognized by the eDVR. Before purchasing consult the local BLUNET’s local distributor. 10.2. Connecting IEEE1394 Device When using FireWire supported external HDD, hard drive bays can be connected to 2 ports in the rear panel.

  • Page 46: Available Hdd

    10.3. Available HDD It is recommended to use following HDD models with the eDVR. If a non-recommended HDD is used, BLUNET Inc. will guarantee the warranty. 10.4. Registering & Formating HDD “Disk Manager” will automatically run on start-up installing a HDD as below;...

  • Page 47: Network Monitoring & Managing

    (9) Shut down “Disk Manager” by pressing [EXIT] button. 11. Network monitoring & managing eDVR can be accessed, controlled, and managed from remote site using PC via Internet/ Intranet, which is same way as local access for controlling & monitoring features. 11.1.

  • Page 48: Configuring Network Infomraiton Of Edvr

    11.2. Configuring Network infomraiton of eDVR The following description is based on Ethernet connection. For more detailed information on the Network setting page and way of using xDSL, please refer “eDVR USERS’ GUIDE”. (1) Press [MENU] button (2) Select “System” using the [?/?] buttons and press the [?] button. (3) Select “Network”...

  • Page 49: Using Control Center Lite

    12. Using Control Center Lite Control Center List is a eDVR Management Software and it makes eDVR installtion & setting more easier throguth a PC which is connected with eDVR in Network. All configuration could be handled in OSD menu of eDVR without a PC, however, Control Center Lite makes the complete setting more simply. 12.1.

  • Page 50: Log-In

    2> Click “I Agree” button to accept the license agreement 3> Select components which wish to install and press “Next” button. “WESP SDK” must be installed. 4>.Click the “Install” button after selecting a directory to be insatalled. 12.3. Log-In Enter User Name, Password and press “Ok” button. The factory default value : User Name:Administrator, Password:admin...

  • Page 51: Configuration Tool

    12.4. Configuration Tool Click the icon on the desk top to run “Control Center Lite Configuration Tool”. 12.5. Monitor * Max. 5 users could be connected simultaneously in one unit of eDVR. Click the icon on the desk top to run “Control Center Lite Monitor”.

  • Page 52: Playback

    12.6. Playback * Max. 2 user could be connected for playback in one unit of eDVR. Click the icon on the desk top to run “Control Center Lite Playback”.

  • Page 53: User's Guide

    User’s Guide 13. Description 13.1. Front Part (1) Status LED (2) Remote controller (3) Power switch receiver (4) USB Interface (5) Function buttons (6) Channel button (7) Menu & Directions (1) Status LED Power : It indicates Power input, and light on at Power in. Network : Indicates Ethernet &...
  • Page 54 (5) Function buttons COPY : Function to copy recorded images In single monitoring mode, press the button to activate COPY menu : Function to diplay all video connected sequentially Press more than 1 sec. to operate User Sequnce mode : Function to monitor multi video images in a screen((4/9/16 division channel) MULTI SELECT : Function to select video channel to control PTZ in Monitor model.

  • Page 55: Rear Part

    : To stop replaying STOP It converts to from single/multi mode to next channel or multi mode with suitable channel group. 13.2. Rear Part (1) Audi In/Out (4) Video input & (3) Power connector Video Loop back (7) FAN (6) Serial & DIO Port (2) Ethernet (1) Audio In/Out 4 Audio input &...
  • Page 56 - Ethernet connection (for remote connection) - Audio connection - Power connection & Operation <Note> Extension through NVS04, IEEE 1394b will be supported later. For the details, please contact to local distributor.

  • Page 57: Basic Structure

    Basic Structure 14. Monitoring All analog video image channels connected to eDVR is displayed to screen by Power connection. It is to utilize all monitoring mode of eDVR series. <Attention> MD1600L, MD3200M support Quad monitor(1~4), and H1600M supports Dual monitor(1~2). And Monitor 1~4 support all functions as follow.

  • Page 58: Manual Recording

    14.4. Manual Recording By the press [REC] button for user recording, it records as long time as it set the time. It is prior to Normal Rec, Event Rec. And it records by user recording set in disregard for any recording setup when user recording starts.

  • Page 59: User Sequence Mode

    Auto Switch mode can be set in every division mode by the press [SEQ] button. Press [SEQ] button once more to leave from Auto Switch mode. 14.5.2. User Sequence mode Press [SEQ] button longer than 1 sec. User Sequence is to set User Sequence Configuration from “Monitor 1” in OSD menu.

  • Page 60: Alarm Mode

    <Attention> 1. User mode can define max. 16 channels. 2. The above picture defines 6 Sequence, and it is displayed in order as 4 division(1,2,3,4) à Full à à à à screen(1) division(5,6,7,8) Full screen(5) Full screen(6) division(9,10,11,12,13,14,15,16). 3. Monitor 1, 3 can set channel 1~16, and Monitor 2, 4 sets channel 17-32. Channel area is divided by each Monitor.

  • Page 61: Zoom Screen Mode

    <Attention> 1. If Alarm Pop-up Hold (sec) set to Off, Alarm Pop-up will not operate. 2. If Alarm Pop-up Hold (sec) set to Keep, it does not return to previous screen before press any button. 14.7. Zoom Screen mode At single full screen mode, press [ZOOM] to monitor 2x image size. Default zoom screen locates to main center when press [ZOOM] button.

  • Page 62: Zoom/Focus Control

    Press [MENU], then select ‘Pan/Tilt’ from OSD. Control Pan/Tilt through directional key at front part. 14.9.2. Zoom/Focus Control This menu is used to control Zoom & Focus function at real-time monitoring mode. Press [SELECT] button and select Channel. Press [MENU], then select ‘Zoom/ Focus’ from OSD. Control Zoom/Focus through directional key at front part.

  • Page 63: Relay Control

    14.10. Relay control The function to Relay On/Off. (supports 4 Relay Output.) Press [RELAY] button to display “Relay On” icon on screen. Then Relay Out signal is out by pressing the relevant number of Relay among 1~4 number button. Press [RELAY] to Relay Off. Display “Relay On”...

  • Page 64: Utilizing Quad Monitor

    window for user password input will be displayed at any button press. And Lock mode will be released with correct password input. 14.12. Utilizing Quad monitor 14.12.1. MD1600H Monitoring Monitor 1 monitors several video channels, and Monitor 2 is for bigger screen of channel 1. Also Monitor 3 for Sequence mode and Monitor 4 is capable of monitoring Alarm Pop-up images.

  • Page 65: Md1600H Monitoring & Playback

    14.12.2. MD1600H Monitoring & Playback Monitor 1~4 are capable of searching several video/playback in single & divided sreen. Namely, several channels can be monitored and playback separately and simultaneously. But Playback can be monitored in 1 monitor among Monitor 1~4, and the rest 3 monitors for monitoring. 14.12.3.

  • Page 66: Md1600M Monitoring & Playback

    Monitor 1 Monitor 2 Multi Monitor Single Monitor Single Monitor Sequence Monitor Sequence Monitor Alarm Pop-up Monitor Alarm Pop-up Monitor Multi Monitor 14.12.4. MD1600M Monitoring & Playback Monitor 1, 2 can search/playback every images in Single or multi divisions. Namely, Monitoring and Playback is possible simultaneously.

  • Page 67: Md3200M Monitoring

    14.12.5. MD3200M Monitoring H3200M can only display and setup channel 1 to 16 to Monitor 1 & Monitor 3, and channel 17 ~ 32 to Monitor 2 & Monitor 4. Every Monitor 1~4 can be set in following conditions separately.. Monitor 1 Monitor 2 Monitor 3...

  • Page 68: Md3200M Monitoring & Playback

    14.12.6. MD3200M Monitoring & Playback Monitor 1~4 are capable of searching several video/playback in single & divided sreen. Namely, several channels can be monitored and playback separately and simultaneously. But Playback can be monitored in 1 monitor among Monitor 1~4, and the rest 3 monitors for monitoring.

  • Page 69: Playback

    15. Playback 15.1. Various Playback mode(Playback) 15.1.1. Playback on standard monitor (16 division) Press Playback button [?] at Monitoring mode. It playback images with initial 1x speed. <Attention> At Monitor mode, Playback buttom will play the recorded image from Channel 1. Namely, it will always start playback of channel 1 from 30sec.

  • Page 70: Various Playback Functions

    15.1.5. Various Playback functions ? (PLAY) : Playback 1x speed. Press [?]playback button at single monitor mode will playback recorded images of monitoring channel. Press [?]playback button at multi monitor mode will always playback recorded images of no. 1 channel. When the execute playback by pressing [?] playback button, it playback from the time when user connects to playback lately.

  • Page 71: Search Mode

    15.2. Search mode This menu is to playback specific time data from the time frame and searching log at Playback mode. From for the time to start recorded data, To indicates the last time. Select From/To and press [ENTER] to move to the relevant time.

  • Page 72: Copy / Backup / Delete

    15.3. Copy / Backup / Delete This menu describes how to copy/backup/delete recorded images. Press [SELECT] and [MENU] in order and Playback mode. 15.3.1. Copy Image Use USB Memory Stick etc to copy selected channel images in some part. Time Slect the range of Copy.

  • Page 73: Backup Data

    15.3.2. Backup Data Start Date & Time / End Date & Time Select the range of backup. Select Disk Select the disk to use backup device. <Note> Uncompleted backup file 100% can not be played normally in PC <Note> It does not support USB device as backup. It supports CD-R/DVD-R, and over (CD-R Media 700MB / DVD R Media 4G) in CD-R Media.

  • Page 74: Delete Data

    <Note> It supports only DVD backup. CD backup will be supported later. For the details, please contact to local distributor. 15.3.3. Delete Data The menu to delete specific rage of data in present HDD recorded. Delected data is limited to present HDD used, and it does not affect to backup disk.

  • Page 75: Configuration

    16. Configuration 16.1. Recording Setup There are all 4 different recording modes in eDVR. As following picture, it describes structure of setup and the table explains the type of recording briefly. Refer to each list as follow for the recording in detail. Type of Recording Contents Quick Recording Setup...
  • Page 76 Recording Speed Recording Quality Recording Resolution Audio Recording On/Off Schedule Recording It is to set recording by channel or time period offered in setup list, and also possible to set Schedule recording. [List of Schdule Recording Setup] Recording Speed Recording Quality Recording Resolution Special Time Recording Alarm Recording On/Off...

  • Page 77: Time Setup (Date/Time)

    Setup Manual Recording by When pressing ‘Rec’ button at the front of unit, it records based on user setup value in Manual Recording menu. 16.1.1. Time Setup (Date/Time) It must set the time of unit before Recording setup. Setup the time to the local is very important to protect Recording data in a unit. Factory set of Time is ‘UTC 00:00 Dublin”.
  • Page 78 Time Zone Select the times using left-right directional key from eDVR front. Every time pressing direction changes the time zone. (Press [EXIT] to return to previous menu. It is as same as OSD menu.) Daylight Saving(Summer Time applied) This menu is linked to Time zone set menu. Namely, it is activated when selected summer time zone is set from Tim Zone set menu.
  • Page 79 Time Format Select the method of Time Format. Using Legt-Right key set Time Formate “MM/DD/YYYY” or “YYYY/MM/DD”. Date/Time Using Left, Right key will shift Year, Month, Date menu, and select each menu with Upper & Lower button. Apply Date/Time To apply Date/Time value, press “Apply Date/Time” button to display the following window. <Note>...

  • Page 80: Camera Setup (Camera)

    16.1.2. Camera Setup (Camera) This menu is to set the condition for each camera connected to the system such as ‘Name’, ‘Status’, ‘Brightness’, ‘Color/Black & White, Contrast of ratio, and part of PTZ setup. Refer to the following list for the explanation of each menu. Both NTSC &...
  • Page 81 <TIP> Display Letter input window to input characters. According to menu, letter input window can be different, but Set is the same. Use direction key for letter input. Select letter using [? /? ] button. Press [? ] to input after select the input letter. Press [? ] to Shift back and delete.

  • Page 82: Quick Recording Setup

    Brightness/Contrast It can control Brightness and Contrast of video. After press [ENTER], use [? ] or [? ] button to set the value wanted from each “–9” to “+9”. Covert Covert “On” to hide channel at monitor mode. After press [ENTER], use [? ] or [? ] button to set “On / Off”. PTZ Home/PTZ Idle Time This menu is to setup camera that supports PTZ(Pen/Tilt/Zoom).
  • Page 83 16.1.3.1. Method of Quick Recording Setup Select “Recording” menu inferior to “Quick Setup”. Configuration Status It just indicates the setup status of recording only. If user sets recording condition to Quick Setup, it is indicated to “Macro Setup” and “Custom Setup” when any set has changed from recording menu. <Note>...
  • Page 84 No Rec. / Low / Standard / High / Custom The conditional Setup except “Custom” comes to auto synchronize with “Speed(ips)”and “Quality”, Quality can set the each separately. Resolution Recording resolution of all cameras [CIF /Half D1/ Full D1] It is possible to change when resolution setup is set to Custom at ‘Recording Speed/Quality’. Audio Recording It sets Audio recording.

  • Page 85: Normal Schedule Recording

    <Note> How to check Recording If recording setup completed normally, ‘Recording LED’ at front twinkles. To check the recording status by channel, afer recording setup as above, press ‘Exit’ button, and then press ‘Help’ button at monitoring status after closing all windows. Whenever press ‘Help’ button, the status of video shown on left botton of window.
  • Page 86 <Note> 1. The difference of recording setup in Quick Setup is that there is no audio recording setup, and sets whether Special Time Recrding & Event Recording sets or not. 2. What Alarm Recording Off is set, Alarm Rec. menu is not available. To set Alarm Rec. menu, Alarm Recording of Recording menu should be set to “On”...
  • Page 87 16.1.4.2. Setup by Channel Time Schedule It sets recording condition based on every time schedule. Time period can be set 4 districted areas, Full Time, Weekday (Day)/Weekday (Night)/Weekend (Day)/Weekend (Night). Day & Night, Weekday & Weekend can be set from “System” menu.
  • Page 88 <Time Schedule Setup> Shift to“System” menu to set Time Schedule. Weekday Start/End Set Time zone from Monday to Sunday using Left, Right key button. The unset zoon can be set to Weekend time zone. Day Start/End Set Day time zone using Up, Down button. The unset zoon can be set to Night time zone. Recording Speed/Quality There are all 5 setup conditions.
  • Page 89 Resolution There are all 3 conditions. (CIF/HALF/D1) At this menu, resolution set is applied to every User recording, Event recording. CIF : 360x240 @ NTSC, 360x288 @ PAL HALF : 720x240 @ NTSC, 720x288 @ PAL (HALF D1) D1 : 720x480 @ NTSC, 720x576@ PAL (FULL D1) Special Time Recording This menu is to differenciate recording conditions by setup of specific time zone.
  • Page 90 Event Recording After pressing [ENTER] button, set “On/Off” using [? ] or [? ] button. Detailed Alarm recording conditions sets from “Alarm Recording” menu. Here only can set recording according to alarm recording setup. 16.1.4.3. Example of use Schedule Recording 16.1.4.3.1.
  • Page 91 Refer to 5.4.3 Special Time for the details of Special Time. (7) Select Alarm Recording Off. (8) Press [Enter] key at ‘Apply’ to complete the above setup for all cameras. Now all cameres are recorded in sam condition all the time as it set above. 16.1.4.3.2.
  • Page 92 <Note> Weekday Start Mon Weekday End Fri Day Start 09:00 Day End 18:00 The aboves are explained as follow, Weekday Day: means Moday to Friday, 09:00AM~ 18:00PM. Weekday night: means Moday to Friday, 18:00PM~ 09:00AM. Weekend Day: means Saturday to Sunday, 09:00AM~18:00PM. Weekend Night: means Saturday to Sunday, 18:00PM~ 09:00AM.
  • Page 93 (1) Press [Enter] key at Schedule Rec> Global menu, and select Weekday Day using [?/?] key. (2) Select ‘No Rec.’ using [?/?] key at Normal Recording Parameters. In case of No Rec., it does not record, but monitoring is available. (3) Select Special Time Recording Same as above (4) Select Alarm Recording Off.
  • Page 94 (1) Press [Enter] key at Schedule Rec> Global menu, and select Weekday Night using [?/?] key. (2) Select Custom using [?/?] key at Normal Recording Parameters. (3) Select Speed(ips) 15, Quality Q5, Resolution D1. (4) Select Special Time Recording Same as above. (5) Select Alarm Recording Off.
  • Page 95 (1) Move to Schedule Rec.> Cam #1 menu. (2) Press [Enter] key to select Full Time, and set to record as above picture. (3) Press [Enter] to Apply, and move to the next camera to set. (4) Cam #1 is set to full time recording. (5) In case of other camera, it can set full time recording like the setup of Cam #1.
  • Page 96 (1) Move to Weekday Day to setup recording Cam #2 for Weekday Day. (2) It can set recording wanted. As above picture, it set to record in Custom, Speed 15 ips, Quality Q5.

  • Page 97: Alarm Recording Setup

    (1) Move to Weekday Night, Weekend Day, Weekend Night and select No Rec. as above picture due to set recording Cam # 2 for Weekday Day only. (2) In case of other camera, it can set recording as same as above for the wanted time schedule. (3) Set to record other cameras as above for wanted schedule, and exit menu using [Exit] key.
  • Page 98 16.1.5.1.1. Sensor Setup This menu is to setup the existing sensor input and type of sensor. Sensor has 2 types, Normal Open(N.O.) and Normal Close(N.C.). Global It set all sensors same together. After select among Off/N.O./N.C., and press “Apply” to activate. Configuration It can set 16 sensors (S1~S16) separately.
  • Page 99 Motion Detection It sets 6 different sensitivity of MD; Off, Lowest, Low, Std, High, Highest. MD Area It sets MD Area. It can set all areas with selection of “Set All”, and clear the selection through “Clear All”. <Note> To set Global, press “Apply”. Other will be not applied. 16.1.5.1.2.1.
  • Page 100 Custom Area It sets MD zone by user NTSC 22x15, PAL 22x18 First default value is set to “Select All”. If “Custom Area” pressed, Window for MD zone setup is opened.
  • Page 101 < MD Zone Setup > It can set MD zone by user directly. If “Custom Area” is pressed, sell NTSC 22x15, PAL 22x18 for setup is displayed. Selected MD zone is in grey color. To select MD zone, use direction key for the wanted zone and press“ENTER” to apply.
  • Page 102 Recording It is On or Off to save the Text input. Sync Text With Select the channel synchronize with Text data. Seek Header It has the various type of data input from the external device (Access Control, POS, ATM etc). Like Star Finger 007, it is not needed when the protocol of these device have implemented on the device.
  • Page 103 Timeout (ms) Following lines defined here means maximum number of text line from one data. Even if there is standized data, there can be a short and long data. For example, there are 3 lines to write names on ATM. But some may need only First name &...
  • Page 104 Text When set “On”, it deals text input of relevant channe as Alarm Event and is saved. <Note> 1. To apply Global setup, press “Apply” button. 2. Refer to following Setup by channel for the details. 16.1.5.3. Setup by Channel Alarm Source (*=All) Through Alarm Source, 4 Sensors and 1 MD, Text input is selectable.
  • Page 105 There are all 4 conditional setup (No Rec/Low/Standard/High/Custom). Except “Custom”, Setup condition will synchronize “Speed(ips)” and “Quality” automatically, Speed(ips) and Quality can be set each separately. Pre Alarm (sec) It can set max. 5 second. Post Alarm (sec) It can set max. 60 seconds. <Note>...
  • Page 106 (1) Move to Alarm Rec.> Global menu. (2) Press [Enter] key at Sensor and select Pairing. (3) Press [Enter] key at Sensor and select Pairing. If select Pairing at MD & Sensor, it set to match Sensor that meet to each channel and is set up MD On.
  • Page 107 <Alarm Recording ON> (1) After complete setup at Alarm Rec. menu, set Alarm recording ON to operate alarm recording. (2) Move to Schedule Rec.> Global menu. (3) Select Full time. (4) Press [Enter] at Alarm Recording and set to ON. (5) Press Apply, and press [Exit] to exit from menu.
  • Page 108 cameras’ schedule to work alarm recording by schedule. <Set to ON/OFF Alarm recording by Camera schedule> (1) As above picture shows the Cam #1 is alarm record in day time during week.. (2) Select “Weekday Day” from Schedule Rec.> Cam #1 menu. (3) Select Alarm Recording ON and press [Enter] key.

  • Page 109: Manual Recording Setup (Manual Rec.)

    (1) Set the Cam #2 as alarm record OFF for weeknight. (2) Move to Cam #2 and select Alarm Recording Off and press [Enter] key. As above, it can ON/OFF alarm recording by schedule of each camera. <Note> Because Alarm Recording ON/OFF setup is in Schedule recording setup, set Alarm Recording ON from Schedule Recording setup to operate alarm recording.
  • Page 110 Recording Speed/Quality There are all 4 setup conditions. (No Rec/Low/Standard/High/Custom). Setup condition except “Custom” will synchronize “Speed (ips)” and “Quality” automatically, Speed (ips) and Quality can be set each separately. Pre Alarm (sec) It means the time of recording before user press [Rec] button and can be set max. 5 seconds.

  • Page 111: Alarm Action Setup (Alarm Act.)

    Post Alarm (sec) It means the time of recording after user press [Rec] button and can be set Latched or max. 60 seconds. <Note> In case of set ‘No Rec.’ in Schedule Rec., it records as a set of Pre Alarm. While Schedule Recording, it records Pre Alarm section in speed(ips) of a set Schedule Rec.

  • Page 112: Schedule

    16.2.1. Schedule Select Action Source Sensor and MD can be set max 4 or ANY for Relay1~Relay4, Buzzer, E-mail. Video Loss and Text can be set On/Off. Selection of Sensor/MD is done by pressing relevant number button. <Note> 1. ANY : Press ? button. Special Time It selects whether it apply specific time period that is set.

  • Page 113: Setup

    16.2.2. Setup Relay Configuration Set the use or not for R1~R4. Buzzer Set the use of Buzzer or not. E-mail Addr. Input E-mail address to inform Alarm. Sender Addr. Input “Sender” address in the typr of who@where. Mail Duration (min) E-mail notification is to send message in terms of Mail Duration set, but not every time that Alarm is occurred.

  • Page 114: System Alarm

    <Note> Network setup is set to DNS for E-mail notification. 16.2.3. System Alarm 16.2.3.1. System Alarm Setup It is to set ON/OFF of Alarm for the notification of system faulty. HDD Fail Alarm action is operated when HDD disconneced or abnormal action. HDD Almost Full It operates alarm action when connected HDD is almost full.

  • Page 115: Monitor Setup

    It operates Alarm when wrong User or Admin password input. WRS Reg. Fail It operates Alarm when disconnection of WRS. 16.2.3.2. Alarm Method Setup It is to set ON/OFF of Alarm when system alarm is occurred. Warning Message When setup this menu, it display warning message through pop-up. Warning Message remains On always..
  • Page 116 Alarm Pop-up (sec) It sets auto Pop-up display for the alarm. Pop-up display time can be set from 5~10 second. If it sets to “Keep”, it keeps to display Pop-up image and press any button to release Keep mode. Seq. Switching (sec) It sets auto switching from 1 to 60 seconds.

  • Page 117: System Setup

    1. It can define all 16 user mode. 2. The picture for example defines 6 Sequences in order as shown 4 division(1,2,3,4) à Full mode(1) à 4 divisions(5,6,7,8) à Full mode(5) à Full mode(8) à 9 divisions(9,10,11,12,13,14,15,16). 16.4. System Setup 16.4.1.

  • Page 118: Time Schedule Setup

    16.4.2. Time Schedule Setup It sets the time period from Week & Weekend, Day and Night. Weekday Start/End Using Left, Right key sets the time period from Weekday. Other unassigned time is for the Weekend. Day Start/End Using Up, Down button sets Day time period. Other time is applicable to the Night time. 16.4.3.

  • Page 119: Security Setup

    It used for the set of regular exceptial time. Max. 4 different specific time can set. Exception Days It used for the setup of irregular exceptional time, max. 30 time zones. Start Date&Time : Set Starting time. Duration : Set an interval of Exceptional time. Profile : Set the value of exceptional time zone.
  • Page 120 16.4.4.1. Local Password User Password It is only capable of monitoring and playback only with user registery. Default set is “1111”. Admin Password Authorized administrator can control every function. Default set is “9999”.
  • Page 121 16.4.4.2. Remote Users Admin ID setup Admin ID “admin” cannot be changed. Password of admin is set and has all rights and unchangeable. User ID setup Max. 10 user’s ID can be set. To register the user, change Use’s value to “Y” and input ID & password. Basic value is available for all monitoring/playback/Relay.

  • Page 122: Disk Setup

    16.4.5. Disk Setup Auto Deletion When no HDD space left for recording, it deletes the recorded data automatically. Backup Reminder This menu is to inform backup time by everyday, every week, every month. Day/Date/Time It applies the value of setup differently according to value of “Backup Reminder”. Block PlayBack This menu is to playback the recorded images from HDD in limited time.

  • Page 123: Network Setup

    16.4.6. Network Setup There are 5 Sub menus. ; Network, xDSL, WRS, Port Setting, NTP Setting 16.4.6.1. Network When eDVR connects to network, it is to set relevant network information. Type It sets the type(Ethernet/xDSL) of network line connected to eDVR. It sets ‘Ethernet’ at the connection of network through leased line, Cable model or LAN based connection.
  • Page 124 ‘DHCP’ is used in LAN that DHCP server works. Nornally, in mid or large scale, it operates DHCP server via LAN but generally use NAT (Network Address Translation) function via HUB in small. IP Address, NetMask, and Gateway Address, DNS, Port, Bandwidth limit It sets IP address, Network Mask, Broadcast address, Gateway , DNS address, and Port, Bandwidth limit.
  • Page 125 IP address, it renews the information in WRS server regularly. If user registers the interval ‘0’ or eDVR does not transmit any data for 2 days, the data is removed from WRS. WRS URL This menu is to set server address to register. WRS addresses that Blunet operates now are www.Blunetinc.com or mycam.to.
  • Page 126 <Attention> 1. If domain address such as www.Blunetinc.com or mycam.to is input in WRS URL, DNS server IP should be noted on “System à Network à DNS1”. 2. DHCP line such as Cable/DSL receives DNS address automatically and does not require an entry. Group ID Group ID is to set group name that eDVR registered.
  • Page 127 Sync With NTP It can On/Off NTP function. NTP Mode It sets NTP mode of eDVR operating in Client or both. NTP Server Loc. It enables when NTP Mode is set to Client. It sests whether NTP server is in Local Network or Internet(Public).

  • Page 128: Serial Setup

    <Note> When NTP Mode is Client, Sync with NTP must be set to On. 16.4.7. Serial Setup eDVR can set all 4 COM port. Device Set external device connected. Interface This menu is to set which interface can use among RS485 from “RS485” menu. COM1, COM3 is fixed to RS232 and COM2, COM4 is fixed to RS485.
  • Page 129 Earliest / Latest Recording It shows intial starting time and last time of the recorded file. Disk Capacity It shows total HDD capacity installed. Used Space It shows HDD capacity recordable. HDD Temp It shows HDD temperature installed. HDD SMART It indicated HDD status installed in GOOD &...

  • Page 130: Miscellaneous

    16.4.9. Miscellaneous <Order of Button input> - After press [MENU] button, move to “Miscellaneous” inferior to “System”. Remote Control ID Max 16 controller ID can set up and contril via 1 remote controller. Set to Off if it is not used. <How to register Remote Controller>...
  • Page 131 Keyboard Control Addr This menu is to set Keyboard address when all functions of eDVR is controllered by Keyboard button. Default value is set to “1”. If several eDVRs connect to a keyboard, 1 channel can clash. Then set to the other address of keyboard.

  • Page 132: Disk Manager (Utility)

    Serial Number It indicates Serial number of the system. System Logs It is used to view System Log. Press “System Logs” button to view System Logs. Reset Values It is used to set system to initial factory setup. Press “Reset Values” button to set factory setup mode. 16.5.
  • Page 133 Select Disk Select disk to set. Action Select wanted work among the menus, “Add/Remove/ Confirm Removed/Add used”. [Add] : Add Disk. Use disk that there is no partion table. Partion table can be removed from PC. When adding HDD, “Alarm Partition” menu is activated to set up. “Alarm Partition”...

  • Page 134: Usb Utility

    Execute FAT32 Format for Backup/Copy in partition of under 250GB. For execution of FAT32 format, creat partition through disk manager of PC first. If HDD size is over 250GB, create several partitions smaller than 250GB and execute FAT32 formate in each partition. Type Followings indicate the type of HDD.
  • Page 135 USB. Update F/W After saving upgrade firmware for USB use to USB device, connect eDVR and press ‘Update F/W’ for firmware upgrading. Upgrade firmware for USB use is supplied in “~.date” file. Print Settings(.txt) Function to save Set value for printing into USB device in Text file. Saved data file can be opend through Text editor like Notepad to print and check set value saved.
  • Page 136 Save Settings Save present set value to USB device.

  • Page 137: Web Viewer

    17. Web Viewer WebViewer is Web application program loaded to monitor real-time image or to minitor the images recorded through Web browser to PC located remotely. WebViewer is divided into Login page and Monitor to do monitoring real-time images, Playback to replay reocorded images.
  • Page 138 It can use total 11 ID including administrator & general user. For the security, change ID & Password of admistrator. For the unused user’s account, it cancels the check of’Use’ part. This is the changed ID & Passwork at Control Center Configuration Tool.

  • Page 139: Usable Browser

    After complete of account setup, setup authorities of user’s ID. To use Playback page, check ‘HDD’ in User’s account at Authority of Configuration Tool. Also, click to Check box and Apply to use ‘Microphone’, ‘PTZ’, ‘Relay’ by user wanted. If it shows 1CH image only, check CH 1 and uncheck the rest channel and function. 17.2.
  • Page 140 When install WebViewer Installer, it must close all program related to Control Center. It might not be efficient to install. If execute Webviewerinstaller.exe file downloaded, it can use WebViewer function normally. Save ID Select Save ID at check box, it is to connect same User ID at next connection automatically. It is applied to a PC that Save ID is activated.

  • Page 141: Monitor

    17.3. Monitor When it is authorized with User ID & Password input at Login page, it moves to Monitor page. At Monitor page, monitor real time image of cameras connected to DVR, or it can control PTZ camera, Relay, and use Microphone function according to user’s authorization. Study introduction of each Monitor part and functions of the page.
  • Page 142 Double click on one of the playback screen to convert in 1 channel mode. After conversion to 1channel mode, double click on screen to return to previous division channels.

  • Page 143: Change To Resolution

    At division screen, it can change screen location. If 3channel image moves to 6ch, drag 3ch image and drop on 6ch location so as to exchange between 3ch and 6ch image. 17.3.2. Change to Resolution As above picture, click the menu for the menu of resolution. And select out of Auto, TINIY, QCIF, CIF, HALF, FULL, and then relevant resolution is applied to all channels.

  • Page 144: Moving Playback

    It may not speed as fast as it selects according to network speed that connected to a system and line speed connects remotely and performance of PC. 17.3.4. Moving Playback Move to Playback page by click the menu as above picture on top of page. 17.3.5.

  • Page 145: Relay Operation

    When it sensorsed, relevant sensor icon comes to Red, and indicates sensor number of video. <Note> Disabled sensor button refers to do not support and relate to this unit. 17.3.7. Relay Operation It can On or Off Relay of the unit. Click the number button to activate Ralay On, then the incon changes from Blue to Orange color.

  • Page 146: Using Microphone

    Relay is need user’s authority. Refer to user manual in the unit for the setup of User’s authority of Relay.. 17.3.8. Using Microphone It can On or Off the use microphone.Default is Off and it is changed from the Blue to Red when click the button for the use Mic.

  • Page 147: Video Recording & Recording Pause Video

    Text Input User Login Configuration Changed 17.3.10. Video Recording & recording Pause Video 17.3.10.1. Video Recording During monitoring, it can record max. 10 minutes of video by click Quick Recording button “ ”. During Quick Recording, recording time is indicated on video. During video recording, if click Quick Recording button “...
  • Page 148 Among the icon on top of video on monitoring, click ‘PTZ’ to acitivate interfacing to control Pan, Tilt, Zoom, and Focus. But, when PTZ camera is connected and ready to set PTZ, the button is acitavated to use the functions. Pan, Tilt Control Mouse is on the image and click right button to pop-up menu for the selection or “PTZ”...

  • Page 149: Using Audio

    status of operating of Group mode. Area Zoom In Control In case of Connect and set PTZ cameras that supports Area Zoom In, it is usable relevant functions. A dotted quadrangle is shown. And it is the mode to selects the specific area with dragging mouse for operation of Pan, Tilt, and Zoom automatically, based on the location of relevant area.

  • Page 150: Closing Video Channel

    17.3.13. Closing Video Channel Cancel for disconnection of image monitoring by click ‘Close’ at top right on screen, then it comes to black screen. To reconnect the channel disconnected, it can reconnect relevant channel using ‘Channel On/Off’ menu. 17.4. Playback This page is to playback recorded images, and user who has authority of ‘HDD’...

  • Page 151: Video Division & Changing Channel

    administrator can use this function. Playback that is made up 16 divisions can play the images by searching through calander by recording period and moving the period. It can backup recorded image and also print Pause image or save to Bmp file.

  • Page 152: Image Recording

    17.4.2. Image recording It can save playback image to BMP file. Click mouse to channel to save. Dotted line will be surrounding to the selected channel, and click ‘Save’ button. Save Iamge dialog box appears, then it can input message or select channel name, date, event data. Press ‘OK’...

  • Page 153: Backup

    Window comes to input Memo, and click ‘OK’ button to print the image through the printer connected. Print material includes ‘Printing Date’, ‘Channel name’, ‘Recording Date’ ‘Event’, ‘Memo’. 17.4.4. Backup It can save recorded iamge to PC in avi or rec format by channel. Indicate file format to backup.

  • Page 154: Web Monitor

    After completion of recording time selection, total size comes. This is total size for recording, and shows approximate size on the basis of all channels’ backup. Even if it makes for 1channel only, it shows the total channel base. It can sekect backup channel. When avi backup, it can select 1 channel only. Input the location &...

  • Page 155: Saving Time & Checking Rec. Capacity

    17.4.7. Saving time & Checking Rec. Capacity It indicates total capacity of HDD & remains and shows Starting date & Last date of recording. Also it shows percentage (%) for HDD capacity. 17.4.8. Searching Calander Recorded date is abled in black color, and others unrecorded date disabled in grey. Select button after select date &...
  • Page 156 4x, 16x, 32x, 64x, and All’. It is the function to set play area. After click the button, it can select play area ‘10min, 30min, 1hour, 3hour, 6hour, 12hour, 24hour’. It can select DirectX use or not. If check DirectX mode, it can play image into Direct Draw based on graphic card and performance of PC.

  • Page 157: Control Center Lite-D Configuration Tools

    18. Control Center Lite-D Configuration Tools With the following images can deal channel number and menu according to product features. 18.1. Log in Configuration Tool (1) Click icon to run “Control Center Lite-D Configuration Tool”. (2) Program Log in.. Click on “OK” button after inputting ID and Password. When login becomes accomplished normal way, Control Center Lite-D program will be running.

  • Page 158: Interface

    18.2. Interface Site Tree Configuration Page Menu The full screen of Configuration Tool is as above and its contents are such as site tree, menu and configuration page. 18.2.1. Site Tree The units which is listed in unit tree are registered in main view of Control Center Lite and it is not possible for user to register/delete/revise them using Configuration Tool.

  • Page 159: Configuration Page

    18.2.3. Configuration page As “Apply” button will be activated when user changes configuration of the page, user will just press this button to apply new configuration. User should press “Apply” button after changing setting of each configuration page. If user moves to another configuration page without pressing “Apply” button, dialogue box will appear to ask user whether new configuration will be applied.
  • Page 160 This function is useful when user want to apply the same configuration to many DVR. Interchange can be done only if firmware version is equivalent to the products <Export> Window for saving setting information will appear when cliking “Export” button. Save setting information as file format.
  • Page 161 Check whether Model type of import and export is same and belongs to same category. If they are same model type, Import will be promptly started. Enter Admin Password and press “OK” button to start Import.
  • Page 162 When Import is finished, the message of “Completed” will appear and “Finish” button will be activated. Reboot It is for rebooting DVR. Factory Default It is for changing configuration into factory default value. <Note> The information such as date, time, network setting and image type (NTSC/PAL) will not be change even if configuration is changed to Factory Default.

  • Page 163: Camera

    18.3.2. Camera 18.3.2.1. Setting Video Channel Set basic video information, and image calibration for each channel. 18.3.2.2. Channel Information - Enable : Sets to use channel - Channel Name : Inputs channel name. - Camera Type : Selects video type (NTSC/PAL) - Black&White : In case image is black and white 18.3.2.3.

  • Page 164: Time/Date

    18.3.3. Time/Date 18.3.3.1. Setting Date & Time Date & Time It shows Date & Time of DVR. Setup can set in menu of local unit. Timezone & Daylight Saving Time It shows the time zone that DVR is installed. If it set to Summer time zone, the Control displays to select applying Daylight Saving Time(DST) or not.

  • Page 165: Connectivity

    - Local IP : When IP Type is Local IP, input NTP Server IP. 18.3.4. Connectivity 18.3.4.1. When using Ethernet Select “Use DHCP” If user uses dynamic IP address. Input IP address, subnet mask, gateway and DNS server if user uses static IP address. <Note>...
  • Page 166 18.3.4.2. When using xDSL Select xDSL if network is xDSL (ADSL, HDSL, VDSL) and set user ID, password. <Note> 1. xDSL has various types such as ADSL, HDSL, VDSL, it can be used by PPPoE protocol. 2. Set WRS when using xDSL type. (except using static IP address) 3.
  • Page 167 18.3.4.3. WRS (Dynamic IP Registration Sever) If user registers i-Rec in WRS (Dynamic IP address registration server) managed by BLUNET, user will be free from inconvenience. Since user can not know exact dynamic IP address at every moment, user needs something such as WRS that can give IP address of DVR.
  • Page 168 18.3.4.4. Setting Port - Port : User should change port number if user can not connect WebEye 2.0 because of network problem such as firewall. - Idle Time : User can set idle time. User can wait for reconnection during idle time if connection is closed because of network problem.

  • Page 169: Com Port

    18.3.5. COM Port User can set com port and devices in com port page. Tab number indicates each port number. 18.3.5.1. Selecting device linking serial port User can connect devices such as PTZ, TP, Keyboard and Text to serial port. - PTZ : Select it when user wants to use PTZ.

  • Page 170: Ptz

    18.3.6. PTZ Tab number indicates camera channel number and shows which channel will be connected to PTZ. 18.3.6.1. Setting PTZ PTZ setting can be done only when “PTZ” is selected on Device item in COM Port page. - Enable : Select it when user wants channel to be linked to PTZ. - Port Dependency : Select the serial port which is linked to PTZ.
  • Page 171 18.3.6.2. Setting Preset Preset setting window will appear if user clicks “Preset” button. Saving and deletion of Preset Input name and click on “set” button after selecting preset user want to save and adjusting its position. The preset position will be deleted if user selects preset and click on “clear” button. <Note>...
  • Page 172 18.3.6.3. Setting Auxiliary PTZ device provides various additional functions including basic functions such as Pan/Tilt/Zoom. Dialogue box for setting max 16 auxiliary functions will appear if user clicks “Auxiliary” button. Select “Auxiliary” after choosing “PTZ” in the pop-up menu to use them.

  • Page 173: Text

    18.3.7. Text Set Recording menu to ‘On’ and set Sync channel to the wanted value. If connectable devuce is Star Finger 007, set the relevant device only. And et other products to Manual and set all inferior menus. 18.3.8. Audio...

  • Page 174: User

    According to DVR, it supports 1 or 4 audio. When payback, it works any channel together. - Channel : Setup synchronizing with any channel Dependency - Volume : Control the value of Audio Gain. - Recording : Set up audio recording or not. 18.3.9.
  • Page 175 - Admin Password : Authorized administrator can control every function. - User Password : It is only capable of monitoring and playback only with user registery. 18.3.9.2. User Authority User can set user’s authority according to Microphone, PTZ, relay out, HDD, channel viewing. Registered “user1.

  • Page 176: Ip Filtering

    18.3.10. IP Filtering User can give access authority of i-Rec by using IP filtering. It is allowed to access If IP address is registered “Allow”, and it is not allowed to access if IP address is registered “Deny”. Total ten IP can be registered in each category.

  • Page 177: Storage

    18.3.11. Storage DVR indicates the data of total size & free size of HDD. - Auto Deletion : When no space in HDD, delete recorded data automatically. - Disk Full Alarm : It shows the message checked of HDD capacity. - Block Playback : This is menu to show limitedly according to set time of image recorded in HDD.

  • Page 178: Miscellaneous

    18.3.12. Miscellaneous If this is “On”, it records video image which is not input. 18.3.13. System Log It is used to view System Log...

  • Page 179: Time Schedule

    18.3.14. Time Schedule 18.3.14.1. Setting Time Schedule - Weekday : Sets start point and end point of weekday, the remaining day is automatically included in weekend. - Day time : Set start point and end point of day, the remaining hour is automatically included in night 18.3.14.2.
  • Page 180 18.3.15. MD Set “Motion Detection” according to each channel. User can also set sensitivity of MD. User can not use MD if user sets sensitivity “None”. Highest is most sensitive level. (None / Lowest / Low / Standard / High / Highest)

  • Page 181: Input

    18.3.16. Input Set sensor type user wants (NC : Normal Close, NO : Normal Open, Off) 18.3.17. Relay...

  • Page 182: E-Mail

    DVR has 4 relay out. User can operate relay out relating to sensor input, motion detection. Relay out can be set four time section. (weekday, weekend, day, night) - Time Schedule : User can set four time section such as Weekday(Day), Weekday(Night), Weekend(Day), Weekend(Night).

  • Page 183: System Alarm

    minutes. 18.3.19. System Alarm <System Alarm> It is to set ON/OFF of Alarm for the notification of system faulty. - HDD Fail : Alarm action is operated when HDD disconneced or abnormal action. - HDD Almost Full : It operates alarm action when connected HDD is almost full. - Fan Fail : It operates Alarm action when malfunction of FAN connected to eDVR.

  • Page 184: Recording

    18.3.20. Recording Set recording options according to each channel. Set resolution and recording speed in the designated time zone (weekday day/ weekday night/ weekend day/ weekend night) by using Recording group setting value. At this time user can set other recording way of Special Time and set whether to use designated recording way in Alarm Recording group when alarm is occurred (Alarm Recording ON/OFF).

  • Page 185: Alarm Recording

    18.3.21. Alarm Recording This menu is to set Alarm Recording condition. After setup Recording condition, “Event recording” menu from “Recording” must be “On” to setup Alarm recording in eDVR. Also, before setup Alarm recording, “Alarm Source” must be set. - Sensor / MD Pairing : Pairing means 1:1 synchronization between the channel and Sensor/MD.

  • Page 186: Manual Recording

    18.3.22. Manual Recording This menu is to set video recording condition by user when pressing [REC] button. If manual recording starts, Normal Rec & Event Rec is ingored and it records based on user recording setup. - Recording Speed/Quality : There are all 5 conditional setup (No Rec/Low/Standard/High/Custom). Except “Custom”, Setup condition will synchronize “Speed(ips)”...

  • Page 187: Extension

    Extension 19. External device connection 19.1. Using Text device There are 4 essential setups to use Text devices; Text menu, RS232 menu of Serial Setup, Alarm Rec. menu, Recording menu. 19.1.1. Setup in Text Set Recording & Monitoring menu to all ‘On’ and set Sync channel to the wanted value. If connectable devuce is Star Finger 007, set the relevant device only.

  • Page 188: Setup In Rs232 Menu Of Serial Setup

    19.1.2. Setup in RS232 menu of Serial Setup Set connectable device in COM1 of Serial Setup menu, and also set Baud Rate, Parity, Stop, Data with relevant value.

  • Page 189: Setup In Alarm Rec

    19.1.3. Setup in Alarm Rec If there is video channel want to record with Text sync., set Text Event from Off to On.

  • Page 190: Setup In Recording

    19.1.4. Setup in Recording If any channel like to record with Text, set Alarm recording to ‘On’. Full Time is to set all Week day & night, Weekend day & night, and change menu to set Weekday and Weekend differently. <...

  • Page 191: Using Keyboard

    19.2. Using Keyboard There are 2 essential setups to use Keyboard; RS232 menu of Serial Setup, PTZ menu of Serial Setup 19.2.1. Setup in COM1 menu of Serial Setup Set connectable device in RS232 in Serial Setup menu to Keyboard. Also set Baud Rate, Parity, Stop, Data with relevant value.

  • Page 192: Using Ptz

    (11) Using [? /? ] key move to Baud Rate, and press [Enter] key. (12) Using [?/?] key select 9600 and press [Enter]. (13) In case of Blunet SPD1800, the value of Parity, Stop, and Data as above picture use as default.

  • Page 193: Setup From Camera

    (5) Move to Address and press [Enter] key. Check Address set to PTZ device. Incase of Blunet SPD1800, default is set to Address 1. Select Address 1 and press [Enter] key. (6) When exit to Monitor mode, press [Exit] key.

  • Page 194: Check Ptz Operation

    <Available PTZ List> eDVR supports total 32 PTZ devices. BLUNET SPD1800, BLUNET SPD2600, Bosch autodome, PELCO P, PELCO D, Sony EVI-D3x, VT VPT-4x, AD speeddome, Sungjin SJ3728R1, Marit-lilin fastdome, Canon VC-C4, Honeywell scandome2, BOSCH TC8560X-4, Panasonic WV-CS850, SamSung SCC641, SamSung SRX-100B, LG...

  • Page 195: Appendix

    APPENDIX APPENDIX APPENDIX...

  • Page 196: Hdd

    #1. HDD #1.1. Fundamental notions & terms eDVR storing constructure (VFS2) eDVR series has a peculiar storing constructure, and its features are as follows. (1) It is possible to connect 2 sets of HDD internally (Internal, ATA Interface) and 63 sets of HDD externally (External, 2 ports of IEEE1394 / External, 2 ports of eSATA / Storage Network).
  • Page 198 (2) HDD Type at Disk Manager Available recording status Connected and formatted as eDVR’s file system. If using ‘Add Used’ command, it will be changed to [R]. There is no need to format. Connected but not available eDVR’s file system. After using ‘Add’, need to format for making as [R].

  • Page 199: Installation Of Hdd

    #1.2. Installation of HDD Usable HDD Contact to Local supplier for usable Hard disk. Use of recommended HDD can assure the quality and product and warrantee. Installation of internal HDD In case of installation/adding/exchanging HDD, please refer to following procedures (1) Disconnect the power to eDVR.
  • Page 200 (4) Unlock it using HDD-RACK Key. (5) Take out the bracket with the lift of handle 90 degrees at front. (6) Disassemble cables connecte to Board and arrange them to outer case so as to secure the space for HDD bracke.
  • Page 202 (7) Push in bracket that HDD installed under HDD-RACK. It is easy to install if it push in leaning to the left.
  • Page 203 (8) Insert a hand to the bottom space the as below of HDD-RACK to adjust location set. (9) Insert a hand to the bottom and lift up HDD bracket to drive a screw.
  • Page 204 Connect cable disconnected at (10) (6) to a board. (11) Connect cable between HDD and Int A, B SATA connector Int B SATA Connector Int A SATA Connector Rack B SATA Connector Rack A SATA Connector (12) Connect power cable to HDD power connector.
  • Page 205 (13) Install HDD-RACK. (14) Clise the case and drive a screw.

  • Page 206: Installing Hdd

    Compatible HDD It is recommended to use the following HDD models with the eDVR.. If a non-recommended HDD is used, BLUNET Inc. will not guarantee the warranty. Installation and extension of internal HDD-RACK HDD In case of installation/adding or exchange HDD, follow the procedure as followings (1) Cut off the power to eDVR.
  • Page 207 <Note> When assemble HDD, the base of HDD should be HDD below. (5) After insertion of BRAKET that HDD installed to RACK, take the handle down to fix. (6) Rock HDD-RACK using KEY to complete installation...
  • Page 208 When installing one primary disk (1) When power is supplied to eDVR, “Disk Manager” runs automatically after rebooting. If not, run it manually in “MenuàUtilityàDisk Manager”. (2) There is a HDD that is indicated as “[F] IntA”. Select it. (3) Select “Action” as “Add”, configure a size of alarm partition, and press “Apply” button. Then [F] is changed to [R].
  • Page 209 <Note> Some IEEE1394, eSATA ports may not be recognized by the MD1600H. Before purchasing, consult the local BLUNET distributor. External storage should use external power. For connection and setup of IEEE1394, eSATA, NVS04, please refer to the manual of related device.
  • Page 210 When using Disk Farm The following description is when eDVR has internal primary disk and 3 sets of IEEE1394 HDD. (1) When external HDD farm is connected to IEEE1394 port, “Disk Manager” runs automatically. If not, run it manually in “MenuàUtilityàDisk Manager”. (2) Select a second HDD of [F] Ext.
  • Page 211 When using RAID The following description is when eDVR has internal primary disk and 1 set of IEEE1394 RAID. <Note RAID> Even though several HDDs are connected to RAID, eDVR will recognize them as only one HDD. For connection and setup of RAID, please refer to the manual of related device. (1) When external HDD RAID is connected to IEEE1394 port, “Disk Manager”...

  • Page 212: Replacing Hdd

    Replacing HDD Checking HDD eDVR file system (VFS2) sensors bad sector automatically, and the sensored bad sector is not used. The following means when HDD is broken or has some problem in connection. (1) When playback is stopped or eDVR is rebooted in specific playback range or image searching per event is impossible.
  • Page 213 (5) Set backup range and press the “Start” button after selecting backup HDD. <Note> Backup HDD should be formatted as FAT32 type. Backup data can be replayed with specific S/W in PC such as Control Center Lite-D or MiniPlayer. Backup data is made as “*.re4” file and recognized as CD-R 700MB / DVD-R 4G per each file. Support CD-R backup and should be over CD-R 700MB / DVD-R 4G media.
  • Page 214 Caution in using HDD For handling or guaranteeing HDD, BLUNET follows HDD guaranty condition. BLUNET doesn’t bear the responsibility about data loss by user’s mistake in operating. <Note> Attention for the system without HDD installed In case of system without HDD, HDD only can only be installed in R-HDD(Removable Hard disk rack).

  • Page 215: Using Cd-Rom

    #2. Using CD-ROM Components of CD- ROM disc Installation Guide : eDVR Installation Guide User’s Guide : eDVR User’s Guide : Control Center Lite-D User’s Guide Control Center Lite-D (Control Center lite-D Remote Management Program) Acrobat Reader : Version 7.0 Preparation To read manual of CD-ROM disc, Adobe Acrobat 7.0 should be installed in client’s PC.

  • Page 216: Utilizing Ip Address In Local Network

    #3. Utilizing IP address in Local network 1#2.1 Outline When internet uses, it connects to another server for acquisition of data or email communication through IP address. So it is not connectable to Internet without IP address. At present, authorized IP has limits to use in worldwide. And there are 5 grades from A to E in network that possesses many IP.
  • Page 217 1#2.3 Network Class 1) Address feature IP address : 3 numbers in X4 indicates Host ID that is addressed from 0 to 255. But, generally, 0 & 255 is used to network ID & Broadcast address, but 1 to 244 IP address used in practical. Network ID: As Local network ID, the address indicates network identity in Internet.
  • Page 218 Subnet Mask: 255.255.255.128 Broadcast Address: xxx.xxx.xxx.255 IP Addresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.254 (3) When structure 3 networks (1/2 + 1/4 + 1/4) Sub-Network ID: xxx.xxx.xxx.0 Gateway Address: xxx.xxx.xxx.1 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.63 IP Addresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.62 Sub-Network ID: xxx.xxx.xxx.64 Gateway Address: xxx.xxx.xxx.65 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.127...
  • Page 219 (4) When structure 4 networks (1/4 + 1/4 + 1/4+1/4) Sub-Network ID: xxx.xxx.xxx.0 Gateway Address: xxx.xxx.xxx.1 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.63 IP Addresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.62 Sub-Network ID: xxx.xxx.xxx.64 Gateway Address: xxx.xxx.xxx.65 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.127 IP Addresses: xxx.xxx.xxx.66 – xxx.xxx.xxx.126 Sub-Network ID: xxx.xxx.xxx.128 Gateway Address: xxx.xxx.xxx.129 Subnet Mask: 255.255.255.192...

  • Page 220: How To Recognize Manufacturing Date

    #4. How to recognize manufacturing date The manufacturing date by Blunet can be recognized by S/N(Serial Number) attached at the each product. S/N : Serial Number Management number for each Blunet product to combine twelve alphabet character and digit including...

  • Page 221: Specification

    #5. Specification Item Description MD1600H MD1600M MD3200M 32 BNC connectors Video Input Analog Ch. 16 BNC connectors (NTSC/PAL, Auto detect) (NTSC/PAL, Auto detect) 4 BNC(Each 2 BNC(Each monitor 4 BNC(Each monitor Video Monitor monitor support 16 support 16 division), 1 support 16 division), 1 Output division), 1 VGA...
  • Page 222 File System Intelligent Power Failure Recovery Watermark Password Protection 2 Level (Admin/User) DVD Writer (DVD-R 4.7G Media), , eSATA, USB, R-HDD, Network, Backup IEEE-1394b*, NVS04R* Interface 2 RS-232C, 2 RS-485 Storage 2 Internal + 2 Hot-Swappable SATA HDD TCP/IP, ARP, ICMP, DHCP, PPPoE, UDP, SMTP, SNMP, FTP, SNTP, Network HTTP Software application: Control Center Lite (supplied basically)
  • Page 224 BLUNET Inc. 6F, Hanlim Venture Town Bldg., 689-6, Geumjeong-dong, Gunpo-si, Gyeonggi-do, Korea (435-862) Tel : (82-31) 428-9300 Fax : (82-31) 455-3955 Sales@Blunetinc.com www.Blunetinc.com The content of this manual can differ according to firmware or Software upgrading, and the standard and...

Table of Contents
