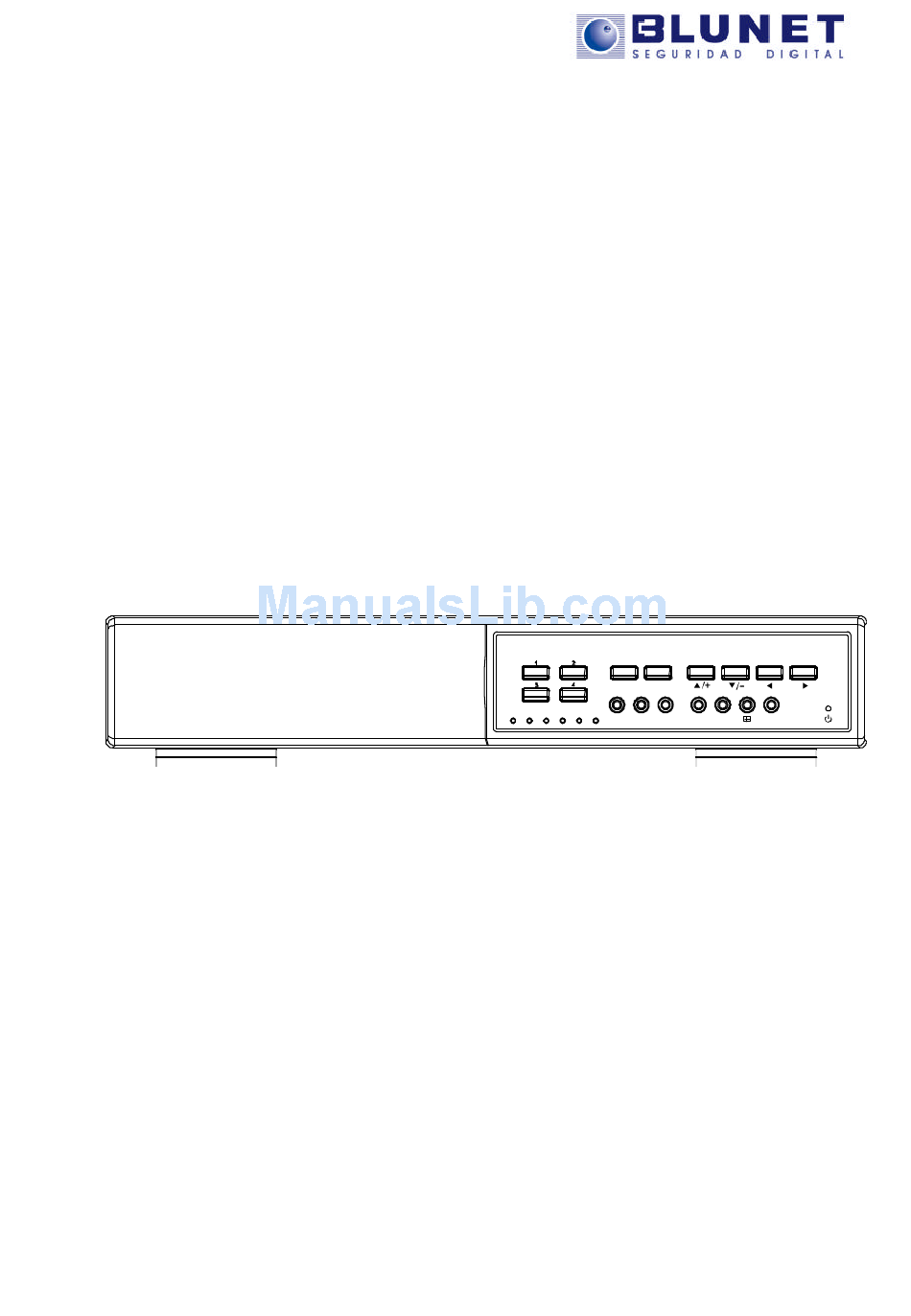

- Page 1 261Z PLA Y P A US E S T OP RE W H D D HD D Fu ll A LAR M T IMER PL AY R EC MENU ENTER LIS T SLOW ZOOM Please read instructions thoroughly before operation and retain it for future reference. The image shown above may differ from the actual product appearance.
-
Page 2: Package Contents
1. Package Contents ? Digital video recorder (DVR) ? Thermal conductive silicone rubber ? Adapter and power cord ? HDD bracket screws (spare parts) ? Free licensed software AP disc ? DSUB PIN connector ? Manual & quick start & IR remote control manual ? AAA size battery * 2 ? Vertical panel sticker for remote controller (certain models only) 2. -
Page 3: Rear Panel
? + / ? - / ? / ? Press one of these direction buttons to move the cursor up/down/left/right. Under the DVR menu mode, these direction buttons can use for the following operation: ? ? : Make the selection / Change the settings ? ? : Make the selection MENU Press this button to e nter / e xit the DVR menu mode. -
Page 4: Connections And Setup
support s the audio function. VIDEO OUTPUT Connect to a CRT monitor for video output. AUDIO IN (1) Connect to audio source, such as camera equipped with the audio function. When users start recording, the audio input will also be recorded with corresponding video channel. Note: The audio source connected to the “Audio 1”... -
Page 5: Power Setup
3.3 Power Setup This device should be operated only with the type of power source indicated on the manufacturer’s label. Connect the indicated AC power cord to the power adapter, and plug into an electrical outlet. The power LED “ ”... -
Page 6: Basic Operation
4. BASIC OPERATION 4.1 Live Page In this live page of the DVR, you can see the following icons: Icon Function Icon Function Icon Function Icon Function live a udio Key lock Key unlock Digital zoom mode channel Digital zoom Timer recording Motion Recording... -
Page 7: Key Lock And Unlock
Slow Playback Press “SLOW” button to get 1/4X speed playback and press twice to get 1/8X speed playback. Audio Playback Use these two buttons to select the live or playback sound of the audio channels. Icon “ ” means: Live audio of the 1 audio channel / Icon “... - Page 8 4.6 Search Search by List Press “LIST” button on the DVR control panel to show the list for all types of the recorded files. Choose the list you want to view and press “ENTER” button to start playback. MANUAL List the information of the manual-recorded files. The DVR will save one recorded file once any recording setting is changed MOTION List the information of the motion-trigger-recorded files.
