Summary of Contents for REMOVU R1

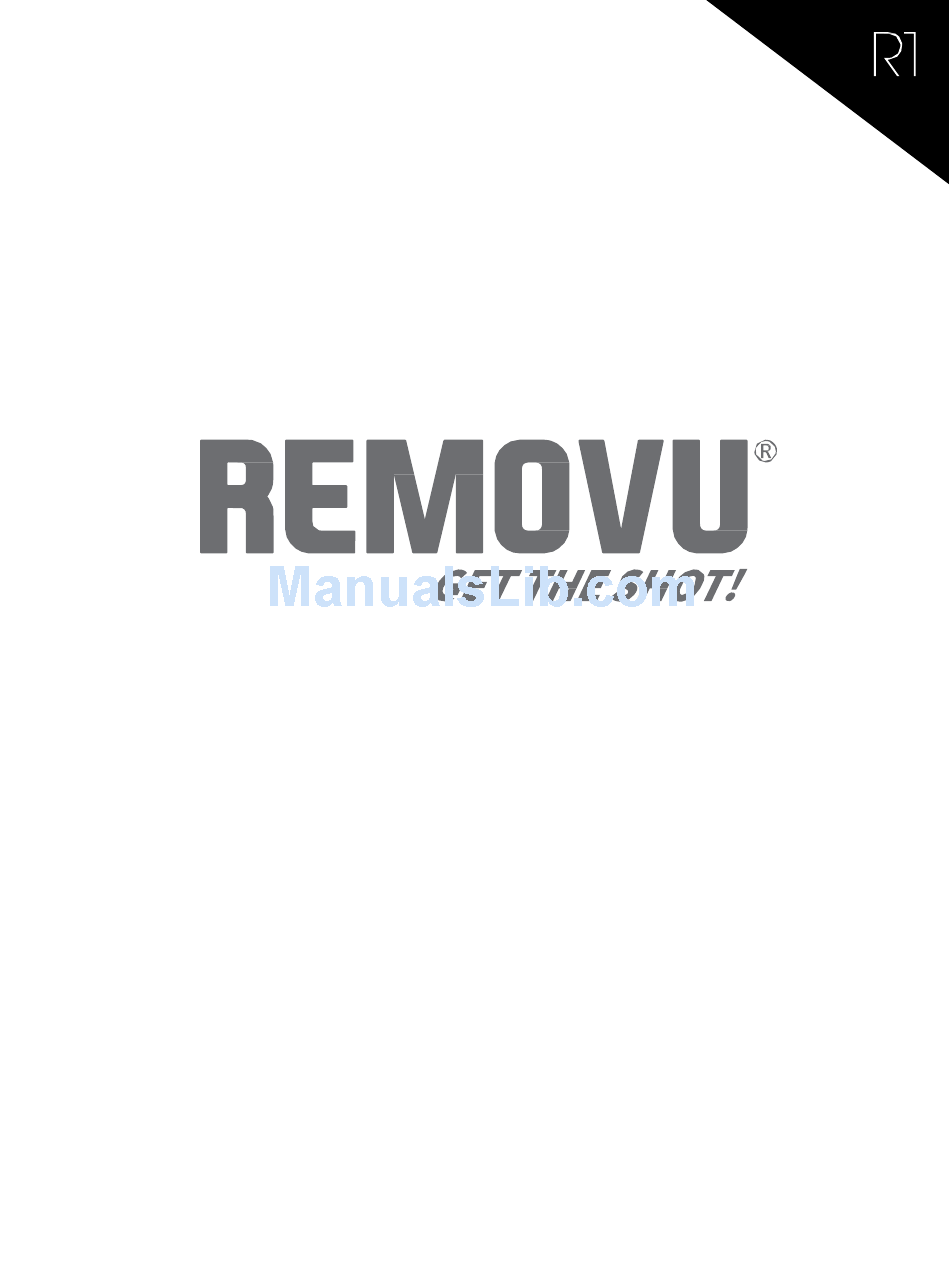

  • Page 1 DISTRIBUTORS GUIDE...

  • Page 2: Product Components And Features

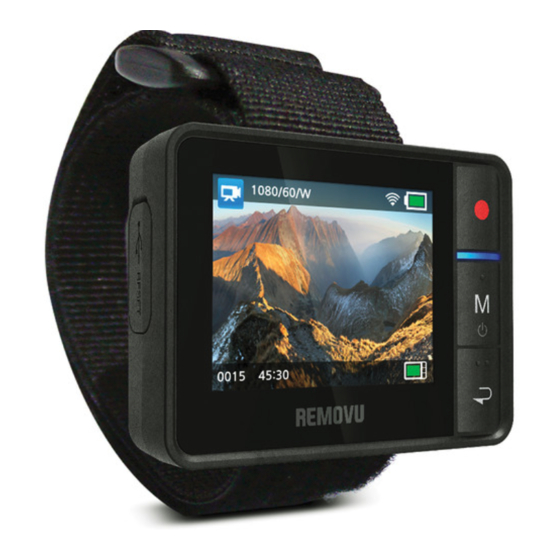

    1. Product Components and Features Package Component WRISTBAND USB CABLE QUICK GUIDE Shipment Information  Shipment Type: Carton  Contains 20 pieces per carton  Dimensions: 54 cm X 44 cm X 20 cm  Weight: 6 kg per carton (0.25 kg per product) Names of Each Part 1.

  • Page 3: Lcd Screen Indicators

    VIDEO Mode, PHOTO Mode, BURST Mode, TIME LAPSE Mode (Please refer to Pg. 10 for more details.) 2. Resolution / FPS 3. GoPro Battery Life 4. R1 Battery Life 5. Saved Image / Video Counter 6. Remaining Recordable Hours / Number of Photos Counter 7. Recharging Indicator LED Red Light when recharging.

  • Page 4: Charging The Battery

    2. Using the REMOVU R1 Charging the Battery *The battery should be fully charged before using R1 the first time. 1. Connect the device to a computer USB port using the micro USB cable included in the package. 2. R1 can also be charged with a USB power adapter.

  • Page 5: Navigating Your Device

    Navigating Your Device Press Back button to navigate through different menus. The order of appearance of the functions are as illustrated below. 1080/60/W 0015 45:30 1. Live View Mode 2. Hide OSD 3. Screen Saver 4. Clock 5. Playback Mode 6.
  • Page 6 2. While upgrading, you will be asked to set up Wi-Fi SSID, Password. Please make sure to remember your password and SSID. Connecting your GoPro HERO3, 3+ to REMOVU 1. Please go to the GoPro App settings menu on your HERO3, 3+ to turn on the Wi-Fi function.

  • Page 7: How To Connect

    5. Create the SSID, and Password for your Camera. 6. After the connection is established, shut down the App. Connecting your GoPro HERO4 to REMOVU 1. Turn on your HERO4 camera and go to HERO4 Setup → RC & App → Select Existing to turn on the Wi-Fi function.

  • Page 8: Wi-Fi Connection: Connection Failure / Reconnect

    3. If the connection is restored, blue LED will flash and the Live View will appear. 4. When reusing the device, R1 will try to connect to last device it was connected to using the information saved from previous use.

  • Page 9: Firmware Upgrade

    4. When “Select Camera Network” list appears on the REMOVU screen, connect the device to your PC or Mac using the USB cable included in the package. 5. Copy and paste the firmware files (r1_140.bin, rv_110.img) to the root of REMOVU storage drive.

  • Page 10: Firmware Version History

     Firmware Version History 1.1.0 Version: The first version of REMOVU R1. Supports only Hero 3, 3+ No playback function 1.2.0 Version (Released on 2014.11.28) Enabled playback function of GoPro Hero 3/3+ iii. 1.3.0 Version (Released on 2014.12.05) Enabled Hero 4 compatibility A.
  • Page 11 4. Trouble Shooting Guide and Tips 1. If “No firmware to update” message appears after firmware update, Solution: Connect your device to a PC and delete all files stored in the storage. Then copy and paste the firmware files including the .bin extension firmware file to the memory and reboot.
  • Page 12 3. If you can’t see your camera on the camera network list, Solution: In order to establish Wi-Fi connection between R1 and GoPro, the GoPro needs to have its SSID. The SSID can be generated through the GoPro App. Before using with R1, please establish connection between GoPro HERO4 and GoPro App to generate the SSID.
  • Page 13 4. If the display gets darker or backlight goes off, Solution: It means that the battery is running low, so please recharge the device. 5. If your device freezes while using, Solution: Press the reset button located next to the charging port. If the problem persists, please contact customer support.
  • Page 14 Solution: It can only be solved by factory resetting. Please fill out the RMA sheet and request for replacement. 8. If the REMOVU freezes at REMOVU logo, Solution: It can only be solved by factory resetting the device. Please fill out the RMA...
  • Page 15 9. If you want to delete the saved camera information Solution: The function is not yet available at this time. Only factory resetting can delete the history. If you want to come out from the password enter screen, Solution: Press the REC buttons for about 3 seconds to come out from the screen to menu screen.
  • Page 16 5. R1 Supported Video Settings Hero4 Silver Live View on Live View on Setting Setting Recording Recording 4K / 15 / WIDE 1080 Super / 48 / W 2.7K / 30 / W 1080 Super / 30 / W 2.7K / 24 / W...
  • Page 17 1440 / 30 / W 720 / 60 / W 1440 / 24 / W 720 / 30 / W 1080 / 120 / W 720 Super / 120 / W 1080 / 90 / W 720 Super / 60 / W 1080 / 60 / W WVGA / 240 / W Hero3+ (Black, Silver)
  • Page 18 Hero3 (Black, Silver, White) Live View on Live View on Setting Setting Recording Recording 4K 17:9 / 12 / WIDE 1080 / 30 / WIDE 4K / 15 / WIDE 1080 / 30 / MEDIUM 2.7K 17:9 / 24 / WIDE 1080 / 30 / NARROW 2.7K / 30 / WIDE 1080 / 24 / WIDE...

  • Page 19: Warranty Information

    6. Warranty Information Standard Limited Warranty Essel-t Co., LTD. (“essel-t”) warrants that essel-t’s devices and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase by the first consumer purchaser and continuing for 18 months period of time after that date.

  • Page 20: Rma Procedures

    RMA Procedures Please fill out the RMA request sheet provided with your guide. Make sure to fill out all the information requested. (Product Serial Number, Symptoms, Date returned, date sold, and etc.) Send the list on the first business day of the month, or before making your purchase order.
  • Page 21 REMOVU® by essel-t co., ltd. Copyright 2014 essel-t co., ltd. All Rights Reserved. Patents Pending. REMOVU® is a trademark of essel-t co., ltd. registered in the U.S. and other countries. GoPro® is a trademark of GoPro Inc., registered in the U.S. and other countries.
