Summary of Contents for REMOVU R1

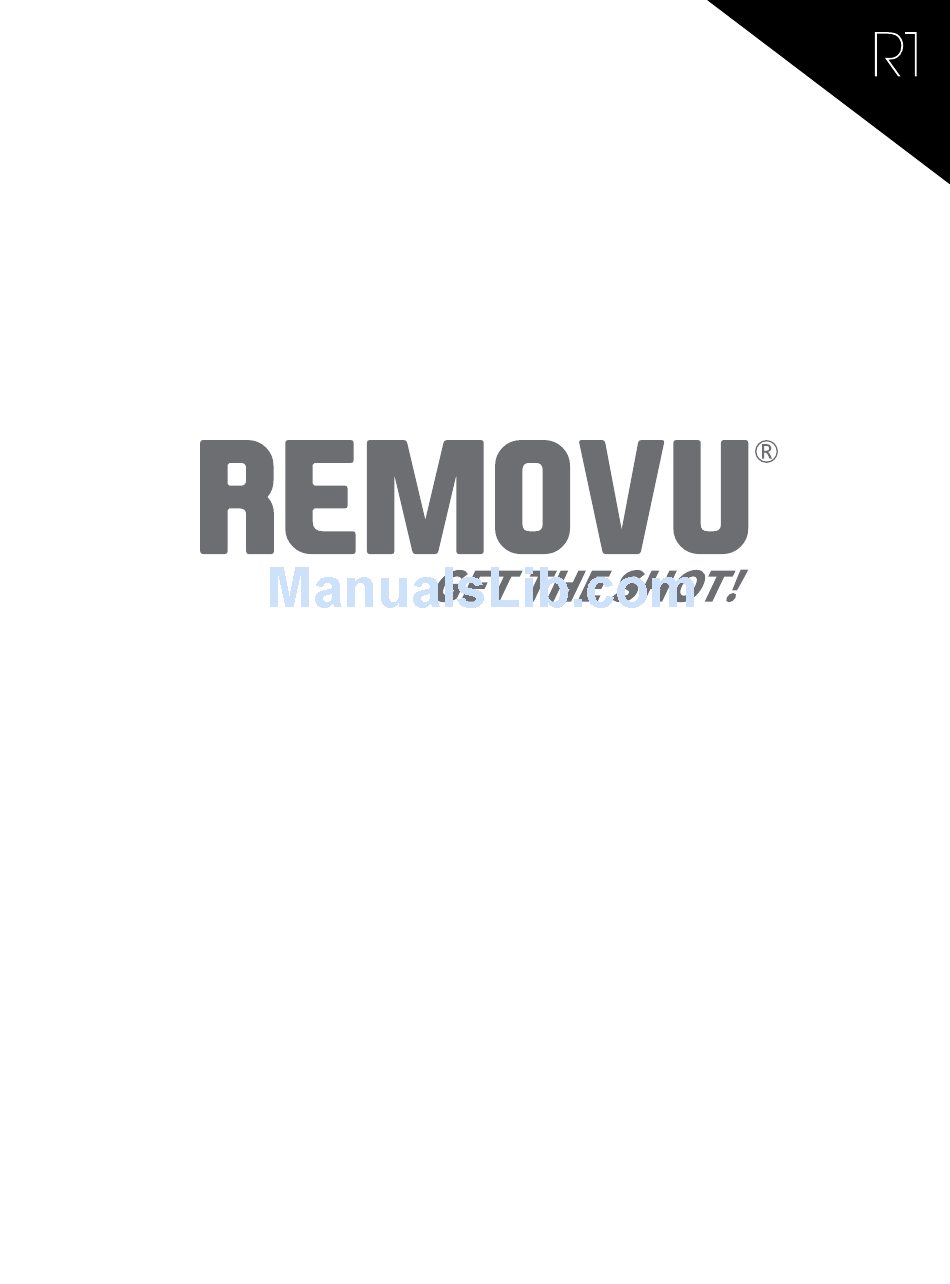

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 1. Understanding This User Manual 2. Product Components and Features 3. Using REMOVU R1 Charging the Battery Turning Your Device On and OFF Navigating Your Device Wi-Fi Connection: Connecting Your GoPro for the first time (HERO3, 3+ Users)

  • Page 3: Understanding This User Manual

    “R1”). This Operator’s Guide describes how to handle and operate the R1. Before using the R1, be sure to read this manual thoroughly for proper operation. To enhance the performance of the product, the contents of this instruction manual may be changed without prior notice.

  • Page 4: Product Components And Features

    2. Product Components and Features Package Component Please make sure your package includes all of the following items. WRISTBAND USB CABLE QUICK GUIDE Names of Each Part 1. REC Button (Shutter / OK) 6. Back Button 2. LCD Screen 7. USB Port Cover 3.

  • Page 5: Lcd Screen Indicators

    VIDEO Mode, PHOTO Mode, BURST Mode, TIME LAPSE Mode (Please refer to Pg. 12 for more details.) 2. Resolution / FPS 3. GoPro Battery Life 4. R1 Battery Life 5. Saved Image / Video Counter 6. Remaining Recordable Hours / Number of Photos Counter 7. Recharging Indicator LED Red Light when recharging.

  • Page 6: Using Removu R1

    3. Using the REMOVU R1 Charging the Battery *The battery should be fully charged before using R1 the first time. 1. Connect the device to a computer USB port using the micro USB cable included in the package. 2. R1 can also be charged with a USB power adapter.

  • Page 7: Navigating Your Device

    Navigating Your Device After the device is powered on and Wi-Fi connec- tion is established, it goes into the Live View mode automatically. From there, you can simply navigate through different functions using the Back button. The order of appearance of the functions are illus- trated below.

  • Page 8: Wi-Fi Connection: Connecting Your Gopro For The First Time (Hero3, 3+ Users)

    2. While upgrading, you will be asked to set up Wi-Fi SSID, Password. Please make sure to remember your password and SSID. Connecting your GoPro HERO3, 3+ to REMOVU 1. Plese go to the GoPro App settings menu on your HERO3, 3+ to turn on the Wi-Fi fuction.

  • Page 9: Wi-Fi Connection: Connecting Your Gopro For The First Time (Hero4 Users)

    5. Create the SSID, and Password for your Camera. 6. After the connection is established, shut down the App. Connecting your GoPro HERO4 to REMOVU 1. Turn on your HERO4 camera and go to HERO4 Setup → RC & App → Select Existing to turn on the Wi-Fi function.

  • Page 10: Wi-Fi Connection: Connection Failure/Reconnect

    3. If the connection is restored, blue LED will flash and the Live View will appear. 4. When reusing the device, R1 will try to connect to last device it was connected to using the information saved from previous use.

  • Page 11: Controlling Gopro (Power On / Off)

    Controlling GoPro (Power On / Off) Power On Press and hold the Back button for about 2 seconds to turn on the GoPro. The Live view will be dis- played soon after the Starting Live View message appears. Power Off Press and hold the Back button for about 2 seconds to turn off the GoPro.

  • Page 12: Modes And Settings - Hero3, 3+ Series

    4-1. Modes and Settings - HERO3, 3+ Series Menu Tree Menu Rotation Sequence VIDEO Record Video PHOTO Capture a single Photo BURST PHOTO Capture up to 30 Photos in one second TIME LAPSE Capture a series of Photos at timed intervals SETTINGS Adjust camera Settings...
  • Page 13 VIDEO To record video, please press the M button repeatedly until the Video icon appears at the top left corner of the Live View OSD. To start recording: Press the REC (Shutter / Select) button. The red LED Lights will flash while recording. To stop recording: Press the REC (Shutter / Select) Button while recording.
  • Page 14 TIME LAPSE Time Lapse mode automatically captures a series of photos at 0.5, 1, 2, 5, 10, 30 or 60 second intervals. To capture a Time Lapse series, please press the M button repeatedly until the Time Lapse icon appears at the top left corner of the Live View OSD. To take time lapse photos: Press the REC (Shutter / Select) Button.
  • Page 15 VIDEO RESOLUTION / FPS / FOV MODES The Resolution, fps (frames per second) and FOV (field of view) can be changed in the Video mode menu. You can also turn Auto Low Light mode ON / OFF. To change Video Mode settings: 1.
  • Page 16 Several time interval options are available for Time Lapse mode, including 0.5, 1, 2, 5, 10, 30 and 60 seconds. Additional Note: The sub-menus are structured identical to GoPro. Please refer to GoPro manual for details. REMOVU’s Back buttons works the same way as GoPro’s Exit button. The options may vary across different models.

  • Page 17: Modes And Settings - Hero4 Series

    4-2. Modes and Settings - HERO4 Series Menu Tree VIDEO PHOTO MULTI CAMERA PLAYBACK REMOVU SHOT SETTINGS SETTINGS VIDEO SINGLE BURST VIDEO BRIGHTNESS PHOTO PHOTO SETTING VIDEO + CONTINUOUS TIME PHOTO CAMERA PHOTO PHOTO LAPSE SETTING NETWORK LOOPING NIGHT NIGHT...
  • Page 18 Sub Menu Tree Long-press REC (Shutter / Select) button while in the desired Camara Mode to change the capture mode in the order listed of above. VIDEO MODE Video Captures video. Simultaneously captures both video and photos. You can set the camera to capture a photo at selected intervals while you Video + Photo record video.
  • Page 19 MULTI-SHOT MODE Captures up to 30 photos in 1 second. Perfect for capturing Burst the definitive moment in fast-action sports. Captures a series of photos at specified intervals. You can use Time Lapse Time Lapse to capture photos of any activity, so you can choose the best ones later.

  • Page 20: Firmware Upgrade

    PC or Mac using the USB cable included in the package. 5. Copy and paste the firmware files to the root of REMOVU storage drive. 6. When the files are successfully copied into the root of REMOVU, disconnect the device from your PC or Mac.

  • Page 21: Product Specification

    6. Product Specification Display 2.0 inch QVGA (320×240) TFT LCD Video Streaming HLS | 432×240 @ 30fps IEEE 802.11b/g/n Wi-Fi Distance: 20m ~ 70m (Max) Antenna Built-in PCB antenna 3 hours of continuous video streaming Power and Battery Built-in Rechargeable Li-polymer Battery 1,050mA Interface Micro USB (Charging &...

  • Page 22: Trouble Shooting Guide

    3. If you can’t see your on the camera network list, Solution: In order to establish Wi-Fi connection between R1 and GoPro, the GoPro needs to have its SSID. The SSID can be generated through the GoPro App. Before using with R1, please establish connection between GoPro HERO4 and GoPro App to generate the SSID.

  • Page 23: Warranty Information

    8. Warranty Information Standard Limited Warranty Essel-t Co., LTD. (“essel-t”) warrants that essel-t’s devices and accessories (“Products”) are free from defects in material and workmanship under normal use and service for the period commencing upon the date of purchase by the first consumer purchaser and continuing for 1 year period of time after that date.

  • Page 24: Obtaining Warranty Service

    REMOVU® by essel-t co., ltd. Copyright 2014 essel-t co., ltd. All Rights Reserved. Patents Pending. REMOVU® is a trademark of essel-t co., ltd. registered in the U.S. and other countries. GoPro® is a trademark of GoPro Inc., registered in the U.S. and other countries.
