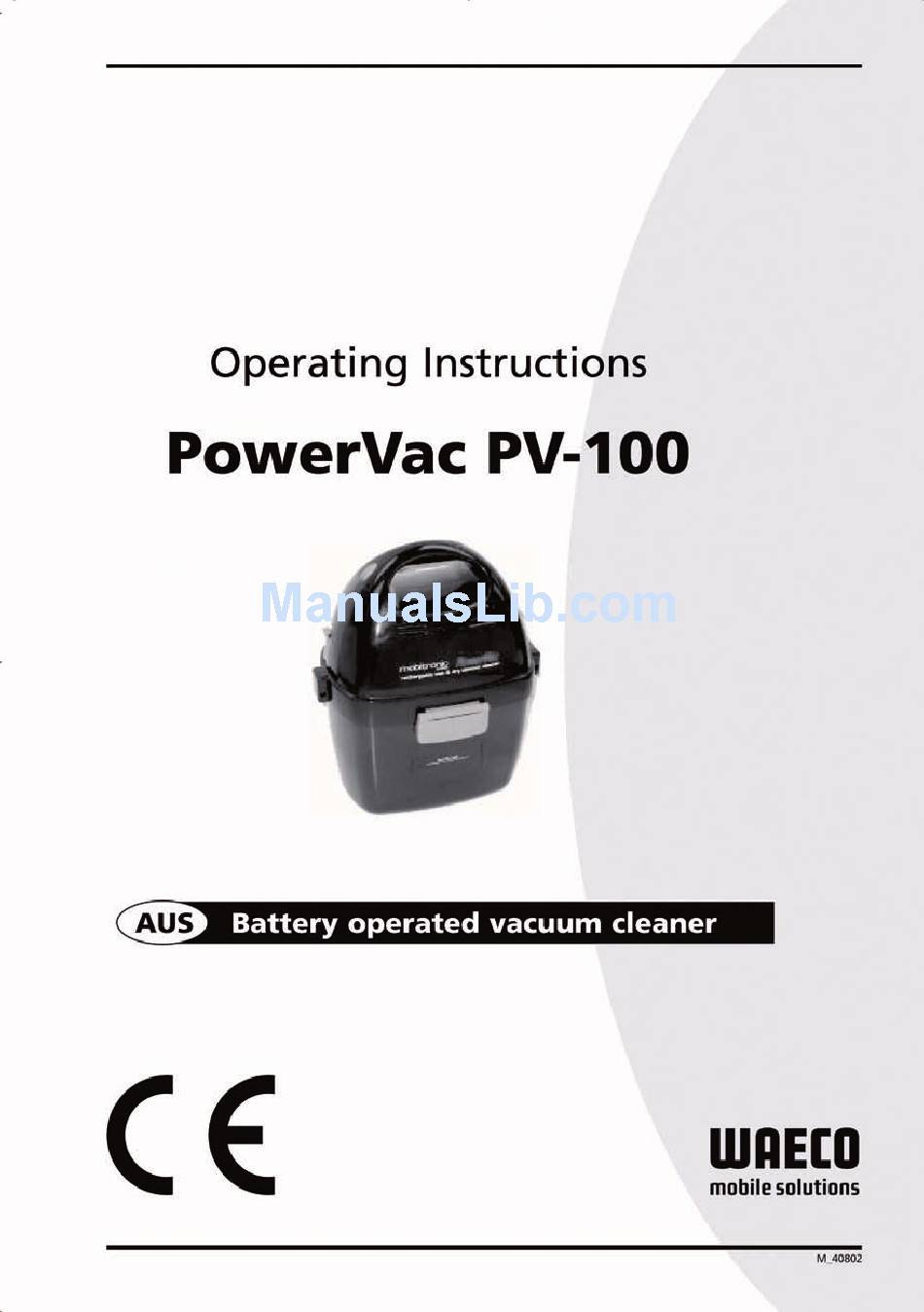

Waeco PowerVac PV-100 Operating Instructions Manual

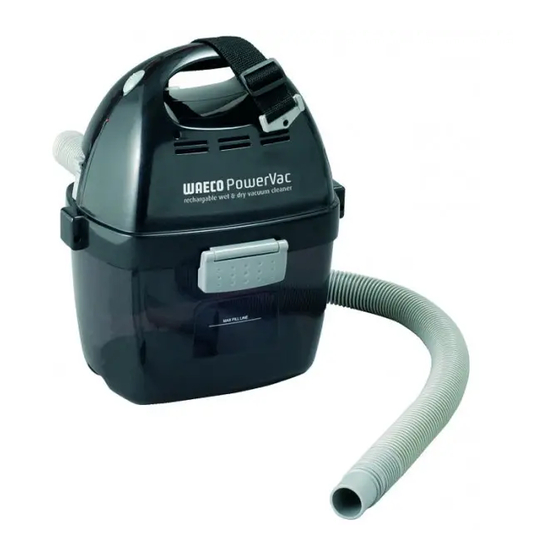

Waeco powervac pv-100 battery operated vacuum cleaner
Hide thumbs Also See for PowerVac PV-100:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerVac PV-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waeco PowerVac PV-100

Summary of Contents for Waeco PowerVac PV-100

  • Page 2 PowerVac PV100...
  • Page 3 PowerVac PV100...

  • Page 4: Table Of Contents

    PowerVac PV100 Please read instructions carefully before using appliance. Keep in- structions safely. In the case of resale, the new owner should be given the instructions. Index Advice on using the instructions ......20 Safety warnings .

  • Page 5: Advice On Using The Instructions

    "Position 5 of diagram 1 on page 3“. Please heed the following safety warnings. Safety warnings Warning! WAECO International does not accept responsibility for damage as a result of the following: – Damage to the appliance due to mechanical problems and elec- trical surges.

  • Page 6: General Safety

    Unauthorised repair may cause considerable danger. Refer to technical service department WAECO in case of repair. Do not use any accessory that has not been recommended by WAECO. This may cause material damage or harm. Safety when using the appliance The appliance should never be used on premises where inflammable sub- stances are kept or where inflammable gases are present.

  • Page 7: Equipment Supplied

    Charge cable for charging from the 12 V DC power supply Usage The PowerVac PV-100 is a battery powered vacuum cleaner for light clean- ing of wet or dry spills. The appliance is not designed for industrial use. It should not be used outdoors.

  • Page 8: Technical Description

    Technical description Operating description The PowerVac PV-100 can be used as a dry and wet vacuum cleaner. The battery permits operation if no electrical socket is available. It takes about 8 to 10 hours to recharge the vacuum cleaner. The integrated charging electronics automatically completes the charging process.

  • Page 9: Before Using For The First Time

    PowerVac PV100 Before using for the first time Before using for the first time Before using vacuum cleaner, prepare as follows: Charge battery (see 3, page 4) Warning: The vacuum cleaner is supplied with battery undercharged. Before vacuum cleaner can be used, the battery must be charged. ➤...

  • Page 10: Using Vacuum Cleaner

    Charge the battery only with the included mains adapter or the 12 V charge cable. Should you need spare parts, you can order them exclusively from WAECO. The battery is fully charged after 10 to 14 hours (when charged from the mains adapter).
  • Page 11 PowerVac PV100 Using vacuum cleaner Proceed as follows to charge the battery from the 12 V DC power source (see 3, page 4): Caution! Never attempt to charge the battery while driving or while the engine is running. There is a risk of injury! ➤...
  • Page 12 PowerVac PV100 Using vacuum cleaner Vacuuming wet spills Warning: Empty dirt canister before vacuuming liquids or wet spills. Continue as follows to vacuum liquids or wet spills: ➤ Switch on appliance using on/off switch. ➤ Vacuum using carpet nozzle in any direction. When vacuuming liquids, ensure liquid in canister does not go beyond "MAX FILL LINE".

  • Page 13: Storing Vacuum Cleaner

    PowerVac PV100 Storing vacuum cleaner Storing vacuum cleaner Only store vacuum cleaner in dry place. Proceed as follows if vacuum cleaner is not to be used for a long period: ➤ Empty and clean dirt canister and filter. ➤ Wind vacuum hose around casing. ➤...

  • Page 14: Care And Cleaning Of Vacuum Cleaner

    PowerVac PV100 Care and cleaning of vacuum cleaner ➤ Connect red cable to positive pole on new battery. ➤ Connect black cable to negative pole on new battery. ➤ Place new battery (8 2, page 4) in battery compartment (8 1, page 4) of vacuum.

  • Page 15: Guarantee

    Guarantee Our standard conditions of guarantee are in force. In the case of a defective product, return to the WAECO representative in your country (addresses on back of instructions) or to nearest dealer. The following documents are re- quired for repair or guarantee: A copy of the invoice showing date of purchase, reason for return of good or description of fault.

  • Page 16: Technical Information

    PowerVac PV100 Technical information Technical information Material: Handle: ABS Filter: Polyester Dirt canister: PP Engine: 12 V DC, 28000 rpm Battery: 12 V DC, 2.6 Ah Charge time: 10–14 h (automatic disconnection) Capacity: 3.8 l Power: 90 W Operating temperature: 0 °C –...
  • Page 17 Headquarters WAECO International GmbH · Hollefeldstraße 63 · D-48282 Emsdetten Fon: +49 2572 879-195 · Fax: +49 2572 879-322 · E-Mail: info@waeco.de · Internet: www.waeco.de Europe Overseas + Middle East WAECO Schweiz AG WAECO Italcold SRL WAECO Pacific Pty. Ltd.
