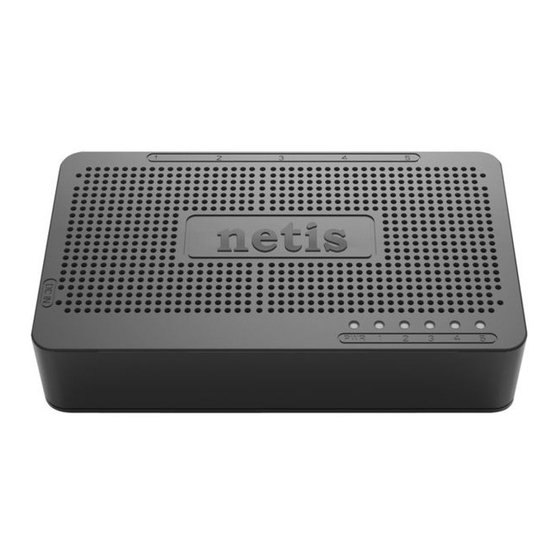

NETIS 5/8 Port Fast Ethernet Switch
User Manual
1141 Budapest, Fogarasi út 77.
1095 Budapest, Mester u. 34.
Tel.: *220-7940, 220-7814, 220-7959,
Tel.: *218-5542, 215-9771, 215-7550,
220-8881, 364-3428 Fax: 220-7940
216-7017, 216-7018 Fax: 218-5542
Mobil: 30 531-5454, 30 939-9989
Mobil: 30 940-1970, 20 949-2688
www.netis-systems.hu
V1.1
E-mail: info@delton.hu Web: www.delton.hu
2010-06-30
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Netis ST-3105S
Summary of Contents for Netis ST-3105S
-
Page 1: User Manual
NETIS 5/8 Port Fast Ethernet Switch User Manual 1141 Budapest, Fogarasi út 77. 1095 Budapest, Mester u. 34. Tel.: *220-7940, 220-7814, 220-7959, Tel.: *218-5542, 215-9771, 215-7550, 220-8881, 364-3428 Fax: 220-7940 216-7017, 216-7018 Fax: 218-5542 Mobil: 30 531-5454, 30 939-9989 Mobil: 30 940-1970, 20 949-2688 www.netis-systems.hu... -
Page 2: Fcc Statement
5/8 Port Fast Ethernet Switch User Manual Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 5/8 Port Fast Ethernet Switch User Manual Package Contents The following items should be found in your package: 5/8 Port Fast Ethernet Switch Power Adapter User Manual Make sure that the package contains above items. If any of the above items is missing or damaged, please contact the store you bought this product from.
- Page 4 5/8 Port Fast Ethernet Switch User Manual Contents 1. INTRODUCTION ............................ 5 1.1. ............................ 5 RODUCT VERVIEW 1.2. ............................ 5 AIN EATURES 1.3. .............................. 6 TANDARDS 1.4. .......................... 6 ORKING NVIRONMENT 2. INSTALLATION ...
-
Page 5: Product Overview
5/8 Port Fast Ethernet Switch User Manual 1. Introduction 1.1. Product Overview The 5/8 Port Fast Ethernet Switch can significantly increase your network traffic speed. A switch serves the same function as a hub in a network - tying your network equipment together. However, unlike a simple hub which divides the network’s bandwidth among all the attached devices by indiscriminately sending data from all ports to all ports to be accepted or rejected and causing collisions or being slowed down when more than one device is sending information, a switch makes maximum use of available... -
Page 6: Working Environment
5/8 Port Fast Ethernet Switch User Manual 1.3. Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control 1.4. Working Environment Temperature: 0° to 40° C (operating) -40° to 70° C (storage) Humidity: 10% to 90 % RH (operating) 5% to 90% RH (storage) Power: DC 9V... -
Page 7: Before Installation
5/8 Port Fast Ethernet Switch User Manual 2. Installation 2.1. Before Installation Take note of the following conditions before using your switch: Install the 5/8 port Fast Ethernet switch in a fairly cool and dry place. See Working Environment the acceptable operating temperature and humidity ranges Install the switch in a site free from strong electromagnetic sources, vibration, dust, and direct sunlight. -
Page 8: Troubleshooting
5/8 Port Fast Ethernet Switch User Manual 3. Troubleshooting 1. The Power LED is not lit Check if the AC power cord is well connected. Try to unplug and plug back in the power cord to the LAN Switch or try another power outlet. 2.
