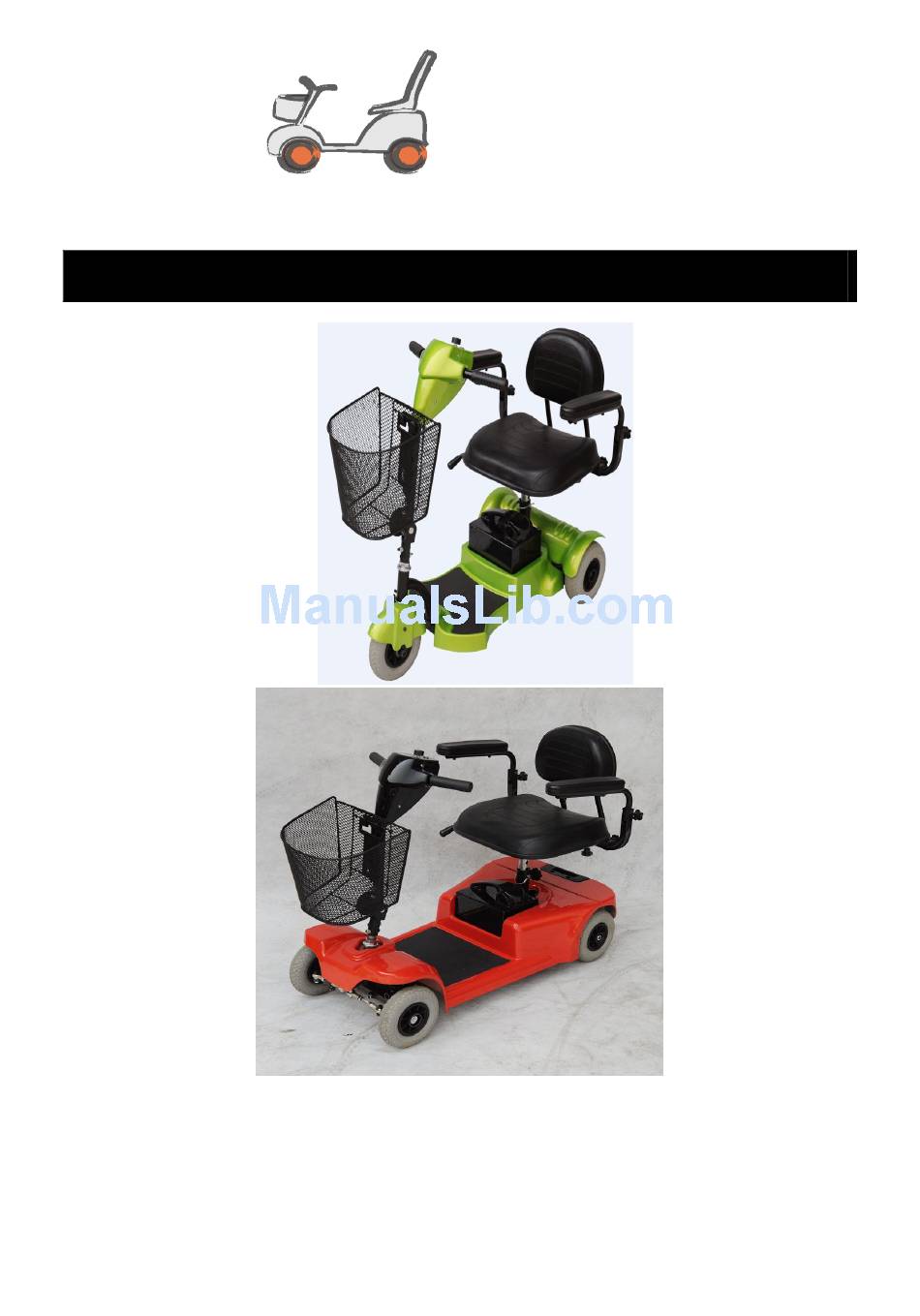

  • Page 1 Mobility Works……. ® Shopper 3 & 4 Scooter Stopper 3 & 4 Scooter NE Shopper OWNER'S MANUAL - - 1 - -...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE …………………………………………………………………………………… 2. SAFETY NOTICE …………………………………………………………………………. 2.1 Before Driving 2.2 Whilst Driving 2.3 Label 2.4 Electromagnetic Interference 3. PARTS INTRODUCTION………………………………………………………………….. 4. OPERATION ………………………………………………………………………………… 4.1 Control Panel 4.2 How to Operate Your Scooter 5. DRIVING ON THE ROAD…………………………………………………………………. 6.

  • Page 3: Preface

    We reserve the right to make design modifications. The Shopper range of scooters are part of the Mobility Works range, and have been designed and manufactured to provide a comfortable and secure yet affordable solution for some mobility requirements.

  • Page 4: Safety Notice

    2. SAFETY NOTICE IC MOBILITY SCOOTE 2.1 BEFORE DRIVING The user needs to be familiar with the use and operation of this vehicle before driving. Therefore, please follow the recommendations in this safety notice.  The same traffic rules apply to the user of this vehicle as apply to pedestrians. ...
  • Page 5 ■ About Mobile Phones and other electrical equipment ■ Do not use a mobile phone or other wireless communication devices whilst driving. ■ Always switch off the scooter and remove the ignition key before using a mobile phone. ■ Do not charge the mobile phone or any other electrical devices from your scooter’s battery. ■...

  • Page 6: Electromagnetic Interference

    2.3 LABELLING Please carefully read all labels on the scooter before driving it. For future reference, do not remove them. Mercury Prism Electric Scooter Page 6 of 28 Owner’s Handbook (Part Code: Z40949) This section of the manual will provide the user with basic information that describes the problems with EMI, known sources of EMI, protective measures either to lessen the possibility or exposure or to minimize the degree of exposure, and suggested action should unexpected or erratic movement occur.
  • Page 7 unavoidable. However, we believe that by following the warning listed below, your risk to EMI will be minimized. The sources of radiated EMI can be broadly classified into three types: 1. Hand-held portable transceivers (transmitter-receivers with the antenna mounted directly on the transmitting unit).
  • Page 8 3. If unintended movement or brake release occurs, turn the powered scooter OFF as soon as it is safe; 4. Be aware that adding accessories or components, or modifying the powered scooter , may make it more susceptible to EMI ( Note: There is no easy way to evaluate their effect on the overall immunity of the powered scooter ).

  • Page 9: Parts Introduction

    3. PARTS INTRODUCTION 3. PARTS INTRODUCTION Parts Description : 1. Control panel 2. Charger socket 3. Tiller adjustment knob 4. Drag handle 5. Front wheel lock 6. Arm rest 7. Seat 8. Seat post 9. Seat rotation lever 10. Battery pack 11.

  • Page 10: Operation

    4.SCOOTER OPERATION 4.1 CONTROL PANEL Please see the diagram on the right. 1. Speed adjuster knob 2. battery indicator 3. power light 4.key ignition 5.horn button 4.2 HOW TO OPERATE YOUR SCOOTER  Key Ignition  The key ignition acts as the power switch for the scooter. To switch the power on, turn the key clockwise in the ignition.
  • Page 11 Warning When on a gradient NEVER set the vehicle to the freewheel mode. The electromagnetic brakes will not be applied. This may result in injury.  Seat The seat can be rotated and locked in position at 45intervals. Push the seat adjustment lever forward and swivel the seat. Release the lever, and then continue swivelling the seat until it locks in position.
  • Page 12 battery capacity is sufficient. 3. In wintertime or in cold conditions, the battery may respond more slowly and the battery range may be reduced. 4. When driving on a gradient, the battery indicator gauge might move up and down. This is a normal phenomenon so please do not worry.
  • Page 13 5. DRIVING ON THE FOOTPATH VING ON THE ROAD  Starting and Driving  1. Make sure the seat is installed properly.  2. Make sure the tiller has been secured properly. 3. Fold down the armrests so you can rest your arms on them. 4 Check battery indicator to see whether there is enough power for your journey.

  • Page 14: Battery Charging And Care

    6. BATTERY CHARGING AND CARE 6.1 CHARGING THE BATTERY There are two methods which can be used to charge the battery pack on the Prism: Method 1: On-board Charging (see photograph overleaf) Follow the procedure below step by step: 1. Turn the power switch to (OFF) 2.
  • Page 15 Suggestion 1. Do not disconnect the charger cord if charging is not completed. The battery life will be seriously shortened or decayed if the battery is repeatedly used without being fully charged. Therefore be sure to charge the battery fully every time. 2.

  • Page 16: Charger

    6.2 CHARGER The charger supplied with the Prism has an LED which changes colour depending on its status:  If the LED is lit ORANGE then the charger is switched on and charging  If the LED is lit GREEN then the charger is switched on and has finished the bulk of its charging and the batteries can be used.

  • Page 17: Inspection And Maintenance

    Go to your dealer for inspection and maintenance if you find anything wrong 7.2 REGULAR CHECKING RECORD To make sure your scooter is correctly serviced, take it to your Mobility Works dealer for regular maintenance checks. This should be at six monthly intervals after an initial inspection after one month.

  • Page 18: Battery, Fuse And Tire

    7.3 BATTERY, FUSE AND TYRE Battery  Refer to the section entitled “6.3 BATTERY” in “6. BATTERY CHARGING AND CARE”.  Fuse  If the battery charger is turned on and the LED is not lit, check the fuse. Suggestion Ask for help from your dealer to inspect or replace the fuse, since the tiller shroud has to be removed first before you can replace the fuse.

  • Page 19: Storage

    adverse environments. Do not use, water, oil or other chemical solutions to clean your scooter. Be sure NOT to spray the scooter with a hose or tap as this may cause damage to electronic componentry and the scooter controller. Please take the scooter to authorised dealers for repairs and adjustments. Improper adjustments could lead to an accident or scooter malfunction.

  • Page 20: Assembling The Scooter

    1. Push the Seat Rotate Lever whilst pulling up on the seat to remove. 2. Lift out the battery pack from the main body of the scooter. 3. Loosen the tiller adjustment knob and fold down the tiller and retighten knob. 4.
  • Page 21 1. Position the front and rear sections of the Prism. Align the lower curved locking brackets of the front section with the corresponding pegs on the front of the rear section 2. Holding the lower seat post, slowly pivot the rear section forward until the curved locking brackets are fully connected on to the top rear pegs.

  • Page 22: Troubleshooting

    8. TROUBLESHOOTING If you have trouble with your scooter, you can inspect the following before taking your scooter to the dealer: If you cannot solve the problem, contact your dealer for assistance Problem Symptom Remedy Scooter will not switch on Batteries not connected Check batteries are connected Rear and front sections not...

  • Page 23: Specification

    9. SPECIFICATION specications JH08-128,158 Top Speed Go forward 6km/h length*width*height(mm) 943*430*865 Fall Back 3km/h 200*50 with Front 44kg Tyre solid battery Wheel wheel weight 7inch- without 36kg back wheel solid battery wheel battery （12V12AH）*2 climbing angle 8° continuity running spread of axles 717mm 10km range...

  • Page 24: Warranty

    10. WARRANTY 10.1 VIN (SCOOTER INDENTIFICATION NUMBER) To ensure the correct after sales service and warranty service support, please write down the scooter serial number. The serial number is located on the back right-hand side of the frame (see photo right). Motor serial Controller Name...
  • Page 25 Ningbo Jiahe Special Vehicle Co. Ltd. Ningbo, Zhejang China Sold to Name ________________________________________ Address ________________________________________ ________________________________________ ________________________________________ Date ________________________________________ Model Shopper 3 Wheel ( JH08-128A ) Shopper 4 Wheel ( JH08-158A ) Serial No ________________________________________ OTES AND ADDITIONS - - 25 - -...
