Road Safety Guard
351.137
Instruction Manual
Handleiding
Gebrauchsanweisung

Advertisement

loading
Need help?

Need help?

Do you have a question about the Road Safety Guard 351.137 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKYTRONIC Road Safety Guard 351.137

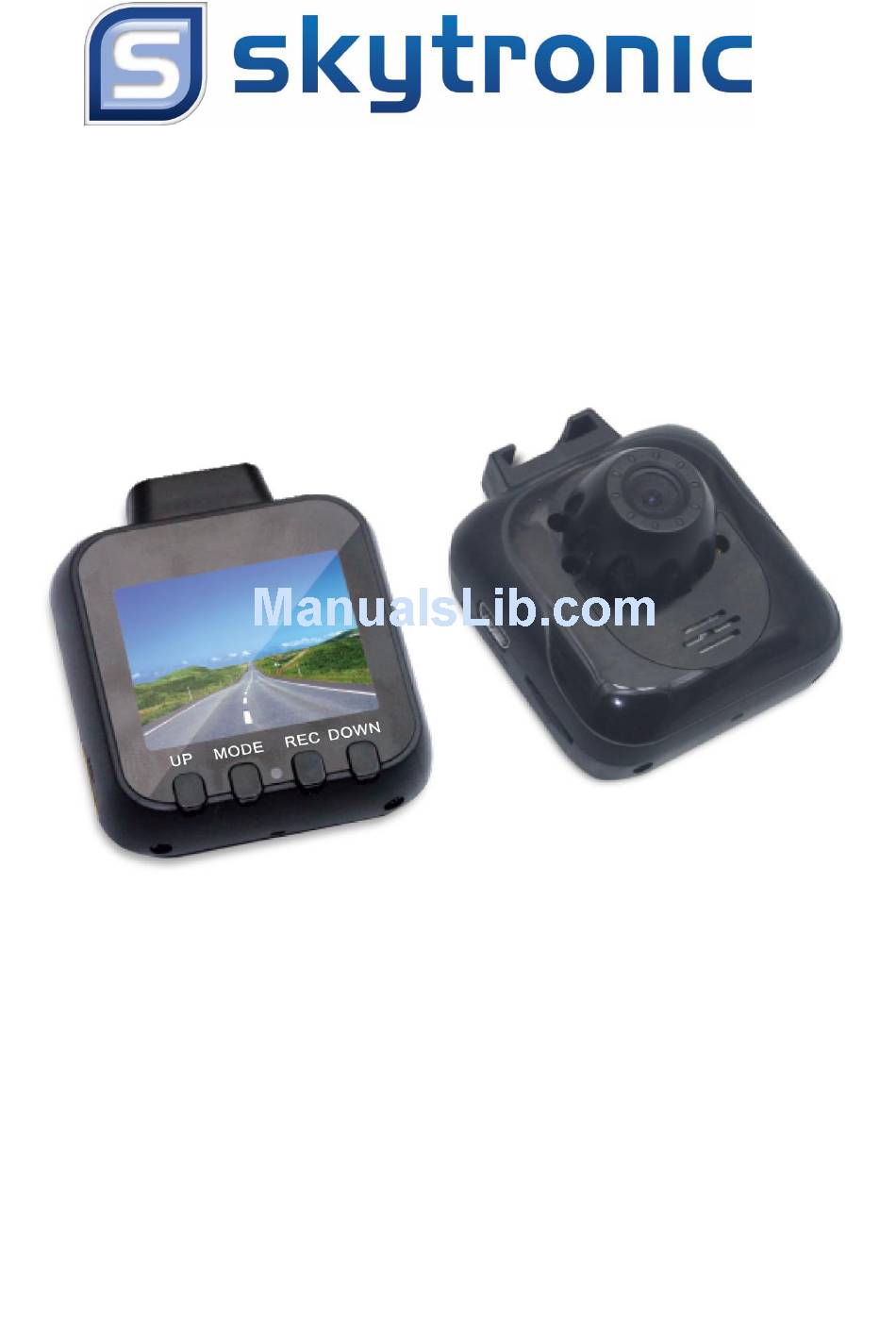

  • Page 1 Road Safety Guard 351.137 Instruction Manual Handleiding Gebrauchsanweisung...
  • Page 2 Caution: Please strict to relevant regulation and laws. Do not use this product illegally. Before video recording, please insert TF card first as silkscreen indication to avoid the damage. It’s suggested to manage the files in TF card once a week. This product is not exclusive storage facility and please duplicate important files to avoid files missing.
  • Page 3 Functional operation Boot and shutdown A) DVR There are two kinds of boot methods: in the off state, short press ON / OFF key, DVR automatically enter the video mode and start recording, and green working indicator light is flicking; or the machine in the off state connected car charger, DVR automatically enter the video mode and start recording, when unplug the charger, DVR automatically shut down in 5 seconds...
  • Page 4 Insert a memory card Insert the memory card into the slot as silk-screen indication, until you hear the sound of the "click". Memory card remove: Push forward the memory card. (It is better to remove in the shutdown status to avoid memory card damage.) Video Mode Press the on/off key to boot and in video mode directly and green light flicks.
  • Page 5 Motion detection In Video standby mode, press the DOWN button and directly be in motion detection mode, when detecting moving objects, DVR began to video, when no movement before DVR for continuous 5 seconds, it will stop recording. when detected objects movement again, DVR will video again. Press the DOWN key,, the video file is saved and exit motion detection mode.
  • Page 6 Quick Preview Off / 2 Seconds / 5 Seconds Factory default:Off Date Stamp Off, date, date/time Factory default:Date/time DELETE Delete current/ delete all Lock Current / Unlock Current / Lock All / Protect Playback Unlock All Slide show 2 seconds/5 seconds/8 seconds Set Date/Time YY/MM/DD Auto Power off...
  • Page 7 Product Specifications : Screen size 1.5inch TFT PIXELS 1.0MP LENS 120degree wide view of angle Min LUX 1LUX Video resolution 1080P/720P/480P Video format AVI@MJPG frames 30fps 12M/10M/8M/5M/3M/2M/VGA/1.3M Image resolution 5M/3M/1.3M Image format Motion detection support Cycle recording off/30s/1min/2mins Memory card TF card Memory card capacity MAX 64G...
  • Page 8 Houd u zich aan de verkeersregels en wetten die van toepassing zijn op het gebruik. Voordat u opneemt, plaats eerst de geheugenkaart om beschadigingen te voorkomen. Het wordt aanbevolen om 1x per week de opgenomen files te bewerken. Maak kopieën om belangrijke files op te slaan.
  • Page 9 Bediening In- en afschakelen A) DVR In de UIT stand óf in de UIT stand als u in de auto laadt, drukt u kort op ON / OFF en gaat de DVR automatisch naar de video mode en start de opname én de groene LED gaat knipperen; wanneer u de lader verwijderd, zal de DVR automatisch na 5 seconden afschakelen en de video file opslaan.
  • Page 10 Plaatsen van de geheugenkaart Plaats de geheugenkaart en schuif deze door tot u een klik hoort. Het verwijderen van de geheugenkaart: Druk tegen de kaart en trek deze uit het slot. (Om geen ongewenste schakelpieken te krijgen kunt u de kaart het beste verwijderen als de DVR uit staat.) Video Mode In de video mode gaat de groene LED knipperen.
  • Page 11 Bewegingsdetectie In Video standby-modus, druk op DOWN en u komt direct in de bewegingsdetectie modus bij het detecteren van bewegende objecten, de DVR neemt dan op; wanneer 5 seconden geen beweging plaatsvindt zal de opname te stoppen. Als opnieuw objecten gedetecteerd worden zal de DVR video opnieuw opnemen. Druk op DOWN om op te slaan en de bewegingsdetectie modus te verlaten.
  • Page 12 Quick Preview Off / 2 Seconds / 5 Seconds Factory default:Off Date Stamp Off, date, date/time Factory default:Date/time DELETE Delete current/ delete all Lock Current / Unlock Current / Lock All / Protect Playback Unlock All Slide show 2 seconds/5 seconds/8 seconds Set Date/Time YY/MM/DD Auto Power off...
  • Page 13 Produkt Specificaties : Screen size 1.5inch TFT PIXELS 1.0MP LENS 120degree wide view of angle Min LUX 1LUX Video resolution 1080P/720P/480P Video format AVI@MJPG frames 30fps 12M/10M/8M/5M/3M/2M/VGA/1.3M Image resolution 5M/3M/1.3M Image format Motion detection support Cycle recording off/30s/1min/2mins Memory card TF card Memory card capacity MAX 64G...
  • Page 14 1. Beachten Sie die Verkehrsregeln und Gesetze, die gelten i.B.a.die Verwendung. 2. Vor der Aufnahme, legen Sie die Speicherkarte ein, um Schäden zu vermeiden. 3. Es wird empfohlen um 1x wöchentliche Backups zu bearbeiten. Machen Sie Kopien um zu speichern. 4.
  • Page 15 Bedienung Ein- und abschalten A) DVR In der OFF-Position entweder in der OFF-Position während Sie den DVR im Auto Laden drücken Sie kurz die Ein / Aus-Taste, der DVR gelangt automatisch in den Videomodus und startet die Aufzeichnung und die grüne LED blinkt; wenn Sie den Ladestecker entfernen wird der DVR automatisch nach 5 Sekunden abschalten und die Videodatei speichern.
  • Page 16 Die Speicherkarte einlegen Legen Sie die Speicherkarte ein und schieben Sie sie bis es klickt. Entfernen der Speicherkarte: Drücken Sie die Karte etwas und ziehen Sie sie aus dem Steckplatz. (Um keine unerwünschten Schaltspitzen zu bekommen können Sie die Karte am besten entfernen wenn der DVR ausgeschaltet ist.) Video Mode Im Video-Modus, blinkt die grüne LED.
  • Page 17 Bewegungserkennung Im Video Standby-Modus, drücken Sie DOWN und Sie gelangen direkt in den Bewegungserkennungsmodus zur Erkennung von bewegten Objekten, der DVR zeichnet auf; wenn keine Bewegung stattfindet innerhalb 5 Sekunden stoppt die Aufzeichnung. Wenn wieder Objekte erkannt werden, wird der DVR Video erneut aufzeichnen. Drücken Sie DOWN um zu speichern und um die Bewegungserkennungsmodus zu verlassen..
  • Page 18 Anti-shaking Off / On Factory default:Off Quick Preview Off / 2 Seconds / 5 Seconds Factory default:Off Date Stamp Off, date, date/time Factory default:Date/time DELETE Delete current/ delete all Lock Current / Unlock Current / Lock All / Protect Playback Unlock All Slide show 2 seconds/5 seconds/8 seconds...
  • Page 19 Produkt Daten : Screen size 1.5inch TFT PIXELS 1.0MP LENS 120degree wide view of angle Min LUX 1LUX Video resolution 1080P/720P/480P Video format AVI@MJPG frames 30fps 12M/10M/8M/5M/3M/2M/VGA/1.3M Image resolution 5M/3M/1.3M Image format Motion detection support Cycle recording off/30s/1min/2mins Memory card TF card Memory card capacity MAX 64G...
  • Page 20: Ce Declaration Of Conformity

    CE Declaration of Conformity Importer: TRONIOS BV Bedrijvenpark Twente 415 7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands Product number: 351.137 Product Description: Road Safety Car Camera HD 1,5" Display Regulatory Requirement: EN 55022 EN 55024 The product meets the requirements of Directive 2004/108/EC as stated in the above mentioned Norms.
