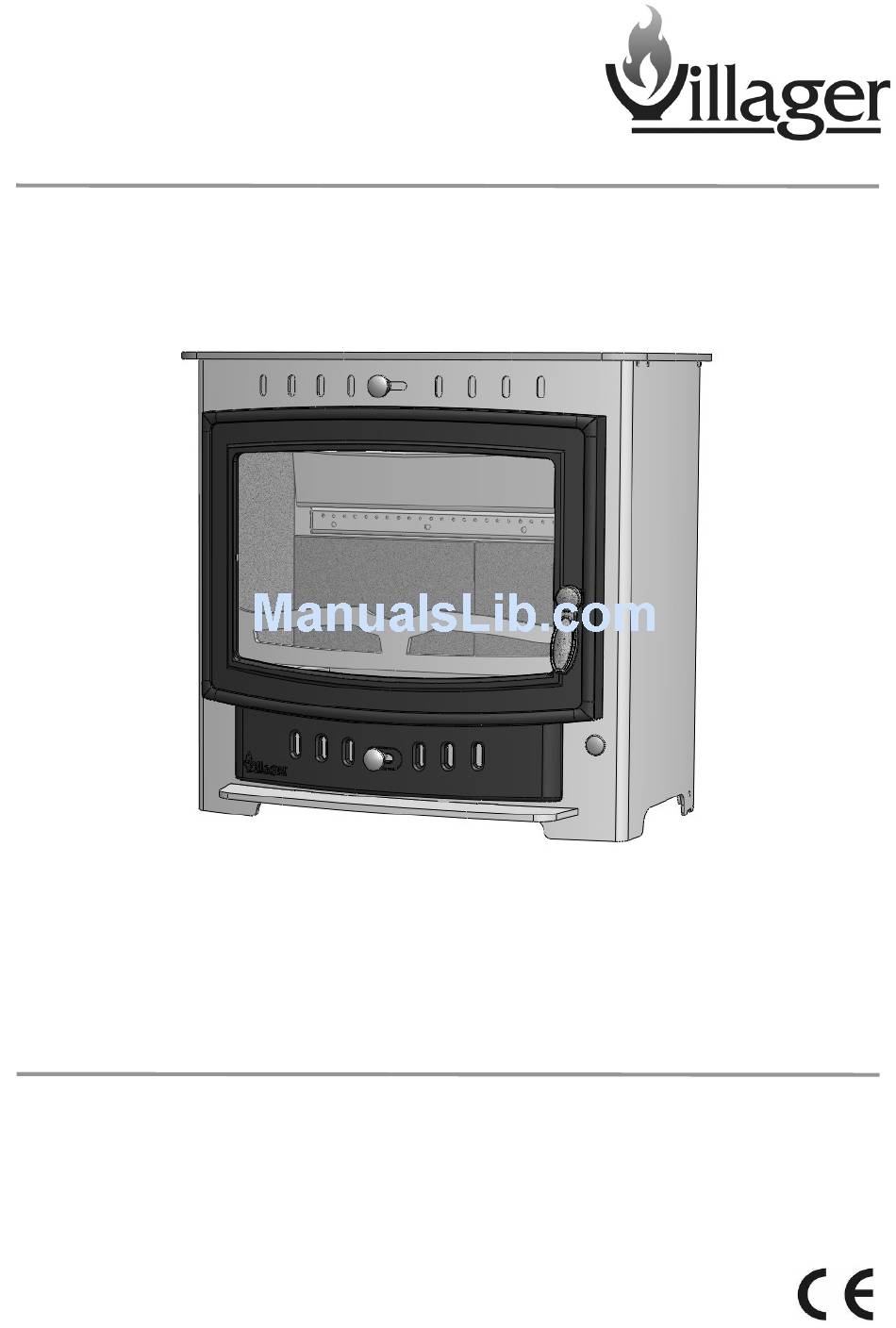

- Page 1 Operating & Installation Manual Esprit PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE BK077 Rev 06 August 2010 EN 13240:2004+ Part No. AFS1399 Amd. A2:2004...

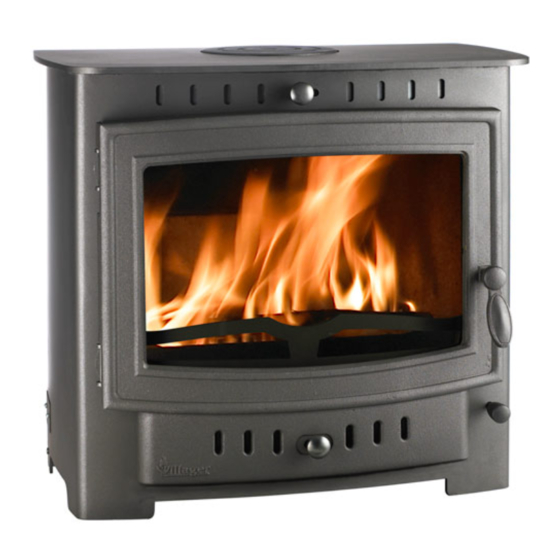

- Page 2 Should you have any questions about our Villager Esprit stove, that are not covered by this manual, please contact the Villager retailer in your area, or call our technical support department on 0844 847 5107. All Villager Esprit stoves are approved to European Standard EN 13240 and CE marked.*...
-
Page 3: Table Of Contents
Building Control Consent Checklist Air Inlet Controls (Primary/Air wash) Multi Purpose Operating Tool (Empty The Ash Pan/ Air Wash / Primary Control Knob) Main Fire Door Handle OPTIONAL EXTRA/ACCESSORIES SPARE PARTS LIST 31-33 GUARANTEE 34-35 FACTORY CHECK LIST Villager Esprit Stove... -
Page 4: Warning Notice
MUST NOT BE BURNED IN THIS APPLIANCE BITUMINOUS HOUSE COAL SHOULD NEVER BE USED IN YOUR STOVE TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE. IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0845 601 4406 www.solidfuel.co.uk Villager Esprit Stove... -
Page 5: Introduction
Avoid upper body / top heavy bending. Do not lean forwards or sideways when Most, Villager stoves are fitted with an „air wash‟ handling the fire so called because it provides a curtain of high ... -
Page 6: Check List
1, ( 5" ) 1, ( 5" ) 1, ( 5" ) 6. Hot Plate 1, ( 4" ) 1, ( 5" ) 1, ( 5" ) 1, ( 5" ) 7. Ash Pan 8. Operating Tool 9. Instruction Manual Villager Esprit Stove... -
Page 7: Data Plate Information
ARADA Data Plate Information Please Note- The Esprit stove is fitted with a data plate located at the left hand side, towards the rear of the stove. The plate contains important information and must be observed when installing the stove. -
Page 8: Technical Data
Depth From Back To Flue Centre (mm) Flue Diameter (mm) 102(4”) 127(5”) 127 (5”) 127 (5”) Weight Packed (Kg) 66.5 Weight Nett (Kg) 62.5 Ideal Log Length (mm) Note: Figures shown with an asterix are in house testing results. Villager Esprit Stove... -
Page 9: Installation
13. earth continuity. AIR FOR COMBUSTION ASBESTOS All Villager stoves contain no asbestos in their There must always be a permanent means of manufacture or construction. If there is a possibility providing air for combustion into the room in which of disturbing any asbestos in the course of the stove is installed. -
Page 10: Roping Guide For Flue Outlet & Hot Plate
ROPING GUIDE FOR FLUE Joint OUTLET AND HOT PLATE Overlap All Villager hot plates and spigots are manufactured with a rope groove to accept our high temperature self adhesive sealing rope supplied. This eliminates the need for messy and caustic fire... -
Page 11: Flues & Chimneys
These types of Precautions” section of these instructions. chimney should be installed in accordance with Building Regulations and BS 7566: Parts 1 to 4. Chimneys should be as straight as possible. Horizontal runs should be avoided except where Villager Esprit Stove... -
Page 12: For All Appliances
NACE (National Association of Chimney Engineers) Telephone : 01526 322 555 www.nace.org.uk NACS (National Association of Chimney Sweeps) Telephone : 01785 811732 www.chimneyworks.co.uk HETAS (Official Body To Approve Solidfuel Domestic Heating Appliances) Telephone : 0845 6345626 www.hetas.co.uk Villager Esprit Stove... - Page 13 Maximum 100mm (4”) Brick Up Aperture Fill Void TYPICAL REAR FLUE OUTLET (as per BS 8303-1) PLAN VIEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES (Plan View Of Steel Register Plate, Thick 1.5mm Minimum ) Villager Esprit Stove...
- Page 14 Typical Metal Insulated Chimney System Installed To The Chimney Manufactures Instructions In Compliance With Building Regulations And BS 7566 Part 1 to 4 Combustible Register Plate. Minimum 1.5mm Thick Steel. TYPICAL TOP FLUE OUTLET (as per BS 8303-1) Villager Esprit Stove...
-
Page 15: Firebox Liner Panels
INSTALLATION FIREBOX LINER PANELS The Villager Esprit stove use firebox liner panels to the sides and back. The standard style Tertiary Air Bar throat plate sits on top of the sides and rest on the top surface of the tertiary air inlet. These should... - Page 16 INSTALLATION Fitting of the EGD ( Exhaust Gas Diversion) Style Throat Plate & Liners The 6 and 10kw models of the Esprit stove is supplied with the EGD style throat plate ( See fig. a ) not the standard style as supplied with the 4 and 8kw Tertiary Air Bar stoves.
-
Page 17: Adjusting The Self Levelling Feet
ADJUSTING THE SELF LEVELLING FEET Before handing over the installation to the The Villager Esprit stove is equipped with customer it is requirement under Document J the adjustable rear levelling feet, these are ideal for appliance is lit and the functioning of the chimney use, where the hearth surface is not flat or level. -
Page 18: Building Control Consent Checklist
I/We the undersigned confirm that the above details are correct. In my opinion, these works comply with the relevant requirements in part J of Schedule 1 of the Building regulations. Print name and title…………………………………………………………………..Profession………………………………….. Capacity……………………………………………………………………………...Telephone No. …………………………….. Address………………………………………………………………………………………………..Postcode………………….. Signed………………………………………………………………………………..Date………………………………………... Registered member of..(e.g. CORGI, OFTEC, HETAS, NACE, NACS)…………………………………………………………. Villager Esprit Stove... -
Page 19: Service & Maintenance
The whole flue way including the outlet must be Note: Use genuine Villager touch up spray as swept at least twice per burning season. It is some paints interact. This could ruin the finish and important that the flue ways, flue pipe and chimney invalidate the guarantee. -
Page 20: Summer Storage / Non Usage
Carefully, replace the door casting on top of the washers (without moving the shim washers). Push the hinge pins, through the door castings and hinge plate. Check the operation of the door catch. Villager Esprit Stove... -
Page 21: Main Fire Door Rope Replacement
HAND TOOLS TO TIGHTEN FIXINGS. See Fig.15. Refit the door assembly back onto the stove; carefully lift the door over the hinge and slot into place. Rope Gasket Joint here Fig. 12. Rope Replacement Fig. 13. Lining Up Gasket Rope Villager Esprit Stove... -
Page 22: Primary Air Inlet
Reverse the instructions for the refitting. Approx 2.5mm The glass clips should be hand tightened only Fig. 16. Inspection Of The Primary Slider Fig. 15. Tightening The Glass Clip USE ONLY HAND TOOLS TO TIGHTEN THE GLASS FIXINGS Villager Esprit Stove... -
Page 23: Service Record
Company Work Carried Out Signature Should you have any questions about your Villager Esprit stove that are not covered in this manual please contact your Villager dealer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits so they can complete the service record chart. -
Page 24: Operating Instruction
WARNING : NEVER BURN PLASTICS OR UNDERSTOOD THESE INSTRUCTIONS HOUSEHOLD WASTE IN YOUR STOVE. BEFORE LIGHTING THE FIRE. WARNING : NEVER BURN LIQUID FUELS IN ALWAYS WEAR SUITABLE PROTECTIVE FIRE YOUR STOVE. GLOVES WHEN REFUELLING YOUR STOVE. Villager Esprit Stove... -
Page 25: Burning Wood
Check for flue or chimney blockage, and clean if required. Seek expert advice from your HETAS registered installer. Do not attempt to re-light the fire until the cause of the fume emission has been identified and corrected. Villager Esprit Stove... -
Page 26: Extended Burning
Even if the ash appears cold, identified and corrected. red-hot pieces of ash may be concealed and could easily start a fire or cause an injury. Villager Esprit Stoves... -
Page 27: Air Inlet Controls (Primary/Air Wash)
PRIMARY AIR Air enters the appliance through the control on the bottom of the fire door. The Villager Esprit has a control knob which slides left to right. Sliding the knob to the Right, (See Fig. 16), will Increase the amount of air intake to the stove. -
Page 28: Multi Purpose Operating Tool
TO EMPTY THE ASH PAN MULTI PURPOSE OPERATING TOOL The Villager Esprit stove is supplied with a unique ash pan. To empty or remove the ash pan, open Your Villager stove is supplied with a multi purpose the main fire door, fit the fork end of the operating... -
Page 29: Main Fire Door Handle
OPERATING INSTRUCTIONS MAIN FIRE DOOR HANDLE A stove glove / mitten is supplied with your Villager Esprit stove, this is provided for the operation of the fire door handle and refuelling the appliance while the stove is in use. Care must be taken when opening and closing the fire door as any surrounding areas of the stove will be very hot. -
Page 30: Optional Extra/Accessories
Add on canopy AOCVE4L AOCVE6L AOCVE8L AOCVE10L STAND STAND STAND STAND Stand VSDE4 VSDE6 VSDE8 VSDE10 Log Store Stand VSDE4 VSDE6 VSDE8 VSDE10 NOTE : * Separate instructions are included for all accessories except Stove Glove AFS1285 Villager Esprit Stove... -
Page 31: Spare Parts List
Throat Plate Flue Spigot AFS009A AFS009 AFS009 AFS009 Hot Plate AFS009B AFS010 AFS010 AFS010 Rear Liner AFS1451 AFS1451 AFS1420 AFS1467 Side Liner AFS1420 AFS1206 AFS1069 AFS1069 Liner Set AFS1532 AFS1533 AFS1421 AFS1475 Complete E.G.D. AFS1504 AFS1527 Throat Plate Villager Esprit Stove... - Page 32 Operating Tool AFS008 AFS008 AFS008 AFS008 Replacement AFS1484 AFS1484 AFS1423 AFS1423 Glass Kit Replacement Glass Rope AFS1365 AFS1365 AFS1365 AFS1365 Gasket and Clips Fire Door Rope Kit AFS1474 AFS1474 AFS1474 AFS1474 Replacement AFS1399 AFS1399 AFS1399 AFS1399 O/I Manual Villager Esprit Stove...
-
Page 33: Spare Parts List
Slider Air Wash & Primary Slider AFS1405 AFS1405 AFS1405 AFS1405 Knob Replacement AFS1501 AFS1502 AFS1428 AFS1468 Wood Tray Replacement Tertiary Air Bar AFS1510 AFS1509 AFS1432 AFS1465 & Fixings Replacement Wood Burning AFS1429 AFS1429 AFS1429 AFS1429 Blanking Piece Villager Esprit Stove... -
Page 34: Guarantee
FREE OF CHARGE as long as the When you buy a Villager stove, you are not only stove has been installed according to this buying a first class appliance you are... -
Page 35: Guarantee
The whole of the Villager “FIREGUARD GUARANTEE” is invalid if any part of the stove assembly, installation or operation does not comply with the published instructions supplied with the stove and with all building and gas installation regulations in force at the time of purchase. -
Page 36: Factory Check List
Installation & Operating Manual Stove Glove Tertiary Air Bar Date of Purchase……………………. Name and Address of Stove Supplier …………………………………………………………….. …………………………………………………………………………………………………………. …………………………………………………………………………………………………………. …………………………………………………………………………………………………………. Arada Ltd The Fire Works Weycroft Avenue Axminster, Devon, EX13 5HU United Kingdom Tel: +44(0)1297 35700 Fax: +44(0)1297 35900 www.villager.co.uk BK077...
