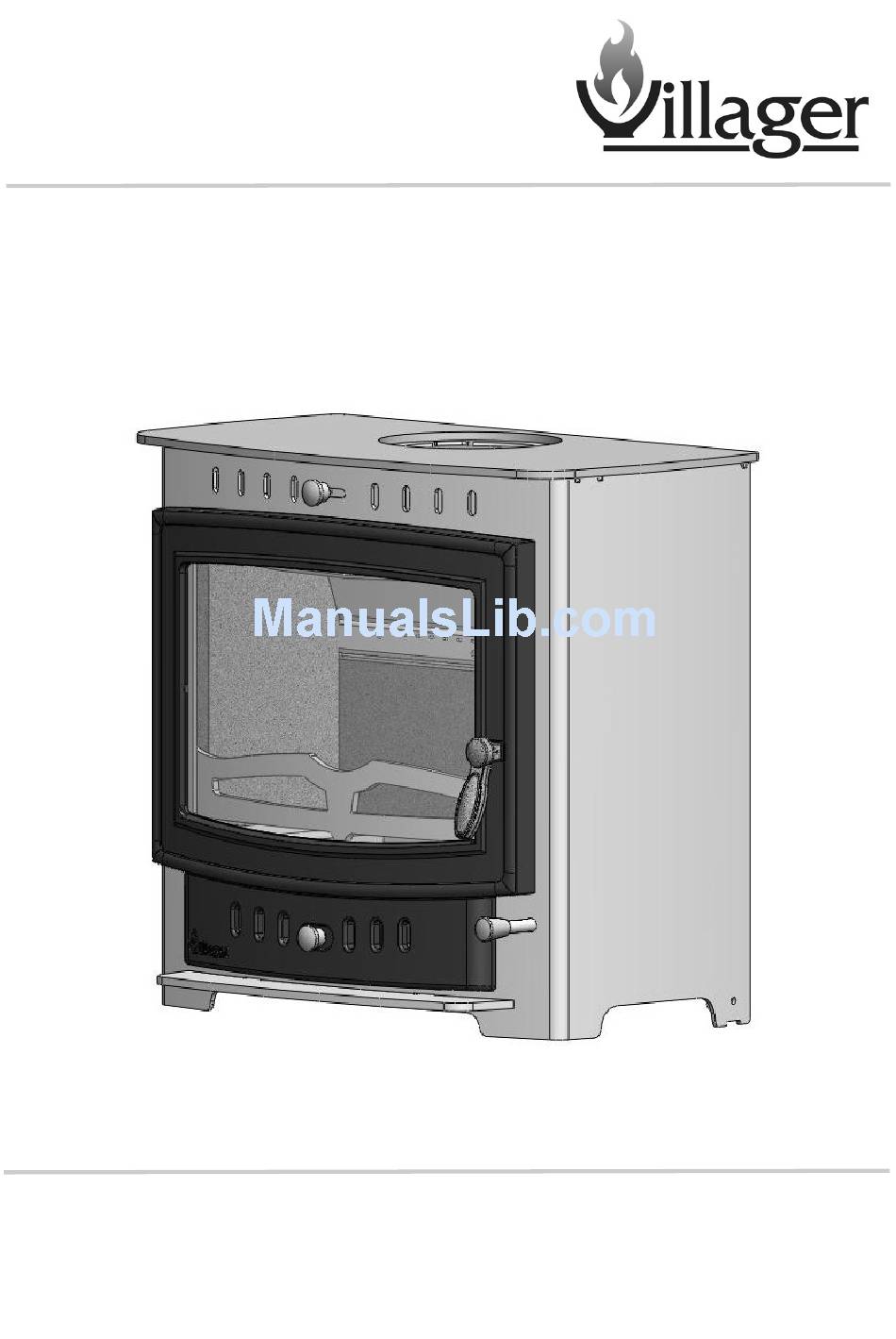

- Page 1 Multi- Fuel Grate Installation Instructions Esprit PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE Rev. 02 August 2010 BK087 Part No. AFS1437...
- Page 2 Copyright 2010 Arada Ltd This booklet has copyright and may not be copied in whole, or part, or used for any purpose other than that for which it is supplied without express written consent from Arada Ltd Page 2 Villager Esprit...
- Page 3 MFKIT MFKIT MFKIT (includes Fixings) ESPRIT4 ESPRIT6 ESPRIT8 ESPRIT10 Replacement Grate AFS1328 AFS1329 AFS1436 AFS1464 Bar Support Push/Pull rod and AFS1431 AFS1431 AFS1431 AFS1431 knob AFS001 AFS001 AFS001 AFS001 Grate Bar AFS1505 AFS1506 AFS1430 AFS1466 Comb Villager Esprit Page 3...
- Page 4 FITTING THE GRATE Fig 1 The Grate The grate in the Villager Esprit stoves, comprises of a series of reciprocating cast iron grate bars, seated on a pivoted ‘comb’. All bars in the grate are identical, but every other bar is turned through 180 degrees, with the ends of the bars marked ‘H’...
- Page 5 Slot and reduced section of push rod aligned vertically Fig 3c Fig 3d Fig 3e Left and right end comb insertion Left hand end in left landing Right hand end inserted into push / pull rod Page 5 Villager Esprit...
- Page 6 4. When re-ordering replacement grate bar, See page 3 of these instructions for the correct spare part code. Fig 5 NOTE: Fully assembled multi fuel grate. Villager Esprit Page 6...
-
Page 7: Burning Solid Fuel
Excess draught is not present in the chimney Fully Open Position The door is closed If the fire goes out with un burnt fuel in the firebox, increase the air opening slightly, and vice versa for the opposite. Fully Closed Position Page 7 Villager Esprit... -
Page 8: Final Factory Check List
NOTE : If you require any further information or technical information, then please contact 0844 8475 107. our technical helpline on Arada Ltd The Fire Works Weycroft Avenue Devon, EX13 5HU United Kingdom Tel: +44(0)1297 35700 Fax: +44(0)1297 35900 www.villager.co.uk...
