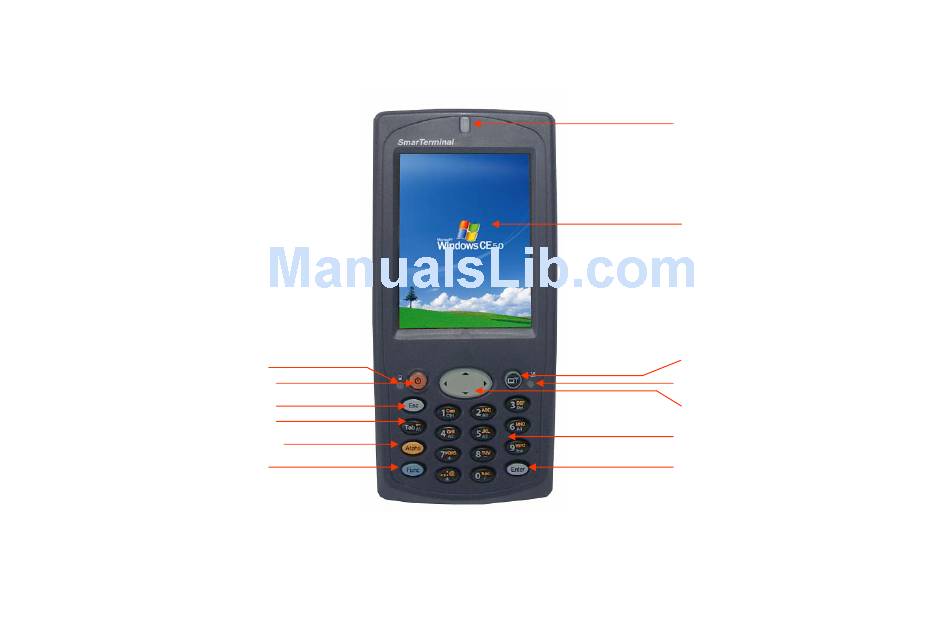

- Page 1 SmartCompact Quick start guide Front View Scanner LED indicator LCD Touch screen Home key Power LED Wireless LAN LED Power button Esc Key Navigation key Tab Key Alpha-Numeric keys Alpha Key Func Key Enter Key...
-
Page 2: Rear View
Rear View Product label CF card cover Stylus Internal speaker IrDA port Pistol key Reset key Battery lock Main Battery... -
Page 3: Top View
Various types of Scanner Intermec 1D EV12, HHP 2D CCD Symbol Laser 900 15 CCD module Module series module Top view CF slot Scanner window Bottom view DC input jack I/O port... -
Page 4: Right View
Left view Right view Audio i/o port Right scan key Left scan key SD slot... -
Page 5: Before Getting Started
Before getting started Make sure you have everything SmartCompact main unit Stylus Pen Standard battery pack (2000 mAH Li-ion) Power adapter Power cord Synchronization cable (USB cable) Backup battery 110mA Lithium-ion (Embedded) Optional accessories Docking station (Desktop and vehicle) CF card cover... - Page 6 Configuring SmartCompact Calibrating touch screen Main screen Start > settings > control panel > stylus icon 1 Start button allows to open start menu Hit the calibrate button and touch the points shown 2 Task bar allows user to open and close the on the screen till it says calibration over.
-
Page 7: Volume Adjusting
Setting SmartCompact Brightness setting Volume adjusting Date / Time settings To adjust LCD brightness To adjust volume To set Date and Time Press “FN” key & navigation Press “FN” key & navigation From control panel key (< or >) key (up or down) Start >... - Page 8 Using applications To execute the application Tap an application icon on desktop or Start > Programs > Select the application To close the application Tap on “x” to close the particular application To use Software input panel Tap on stylus icon in task bar, the select keyboard Software input panel will be displayed, input the characters with stylus...
- Page 9 Barcode reading 1 To Configure Barcode setting Start> settings > Control panel > Scanner configuration / barcode settings 2 Execute scanner software bundled with the device 3 Aim scanner window at the barcode 4 Press Right / Left scan keys 5 Aim laser beam at the center of barcode 6 Check barcode reading result Result can be verified by beep sound or LED indicator...
-
Page 10: Using Accessories
Using accessories 1 Using CF type peripherals Remove the CF cover, insert CF card properly in the slot, close and fix the CF (open or close cover). 2 Using SD card Remove the SD cover, insert SD card properly in the slot 3 Serial connection Use data sync cable to synchronize data with desktop. -
Page 11: Warm Reset
Resetting PDA 1 Warm reset If application hangs press warm reset to terminate the application. Warm reset will close all applications and clear working RAM. Data which is not saved will be lost. For warm reset press reset button 2 Cold reset Use cold reset if OS locks up and warm reset can’t work. -
Page 12: Scanner Settings
Scanner Settings To start ScanDemo program Start > Programs > Scanner > ScanDemo Barcode icon will appear as shown in system tray For Scanner settings, tap on icon, select setting Basic Trigger time out > Scanning time in seconds Keyboard Emulation > If enabled transfer scanned data as keyboard event Copy / paste >... - Page 13 Here user can select the types and details of Barcode to be scanned Menu Option Function Scan key To define a scan trigger key (side scan key , HOME key, LEFT key, RIGHT key, UP key, DOWN key, ENTER key) Sound To activate beep sound Setting Good Read...
- Page 14 Gun type RFID...
