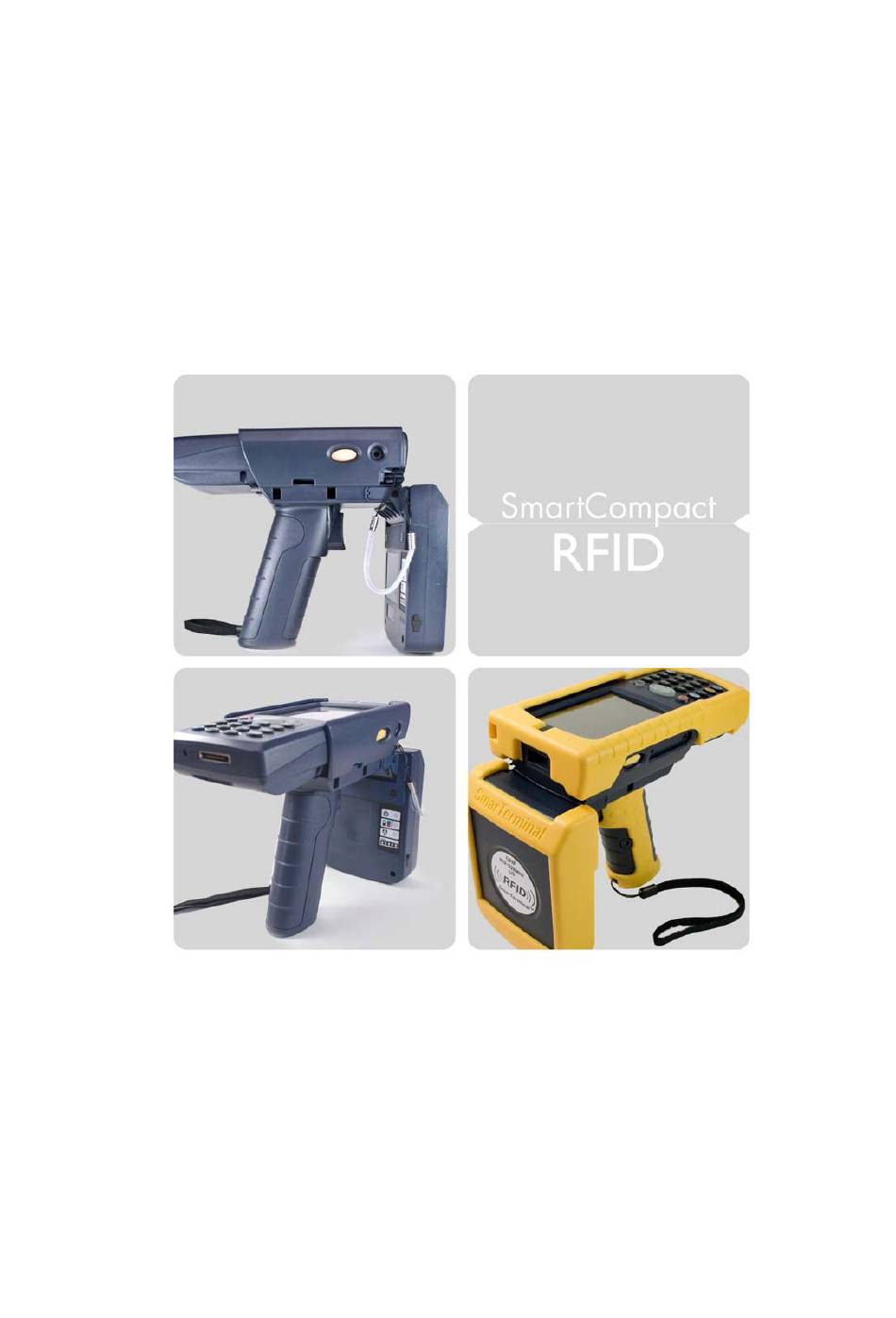

- Page 1 RFID Gun reader for SmartCompact User Manual SmarTerminal Computers, Inc. Ver 0.931, SEP 2007 Page 1 2/1/2008...
- Page 2 Disclaimer SmarTerminal and SmartCompact are registered trademarks of Sammi Information Systems Co., Ltd. All other brand names, product names, or trademarks belong to their respective holders. Head Quarters Sammi Information Systems Co.,Ltd. 103-15, Galwor –dong, Yongsan-Gu, Seoul, Korea Tel. 82 -2-790-5508 / Fax. 82-2-790-5509 Email.
-
Page 3: Table Of Contents
Table of Contents Introduction............................4 Chapter 1 Get to know more about RFID Gun reader..............5 Make sure you have everything ..................5 Appearance ........................6 1.2.1 Front side ........................6 1.2.2 Rear side........................6 1.2.3 Top side ........................8 1.2.4 Bottom side ......................... -
Page 4: Introduction
Introduction This quick reference guide allows you to use all the advanced features of SmartCompact effectively. Please go through it once before using SmartCompact handheld terminal. User's Information Cautions Modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -
Page 5: Chapter 1 Get To Know More About Rfid Gun Reader
Chapter 1 Get to know more about RFID Gun reader Make sure you have everything RFID Gun reader main unit (UHF) Standard battery pack (2200 mAH Li-ion) Optional accessories Spare battery pack (2200 mAH Li-ion) 3 pack battery charger – under development AC/DC adapter Protective rubber cover Page 5... -
Page 6: Appearance
Appearance 1.2.1 Front side UHF antenna Features and description Features Function / Description RFID Antenna RFID antenna is located in front side of Gun reader 1.2.2 Rear side Display Gun handle Power LED Battery Capacity Communication LED RF Strength LED (1 ~ 5) Rear panel features Page 6 2/1/2008... - Page 7 Name Function Power LED Shows green light for 5 seconds when user triggers the gun Battery capacity LED Shows battery capacity status (see below table for details) Communication LED When IrDA communication is successful between Gun reader and SmartCompact, Communication LED shows green light (blinking) as user triggers the gun.
-
Page 8: Top Side
1.2.3 Top side Screws for attaching to SmartCompact 1.2.4 Bottom side 2200mAH battery 1.2.5 Left side Battery out switch Page 8 2/1/2008... -
Page 9: Right Side
Features a nd description Features Function / Description Battery out button To take out battery, user should push this button. 1.2.6 Right side DC input jack Features and description Features Function / Description DC input jack To charge RFID reader, user should connect AC/DC adapter to this DC input jack. -
Page 10: Chapter 2 Power Settings And Connections
Chapter 2 Power settings and connections Remove / Install batteries in RFID Gun reader ress the battery out button and remove battery in below direction: battery out button Push and secure the battery in the gun reader until hearing a click sound: Page 10 2/1/2008... -
Page 11: Battery Charging Using Power Adapter
Battery charging using power adapter In the beginning, user must charge the battery at least for 4.5 hours to use the RFID Gun read 2.2.1 Charging with AC/DC adapter Prepare AC/DC adapter (5V, 3A) and powe r cable for RFID Gun reader. This AC/DC adapter is compatible with that of SmartCompact. -
Page 12: Charging With Battery Charger
.2.2 Charging with Battery charger To charge the battery pack, user can also use 3 pack Battery charger. Three batteries can be rged at the same time. er charging, the LED light is red and turns green after fully charged. Page 12 2/1/2008... -
Page 13: Chapter 3 Setting Up Smartcompact Rfid Gun Reader
Chapter 3 Setting up SmartCompact RFID Gun reader How to set CAB Files in SmartCompact Connect USB Active sync cable between your computer and SmartCompact. When Active Sync program is opened, click Explore. Page 13 2/1/2008... - Page 14 Click DiskOnChip folder. Save necessary CAB file in the DiskOnChip folder. Page 14 2/1/2008...
- Page 15 Click DiskonChip/Cold Reset folder of SmartCompact. Click corresponding Cab File. (ex : UHF_KOREA) Page 15 2/1/2008...
-
Page 16: How To Connect Smartcompact To Rfid Gun Reader
How to connect SmartCompact to RFID Gun reader Insert SmartCompact to RFID Gun reader in below direction: SmartCompact combined to RFID Gun reader: Tighten the screws (2 pcs) firmly in order to hold the combination. screws Page 16 2/1/2008... -
Page 17: How To Remove Smartcompact From Rfid Gun Reader
How to remove SmartCompact from RFID Gun reader Loosen the screws (2 pcs) in order to undo the combination. screws Remove SmartCompact from RFID Gun reader in below direction: Page 17 2/1/2008... -
Page 18: Chapter 4 Using Rfid Gun Reader
Chapter 4 Using RFID Gun reader How to operate RFID Gun reader To operate RFID Gun reader, user needs RFID Gun reader and SmartCompact (power on) with program files installed. 4.1.1 How to install program files in SmartCompact To install program files in SmartCompact, user can follow one of bel ow three methods: 1) Using Sync cable To do this, user should have Microsoft ActiveSync program (v.4.2 or higher) installed in the... - Page 19 When Explore window is opened, copy and paste necessary program files from computer to iskOnChip folder of SmartCompact (shown as Mobile Device). Page 19 2/1/2008...
- Page 20 ) Using CF/SD cards User can save necessary files to CF or SD card and insert it into SmartCompact. Check the locatio ns of CF/SD card slots below: CF Card Slot SD Card Slot Copy the necessary files and paste them to DiskOnChip folder of SmartCompact. My Device DiskOnChip >...
-
Page 21: How To Operate Rfid Gun Reader
4.1.2 How to operate RFID Gun reader Slide SmartCompact to RFID Gun reader in below direction. After combining SmartCompact and RFID Gun rea , click to open program CAB files to stall. (ex : UHF_KOREA) Page 21 2/1/2008... - Page 22 After program setting is done, target the RFID tag in front of antenna side and trigger the RFID Gun reader. TAG sample (ISO 18000 – 6C EPC CLASS1 GEN 2) UHF Gun reader can read in 0.5-1.5m distance and supports EPC C1G2, ISO18000-6B/C tags. Page 22 2/1/2008...
-
Page 23: Rfid Gun Reader Specification Highlights
Appendix A RFID Gu n reader Specification Highlights RFID Gun reader(optional) Radio frequency UHF (US: 902-928MHz) Tag support UHF: EPC C1G2, ISO18000-6B/C Output power: 0.5W(A type U HF) Antenna type UHF: 80mm x 80mm Page 23 2/1/2008... -
Page 24: Version Table
Appendix B ersion Table rsion: 0.93 Release D ate: 09/03/2007 ersion: 0.931 Release Date: 02/01/2008 Page 24 2/1/2008...
