The HDMI Switch is with a remote control for easy switching within four digital
video sources. It allows four HDMI devices to one HDMI display that is a convenient
way of arranging the HDMI devices.
In addition, the HDMI SWITCH can help end-user to connect more digital devices
such as DVD player, PS3, Digicam, or Handcam.
Supports digital video & audio by HDMI standard 1.2a specification
Connects audio & video to HDMI compatible HDTV, LCD Monitors or Digital
projectors
Supports 480i, 480P, 720i, 720P, 1080i, 1080P resolution
Signal Amplification – Extend the interconnect copper cable length up to
15m(50feet)
Four HDMI Receiver inputs, One HDMI Transmitter, support to UXGA mode.
Operation pixel frequency rage 25MHz to 165MHz
Easy switching between four digital video sources using IR remote control of the
switch button on the switcher.
Supports HDCP compliant devices.
Note:
To reach distance of 15m, the cable should have good quality and comply with
HDMI ATC certification.

INTRODUCTION

HS-41A0-A-EP

FEATURES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-41A0-A-EP and is the answer not in the manual?

Questions and answers

Related Manuals for Action Star HS-41A0-A-EP

Summary of Contents for Action Star HS-41A0-A-EP

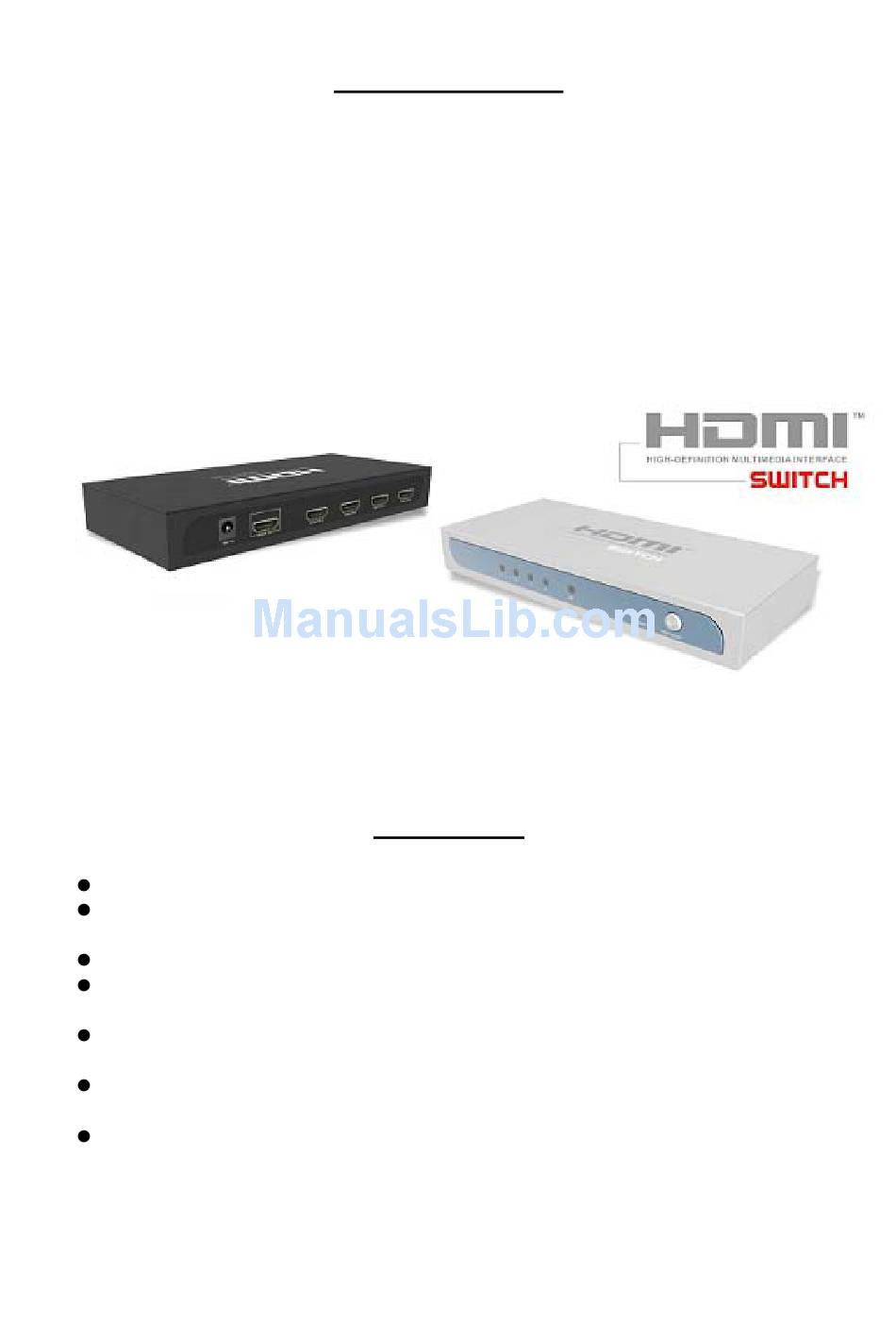

  • Page 1 INTRODUCTION HS-41A0-A-EP The HDMI Switch is with a remote control for easy switching within four digital video sources. It allows four HDMI devices to one HDMI display that is a convenient way of arranging the HDMI devices. In addition, the HDMI SWITCH can help end-user to connect more digital devices such as DVD player, PS3, Digicam, or Handcam.

  • Page 2: Package Contents

    SPECIFICATION Function Specification Model No. HS-41A0-x-EP (4ports) Input 4 HDMI Female A type Output 1 x HDMI Female A type Port Selection Select button or IR Remote Power 1 x Power Red LED Select 4 x Green Color LED Frequency Bandwidth 1.65Gbps(single link) Power Adapter DC 9V, 500mA...
  • Page 3 Installation...

  • Page 4: User Manual

    User Manual: Connect the HDMI cables from the HDMI source devices to the HDMI switch inputs. Connect the HDMI cable from your display ( monitor or projector ) into the HDMI switch output. Plug the 9V DC power supply into the HDMI switch. Select the desired input as follows: From the switch front panel –...
