Summary of Contents for Empress Effects compressor

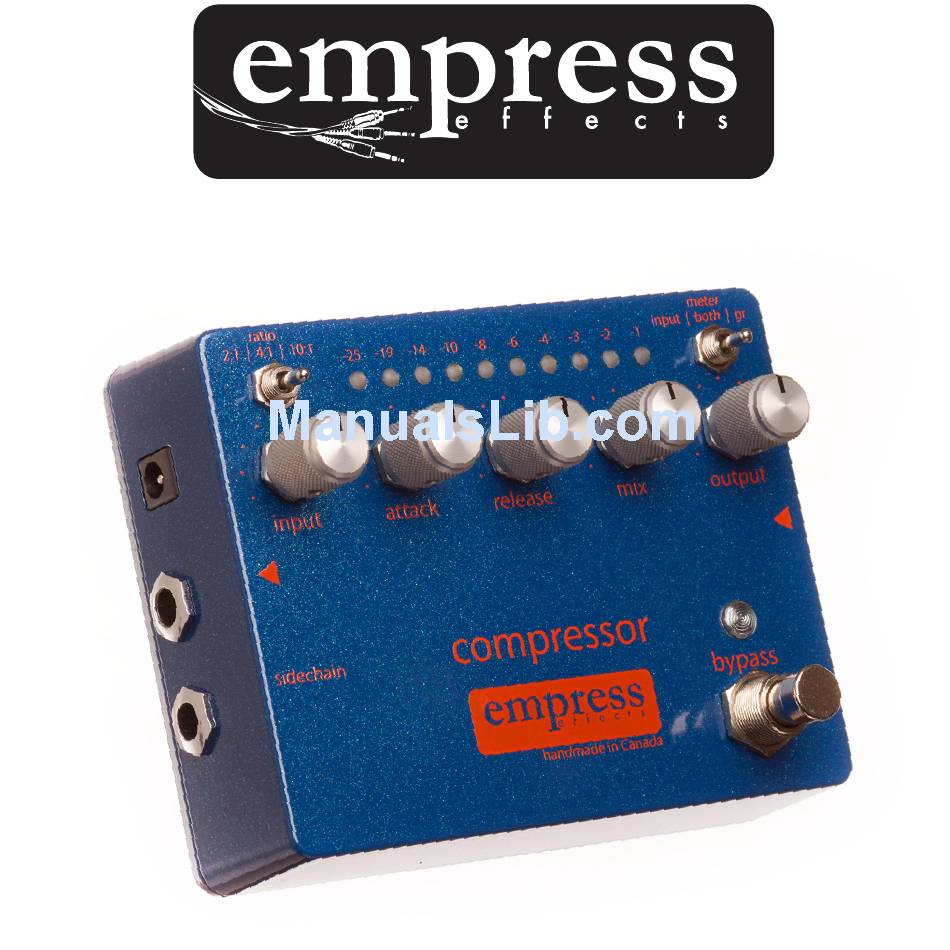

- Page 1 manual...
- Page 2 Other compressor pedals are often limited by oversimplified controls and heavily colored sounds. We have created a truly transparent compressor, complete with all the controls found in the studio. The result is a tool that allows for a wide range of sounds from subtly adding sustain to getting the “quack”...
- Page 3 10dB of input signal, etc. Attack controls how quickly the gain reduction will begin after a signal has crossed the threshold. Release controls how long it takes for the compressor to return to its initial level after the signal drops below the threshold.
- Page 4 Higher levels will result in more compression. attack: controls how quickly the compressor will react to an incoming signal. Attack time increases as you turn the knob clockwise. Range: 50us - 50ms sidechain: used to alter the signal going to the gain reduction control circuit.
- Page 5 LED is shining, the compressor e ect is applied to the signal. When o , the compressor is being bypassed (true bypass).
- Page 6 Quickstart Added Control: Here’s a good starting point for adding consistency and sustain to your playing while retaining dynamics. Adjust the input level so the “gr” meter shows 8dB of gain reduction when playing your loudest. Chicken Pickin’: Here’s one for a nice compressed country sound. Adjust the input for 10dB of gain reduction when playing your loudest.
- Page 7 It accepts a ¼” TRS plug: Tip = send, Ring = return, Sleeve= ground. When using the compressor on a bass guitar, it can be very useful to add a high pass filter to the sidechain in order to avoid triggering the compressor with high energy notes in the lowest octave.
-
Page 8: Specifications
Specifications Input Impedance: 1MΩ Output Impedance: 2.2kΩ Frequency Response (-3dB): 40Hz – 35kHz Distortion: <0.1% Noise: -101dB Input Voltage: 9VDC-18VDC Required Current: 100mA Power Input Connector: 2.1mm Barrel Connector Height (enclosure only): 1.5” Height (including controls): 2” Length: 3.5” Width: 4.5”...
