Summary of Contents for Empress Effects COMPRESSOR Bass

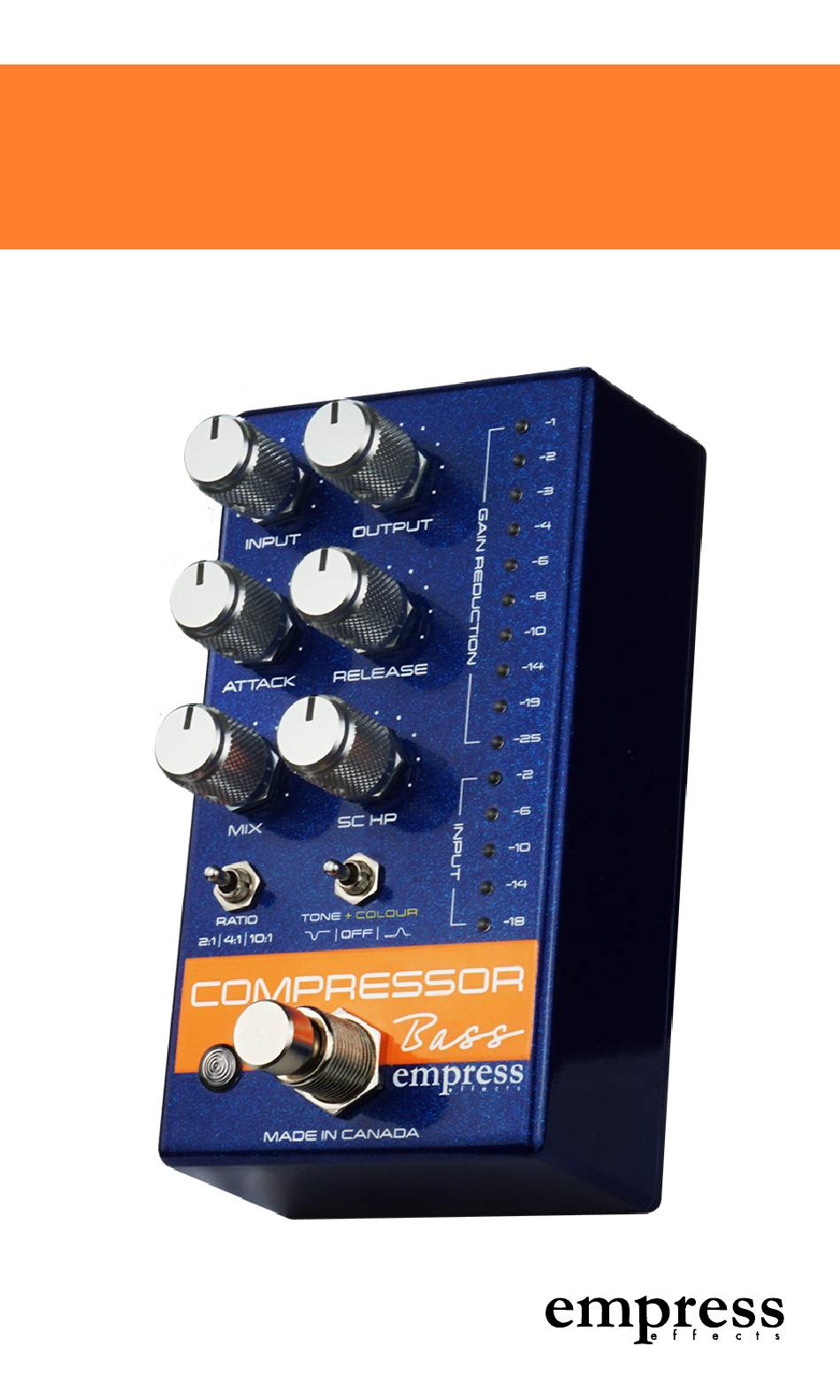

- Page 1 COMPRESSOR Bass Bass USER MANUAL...
- Page 2 Further Information On our website (www.empresseffects.com) you will find lots of further information and details on the following points: Download This manual is also available as a PDF file for you to download. Keyword Search Use the search function in the electronic version of this manual to find your topics of inteterest quickly.
- Page 3 Intended Use This pedal is designed for enhancing guitar tones in live performances and studio recordings. Use as outlined in the user manual. The manufacturer is not liable for damages resulting from improper use or use under non-recommended conditions. Safety DANGER! Danger for children Dispose of plastic bags and packaging properly to keep them out of reach of babies and young children to prevent...
- Page 4 NOTICE! Allergies or Sensitivities Allergy Alert: Some pedal materials, like adhesives and coatings, may cause reactions. Stop use and seek medical advice if needed. NOTICE! Fire Hazard Keep away from direct heat and open flames.
-
Page 5: Table Of Contents
Contents Introduction ............... iv The Basics of Compression ........1 Sidechain ..............2 Parallel Compression ..........3 Controls at a Glance ..........4 Setting the Bypass State on Startup ......6 Quickstart ..............7 Powering the Bass Compressor .........9 Regulatory Compliance Information ......9 Specifications ............12... -
Page 6: Introduction
‘tone + colour’ circuit which adds gentle tone sculpting and harmonic distortion, giving your bass some delicious character. We hope the Bass Compressor becomes a favourite of yours as well, and sincerely thank you for choosing Empress Effects. - Steve Bragg... -
Page 7: The Basics Of Compression
The Basics of Compression Compression can add consistency and sustain to your playing or it can be used to add note definition and other effects. It essentially narrows the difference between high and low audio levels by reducing the gain of any signal over the threshold. Threshold 10:1 Input Level (dB) -
Page 8: Sidechain
will begin after a signal has crossed over the threshold. Release controls how long it takes for the Compressor’s gain to return to its initial level after the signal drops below the threshold. Sidechain The sidechain is the Compressor’s level detection circuitry. -
Page 9: Parallel Compression
full while still controlling errant high notes that pop out. Sidechain connector jack The sidechain connector jack on the back of the pedal allows you to alter the sidechain signal by inserting an external device, such as an EQ. You can also have an external audio source trigger the compression by sending audio in through the ring of the sidechain jack. -

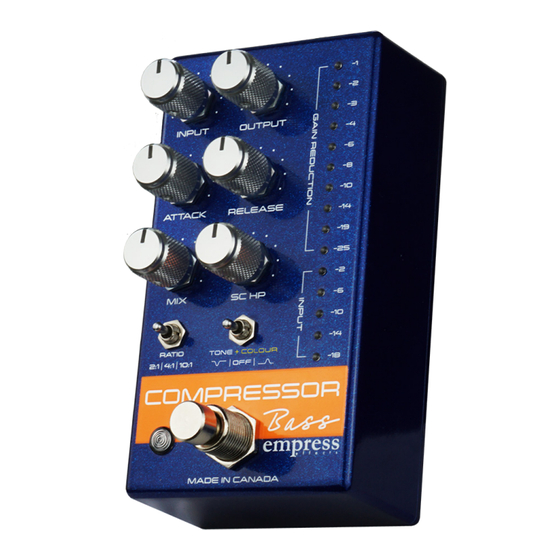

Page 10: Controls At A Glance
Controls at input: Sets the level entering the compressor circuit. Higher levels result in more compression. attack: Controls how quickly the compressor will reduce the gain when an incoming signal exceeds the treshold. Attack time increases as you turn the knob clockwise. - Page 11 * The colour circuit can be bypassed in either or both tone switch positions via internal dipswitches. Set the corresponding dipswitch to off if you prefer just the tone eq without the colour circuit. ** Empress Effects fully endorses bass solos.
-
Page 12: Setting The Bypass State On Startup
Setting the Bypass State on Startup To change whether the Compressor starts up in the engaged or bypassed state, hold down the stompswitch while powering on the Compressor. The first red gain reduction led will flash to let you know you are in the advanced configuration mode. -
Page 13: Quickstart
Quickstart Added Control: Here’s a good starting point for adding consistency and sustain to your playing while retaining dynamics. Adjust the input level so the gain reduction meter shows 8dB of gain reduction when playing your loudest. Smooth & Warm: Smooth, subtle compression that gives transparent dynamic... - Page 14 Slappa Da Bass: The heavy compression ratio will keep your pops under control, while the slow attack and quick release will enhance the percussive qualities of a finely slapped bass. Level & Grind: This limiter will help keep your levels rock solid, while the mid-boost and distortion gives your bass some added presence and...
-
Page 15: Powering The Bass Compressor
Powering the Bass Compressor Go to www.empresseffects.com/power for a full list of compatible power supplies. Please note: The Empress Bass Compressor requires at least 100mA of current to function properly. Any power supply rated at 9V DC, supplying negative tip polarity and at least 100mA of current should work. - Page 16 CE (European Union) This declaration of conformity is issued under the sole responsibility of Empress Effects Inc- 105-62 Steacie Dr, Kanata Ontario K2K 2A9. The device identified on the front page of this manual is in conformity with the requirements of the European Union’s Electromagnetic Compatibility...
- Page 17 WEEE (2012/19/EU) This product must not be disposed of with regular household waste. In compliance with WEEE regulations, please take this product to a designated collection facility or return to the supplier for proper recycling. Comply with local laws and regulations for disposal.
-
Page 18: Specifications
Specifications Input Impedance: 1MΩ Output Impedance: 2.2kΩ Frequency Response 10Hz - 20kHz (-3dB): Distortion: <0.1% Noise: -101dB Headroom: +15dBu Input Voltage: 9V DC Required Current: 100mA Power Input Connector: 2.1mm Barrel Connector Height: 2.5” Length: 4.8” Width: 2.6” Weight: Manual v05...
