SEC-APD10
MOTION ALARM
With Telephone Dialer

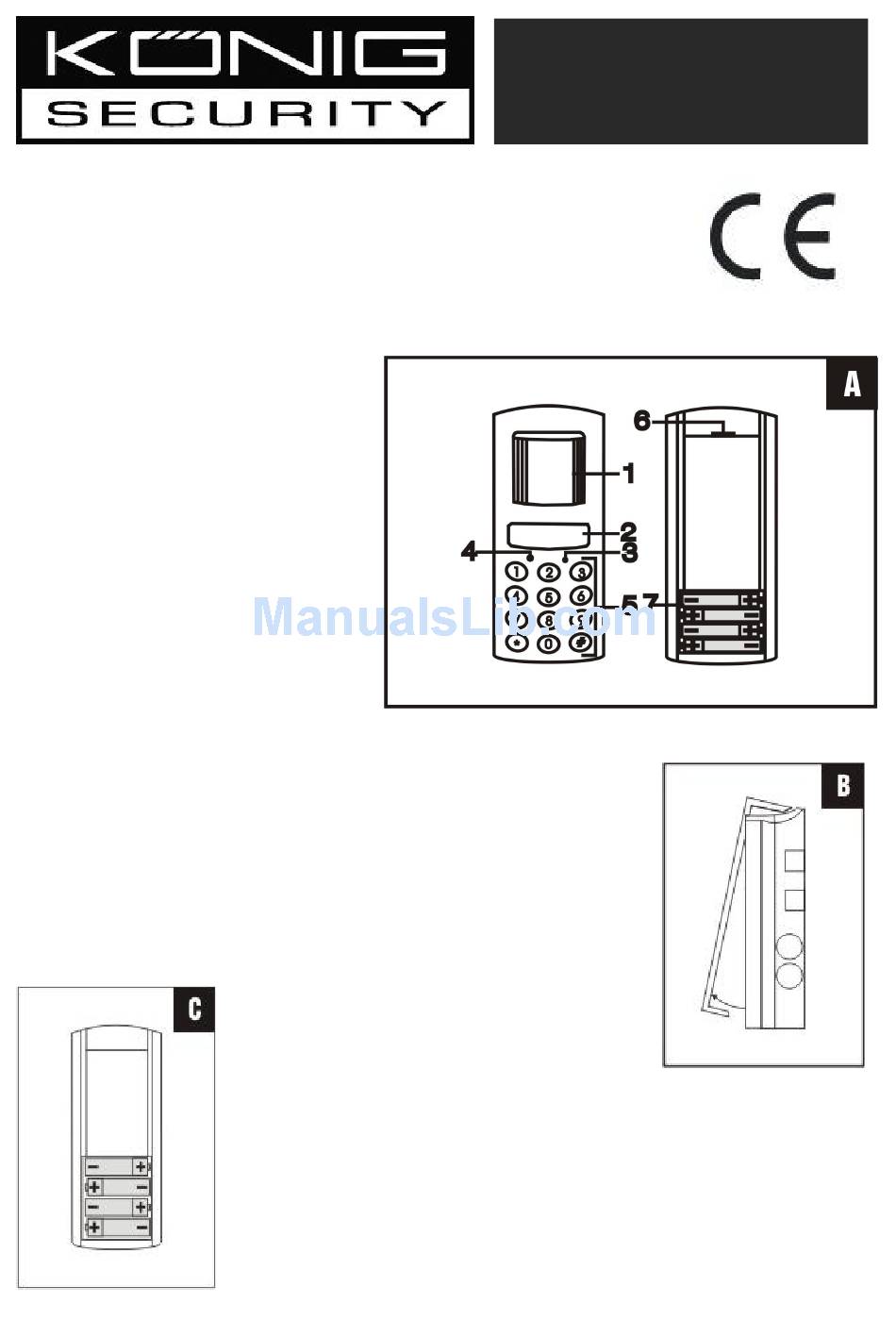

Description:

1. PIR sensor
2. Siren
3. Microphone
4. Battery LED indicator
5. Keypad
6. Telephone connection
7. Battery Compartment

Battery installation:

1. The battery compartment is accessed from
the rear of the alarm by removing the screw
from the bottom and lifting the back cover
(see figure B).
2. Insert 4x AAA size
batteries (not included)
according the polarity as
shown in figure C.
3. When the last battery is inserted the alarm will
beep very loud to indicate that the batteries are
installed properly. Replace the back cover.
ENGLISH
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEC-APD10 and is the answer not in the manual?

Questions and answers

Related Manuals for Konig SEC-APD10

Summary of Contents for Konig SEC-APD10

  • Page 1 ENGLISH INSTRUCTIONS SEC-APD10 MOTION ALARM With Telephone Dialer Description: 1. PIR sensor 2. Siren 3. Microphone 4. Battery LED indicator 5. Keypad 6. Telephone connection 7. Battery Compartment Battery installation: 1. The battery compartment is accessed from the rear of the alarm by removing the screw from the bottom and lifting the back cover (see figure B).
  • Page 2 Wall Mounting: 1. Remove the back plate. 2. Mount the back plate to the desired position wall. 3. Clip the unit to the back plate. 4. Secure the PIR sensor to the back plate by fastening the screw on the bottom. Telephone connection: Remove the back plate of the alarm (see figure B) and connect the telephone cable to the alarm (6) and telephone wall socket.
  • Page 3 Record a message: Press , the battery LED indicator light will illuminate. You have 6 seconds to record your personal message. Once the light goes off your recording time is over. The alarm has a permanent memory for stored telephone numbers and voice message.
  • Page 4 Warning: To reduce risk of electric shock, this product should ONLY be opened by an authorized technician if service is required. Do not expose the product to water of moisture. Warranty: No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.
