Yield Technology SuperGuard EZT-VT07B Operation Manual

Gps vehicle tracking system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
E-MAIL:
helge@ytc.com.tw
Yield Technology Co., Ltd.
No. 5-7 Shia Shin Nan, Chungli
Taoyuan, TAIWAN R.O.C.
TEL:
(+886) 3-4533655
FAX:
(+886) 3-4531391
SuperGuard
GPS Vehicle Tracking System
Operation Manual
----------
GPS/GPRS Vehicle Security System
----------
Model EZT-VT07B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SuperGuard EZT-VT07B and is the answer not in the manual?

Questions and answers

Related Manuals for Yield Technology SuperGuard EZT-VT07B

Summary of Contents for Yield Technology SuperGuard EZT-VT07B

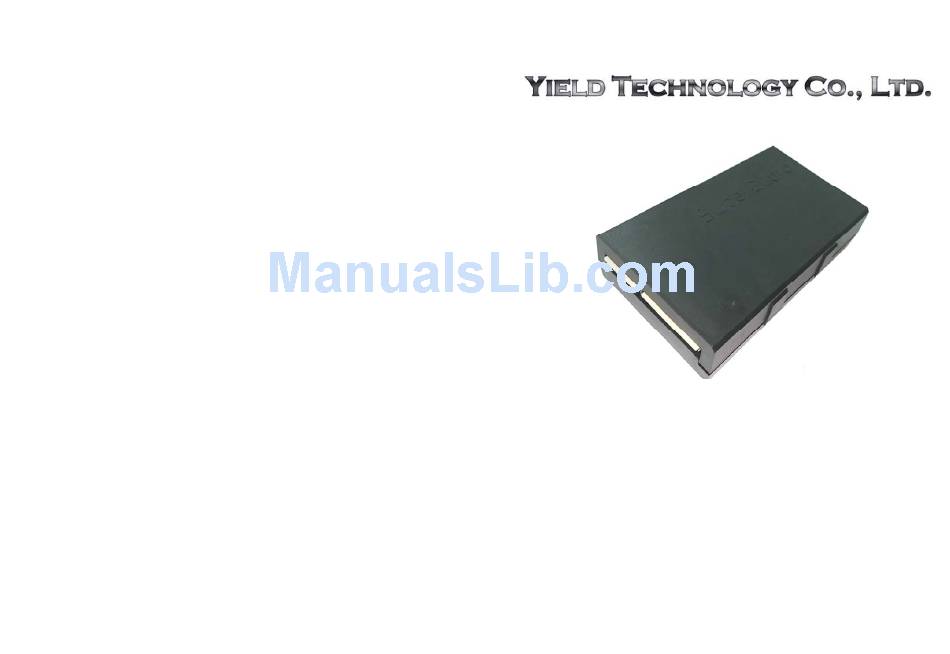

  • Page 1 SuperGuard GPS Vehicle Tracking System Operation Manual ---------- ---------- Yield Technology Co., Ltd. No. 5-7 Shia Shin Nan, Chungli Taoyuan, TAIWAN R.O.C. TEL: (+886) 3-4533655 FAX: (+886) 3-4531391 E-MAIL: helge@ytc.com.tw GPS/GPRS Vehicle Security System Model EZT-VT07B...

  • Page 2: Table Of Contents

    Warranty Installation page 7 The Yield Technology Co., Ltd. (YTC) warrants to the purchaser that this product, under normal use and conditions, will be free from defects in materials and workmanship for a Vehicle Unit – LED Indicators page 11 period of 12 months from the date of original purchase.

  • Page 3: Parts & Accessories

    1. Parts & Accessories 2. SuperGuard Vehicle Unit – Features On receipt of your SuperGuard system, please check that all contents The SuperGuard EZT is a GPS vehicle tracking device, ideal for fleet management and commercial data centers. are complete and correct. SuperGuard GPS/GPRS Main Unit ...

  • Page 4: Preparations

    3. Preparations 4. Installation In order to install the SuperGuard Vehicle Unit properly, the NOTE: Please note that installation methods may following preparations should be carried out: vary between vehicle models. For expert wiring and connecting please contact a professional car Prepare one operational GSM SIM card.
  • Page 5 Wiring Diagram Relay dry contacts: Connecting The Vehicle Unit: Purple (COM) Blue (NC) External Green (NO) Relay NOTE: Finish all wiring and connections to the ------ Max. 5A ------- correct vehicle outputs and inputs before you apply the connectors to the Vehicle Unit !!! Black Dual 4-PIN Cable Description/ Colors –...

  • Page 6: Vehicle Unit - Led Indicators

    VT-07 EZT Installation of External Relay for Immobilizer 5. Vehicle Unit – LED Indicators function: Vehicle Unit Connection: External Relay PIN No. Cable Description Color Ground (GND) Black SOS input White GPS LED (blue) Connect to PIN6 Purple  If LED flashes (once per second): External Relay, to relay power 85 (+) Blue Device has GPS lock.

  • Page 7: Getting Started

    6. Getting Started 7. Locating and Tracking After applying the wire harness to the Vehicle Unit, the device will power up and automatically attempt to register to GSM network. Authorized users can interrogate the Vehicle Unit Provided that your vehicle and the device is positioned in a location to receive locations, street names and details.

  • Page 8: Vehicle Monitoring And Controls

    8. Vehicle Monitoring and Controls 9. Technical Specifications SIZE (L/W/H): 105 x 60 x 25 mm Users are able to setup and configure POWER SUPPLY: DC 9V ~ DC 24V monitoring activities and alerts to the Vehicle Unit. POWER CONSUMPTION (Spare Battery): - 4mA ~ 10mA Standby current Geo-Fence Alarms - 100mA ~ 120mA operating (SMS)
  • Page 9 o Sensitivity:  GSM-850: < -106 dBm  E-GSM-900: < -106 dBm  DCS-1800: < 104 dBm  PCS-1900 : < 104 dBm o GPS Sensitivity: > -160 dBm o Protocol: NMEA-0183 V3.0 o Projection: WGS-84 GSM Application Programming Interface AT Commands UI APIs GPS ANTENNA:...
