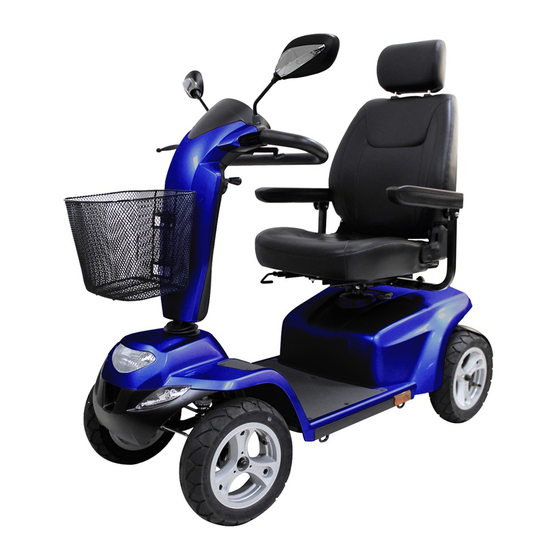

Mobility scooter
Hide thumbs

Advertisement

Table of Contents

C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
HS-898
Instruction Booklet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-898 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for C.T.M. HS-898

Summary of Contents for C.T.M. HS-898

  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER HS-898 Instruction Booklet...

  • Page 2: Table Of Contents

    HS-898 Instruction Booklet TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------1 IMPORTANT PRECAUTIONS ----------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ----3 IDENTIFICATION OF PARTS ----------------------------------------5 CHARGING THE BATTERIES --------------------------------------11 DISASSEMBLING YOUR SCOOTER -----------------------------12 ASSEMBLING YOUR SCOOTER ----------------------------------13 CARE AND MAINTENANCE ----------------------------------------14 OPERATING YOUR SCOOTER ------------------------------------15...

  • Page 3: Introduction

    HS-898 Instruction Booklet INTRODUCTION Thank you and congratulation on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction.

  • Page 4: Important Precautions

    HS-898 Instruction Booklet IMPORTANT PRECAUTIONS Only one person at a time could ride a C.T.M. Mobility Scooter. Maximum load is 181 kgs / 399 pounds. Turn key off before getting on or off. Always drive carefully and be aware of others using the same area.

  • Page 5: Electromagnetic Interference And Warnings

    HS-898 Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 HS-898 Instruction Booklet Motorized Scooter Electromagnetic Interference Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.

  • Page 7: Identification Of Parts

    Adjustable Armrest Seat Rotation Lever Head light Seat Sliding Slide Lever Reflector Turn Signals 13" Front and Rear Wheels Figure 1 - HS-898 Front View Power/Self-Diagnostic Speed Dial Knob Rear MIrror Warning Light Battery Gauge Armrest Warning Width Light Adjustment...
  • Page 8 HS-898 Instruction Booklet FUNCTION OF PARTS MAIN SWITCH (A) 1.By turning the key clockwise to NO to turn on the power 2.By turning the key anticlockwise to OFF to turn off the power. Speed Dial Knob (B) The Rabbit means fast and Turtle is slow.
  • Page 9 HS-898 Instruction Booklet Battery Gauge Capacity Battery Display Capacity% >80 <80 <65 <50 <35 <25 <20 D2 : Red LED D4 : Amber LED D7 : Green LED Operation LED blocks will only decrease gradually during driving. Characteristic Usage (1)When turn off power Condition (2)When charging, function will shut off.
  • Page 10 HS-898 Instruction Booklet Table of Warning Sound Settings Function Volume Button Volume Adjustment Reverse Warning Sound Head Light Button Flash Turn Signal Warning Left or Right Turn Signal Sound Button Minimum Stop (Warning) Warning Stop (Warning) Light Sound Button Low Voltage Warning Hi &...
  • Page 11 HS-898 Instruction Booklet Thumb Lever Pulling right thumb lever (E) moves scooter forward. Pulling left thumb lever (F) moves the scooter backward. (This can be reversed if required by local dealer.) Releasing both, engages automatic brake. These are also your accelerator. The further you depress them, the faster you go.
  • Page 12 HS-898 Instruction Booklet Armrest width Adjustment Thumbscrews 1.Loosen the two thumbscrews (K) to adjust arm width tighten again to lock in at desired position. 2.Adjust the attached screw (J)'s height, to control armrest's angle. Figure 10 Figure 10 Anti-tip wheels (M) Helps keep scooter from tipping over.

  • Page 13: Charging The Batteries

    HS-898 Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger.

  • Page 14: Disassembling Your Scooter

    HS-898 Instruction Booklet DISASSEMBLING YOUR SCOOTER Disassembling Basket By lifting the basket (O) upwards. Disassembling Seat By lifting lever (H) and seat (a) upward. Rear Compartment Cover Open the Compartment Cover (P) according to arrow's direction. Figure 13 Figure 13...

  • Page 15: Assembling Your Scooter

    HS-898 Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat disassembly directions in reverse. Abbreviated directions are given below. Refer to Figures on pages 12 to locate parts. 1.Use the tiller adjustment to move tiller up and out of the way.

  • Page 16: Care And Maintenance

    HS-898 Instruction Booklet CARE AND MAINTENANCE Cleaning Your Scooter If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. Do not use running water to wash or rinse scooter in order to protect electrical parts. Polish with an automotive liquid polish.

  • Page 17: Operating Your Scooter

    HS-898 Instruction Booklet OPERATING YOUR SCOOTER You could make the following adjustments to increase your comfort when driving. adjust seat position. adjust armrest width to comfortable position. adjust tiller's angle. 1.Before operating your scooter, check the following: free-wheeling lever in D speed dial knob is at turtle picture.
  • Page 18 HS-898 Instruction Booklet Keep in mind these rules Release thumb levers and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. When turning to corner, swing front wheels widely, so back wheels will turn more tightly.

  • Page 19: Troubleshooting

    HS-898 Instruction Booklet TROUBLESHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a Self-Diagnostic Warning Light on the Control Panel. To check the Self-Diagnostic Warning Light, turn on the key and count the number of blinks on the Warning Light.
  • Page 20 HS-898 Instruction Booklet The controller may have an internal fault. Other error Check all connections and wiring. Other Problems Low tire pressure: pump up tires to 30-50 lbs. During charging, light on charger does not change to green: Contact your authorized dealer.

  • Page 21: Technical Specifications

    HS-898 Instruction Booklet TECHNICAL SPECIFICATIONS Overall Length 1440 mm / 57" Overall Width 680 mm / 27" Overall Height 1360 mm / 53.5" Wheels:Front 330 mm / 13" Wheels:Rear 330 mm / 13" Weight w/ Batteries 117 kg / 258 Ibs Max.
