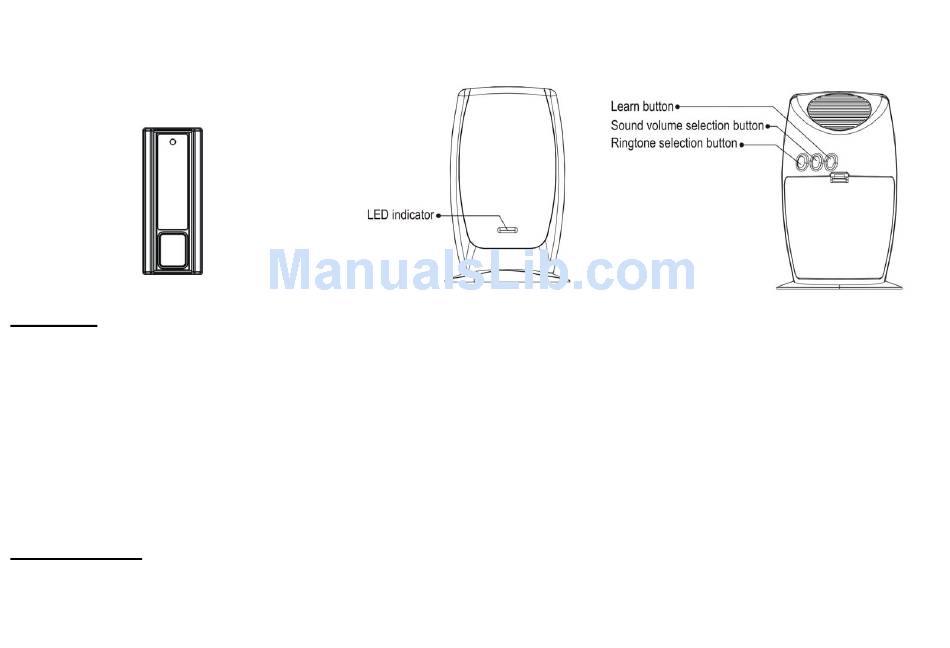

MODEL:
MLR-1105
(DC battery type door chime receiver)
LMLT-711
(push unit door chime transmitter)
FEATURE:
* 67 million self-learning coding RF wireless operation system. No interference with neighbors.
* 5 ringtones / 4 sound volume selections (High-Medium-Low-Mute).
* 4 programmable memories.
* LED indicator for hearing impaired person.
* Chime receiver compatible with self-learning coding transmitters, such like LMLT-711 door bell push button unit, or
LMDT-609 motion detector and LMST-606 magnetic sensor as alert system.
* Each transmitter can learn with the door chime via different ringtone as door bell sound or alert sound.
* Operating distance 200 meters (in open field).
* Receiver battery life 2 years (base on using fresh Duracell Alkaline battery).
INSTALLATION:
LMLT-711 Transmitter (Bell push unit)
The bell push unit can be attached to the flat wall surface by using either the self adhesive tab or screws provided.
To match IP44 standard, LMLT-711 Transmitter must be affixed with LED on top, push button on bottom.
Or horizontal placed.
Advertisement
Table of Contents
Related Manuals for ARC MLR-1105
Summary of Contents for ARC MLR-1105
- Page 1 MODEL: MLR-1105 (DC battery type door chime receiver) LMLT-711 (push unit door chime transmitter) FEATURE: * 67 million self-learning coding RF wireless operation system. No interference with neighbors. * 5 ringtones / 4 sound volume selections (High-Medium-Low-Mute). * 4 programmable memories.
- Page 2 Although learning process is setup at “Mute” mode, after turning to H-M-L volume level selection, ringtone programmed can still be sounded. Selected ringtone and the transmitter are programmed in one of the memory of MLR-1105 at the same time. ...
- Page 3 HOW TO DELETE CODE: - Delete individual setting Press the “Learn” button once on the Receiver (chime unit), “Du” sound is heard, the LED flashes slowly. Then, press the push button of bell push unit LMLT-711 (or slide to “DEL” position of button on LMDT-609 or “CLOSE” parts of LMST-606 as ...
- Page 4 When the receiver catches another signal from transmitter within the 12 seconds, LED light flashing will stop for about 1 second and continue to flash. When pairing the transmitter with MLR-1105, no matter the sound volume is High, Medium ,Low or Mute, it still can be manually adjusted to ...
- Page 5 ＊ Fix LMDT-609 on the wall outside of the room or at the entrance of the door. ＊ Put MLR-1105 in the up-stair room. ＊ When people walk inside the house passing through LMDT-609, it detects body movement and sends signal to MLR-1105 to make ringtone 2 sounded as an alert.
- Page 6 ＊ Put MLR-1105 by the window or any places where can clearly hear the sound or see the LED flash indication. ＊ When people open or break in the door (or window), detach parts of LMST-606 sending signal to MLR-1105 making ringtone 3 sounded as...
- Page 7 CHANGING BATTERY: Transmitter Unclip the front cover from the front of the Transmitter (bell push unit) using a small screw driver. Remove the battery and replace using a new fresh “CR2032” battery, making sure the polarity is correct. Replace the front cover making sure the clips are correctly aligned and firmly push the case together.
- Page 8 SPECIFICATION RECEIVER: Frequency: 433.92MHz Battery operated: 4.5VDC (AA * 3) Battery life: 2 years base on using fresh Duracell Alkaline battery Ringtone : 5 kinds of sound Sound volume: High – Medium – Low – Mute Memories: 4 codes Receiving distance: 200 meters (in open field) while both receiver and transmitter are with full or enough battery power. TRANSMITTER (LMLT-711): IP-44 weatherproof approved.
