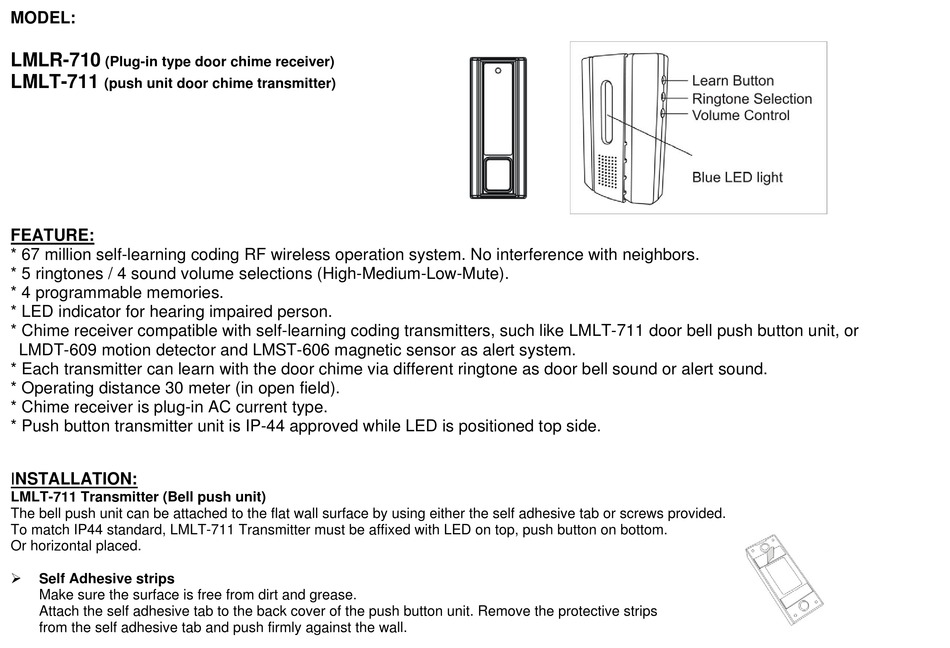

MODEL:
LMLR-710
(Plug-in type door chime receiver)
LMLT-711
(push unit door chime transmitter)
FEATURE:
* 67 million self-learning coding RF wireless operation system. No interference with neighbors.
* 5 ringtones / 4 sound volume selections (High-Medium-Low-Mute).
* 4 programmable memories.
* LED indicator for hearing impaired person.
* Chime receiver compatible with self-learning coding transmitters, such like LMLT-711 door bell push button unit, or
LMDT-609 motion detector and LMST-606 magnetic sensor as alert system.
* Each transmitter can learn with the door chime via different ringtone as door bell sound or alert sound.
* Operating distance 30 meter (in open field).
* Chime receiver is plug-in AC current type.
* Push button transmitter unit is IP-44 approved while LED is positioned top side.
INSTALLATION:
LMLT-711 Transmitter (Bell push unit)
The bell push unit can be attached to the flat wall surface by using either the self adhesive tab or screws provided.
To match IP44 standard, LMLT-711 Transmitter must be affixed with LED on top, push button on bottom.
Or horizontal placed.
Self Adhesive strips
Make sure the surface is free from dirt and grease.
Attach the self adhesive tab to the back cover of the push button unit. Remove the protective strips
from the self adhesive tab and push firmly against the wall.
Advertisement
Table of Contents
Related Manuals for ARC LMLR-710
Summary of Contents for ARC LMLR-710
- Page 1 MODEL: LMLR-710 (Plug-in type door chime receiver) LMLT-711 (push unit door chime transmitter) FEATURE: * 67 million self-learning coding RF wireless operation system. No interference with neighbors. * 5 ringtones / 4 sound volume selections (High-Medium-Low-Mute). * 4 programmable memories.
- Page 2 Although learning process is setup at “Mute” mode, after turning to H-M-L volume level selection, ringtone programmed can still be sounded. Selected ringtone and the transmitter are programmed in one of the memory of LMLR-710 at the same time. ...
- Page 3 - Delete all memory settings at the same time On the Receiver (chime unit) press the “Learn” button, hearing a “Du” sound and holding with the button for about 6 seconds till a second “Du” sound with LED light flashes. Release the “Learn”...
- Page 4 12 seconds. When the receiver catches another signal from transmitter within the 12 seconds, LED light flashing will stop for about 1 second and continue to flash. When pairing the transmitter with LMLR-710, no matter the sound volume is High, Medium ,Low or Mute, it still can be manually adjusted to ...
- Page 5 ＊ Put LMLR-710 by the window or any places where can clearly hear the sound or see the LED flash indication. ＊ When people open or break in the door (or window), detach parts of LMST-606 sending signal to LMLR-710 making ringtone 3 sounded as...
- Page 6 CHANGING BATTERY: Transmitter Unclip the front cover from the front of the Transmitter (bell push unit) using a small screw driver. Remove the battery and replace using a new “CR2032” battery, making sure the polarity is correct. Replace the front cover making sure the clips are correctly aligned and firmly push the case together. ...
