IVS SYNTC1104P User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
347Z

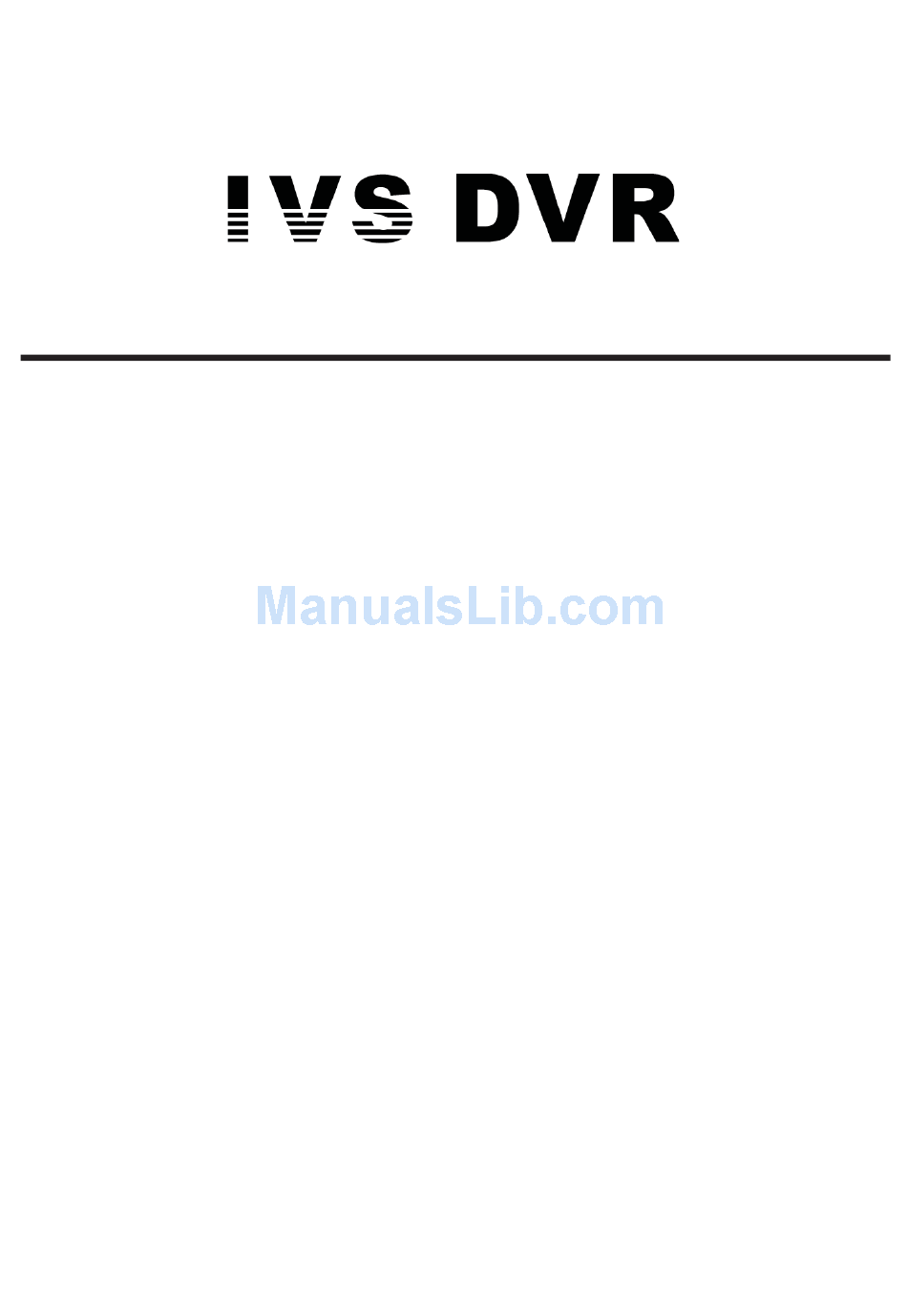

User Manual

„ Intelligent Video Surveillance
„ GUI Display with USB Mouse Control
Please read instructions thoroughly before operation and retain it for future reference.
For the actual display & operation, please refer to your DVR in hand.
A799_797_794_793_Manual_V1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYNTC1104P and is the answer not in the manual?

Questions and answers

Related Manuals for IVS SYNTC1104P

Summary of Contents for IVS SYNTC1104P

  • Page 1: User Manual

    347Z User Manual „ Intelligent Video Surveillance „ GUI Display with USB Mouse Control Please read instructions thoroughly before operation and retain it for future reference. For the actual display & operation, please refer to your DVR in hand. A799_797_794_793_Manual_V1.3...
  • Page 2 IMPORTANT SAFEGUARD CAUTION RISK OF ELECTRIC SHOCK CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages.
  • Page 3 MPEG4 Licensing THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD (“MPEG-4 VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. BEFORE USING THIS DVR..................... 1 1.1 Package Content .............................1 1.2 Front Panel ..............................1 1.3 Rear Panel...............................2 2. CONNECTION AND SETUP ....................4 2.1 SATA HDD Installation .............................4 2.2 Camera Connection............................5 2.2.1 Normal Camera Connection ........................5 2.2.2 DCCS Camera Connection........................5 2.2.3 PTZ Camera Connection ........................5 2.3 DVR Power On ..............................7 2.4 Date and Time Setting .............................7...
  • Page 5 6.1.3. General Operation ..........................37 6.1.4. E-Map ..............................39 6.2 IE Web Browser .............................45 6.2.1 Event Playback & Download........................47 6.2.2 IVS Statistics............................48 APPENDIX 1 SPECIFICATIONS....................49 APPENDIX 2 PIN CONFIGURATION ..................53 APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST ............56 APPENDIX 4 COMPATIBLE SATA HDD LIST................57 APPENDIX 5 MAIN MENU STRUCTURE..................

  • Page 6: Before Using This Dvr

    Press to quickly search the recorded files by event lists: RECORD / MOTION / ALARM / TIME / HUMAN DETECTION / IVS / STATISTIC, or select FULL LIST to show all the event logs. To quickly search the time you want, select “QUICK SEARCH”. For details, please refer to “5.4.1 QUICK SEARCH”...

  • Page 7: Rear Panel

    BEFORE USING THIS DVR  ( ) /  ( ) /  ( ) /  ( ) Press to move up / down / left / right. In the playback mode: Press “” to pause playback. Press “” to stop playback. Press ““...
  • Page 8 BEFORE USING THIS DVR CALL Connect to a monitor specific for sequence display. Connect to a LCD monitor directly. Note: When both MONITOR and VGA are connected, press the right key on the DVR front panel during DVR power-on to force the video output via VGA. For details, please refer to “5.5.6 DISPLAY” at page 25.

  • Page 9: Connection And Setup

    CONNECTION AND SETUP 2. CONNECTION AND SETUP Before the DVR is powered on, make sure you have installed a hard disk and connected at least one camera. For details, please refer to the following sections. Note: The DVR is designed to automatically detect the video system of the connected cameras (NTSC or PAL).

  • Page 10: Camera Connection

    CONNECTION AND SETUP Step5: Replace the top cover and fasten the screws you loosened in Step1. 2.2 Camera Connection The cameras must be connected and power-supplied before the DVR is powered on. Connect the camera with the indicated power supply. Then, connect the camera video output to the DVR video input port with a coaxial cable or RCA cable with BNC connectors.
  • Page 11 CONNECTION AND SETUP setting to control the PTZ camera, please refer to “5.5.7 RECORD” at page 26. For detailed PTZ camera control and operation, please refer to its own user manual. RJ11 cable RS485-A: Red wire RS485-B: Green wire The RJ11 cable is not supplied in the sales package. 9 PIN D-Sub Connector 25 PIN D-Sub Connector RS485-A: PIN 8...

  • Page 12: Dvr Power On

    CONNECTION AND SETUP ADVANCED CONFIG CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 W CANERA DETECTION DEVICE ALERT NETWORK PROTOCOL NORMAL SNTP RATE 2400 DISPLAY RECORD DEVICES DCCS NOTIFY EXIT 2.3 DVR Power On This device should be operated only with the type of power source indicated on the manufacturer’s label. Connect the indicated AC power cord to the power adapter, and plug into an electrical outlet.

  • Page 13: Clear Hard Disk

    CONNECTION AND SETUP 2.5 Clear Hard Disk It’s recommended to clear all data in the hard disk for the first time to user this DVR to ensure the recorded data are not mixed with other data previously saved in the same hard disk. Right-click to show the main menu, and select “SYSTEM”...

  • Page 14: Gui Display With Usb Mouse Control

    GUI DISPLAY WITH USB MOUSE CONTROL 3. GUI DISPLAY WITH USB MOUSE CONTROL Note: Two sets of graphical OSD are designed for this DVR series, and you’ll get one of them depending on the model you have. Below shows one set of graphical OSD as an example. To know details about the other set, please refer to “APPENDIX 7 GRAPHICAL OSD TABLE”...

  • Page 15: Channel Switch

    GUI DISPLAY WITH USB MOUSE CONTROL 3.2.1 Channel Switch Click on the quick menu bar to display the panel as follows: Video Channel 1~16 Click to switch to the channel you want in full screen. Number Sequence Click to display each channel in full screen one by one starting Display from CH1.

  • Page 16: Main Menu

    Click to set the system configurations. EVENT INFORMATION Click to enter the event search menu. Click to set CAMERA, DETECTION, ALERT, ADVANCED CONFIG NETWORK, SNTP, DISPLAY, RECORD, DEVICES, DCCS, IVS & NOTIFY. SCHEDULE SETTING Click to set record timer and detection timer.

  • Page 17: Basic Operation

    BASIC OPERATION 4. BASIC OPERATION 4.1 Live Page Icon Function Icon Function Icon Function Live audio channel (1~4) Playback audio channel (1~4) Audio channel off Digital zoom on Digital zoom off Timer recording Network disconnected Internet connected LAN connected USB mouse connected USB flash drive / device connected No USB device connected Key lock...

  • Page 18: Playback Control

    RECORD / MOTION / ALARM / TIME / HUMAN DETECTION / IVS / STATISTIC, or select FULL LIST to show all the event logs. To quickly search the time you want, select “QUICK SEARCH”. For details, please refer to “5.4.1 QUICK SEARCH”...

  • Page 19: Video Output Switch

    BASIC OPERATION When the operator password is entered, will be shown on the status bar of the screen, and the main menu is NOT allowed to access. The operator user level needs to be set in the main menu “SYSTEM” Æ “TOOLS”. To switch between these two user levels, click the current user level icon to switch to the key lock mode, and move your mouse to show the password input keypad, and enter the password of the user level you want.

  • Page 20: Main Menu

    EVENT INFORMATION Click to enter the event search menu. Click to set CAMERA, DETECTION, ALERT, ADVANCED CONFIG NETWORK, SNTP, DISPLAY, RECORD, DEVICES, DCCS, IVS & NOTIFY. SCHEDULE SETTING Click to set record timer and detection timer. 5.1 QUICK START 5.1.1 GENERAL...

  • Page 21: Time Setup

    MAIN MENU 5.1.2 TIME SETUP QUICK START GENERAL DATE 2009 / NOV / 17 TIME SETUP TIME 15 : 35 : 53 EXIT DATE Set the current date. The default display format is YEAR – MONTH – DATE (Y-M-D). Note: To change the date display format, please refer to “5.2.1 DATE INFO”. TIME Set the current time in HOUR : MIN : SEC.

  • Page 22: System

    MAIN MENU START TIME / END TIME Set the start time and end time. ADJUST Set the time in HOUR : MIN. 5.3 SYSTEM 5.3.1 TOOLS SYSTEM TOOLS LANGUAGE ENGLISH SYSTEM INFO ADMIN PASSWORD SETUP USB BACKUP OPERATOR PASSWORD SETUP DVD BACKUP UPGRADE SUBMIT...

  • Page 23: System Info

    MAIN MENU 5.3.2 SYSTEM INFO SYSTEM TOOLS BAUD RATE 2400 SYSTEM INFO HOST ID USB BACKUP R.E.T.R DVD BACKUP AUTO KEY LOCK NEVER CLEAR HDD HDD-0 RESET DEFAULT SUBMIT REMOTE CONTROL ID SERIAL TYPE RS485 VIDEO FORMAT NTSC VERSION 1010-1005-1006-1007 EXIT BAUD RATE Set the baud rate of the DVR (2400 / 9600 / 19200 / 38400 / 57600 / 115200).

  • Page 24: Usb Backup / Dvd Backup

    MAIN MENU 5.3.3 USB BACKUP / DVD BACKUP Insert a compatible USB flash drive to the USB port at the front panel, or, if any, press to eject the DVD writer and place a DVD-R or CD-R to it. Note: Before using the USB flash drive, please use your PC to format the USB flash drive to FAT32 format first.

  • Page 25: Event Information

    MAIN MENU 5.4 EVENT INFORMATION 5.4.1 QUICK SEARCH EVENT INFORMATION QUICK SEARCH HARD DISK ALL HDD ; 01 † 02 † 03 † 04 EVENT SEARCH CHANNEL ; 05 † 06 † 07 † 08 HDD INFO ; 09 † 10 † 11 † 12 EVENT LOG ;...

  • Page 26: Hdd Info

    MAIN MENU SEARCH Click “START” to start search and play the video data immediately. 5.4.3 HDD INFO You can check the remaining capacity of the connected HDD in this device. EVENT INFORMATION QUICK SEARCH HDD NUMBER HDD SIZE EVENT SEARCH HDD-0 1.197GB HDD INFO...

  • Page 27: Detection

    MAIN MENU Select if you want to enable recording for the selected channel (ON / OFF). Note: When this function is disabled, no manual, event or timer recording will be activated even if any of these three record functions is set to “ON”. CHANNEL TITLE Click “EDIT”...

  • Page 28: Alert

    MAIN MENU 5.5.3 ALERT ADVANCED CONFIG CANERA EXT. ALERT DETECTION INT. BUZZER ALERT KEY BUZZER NETWORK VLOSS BUZZER SNTP MOTION BUZZER DISPLAY ALARM BUZZER RECORD HDD BUZZER DEVICES ALARM DURATION (SEC) DCCS HDD NEARLY FULL (GB) NOTIFY EXIT EXT. ALERT Select to enable or disable the sound when any external alarm is triggered (ON / OFF).

  • Page 29: Sntp

    MAIN MENU STATIC ADVANCED CONFIG CANERA NETWORK TYPE STATIC DETECTION 192.168.001.010 ALERT GATEWAY 192.168.001.254 NETWORK NETMASK 255.255.255.000 SNTP PRIMARY DNS 168.095.001.001 DISPLAY SECONDARY DNS 139.175.055.244 RECORD PORT 0080 DEVICES DCCS NOTIFY EXIT NETWORK TYPE Select the network type as STATIC and set all the information needed in the DVR. NETWORK INFORMATION (IP / GATEWAY / NETMASK) Key in all the network information obtained from your ISP (Internet Service Provider).

  • Page 30: Display

    MAIN MENU 5.5.6 DISPLAY ADVANCE CONFIG CAMERA DE-INTERLACE (For Selected Models Only) DETECTION FULL SCREEN DURATION ALERT QUAD SCREEN DURATION (For Selected Models Only) NETWORK DWELL SCREEN DURATION SNTP DISPLAY COVERT DISPLAY HDD DISPLAY MODE HDD SIZE RECORD DISPLAY OUTPUT PATH AUTO DEVICES ALPHA BLENDING...

  • Page 31: Record

    MAIN MENU 5.5.7 RECORD Note: Please DO NOT change the date or time of your DVR after the recording function is activated. Otherwise, the recorded data will be disordered and you will not be able to find the recorded file to backup by time search.

  • Page 32: Devices

    MAIN MENU 5.5.8 DEVICES ADVANCE CONFIG CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 W CANERA DETECTION DEVICE ALERT NETWORK PROTOCOL NORMAL SNTP RATE 2400 DISPLAY RECORD DEVICES DCCS NOTIFY EXIT DEVICE For the PTZ camera, select “PTZ”. For a zoom lens control camera: The DVR will detect it automatically and display its model number here.

  • Page 33: Ivs

    The signal transmission is too weak or not available for the DCCS function to work properly. 5.5.10 IVS Note: Before using the IVS function, make sure the event record function is enabled on your DVR. IVS, Intelligent Video Surveillance, is the advanced application for motion detection, but more precise and smarter.
  • Page 34 VIRTUAL FENCE AREA Click “SETUP” to draw the detection line for IVS, and set the detection direction from left to right, or right to left. This area setting is the detection base for IVS MODE. Note: There are some tips to draw the detection line. For details, please check www.surveillance-download.com/user/IVS_setup.pdf.
  • Page 35 Step1: Go to “VIRTUAL FENCE AREA” to draw a detection line with your mouse, and decide the detection direction by selecting “REVERSE”. Step2: Finish the IVS setting and return to the live view. When anyone walks across the detection line, the system will determine his movement is in or out, and: An event happens for anyone walking across the detection line, and “...
  • Page 36 MAIN MENU IVS STATISTICS Press “LIST” on the DVR front panel, or click “ ” “ ” to enter the event search menu. Then, select “STATISTIC” LIST ; 01 † 02 † 03 † 04 QUICK SEARCH CHANNEL RECORD EVENT TYPE INFLOW †...

  • Page 37: Notify

    EXIT GUARD Select to enable or disable IVS function (ON / OFF). Select to activate the Push Notification function (ON / OFF).Or it could also be activated later from iPhone. CH1 ~ 16 / CH1 ~ 8 / CH1 ~ 4 Enter the text you want to see when your iPhone receives Push Notification.

  • Page 38: Detection

    MAIN MENU 5.6.2 DETECTION Select “ON” to enable detection timer, and select the day and time for this function. SCHEDULE SETTING RECORD DETECTION TIMER DETECTION EXIT X axis 0 ~ 24 hours. Each time bar is 30 minutes. Monday ~ Sunday. Y axis 5.6.3 ALARM Select “ON”...

  • Page 39: Remote Operation

    REMOTE OPERATION 6. REMOTE OPERATION You can also control the DVR remotely via the supplied licensed software “Video Viewer”, a web browser (such as Microsoft Internet Explorer, Mozilla FireFox, or Google Chrome), your mobile phone, and Apple’s QuickTime player. Note: For details about remote operations via your mobile phone, please visit http://www.eagleeyescctv.com.

  • Page 40: Control Panel Overview

    REMOTE OPERATION ¾ ¾ When the network configuration of your DVR is completed, you can access your DVR remotely via Internet. a) Double-click “ ” on your PC desktop to enter the control panel. By defaults, the “Address Book” panel will be displayed on the right side of the control panel.
  • Page 41 REMOTE OPERATION Full Function Version Main Button Overview Button Function Description Simplified Full Function Click to show the predefined IP address(es). You can add, remove or Address Book search the IP address to log in the DVR remotely. Remote Click to go into the detailed DVR setting. Config Record Click to go to the detailed record setting.

  • Page 42: General Operation

    REMOTE OPERATION 6.1.3. General Operation Record To record remotely at the same time for any event or alarm at the DVR side, click “ ” or “ ” “ ” to go to the “Record Setting” page. In the “Record Setting” page, you can set the following items: Record type Hard disk overwriting Pre- / post-alarm record time...

  • Page 43: Network Backup

    REMOTE OPERATION To immediately play a recording, select a log from the list, and click “Play”, or double-click the selected log. Network Backup Click “ ” “ ”, or click “ ” to go into the “Backup” page as follows, and you can select a specific time range or event to make a video backup remotely.

  • Page 44: E-Map

    REMOTE OPERATION Function Description To simply backup images without previewing, deselect the checkbox “Simultaneous Playback”. You will only see a message box indicating the total time needed, the current status and the saving location. Download / Cancel Click “Download” to start or “Cancel” to discard the video backup. Firmware Upgrade This function is used to grade your DVR for function scalability.
  • Page 45 REMOTE OPERATION E-Map is ONLY available when the control panel is switch to the full function version. How to Add an E-Map Group STEP1: In the simplified version, click “ ” to switch the control panel to the full function version, and click “ ”...
  • Page 46 REMOTE OPERATION STEP3: When the E-Map group is created, you will see the tree on the top-left panel, showing all the devices you’ve added to this group.
  • Page 47 REMOTE OPERATION Icon Description The connected device is camera. When it’s selected, it will become red. The connected device is DVR. When it’s selected, it will become red. For any motion or alarm event, it will appear on the screen to catch your attention. To know what’s happening quickly, double-click the device icon on the E-Map to show the live view.
  • Page 48 REMOTE OPERATION ¾ For Single E-Map Group Right-click on the group name to show the shortcut menu list, and select “Edit E-MAP” or “Remove E-MAP” as needed. ¾ For Building E-Map Group Right-click on the group name to show the shortcut menu list, and select “Edit Building E-MAP”...
  • Page 49 REMOTE OPERATION To edit or remove a certain level of the building E-Map group, right click on the level name, and select “Edit E-MAP” or “Remove E-MAP” as needed.

  • Page 50: Ie Web Browser

    REMOTE OPERATION 6.2 IE Web Browser You can view the images or operate your DVR with IE web browser. Note: The supported PC operation systems are Windows 7, Vista, XP and 2000. Step 1: Key in the IP address used by your DVR in the URL address box, such as 60.121.46.236, and press Enter. You will be prompted to enter the user name and password to access the DVR.
  • Page 51 Click to play the video clip slowly, once to get 4X slower, twice get 8X slower. IVS Panel This button is enabled only when the IVS mode is “Flow Counting”. Click to show the detection line. Click to enter the IVS statistics page. For details, please refer to “6.2.2 IVS Statistics” at page 48.

  • Page 52: Event Playback & Download

    REMOTE OPERATION 6.2.1 Event Playback & Download Close all / Click to close the current playback video clip (in the red frame), or to close all playback video Close clips. Previous / Click to jump to the next / previous time interval in an hour, for example, 11:00 ~ 12:00 or 14:00 ~ 15:00, Next Hour and start playing the earliest event video clip recorded during this whole hour.

  • Page 53: Ivs Statistics

    REMOTE OPERATION 6.2.2 IVS Statistics...

  • Page 54: Appendix 1 Specifications

    352×288 pixels with 400 IPS <PAL> 352×288 pixels with 200 IPS <PAL> DCCS Support YES (CH1 ~ 4) YES (CH1 ~ 2) IVS Support YES (4 channels) Image Quality Setting SUPER BEST / BEST / HIGH /NORMAL Hard Disk Storage...
  • Page 55 APPENDIX 1 SPECIFICATIONS 16CH Key Lock (Password Protection) Local User Level Administrator & Operator Video Loss Detection Camera Title Supports up to 6 letters Video Adjustable Hue / Saturation / Contrast / Brightness Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY Daylight Saving Power Source ( 10%) DC 19V...
  • Page 56 704×240 pixels with 60 IPS <NTSC> / 704×288 pixels with 50 IPS <PAL> Maximum Recording Rate 352×240 pixels with 120 IPS <NTSC> / 352×288 pixels with 100 IPS <PAL> DCCS Support YES (CH1) IVS Support YES (4 channels) Image Quality Setting SUPER BEST / BEST / HIGH /NORMAL Hard Disk Storage...
  • Page 57 APPENDIX 1 SPECIFICATIONS Daylight Saving Power Source ( 10%) DC 19V Power Consumption ( 10%) < 42 W Operating Temperature ~ 40 (50 ~104 ) Dimensions (mm)** 343(W) × 59(H) × 223(D) System Recovery System auto recovery after power failure Optional Peripherals Keyboard controller * The specifications are subject to change without notice.

  • Page 58: Appendix 2 Pin Configuration

    APPENDIX 2 PIN CONFIGURATION APPENDIX 2 PIN CONFIGURATION For 16CH Model Siren: When the DVR is triggered by alarm or motion, the COM connects with NO and the siren with strobe starts wailing and flashing. Magnetic Contact: When the magnetic contact is opened, the alarm will be triggered and the recording is on.
  • Page 59 APPENDIX 2 PIN CONFIGURATION For 8CH Model Siren: When the DVR is triggered by alarm or motion, the COM connects with NO and the siren with strobe starts wailing and flashing. Magnetic Contact: When the magnetic contact is opened, the alarm will be triggered and the recording is on.
  • Page 60 APPENDIX 2 PIN CONFIGURATION For 4CH Model Siren: When the DVR is triggered by alarm or motion, the COM connects with NO and the siren with strobe starts wailing and flashing. Magnetic Contact: When the magnetic contact is opened, the alarm will be triggered and the recording is on.

  • Page 61: Appendix 3 Compatible Usb Flash Drive List

    APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST APPENDIX 3 COMPATIBLE USB FLASH DRIVE LIST Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table. If the USB flash drive is not supported by the DVR, the “USB ERROR” message will be shown on the screen. Note: Please use your PC to format the USB flash drive as “FAT32”.

  • Page 62: Appendix 4 Compatible Sata Hdd List

    APPENDIX 4 COMPATIBLE SATA HDD LIST APPENDIX 4 COMPATIBLE SATA HDD LIST Please upgrade the firmware of the DVR to the latest version to ensure the accuracy of the following table. MANUFACTURER MODEL CAPACITY ROTATION Seagate ST3320613AS 320GB 7200 rpm ST33500320AS 500GB 7200 rpm...

  • Page 63: Appendix 5 Main Menu Structure

    APPENDIX 5 MAIN MENU STRUCTURE APPENDIX 5 MAIN MENU STRUCTURE Note: Two sets of graphical OSD are designed for this DVR series, and you’ll get one of them depending on the model you have. Below shows one set of graphical OSD as an example. To know details about the other set, please refer to “APPENDIX 7 GRAPHICAL OSD ”...
  • Page 64 EVENT RECORD IPS TIMER RECORD IPS PRE-ALARM RECORD OVERWRITE EVENT RECORD ALL CHANNEL KEEP DATA LIMIT (DAYS) REMOTE DCCS CAMERA (Selected Models Only) IVS MODE DISPLAY LINE SENSITIVITY RESET COUNT VIRTUAL FENCE AREA SCENE CHANGE SCENE CHANGE SENSITIVITY NOTIFY GUARD SCHEDULE SETTING...

  • Page 65: Appendix 6 Dvr Battery Replacement

    APPENDIX 6 DVR BATTERY REPLACEMENT APPENDIX 6 DVR BATTERY REPLACEMENT DVR time reset after power failure, for example, caused by a power outage, will cause the disorder of the recorded data, and users may have problems in searching the event clip they want. To keep the DVR time from resetting, a non-chargeable lithium battery, CR2032, is installed in the DVR.

  • Page 66: Appendix 7 Graphical Osd Table

    APPENDIX 7 GRAPHICAL OSD TABLE APPENDIX 7 GRAPHICAL OSD TABLE Icon Click to go to… OSD 1 OSD 2 Main Menu Quick Start Date Setup System Event Information ADVANCED CONFIG Schedule Setting Quick Menu Channel Switch Playback Control Digital Zoom Audio PTZ Control Playback...
