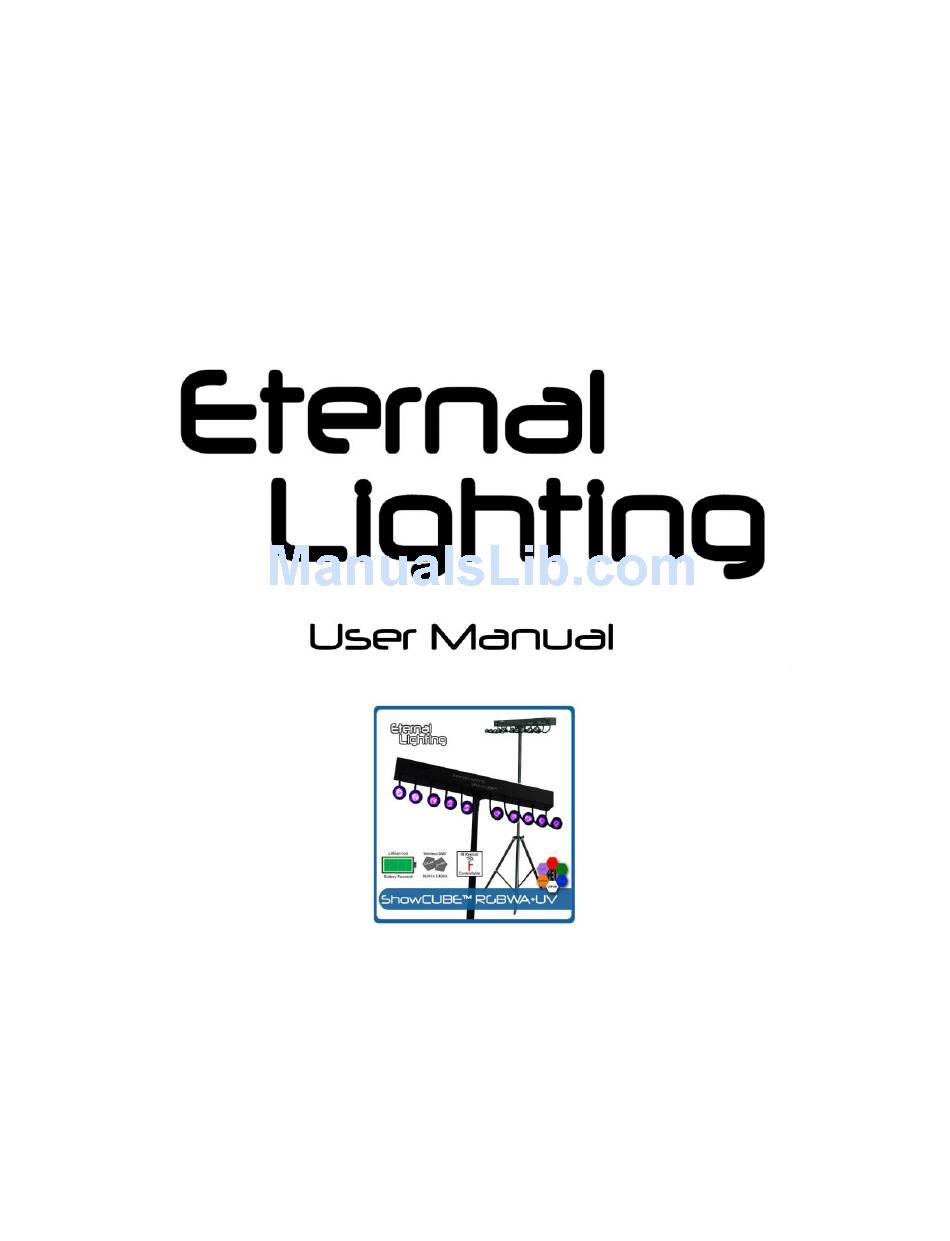

- Page 1 ShowCUBE™ ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 2 Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact the manufacturer or your dealer. ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
-
Page 3: For Example
+ Blue (128) which will equal “Purple” (127+128 = 255) which will give you about 14-16 Hours. This will be half as bright as before at full intensity. However, you will get almost double the battery run time. ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015... - Page 4 IR Remote control. Also the Signal Received from the IR Remote can transmit to the other lights by Wireless DMX. (Compatible with CUBEecho, EchoICON, EchoEDGE, & EliteParHEX) Removable Hanging Bracket PHOTOMETRICS: 19,345 LUX @ 1meter (Full Power) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
-
Page 5: Operation Guide
Operation Guide: Start Up Welcome to ETERNAL LIGHTING Version Switch to Display RGBWAU DMX addr DMX address: 001-512 CH mode RGBWA+UV -CH-mode: 1/3 / 4 / 5 / 6 / 8 / 11 /13/60/64 Mast/Slave Mast / Slave Manual R/G/B/W/A/UV (000-255) – Master Dimmer – Economy Mode ON/OFF Color 01-50 (RGBWA+UV) Do not operate in Custom Color A-E with all colors at 255 other than Testing for short time. - Page 6 Menu: o Start Up – Welcome to Eternal Lighting Screen o DMX Address and Channel Mode – Press Enter to move up and down between DMX Addr and CH. Press Down/Up to scroll through choices. Press Enter to save a command then press Menu to back out.
- Page 7 Now you are connected from the ShowCUBE to your Uplights. The ShowCUBE is transmitting to the Uplights as a Master to control the Uplights with amazing light shows, chases, programs and patterns. ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
-
Page 8: Remote Functions
FULL all leds light up SHUT all leds turn off Red red color GREE green color BLUE blue color WHIT white color AMBE amber color PINK pink color ORG orange/yellow color GYAN cyan color PURP purple/UV color ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015... -
Page 9: Dmx Values And Functions
RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015... - Page 10 WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 Ultra Violet Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 11 208-255 Color Snap Red to Green to Blue to White to Amber) 0-255 Auto Speed Slow to Fast (0-255) CH10 0-255 R, G, B,W, A STROBE from slow to fast (0-255) CH11 0-255 SOUND 1 (Off 0-15, ON 16-255 Color change through preset colors) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 12 CH11 0-255 Auto/Fade Speed Slow to Fast (0-255) CH12 0-255 R, G, B,W, A STROBE from slow to fast (0-255) CH13 0-255 SOUND 1 (Off 0-15, ON 16-255 Color change through preset colors) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 13 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CH34 0-255 WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CH35 0-255 AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 14 WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CH59 0-255 AMBER Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CH60 0-255 UV Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 15 UV Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CH43 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CH44 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
- Page 16 131-140 Chase 9 141-150 Chase 10 151-180 Strobe White 181-190 RED 191-200 Green 201-210 Blue 211-220 White 221-230 Amber 231-240 UV 241-255 Off For more information, please contact Support by email at support@eternallighting.com ShowCUBE™ DMX RGBWA+UV Eternal Lighting Updated 01/2015...
