Summary of Contents for Mantracourt T24-PR1

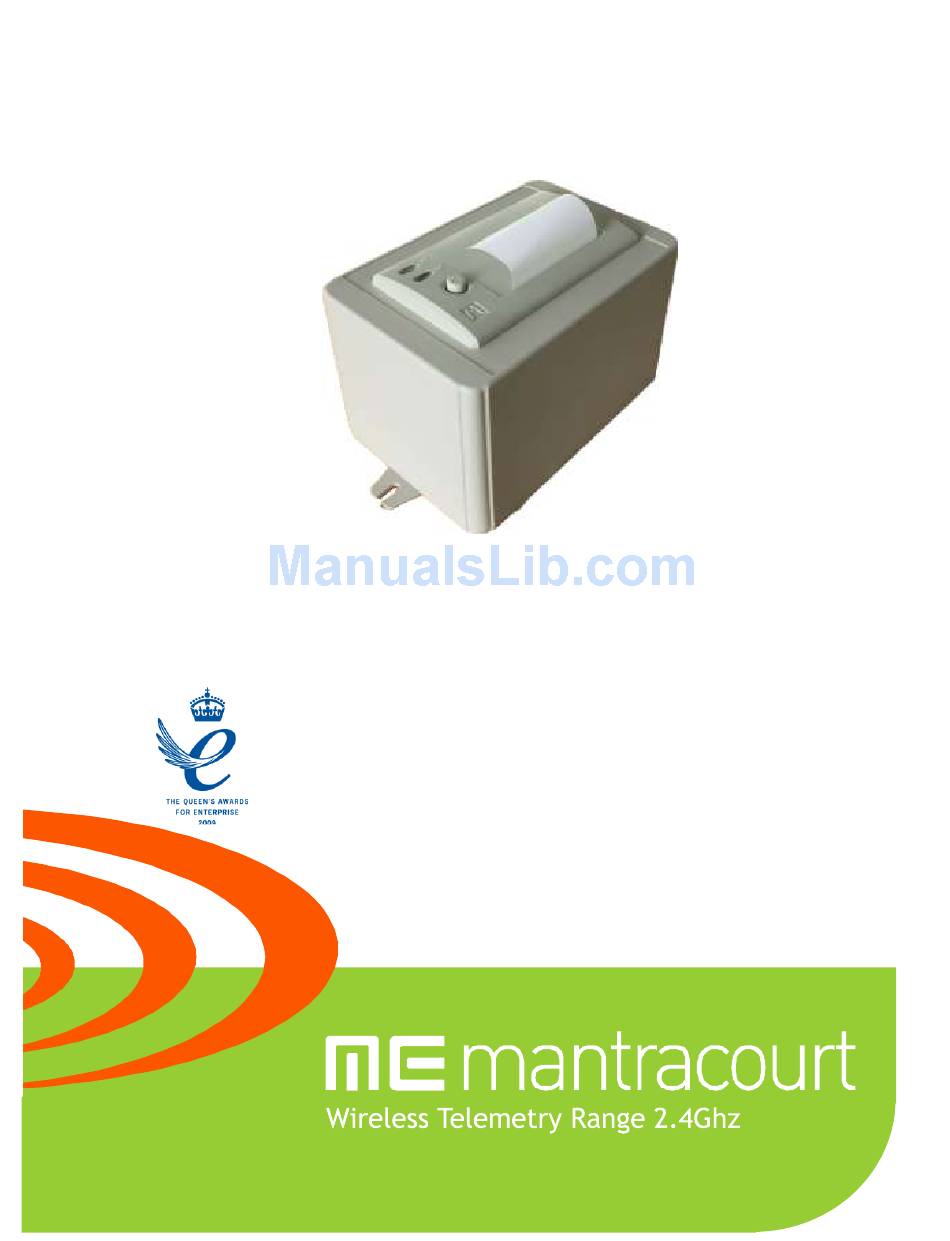

- Page 1 T24-PR1 Printer User Manual www.mantracourt.co.uk...
-
Page 2: Table Of Contents
OEM / Reseller Marking and Documentation Requirements ............26 FCC ......................... 26 IC ..........................26 CE ........................... 26 Declaration of Conformity ....................28 Worldwide Regional Approvals ................... 29 Important Note ......................29 Warranty ........................29 Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 3: Introduction / Overview
Introduction / Overview The T24-PR1 is a thermal printer module that can print a 57mm wide ticket which can include data from up to 8 devices and optionally sum them. The printout can be triggered from the arrival of data from a specific device or alternatively by a handheld device which can also optionally supply the data value to print. -
Page 4: Getting Started
Getting Started To get the T24-PR1 to print live data we need an external device. This can be one or more acquisition devices or a handheld device which is already paired with an acquisition device. -
Page 5: T24 Toolkit
T24 Toolkit The T24 Toolkit provides a means of simple configuration of the T24-PR1 and associated acquisition module along with useful tools to aid integration. Calibration of the acquisition modules is also provided. Run the T24 Toolkit software application. General Pages Setup Base Station Communications Select USB as the interface and select 1 as the Base Station Address. -
Page 6: Home
We now have successful communications with the base station so we can now pair with our device or we can select the Spectrum Analyser mode or Data Provider Monitor mode. Pairing Procedure Remove power from the T24-PR1 module. • Click the Pair button on the toolkit. -
Page 7: Analyser
The above charts show the traffic from a Wi-Fi network and it can be seen to be operating over channels 6 to 9 and it would be best (though not essential) to avoid using these channels. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 8: Information
Information This page shows you information about the connected device. Items you can change: Name You can enter a short descriptive name (11 characters) which may help you recognise this device in the future. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 9: Channel And Encryption
Encryption Key Only devices with identical encryption keys can communicate. You can isolate groups of devices on the same channel or just use the key to ensure the data cannot be read by somebody else. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 10: Save And Restore
All configuration information including calibration data will be overwritten. The file extension is tcf. Advanced Settings Click this button to enter the Advanced Settings Page. Here are settings which do not normally require changing. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 11: Input Settings
Remote data Tags and Timeouts Data Tag Enter the Data Tag (in hexadecimal) to supply data to this input. NOTE: You can click the P button to retrieve the Data Tag of a device by Mantracourt Electronics Limited T24-PR1 User Manual... - Page 12 It is possible to set the resolution (the smallest unit of change) of the output results by including the numeric value in the format. i.e. 00.005 would only represent the value in steps of 00.005 Mantracourt Electronics Limited T24-PR1 User Manual...
-
Page 13: Output Settings
Enter a log number that is used when the <LOG> token is decoded. Each time an output is triggered this log number is incremented. This number will wrap to zero once it reaches the maximum value displayable due to the Log Digits. Mantracourt Electronics Limited T24-PR1 User Manual... - Page 14 You will see the token <0A> in the Output Design page when you press the enter key at the end of a line. Line Delay This is not alterable but shows the delay in milliseconds required at the end of each printed line. Mantracourt Electronics Limited T24-PR1 User Manual...
-
Page 15: Output Scaling
You would keep both the low points at zero. Enter At High Input Value of 1000 and Display Should Read Value of 1. NOTE: This affects all inputs and sums (both gross and net). All tokens will effectively be decoded using the new scale factor. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 16: Output Design
Substitutes token with the last value received from the input. This 1.2345 <V8> will already have system zero subtracted (If a DoSysZero command has been issued.) and tare subtracted. (If a DoTare command has been issued or the switch input has executed a tare.) Mantracourt Electronics Limited T24-PR1 User Manual... - Page 17 Print in reverse order (This is the default mode.) <1B><63><00> Print as designed (Should be placed at the top of the design) Example To print the value from input 1 in reverse: Current Value: 123.456 Current Value: <1B><69><01><V1><1B><69><00> Kg Mantracourt Electronics Limited T24-PR1 User Manual...
-
Page 18: Zero Settings
50Kg. By performing a system zero (with all inputs operational) this is zeroed away so next time the T24-PR1 is powered on the same input will yield a zero result. Remove System Zero Clicking this will remove all system zeros and restore all outputs normal. -
Page 19: Zero Settings Advanced
Example: The same T24-PR1 is used with a truck that picks up different trailers and is required to display the sum of 4 strain gauges connected to each trailer (Using T24-SAs). Because each trailer will have a different system zero requirement we would add a further device to each trailer set to transmit the system zero value. -
Page 20: Configuration Examples
We need to print the gross sum of 2 devices to a printer with each time the switch input is activated on the T24-PR1. NOTE: The external button/switch option will be made available on future releases of the T24-PR1 We need to display the value of each input as well as the gross sum. - Page 21 Mantracourt Electronics Ltd Ticket No: 0007 Weighment: 12.3456 Kg Mantracourt Electronics Ltd Ticket No: 0007 Weighment: 12.3456 Kg Parameter settings: Line1=<1B><63><00>Mantracourt Electronics Ltd<0A> Line2=Ticket No: <LOG><0A> Line3=Weighment: <TV> Kg<0A> Line4=<0A> Line5=<0A> SumFormat=00.0000 LogDigits=4 PrintTrigger=ABCD MinInterval=5000 Duplicate=1(Yes) Mantracourt Electronics Limited T24-PR1 User Manual...
-
Page 22: Printer Operation And Maintenance
LED will go out. Now you can press the LED/Button marked LF to feed the paper one line at a time. Remember to press the SEL button again to put the printer back online to enable it to print again. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 23: Specifications
57mm (2.244”) Paper Diameter 35mm (1.377”) Print Width 48mm (1.889”) Resolution 8 dots per mm (384 dots per line) Print Head Life 6X10 character lines Print Speed 30mm/sec (25% utilization) Character Size 6x8dots , 8x16dots,or12x24dots Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 24: Mechanical Dimensions
Mechanical Dimensions View from Top View from Side 141.72mm 5.5795” 2.244” 100mm 3.9370” 110mm 4.3307” 150mm 5.9055” 132mm 5.1968” Base Lid 16.00mm 0.6299” 82.00mm 3.2283” Ø 4mm 0.1574” 166mm 6.5354” Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 25: Installation
RAD24i; a small increase or reduction in antenna elevation will often improve reception. Range underwater is only a decimetre or so depending on packet rate. Best performance underwater is obtained by using low packet rates and immersing water-proofed antennae rather than water-tight enclosures containing the antennae. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 26: Approvals
(2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: If the device is changed or modified without permission from Mantracourt Electronics Ltd, the user may void his or her authority to operate the equipment. -
Page 27: Industry Canada
Section 15.247 (emissions). Acquisition modules have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Changes or modifications not expressly approved by Mantracourt could void the user’s authority to operate the equipment. - Page 28 The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus. The CE marking must be affixed visibly, legibly, and indelibly. Mantracourt Electronics Limited T24-PR1 User Manual...
-
Page 29: Declaration Of Conformity
Radio and Telecommunications Terminal Equipment Directive 1999/5/EC, FCC CFR Title 47 part 15c BS EN 61000-4-2 and BS EN 61000-4-3 following the provisions of the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. December 2007 FCC ID:VHARAD24 Brett James Development Manager Mantracourt Electronics Limited. Mantracourt Electronics Limited T24-PR1 User Manual... -
Page 30: Worldwide Regional Approvals
Any corrective maintenance required after the warranty period should be performed by 'Mantracourt' approved personnel only. ISO 9001 REGISTERED FIRM In the interests of continued product development, Mantracourt Electronics Limited reserves the right to alter product specifications without prior notice. DESIGNED & MANUFACTURED IN THE UK Code No. 517-914 Issue 1.2 14.01.13...
