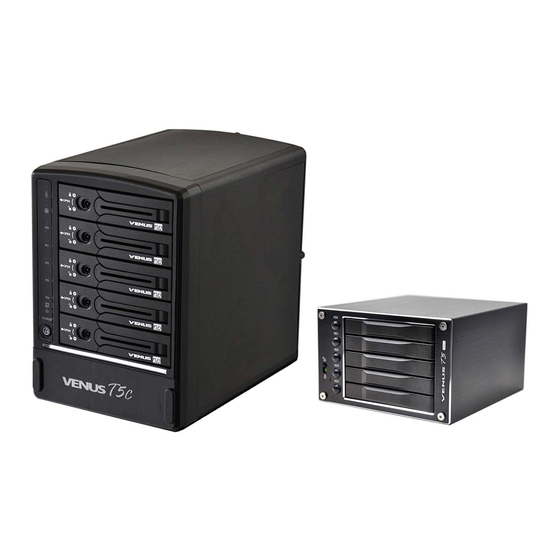

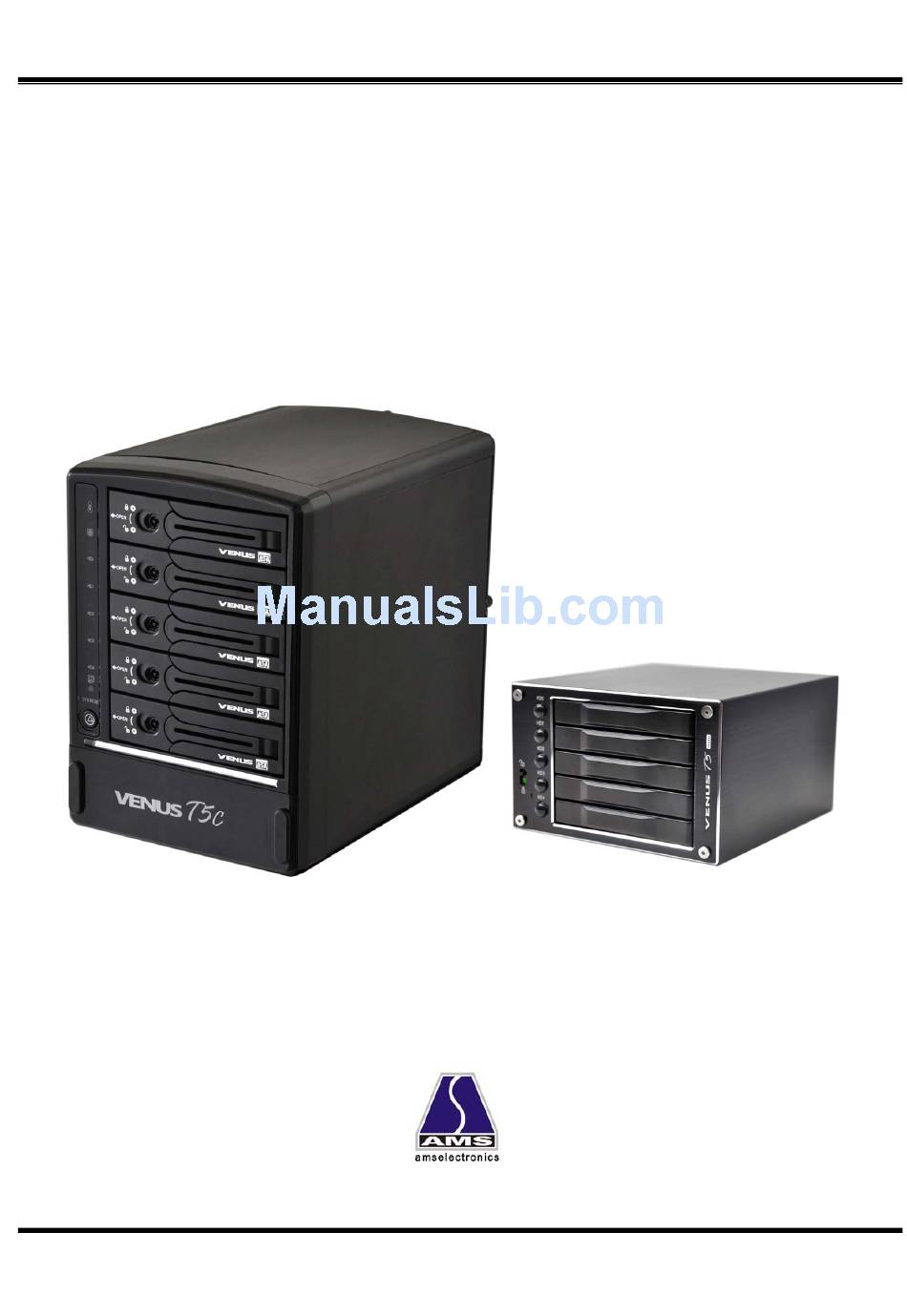

Page 1: User Manual
Venus T5c Series Venus T5c series SATA RAID User Manual DS-2350C DS-2250C Model: Model: (For 3.5” SATA) (For 2.5” SATA) www.american-media.com Page 1... - Page 2 Venus T5c Series 1. Features of Venus T5c Aluminum Frame, Aluminum cover Interface support SATA-І, SATA-ІІ Transfer rate: 3Gb/s(eSATA)、5Gb/s(USB3.0) Plug & play ,hot swappable AC Power control Easy RAID setting by DIP switch & apply (change mode) switch LED indicators(for System Ready, HDD Error, HDD Access, Temperature, fan) 8x8cm Fan X 2—...
- Page 3 Venus T5c Series ---Front Panel--- (see Figure 4 D1:Temperature LED D2:Fan LED D3---D7: HDD Access and failure LED (Green LED is lighting when HDD link and blinking when HDD access; the LED will turn red when HDD failed. The green LED and red LED will alternate during rebuilding) D8:SYS LED: Lighting while system is ready D9:SYS Reset or Backup (option)
-
Page 4: Dip Switch And Raid Mode Cross Reference
Venus T5c Series 2. DIP Switch and RAID Mode cross reference User can configure any RAID mode as below by DIP switch and apply change by Change Mode button. Dip Switch RAID Mode RAID 0 RAID 10 JBOD (Large) RAID 3 Clone RAID 5 Reserved... - Page 5 Venus T5c Series 2.2 RAID 1 (Mirror) for High Security Mirror or RAID 1 is the replication of data onto separate hard disks in real time to ensure continuous availability. Take a RAID 1 system with two hard disks as an example, data in a hard disk will be exactly the same as the data in another hard disk.
- Page 6 Venus T5c Series The action of Clone is similar to RAID 1. However, all of the hard disks will be the mirrors. For example, in a four hard drives Clone environment, data in each hard drive will be same. This mode is useful especially when users would like to copy data from a hard drive to several hard drives at the same time.
- Page 7 Venus T5c Series T5 will also make use of same size disk space in each hard disk under RAID 3/5 condition. ( Failure in a hard disk will cause T5 enter degrade mode. Host controller still could read/write data thru T5 normally without knowing any defects.
