Page 1: User Manual

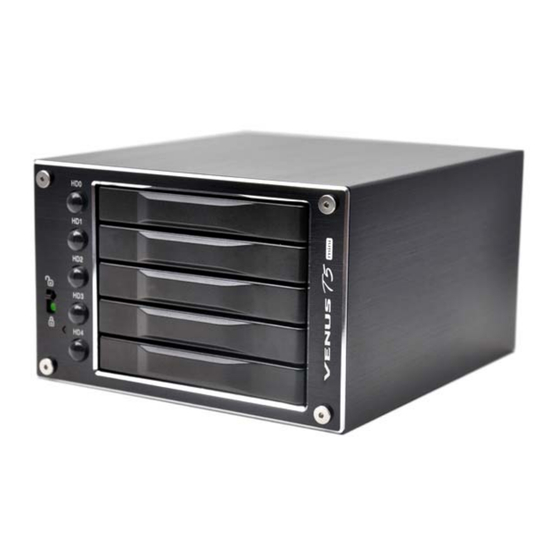

Model: DS-2250J Venus T5 mini 2.5” SATA RAID User Manual www.amselectronics.com... -
Page 2: Table Of Contents
Model: DS-2250J Contents 1. Features …........................3 2. DIP Switch and RAID Mode cross reference..............5 2.1 RAID 0 for High Performance..................7 2.2 RAID 1 (Mirror) for High Security..................7 2.3 Stripe + Mirror (RAID 10) for High Performance and High Security......7 2.4 Clone..........................8 2.5 JBOD (Concatenating).....................8 2.6 Parity Protection.......................9 2.7 Normal Mode (Single).......................9... -
Page 3: Features
Model: DS-2250J 1. Features All Aluminum design Plug & play, hot swappable Support Windows, Mac & Linux Built-in DIP Switch RAID mode setting LED indicators (for AC Power, HDD Error, HDD Access) Double Security handle lock Port Multiplier -- support up to 5 x 2.5” SATA HDD Built-in JMB393 Hardware RAID controller Transfer rate: SATA 1.5Gb/s、SATA 3Gb/s 5 X 5 cm FAN X1—... -
Page 4: Front Panel Description
Model: DS-2250J --- Front Panel--- (See Figure 3 Front Panel Description: A1 ~ A5 :Front panel “Push-Open” Button a) Function: Push forward to open the front HDD front panel. b) LED Indication: See LED Status description on page 5 & 6. A 6: Power/System LED Power on Solid blue... -
Page 5: Led Status
Model: DS-2250J --Rear View--- (see Figure 4 Rear Parts Description: B1: Power Input (+5V 4A ) B2: E-SATA port B3: Raid Setting DIP Switch (*7 Raid Mode: Raid 0, 10, 3, 5, JBOD, Single, Clone) B4: Reset Device / Change Mode Button Reset Device : Press it less than 2 seconds Change Mode... -
Page 6: Dip Switch And Raid Mode Cross Reference
Model: DS-2250J Raid Status LED Indicator [see figure 3, A1~A5] Access Blue/Flash RAID10 rebuilding Blue & Red/Flash Access Blue/Flash RAID3 rebuilding Blue & Red /Flash Access Blue/Flash RAID5 rebuilding Blue & Red /Flash JBOD (Large) Access Blue/Flash Access Blue/Flash Clone Clone Blue &... -
Page 7: Raid 1 (Mirror) For High Security
Model: DS-2250J segments can be assigned to multiple hard disks in a round-robin fashion and thus written concurrently. (If any one hard disk gets defective, information stored in this RAID 0 mode will be invalid.) 2.2 RAID 1 (Mirror) for High Security RAID 1 (or Mirror) is the replication of data onto separate hard disks in real time to ensure continuous availability. -
Page 8: Clone
Model: DS-2250J 2.4 Clone This mode is useful especially when users would like to copy data from a hard drive to several hard drives at the same time. Clone ’ s action is similar to RAID 1. However, all of the hard disks will be the mirrors. -
Page 9: Normal Mode (Single)
Model: DS-2250J XOR engine in the Raid Enclosure generates parity block. In RAID 3 mode, Parity Block will be stored in the same hard drive. While in RAID 5 mode, Parity Block will be spread over all of the different hard drives. The Raid Enclosure will also make use of same size disk space in each hard disk under RAID 3(or RAID 5) condition.
