Oceanic Veo 200 Operating Manual
  1. Manuals
  2. Brands
  3. Oceanic Manuals
  4. Diving Instrument
  5. VEO 200
  6. Operating manual
Oceanic Veo 200 Operating Manual

Oceanic Veo 200 Operating Manual

Hide thumbs Also See for Veo 200:

Advertisement

Quick Links

Download this manual
OCEANIC
®
Veo 200/250
dive computers
operating manual

Advertisement

loading

Related Manuals for Oceanic Veo 200

Summary of Contents for Oceanic Veo 200

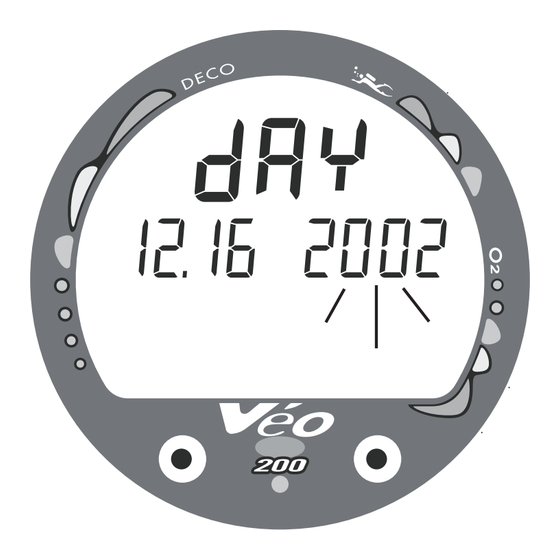

  • Page 1 OCEANIC ® Veo 200/250 dive computers operating manual...
  • Page 2 Display (U.S. Patent no. 5,845,235) is owned by Suunto Oy (Finland). DECOMPRESSION MODEL The programs within the Veo 200/250 simulate the absorption of nitrogen into the body by using a mathematical model. This model is merely a way to apply a limited set of data to a large range of experiences.
  • Page 5 Pay special attention to items marked with this Warning symbol...
  • Page 6 LCD DISPLAY...

  • Page 7: Features And Displays

    FEATURES and DISPLAYS...
  • Page 9 Backlight, and acknowledge the Audible Alarm. The Left button of the Veo 200 and Front button of the Veo 250 are referred to as the Advance button. The Right button of the Veo 200 and Side button of the Veo 250 are referred to as the Select button.
  • Page 10 The Tissue Loading Bar Graph (Fig. 1a) represents tissue loading of nitrogen, showing your relative no decompression or decom- pression status. As your depth and elapsed dive time increase, segments will add to the Graph, and as you ascend to shallower depths, the Bar Graph will begin to recede, indicating that additional no decompression time is allowed for multilevel diving.
  • Page 11 The O2 Bar Graph (Fig. 2a) represents oxygen loading, showing the maximum of either per dive accumulated oxygen, or 24 hour period accumulated oxygen. As your oxygen exposure (accumulation) increases during the dive, segments will add to the Bar Graph, and as loading de- creases, it will begin to recede, indicating that additional expo- sure is allowed for that dive and 24 hour period.
  • Page 12 Each numeric and graphic display represents a unique piece of information. It is imperative that you understand the formats, ranges, and values of the information represented to avoid any possible misun- derstanding that could result in error. During a dive, the Current Depth display (Fig. 3a), indicates depths from 0 to 330 feet (99.9 meters) in 1 foot (.1 meter) increments.
  • Page 13 Time displays are shown in hour:minute format (i.e., 1:16 represents 1 hour and 16 minutes, not 116 minutes!). The colon that separates hours and minutes blinks once per second when the display is indicating real time (e.g., Elapsed Dive Time), and is solid (non-blinking) when times are calculated projections (e.g., Time to Fly).
  • Page 14 Ambient Temperature is displayed in the center/left portion of the screen (Fig. 7a) while in the Surface Mode and Log Mode, and can be viewed as part of an Alternate Display when the Left/ Front (Advance) button is pressed while in a dive mode. A red LED Warning Light is synchronized with the Audible Alarm and will flash when the Alarm emits a tone.
  • Page 15 • Entry into Decompression Mode • PO2 => than the Max PO2 Alarm (a user setting), or => 1.60 ATA. • Descent deeper than the Max Depth Alarm (a user setting). • Nitrogen Bar Graph Alarm (a user setting). • Dive Time Remaining Alarm (a use setting). •...
  • Page 16 • Press the button again to activate as desired. The Veo 200/250 utilizes one (1) type CR 2450 Lithium 3 volt cell that should provide 300 hours of continuous, or 50 activation periods, of operation. If you conduct 1 dive each time the unit is activated, you should obtain approximately 50 dives.
  • Page 17 Voltage level is checked upon activation and every 10 minutes during operation. • When 75 % of the Rated Power has been consumed, the lower bar of the Battery Indicator (only segment) will be displayed, and the outline of the Indicator will flash once per second as a warning that the Battery is to be replaced prior to conducting any further dives.
  • Page 18 (FO2) other than Air (a numerical value between 21 and 50 %). When set with an FO2 value of 'Air' (Fig. 10), the Veo 200/ 250 will perform calculations the same as if FO2 were set for 21% oxygen, internally accounting for oxygen loading for any subsequent Nitrox dives.
  • Page 19 If the Default is set to ON (Fig. 12) and FO2 is set to a value 'greater than 21%', the FO2 set point value will auto- matically revert to 50% 10 minutes after that dive. The Maxi- mum Depth that can be achieved with a PO2 of 1.60 ATA will also be displayed.
  • Page 20 KEY TO SETTING INSTRUCTIONS PAGE: SET MODE 1 SET FO2 SET MAX DEPTH ALARM SET ELAPSED DIVE TIME ALARM PC DOWNLOAD SET MODE 2 SET UNITS OF MEASURE SET HOUR FORMAT SET TIME OF DAY SET DATE SET AUDIBLE ALARM SET TLBG ALARM SET DIVE TIME REMAINING ALARM SET PO2 ALARM...

  • Page 21: Activation And Setup

    ACTIVATION and SETUP...
  • Page 22 To Activate the Veo 200/250, press and release the Left/Front (Advance) Button. • Upon manual activation, the unit will enter Diagnostic Mode (Fig. 14), displaying all segments of the LCD as 8's, fol- lowed by dashes (- -), then a countdown from 9 to 0. Diag-...
  • Page 23 Water Activation is set ON) As a backup, the Veo 200/250 will also automatically activate by water contact. This is accomplished by bridging the gap between contacts located on the Button stems and back of the case. The graphic H2O that will be displayed as an indication is described later.
  • Page 24 To help simplify the operations you might perform at the dive site, settings are divided into 2 categories. Set Mode #1 includes several settings that you would change more often and Set Mode #2 includes those items not likely to change once you set them. Set Mode 2 can be accessed by first entering settings in Set Mode 1, or by bypassing Set Mode 1.
  • Page 25 ENTERING SETTINGS -SET MODE #1 TO SET - FO2 (while in the Surface Mode) Factory set for Air, FO2 can also be set to values between 21 and 50% in increments of 1%. • Press Both buttons simultaneously, release when SET: 1 appears.
  • Page 26 TO SET - MAX DEPTH ALARM (while in the Surface Mode) Factory set for 330 feet, the Alarm can be set to values between 30 feet (3 meters) and 330 feet ( 99 meters) in increments of 10 foot (3 meters). •...
  • Page 27 TO SET - ELAPSED DIVE TIME ALARM (while in the Surface Mode) Factory set for 0:00 hr:min, the Alarm can be set to values between 0:10 and 3:00 hr:min in increments of 0:05 hr:min. • Press Both buttons simultaneously, release when SET: 1 appears.
  • Page 28 PC INTERFACE PC Interface is not a setting, it is included in the Set 1 menu for easy access when data in the Veo200/250's memory is to be downloaded (copied) to the PC download software program for storage and viewing. To download data (while in the Surface Mode)- •...
  • Page 29 ENTERING SETTINGS -SET MODE #2 To return to Sur- face Mode at any These settings are ones that are not likely to change. To save time while in Set time at the dive site, verify the set points and adjust them as Mode, press and desired prior to departing on the day's dive trip.
  • Page 30 TO SET - HOUR FORMAT (while in the Surface Mode) Factory set for 12 Hr (12: Am to 11: Pm), the Format can also be set for 24 Hr (0: to 23: hours). • Press Both buttons simultaneously, release when SET: 2 appears.
  • Page 31 TO SET - TIME (while in the Surface Mode) Set for factory local time, the Time can be set to values between 0:00 and 12:59 (Am/Pm) or 0:00 and 23:59. • Press Both buttons simultaneously, release when SET: 2 appears. •...
  • Page 32 TO SET - DATE (after setting Time) Factory set for the factory local Date, the Date can be set to values between 01/01/01 and 12/31/20. • After having set and accepted the Time, the Date appears with the graphic dAY, and Year value flashing (Fig. 28). •...
  • Page 33 TO SET - AUDIBLE ALARM (while in the Surface Mode) Factory set for ON, the Alarm can be also be set to OFF. This setting also applies to the LED Warning Indicator that is synchro- nized with the Audible Alarm. When set OFF, the Alarm will not sound during the conditions described on page 14.
  • Page 34 TO SET - MAXIMUM TISSUE LOADING BAR GRAPH (TLBG) ALARM (while in the Surface Mode) Factory set for DECO (all 8 segments), the Maximum Tissue Loading Bar Graph (TLBG) Alarm can be set to values between DECO (all 8 segments) and 1 segment. •...
  • Page 35 TO SET - DIVE TIME REMAINING ALARM (while in the Surface Mode) Factory set for 0:00 (minutes), the Dive Time Remaining Alarm can be set to values between 0:00 and 0:20 (minutes) in incre- ments of 1 minute. • Press Both buttons simultaneously, release when SET: 2 appears.
  • Page 36 TO SET - MAXIMUM PO2 ALARM (while in the Surface Mode) Factory set for 1.60 (ATA), the Maximum PO2 Alarm can be set to values between 1.20 and 1.60 (ATA) in increments of .10 (ATA). • Press Both buttons simultaneously, release when SET: 2 appears.
  • Page 37 TO SET - FO2 50% DEFAULT (while in the Surface Mode) Factory set ON, the FO2 50% Default feature can be set to OFF. The effects of this feature being ON or OFF are described on page 17. • Press Both buttons simultaneously, release when SET: 2 appears.
  • Page 38 TO SET - BACKLIGHT DURATION (while in the Surface Mode) Factory set for 7 (seconds), the Backlight Duration can be set to values of 0, 3, or 7 (seconds). • Press Both buttons simultaneously, release when SET: 2 appears. • Press and release the Left/Front (Advance) button, the Units screen appears with the set point flashing.
  • Page 39 TO SET - PC SAMPLING RATE (while in the Surface Mode) Factory set for 30 (seconds), the Sampling Rate can be set to values of 2, 15, 30, or 60 seconds, or 2, 5, or 10 feet (.5, 1.5, or 3 meters). •...
  • Page 40 TO SET - USER SET DIGITAL GAUGE MODE (while in the Surface Mode) Factory set OFF, Digital Gauge Mode can also be set ON. The effects of this feature being ON or OFF are described on page • Press Both buttons simultaneously, release when SET: 2 appears.
  • Page 41 Factory set for ON, the Water Activation feature can also be set for OFF (disabled) to prevent inadvertent activation during travel or storage. When set ON, the Veo 200/250 will automatically Activate and enter Dive Mode upon immersion in water.

  • Page 43: Plan And Dive Modes

    PLAN and DIVE MODES...
  • Page 44 The PDPS provides a sequence of theoretical dive times available for depths ranging from 30 feet (9 meters) to 190 feet (57 meters) in 10 foot (3 meter) increments. No decompression times (limits), or NDLs, are only displayed for depths where there is at least 3 minutes of theoretical dive time available at the depth, taking into account a descent rate of 60 feet (18 meters) per minute.
  • Page 45 To access the Pre Dive Planning Sequence (while in the Surface mode) - • Press the Left/Front (Advance) button 1 time • Press and release the Right/Side (Select) button to advance through the Depths/Times, one screen at a time. • Press the Left/Front (Advance) button to access Fly Mode. •...
  • Page 46 (Fig. 42a) As your Depth and Elapsed Dive Time increase, the Tissue Loading Bar Graph (TLBG) will add segments (green toward red) to represent the absorption of nitrogen. While ascending to shallower depths, the number of segments displayed will begin to recede, offering a graphic representation of your multilevel diving capability.
  • Page 47 (Fig. 43a) If FO2 was set for a numerical value (nitrox), the Oxygen Accu- mulation Bar Graph (O2BG) will add segments (green toward red) to represent oxygen accumulation for that dive, or 24 hour period, whichever amount is greater. (Fig. 44a) The Variable Ascent Rate Indicator (VARI) shows how fast you are ascending.
  • Page 48 Backlight Duration time that has been set (0, 3, or 7 seconds). • The Backlight will not activate during a Low Battery condition. The Veo 200/250 will enter the No Decompression Dive Mode when you descend deeper than 4 feet (1.2 meters).
  • Page 49 (Fig. 45) Information includes Current Depth, Dive Time Remaining (and Mode icon), and the applicable bar graphs. • Press and release the Left/Front (Advance) button to view Display #2. (Fig. 46) Information includes Current Depth, Maximum Depth for that dive (and icon), Elapsed Dive Time (and icon), Dive Time Remaining (and Mode icon), and the applicable bar graphs.
  • Page 50 (Fig. 48) Information includes - Current Depth, current value of PO2 (if a nitrox dive) and PO2 graphic, Dive Time Remaining (and Mode icon), and applicable bar graphs. • press the Left/Front (Advance) button to view Display #1. (Fig. 49) Upon ascending to 20 feet (6 meters) on any No Decompression dive in which Depth exceeded 30 feet (9 meters), a short beep will sound and a Safety Stop screen will appear displaying a...
  • Page 51 The Veo 200/250 is designed to help you by providing a representation of how close you are to entering decompression. Decompression Dive Mode (Fig. 50) activates when theoretical No Decompression time/depth limits are exceeded. Upon entering Decompression Mode, the Audible Alarm will sound and the red LED Warning Indicator will flash for several seconds (unless set OFF), or until acknowledged.
  • Page 52 Then, you can slowly ascend to, but not shallower than that indicated ceiling Stop Depth. • While in Decompression Mode, the Veo 200/250 will automatically revert to the Main Display after 3 seconds unless the Left/Front (Advance) button is pressed to view another alternate display of information.
  • Page 53 (Fig. 52) Information includes - Current Depth, Maximum Depth for that dive (and icon), Elapsed Dive Time (and icon), Total Ascent Time (and Mode icon), both Arrows and the Deco Bar, and the appli- cable bar graphs. • Press and release the Left/Front (Advance) button again to view Alternate Display #2.
  • Page 54 Left/Front (Advance) button, and the Backlight can be activated using the Right/Side (Select) button. • The Veo 200/250 will automatically revert to the Main Display after 3 seconds unless the Left/Front (Advance) button is pressed to view another display of information.
  • Page 55 Time is worked-off, and off-gassing credit begins, required decompression Stop Depths and Time will decrease toward zero, then the Tissue Loading Bar Graph will recede into the yellow Caution Zone and the Veo 200/250 will revert to the No Decom- pression Dive Mode.
  • Page 56 Required Stop Depth. This is a continuation of a Conditional Violation. (Fig. 57) The Veo 200/250 cannot calculate decompression times for Stop Depths much greater than 60 feet (18 meters) and offers no indication of how much time spent underwater would result in the need for a greater Stop Depth.
  • Page 57 This situation would be preceded by entering Delayed Violation Mode #2. The Veo 200/250 would then operate with limited functions in Gauge Mode during the remainder of that dive and for 24 hours after surfacing. Gauge Mode turns the Veo 200/250 into a digital instrument without any decompression or oxygen monitoring functions.
  • Page 58 The countdown timer that appears when you try to access Time to Fly does not represent 'Time to Fly'. It is only provided to inform you of the time remaining before normal Veo 200/250 operation can resume with full features and functions.
  • Page 59 When partial pressure of oxygen (PO2) becomes equal to, or greater than, 1.40 ATA, or 0.2 ATA less than the PO2 Alarm set point (a user setting); the red LED warning will flash, the Audible Alarm will sound (unless set OFF), and the current PO2 value, PO2 symbol, O2 segment of the O2 Bar Graph, and UP Arrow will appear on the Main Display as a warning until PO2 decreases.
  • Page 60 The O2 Bar Graph displays either oxygen accumulated during that nitrox dive, or during the repetitive nitrox dives you conduct during that 24 hour period, whichever of the two is greater at that time. The yellow Caution Zone of the O2 Bar Graph offers you a convenient way to consistently monitor how close you are coming to the limits of oxygen exposure.
  • Page 61 When Digital Gauge Mode is set for ON, the Veo 200/250 will operate as a Digital Depth Gauge/Timer without performing nitrogen and oxygen calculations (Fig. 64A). While in this mode, the range of the Current and Maximum Depth displays are extended to 399 feet (120 meters) to accom- modate activities involving diving with advanced breathing gas mixtures or free diving beyond the normal depth limit of the unit.
  • Page 62 This dive computer is configured with a RESET feature that allows data to be cleared, including Nitrogen and Oxygen calculations, FO2 set point, and Log Mode entries. RESET PROCEDURE: • While in SURFACE MODE (new activation period or after a 10 minute post dive surface interval), press the Left/Front (Advance) button 1 time to access PLAN MODE.

  • Page 63: Post Dive Modes

    POST DIVE MODES...
  • Page 64 When you ascend to 3 feet (1 meter) or shallower, the Veo 200/ 250 will enter Surface Mode and begin counting your surface interval. The first 10 minutes is, in affect, a Transition Period during which time the following information is displayed (Fig. 66): •...
  • Page 65 (Fig. 67) - Refer to page 66 for a description of the Log Mode displays. • Press the Left/Front (Advance) button 1 time. • Press the Right/Side (Select) button 1 time to view the Nitrogen data screen. • Press the Right/Side (Select) button again to view the Oxygen data screen (if a nitrox dive).
  • Page 66 For the remainder of the first 2 hours after surfacing, information will continue to be displayed as Surface Mode (Fig. 68) and you will have full access to other modes (e.g., PDPS, Fly, Desat, Log, Set, etc.). • Press the Right/Side (Select) button. (Also refer to page 44) •...
  • Page 67 (while in Surface Mode) • Press the Left/Front (Advance) button 2 times. • The Time to Fly counter (Fig. 70) begins counting down 10 minutes after surfacing from a dive (after the Transition Period) displaying the word 'FLY' and a countdown that begins at 23:50 (hr:min) and counts down to 0:00 (hr:min).
  • Page 68 Information from your latest 24 dives is stored in the Log for viewing. The first dive of a new Activation Period will be #1, then #2, etc. After 24 dives are accumulated, each subsequent dive will overwrite the oldest dive in the Log (i.e., the most recent dive deletes the oldest).
  • Page 69 To access the Log Mode and view the First Screen (While in Surface Mode) - • Press the Left/Front (Advance) button 4 times. • The First Screen of the most recent dive will appear display- ing (Fig. 72) - • The Log Mode icon •...
  • Page 70 To view the Third Screen of the Log (Oxygen data) • Press the Right/Side (Select) button 1 time (while viewing the Nitrogen data). Displayed will be (Fig. 74)- • Log Mode icon • FO2 graphic and value set for that dive •...
  • Page 71 If the graphic H2O appears during the Surface Mode (Fig. 75), Fly Mode (Fig. 76), or Desaturation Mode (Fig. 77), it is an indication that the water activation contacts are bridged (still wet) and the unit must be rinsed in fresh water and thoroughly dried. The contacts are located in the button stems and the download data port.
  • Page 72 Using special linking hardware, dive data can be downloaded (copied) from your Veo 200/250 to an IBM compatible PC program running on a Windows ® operating system. Compatibil- ity requirements and instructions are provided with the optional download package that is available from your Authorized Oceanic Dealer.

  • Page 73: Simulator (Demo) Mode

    SIMULATOR (DEMO) MODE...
  • Page 74 2 seconds shall revert operation to real Surface Mode. • The set points entered into the Veo 200/250 do not affect the operation of the Simulator which has its own settings that allow Digital Gauge Mode to be set ON or OFF, calculations to be cleared, and FO2 to be set.
  • Page 75 • Press and release the Right/Side (Select) button to toggle between ON and OFF. • Press and release the Left/Front (Advance) button to accept the setting and advance to DEMO: NI-O2 with CUR or (NEW) flashing (Fig. 81). • When set for NEW, calculations are based on zero residual nitrogen and oxygen loading (a clean dive).
  • Page 76 • Press/hold the Right/Side (Select) button for 2 seconds to access Dive Mode. The DOWN Arrow will appear flashing (Fig. 84). Hint: Quick taps (<2 seconds) of the Right/Side (Select) button starts/stops descents and quick taps of the Left/Front (Advance) button accesses the Alternate Displays. •...
  • Page 77 Rate of Ascent can be set for 1 or 3 feet per second (fps) prior to start of Ascent or while stopped. • Press/hold the Left/Front (Advance) button for 2 seconds to access an Ascent Rate of 1 fps. The UP Arrow and green and yellow segments of the VARI will appear flashing (Fig.
  • Page 78 • The Simulator will enter Demo Surface Mode (Fig. 88) upon ascending to 3 feet (1 meter) or shallower. • Press and hold the Right/Side (Select) button for 4 seconds to access Time Acceleration. The small Time clock icon will begin flashing.
  • Page 79 GENERAL...
  • Page 80 Instrument Lens Protector. Small scratches will naturally disappear underwater. • Soak and rinse the Veo 200/250 in fresh water at the end of each day of diving, and check to ensure that the areas around the low pressure (depth) sensor (Fig. 89a), download Interface Data Port (Fig.
  • Page 81 Take your Veo 200/250 to an Authorized Oceanic Dealer or send it to the nearest Oceanic Regional Distributor Facility. To return your Veo 200/250 to Oceanic: • Record all dive data in the Log and/or download the data in memory. All data will be erased when it receives factory service.
  • Page 82 If the Module is in a Console, bend the rubber Console Boot back to expose the edge of the Module. If the Boot is flexible enough to permit, you may bend it back far enough to scoop the Module out with your finger. Otherwise, it may be necessary to insert a blunt screwdriver until the tip rests just underneath the Module.
  • Page 83 The Battery Compartment should only be opened in a dry and clean environment with extreme care taken to prevent the en- trance of moisture or dust. To prevent formation of moisture in the Battery Compartment, it is recommended that the Battery be changed in an environment equivalent to the local outdoor temperature and humidity (e.g., do not change the Battery in an air conditioned environment, then take it outside during a hot sunny day).
  • Page 84 • Remove the Retaining Bar located across the lower portion of the Battery (Fig. 91a). • Remove the Hatch O-ring. DO NOT use tools • Using care not to damage the Battery Contacts (Fig. 91b/c), slide the Battery up and out of the Battery Compartment. •...
  • Page 85 Battery and carefully push it down into position (Fig. 93). • Replace the Hatch O-ring with a new one which must be a genuine Oceanic part that can be purchased from an Authorized Oceanic Dealer. Use of any other O-ring will void the warranty.
  • Page 86 • Using your fingers, turn the Ring counter clockwise 5 degrees until the tabs engage (Fig. 95), then tighten it 5 more de- grees by turning it counter clockwise with the aide of a small blade screwdriver (Fig. 96). • While tightening the Retaining Ring, exert continuous inward pressure on it until it is secured in the proper position.
  • Page 87 • If the Boot was fitted with a Spacer and it was previously removed, replace the Spacer into the Boot. • Orient the Module over the opening in the Boot, and dip the bottom edge into it while pressing the top edge with the palm of your hand.
  • Page 88 The Veo 200/250 senses ambient pressure when it is activated, every 15 minutes while it is activated, or every 30 minutes when it is not activated. At an Altitude of 2,000 feet (610 meters), it will automatically recalibrate itself to measure depth in feet of fresh water rather than feet of sea water.
  • Page 95 SERVICE RECORD...
  • Page 96 OCEANIC ® USA 2002 Davis Street San Leandro, CA 94577 Tel: 510-562-0500 Fax: 510-569-5404 http://www.OceanicWorldWide.com © 2002 Design 200 Doc. No. 12-2377-r02 (1/1/03)

This manual is also suitable for:

Veo 250
