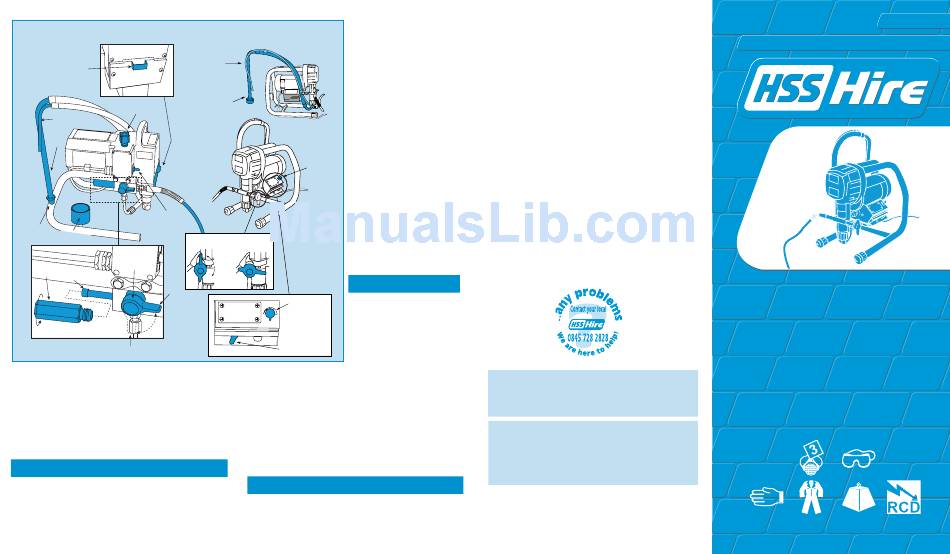

HSS Hire 591 Operating & Safety Manual

Portable Airless Spray
Titan
Oil Cup
Pressure
Control
Return
Tube
Suction
Tube
ON / OFF
Switch
Suction
Tube
Suction Tube
Filter Storage Cup
Prime
Valve
Filter
Pump
Cover
Filter
Spray
Prime
Place the suction tube in the paint, switch ON and turn
up the pressure slightly.
When bubbles no longer appear, turn the prime valve
to SPRAY. Then trigger the gun to expel any solvent in
the hose. Once paint flows freely, turn the pump OFF.
Refit the spray tip with the arrow pointing in the spray
direction and switch ON. Test the spray pattern on a piece
of cardboard, turning up the pressure just enough to totally
atomise the paint.
BASIC TECHNIQUES
Paint the area in horizontal or vertical strokes, each
overlapping its predecessor by about 25%.
For the best results, always move the gun at a steady,
even pace parallel to the surface. Keep the gun at a
distance of about 300mm.
For most jobs, point the gun
at right angles to the surface.
Airlessco
In windy conditions, angle the
gun to spray into the wind and
Return
cover the area with vertical
Tube
strokes.
To ensure even coverage at the
start and end of each stroke,
Suction start the gun moving just
Tube
before you squeeze the
trigger and release the
trigger just before the gun
stops.
Paint corners and edges with
vertical strokes, positioning
Pressure
the gun so that the corner or
Control
edge is roughly in the centre of
the spray fan.
If the spray tip should
become blocked, reverse the
tip so that the arrow points
towards you and spray into a
suitable metal container until
Primer Valve
the paint flows freely once
Prime Spray
more. The tip can then be
returned to its normal spray
position.
EQUIPMENT CARE
Keep the equipment clean.
Pressure
PRESSURE
Even if you are taking only a
Control
short break, clean it out
thoroughly. Regularly remove
the tip and seal for cleaning.
0 I
OFF ON
Remember that in cold
ON/OFF Switch
weather paint will thicken
and greater pressure may be needed. In warm or hot
weather, paint will dry quicker. If using a twopack paint
ALWAYS consult the manufacturer before use, as weather
conditions can drastically change the way it behaves.
Damaged hoses are potentially dangerous so handle
them with care and coil them neatly, without kinks, for
storage. Never push the equipment beyond its design
limits. If it will not do what you want with reasonable ease
and speed, assume you have the wrong tool for the job.
Contact your local HSS Hire for advice. When not in use,
store the equipment somewhere clean, dry and safe from
thieves.
FINISHING OFF
Switch the unit OFF and release any pressure via the
spray gun before turning the prime valve to PRIME and
engaging the gun's trigger lock. Remove the spray tip and
soak it in the appropriate solvent.
Place the suction tube into a container of a suitable
solvent and hold the bleed line over the paint container.
Turn the pressure to minimum then switch the unit ON to
recapture the paint still in the system. Once solvent starts
to flow out of the bleed line quickly transfer it to the
solvent container. Then simply clip the bleed line to the
suction tube and allow to circulate for a few minutes.
Next, clean the spray gun and hose. Set the prime valve to
spray and 'pump' the remaining paint back into its can,
keeping the gun in contact with the container at all times.
Once the solvent appears at the nozzle, continue
pumping into the solvent container for a few minutes to
flush out any remaining paint.
That done, set the prime valve to PRIME, remove the
suction tube from solvent, let the unit pump until nearly
dry, then switch OFF.
You should now repeat the above procedure using fresh
solvent before cleaning up the spray - tip with a soft brush
and refitting it.
If water was used as the solvent, pump some airless
corrosion check solution, available from your local HSS Hire,
through the system. This will prevent corrosion of the
machine and the solidifying of paint during storage.
Collect everything together and give the unit a final
clean up ready for return, to your local HSS Hire.
... have you been trained
The law requires that personnel using this equipment must be
competent and qualified to do so. Training available at HSS
Training Solutions 0845 766 7799
...any comments?
If you have any suggestions to enable us to improve the
information within this guide please e-mail your
comments or write to the Safety Guide Manager
at the address below
e-mail: safety@hss.com
©HSS Hire Service Group Ltd 2007 No. 591/03
Group Office: 25 Willow Lane, Mitcham, Surrey CR4 4TS
Web Site: http://www.hss.com
591/03 591/03
Operating & Safety Guide 591 Operating & Safety Guide 591
Portable Airless
Portable Airless
Spray
Spray
Portable yet powerful piston airless
unit
Code 61421
