Radio TRansmiTTeR seTup & opeRaTion
Radio Transmitter setup and operation Rev 2.
Refer to the separate Takex manual for installation and setup of the sensors.
TX-103R
Product Models
TX-114R
Ness-Takex Radio PIRs

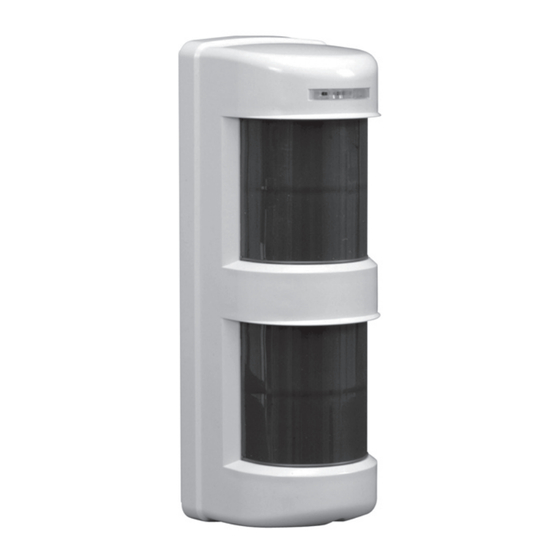

TX-103R Outdoor Radio PIR
TX-114R Outdoor Radio PIR
NESS RadIO FEaTuRES
• Transmits Ness 56 bit encrypted format.
• SuPERVISORY messages sent hourly.
• LOW BaTTERY detection and
transmission.
• ultra low current draw.
• alarm, Low Battery and Supervision
messages (Both models).
• Tamper message (TX-114R only).
TaKEX SENSOR FEaTuRES
• Outdoor Radio PIR.
• Pet Tolerant to 18kg (TX-114R).
• Pointable through 180 degrees.
• adjustable sensitivity & pulse count.
• adjustable lux level sensor for day and/or
night operation selectable.
• 9V battery operation.
Advertisement
Related Manuals for Ness TX-103R
Summary of Contents for Ness TX-103R
- Page 1 Refer to the separate Takex manual for installation and setup of the sensors. Product Models TX-103R Outdoor Radio PIR TX-114R Outdoor Radio PIR NESS RadIO FEaTuRES • Transmits Ness 56 bit encrypted format. • SuPERVISORY messages sent hourly. • LOW BaTTERY detection and transmission. • ultra low current draw.
- Page 2 IntroductIon This manual covers the setup and operation of the Ness Radio Transmitter fitted to the TX-103R and TX-114R Radio PIRs. For instructions on the installation and adjustment of the motion sensors, refer to the Takex documentation supplied with each unit.
- Page 3 The supervision message can be used by compatible control panels to verify the correct operation of the sensor. a Tamper alarm is sent by the TX-114R model. (The TX-103R does not send Tamper).
- Page 4 Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.
