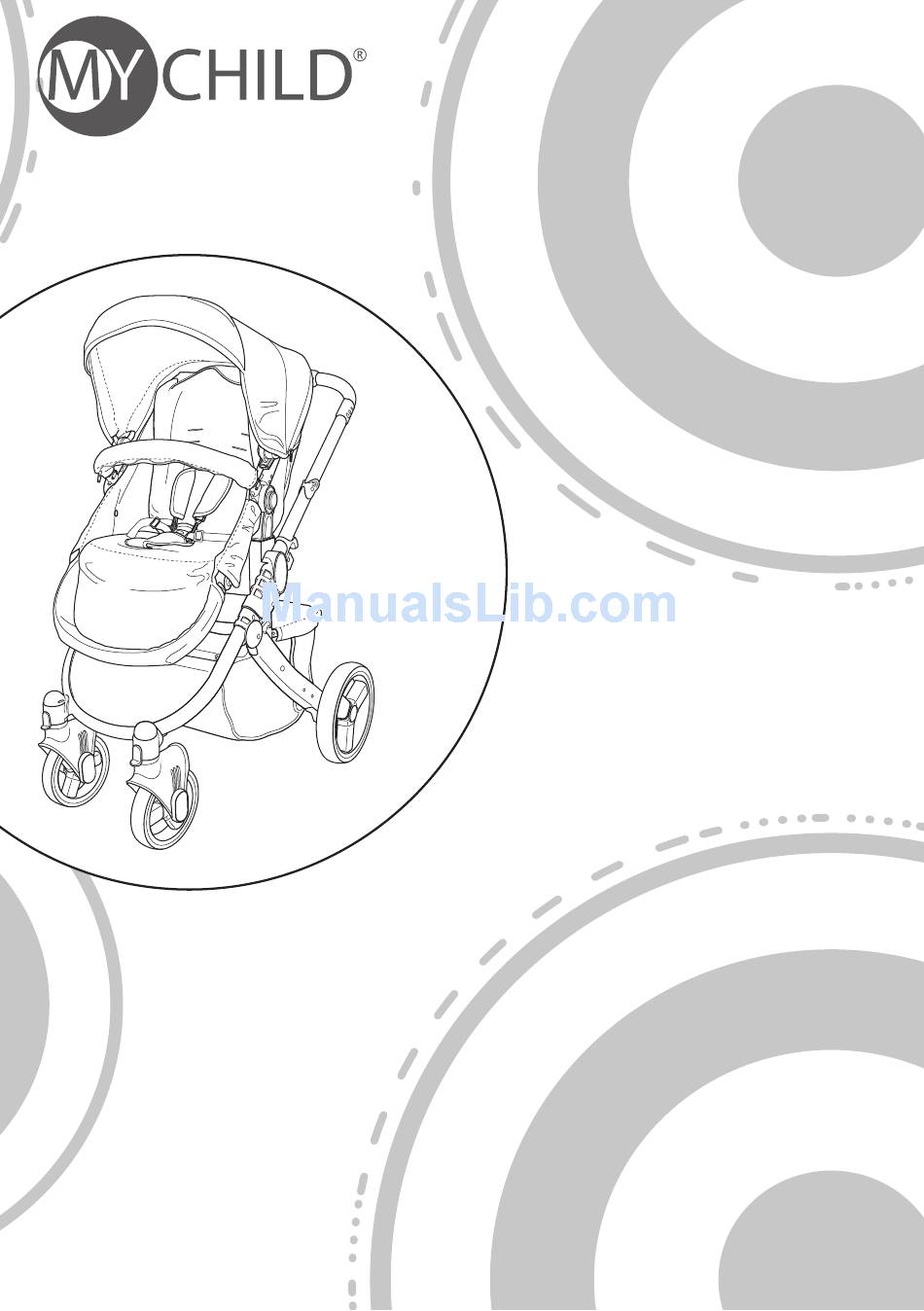

My Child Magnet Reversible Pushchair User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Magnet Reversible Pushchair
Chassis, Seat Unit and Maxi-Cosi CabrioFix Adaptors
This product is tested to: BS EN 1888:2012
Suitable for children from birth up to 15kg
INSTRUCTIONS: Please read carefully and keep for future
reference. Your child's safety may be affected if you do not
follow these instructions
V4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnet Reversible Pushchair and is the answer not in the manual?

Questions and answers

Related Manuals for My Child Magnet Reversible Pushchair

Summary of Contents for My Child Magnet Reversible Pushchair

  • Page 1 Magnet Reversible Pushchair Chassis, Seat Unit and Maxi-Cosi CabrioFix Adaptors This product is tested to: BS EN 1888:2012 Suitable for children from birth up to 15kg INSTRUCTIONS: Please read carefully and keep for future reference. Your child’s safety may be affected if you do not...

  • Page 3: Safety Instructions

    Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed. This product complies with BS EN 1888:2012 Welcome Thank you for purchasing the MyChild Magnet Reversible Pushchair. Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product.

  • Page 4: Parts Checklist

    Parts checklist Contained in your carton are: Part Chassis Seat unit Rear wheels Front wheels Bumper bar Hood Raincover Footmuff Basket (attached to chassis) Maxi-Cosi CabrioFix car 1 set seat adaptors left right page 4...

  • Page 5: Front Wheel Assembly

    Opening the pushchair click click Pull the storage latch (A) and at the Keep lifting the chassis until the locks on same time, holding the handle (B), lift the each side of the chassis click into place. chassis. Front wheel assembly click click Push the front wheels into the holes at...

  • Page 6: Rear Wheel Assembly

    Rear wheel assembly Push the rear wheel axles firmly into the holes on the rear of the chassis. Ensure both wheels click into place and check they are firmly attached by pulling click each wheel. To remove, pull tab (B) and pull the wheel off.

  • Page 7: Using The Brakes

    Using the brakes Press down on the brake lever (A) to apply the brakes. Lift the brake lever up to release the brakes. Note: Never force the brake lever down. If there seems to be too much resistance then gently roll the pushchair backwards and forwards whilst pressing down on the brake lever.
  • Page 8 Attaching the seat unit Note: The seat unit can be attached forward-facing or parent facing. To attach: Line up the connectors (A) on each side of the seat unit with mounting points (B) on the chassis and lower the seat onto the chassis, ensuring it clicks into place.
  • Page 9 Adjusting the seat unit recline Holding the backrest of the pushchair as shown, squeeze the lever (A) upwards and at the same time lower the backrest. To raise the backrest simply lift the backrest up till it clicks into position. Always check that the backrest is locked into position and that it will not move to a lower position before letting go of the...

  • Page 10: Attaching The Bumper Bar

    Attaching the bumper bar Line up connectors (A) on each side of the bumper bar and push into the mounting brackets (B) until they click into place. Pull the bumper bar to check it is inserted correctly. click click To remove: press both release buttons (C) on the underside of the mounting brackets and pull the bumper bar from the brackets.

  • Page 11: Removing The Hood

    Adjusting the hood The hood can be partially or fully opened and features a hidden viewing window under panel (A). Lift the panel from the back to reveal the viewing window. To open the hood: Pull the front edge of the hood forward.

  • Page 12: Attaching The Rain Cover

    Attaching the raincover Place the raincover over the seat unit ensuring the window panel zip (A) is at the front. Warning: The raincover is for outdoor use only. The cover must be removed or folded back if the child remains in the pushchair indoors, otherwise the child may overheat.
  • Page 13 Repositioning the safety harness The shoulder straps and waist straps can be repositioned to suit the size of your child. Use the shoulder straps in one of the three slots that are closest to your child’s shoulder height and position the waist strap in one of the two slots that best suits your child’s waist size.
  • Page 14 Repositioning the safety harness - waist straps (continued) To reposition the waist harness from the outer to the innermost position: Feed the clip (C) and slider (B) through slot (1) and out through slot (2) on the backrest. Repositioning the safety harness - crotch strap The crotch strap has two positions and should be used in the position that best suits your child’s size.

  • Page 15: Folding The Pushchair

    Fitting the footmuff (continued) Unfasten the buckle (A) and unclip the shoulder straps (B) from the waist connectors. From the back of the footmuff; pass the shoulder straps through slots (C1, C2 or C3), pass the waist straps through slots (D1 or D2) and pass the crotch strap through slots (E1 or E2). Once all straps are in place;...
  • Page 16 Attaching the Maxi-Cosi CabrioFix adaptors The Magnet Reversible Pushchair comes with a set of Maxi-Cosi CabrioFix connectors allowing you to connect the Maxi-Cosi CabrioFix car seat to the Magnet Reversible Pushchair Chassis. The two adaptors are left and right specific and have an “L” and “R” printed on them.
  • Page 17 Removing the Maxi-Cosi CabrioFix adaptors To remove the Maxi-Cosi CabrioFix adaptors: Push and hold release button (A) down and lift off the adaptors from the chassis. Please refer to your car seat manufacturer’s instructions for removing specific car seats. Fitting the Maxi-Cosi CabrioFix car seat IMPORTANT: Please refer to your car seat manufacturer’s user guide for detailed instructions on attaching and removing...
  • Page 18 Fitting the Maxi-Cosi CabrioFix car seat (continued) Whilst fitting the car seat to the chassis; the release buttons (C) on each side of the CabrioFix should automatically depress as you push the seat downwards and then spring back up once the seat has locked in place. Once you are happy that the seat is fitted, lift the car seat to ensure it is firmly attached to the stroller chassis.

  • Page 19: Care And Maintenance

    Your 3 year warranty Whilst we make and test our products to the highest standards of durability there’s always a small chance of a hiccup! Our promise is to repair, replace or refund a MyChild product that has an identified manufacturing defect from the date of purchase for a full 3 years thereafter at no extra cost.
  • Page 20 Customerservice@kooltrade.co.uk Imported by MyChild. M34 3QA www.mychild.co.uk Tel: 0161 335 2508...
