Configure A Dmz Host - Technicolor TC8717C Setup And User Manual

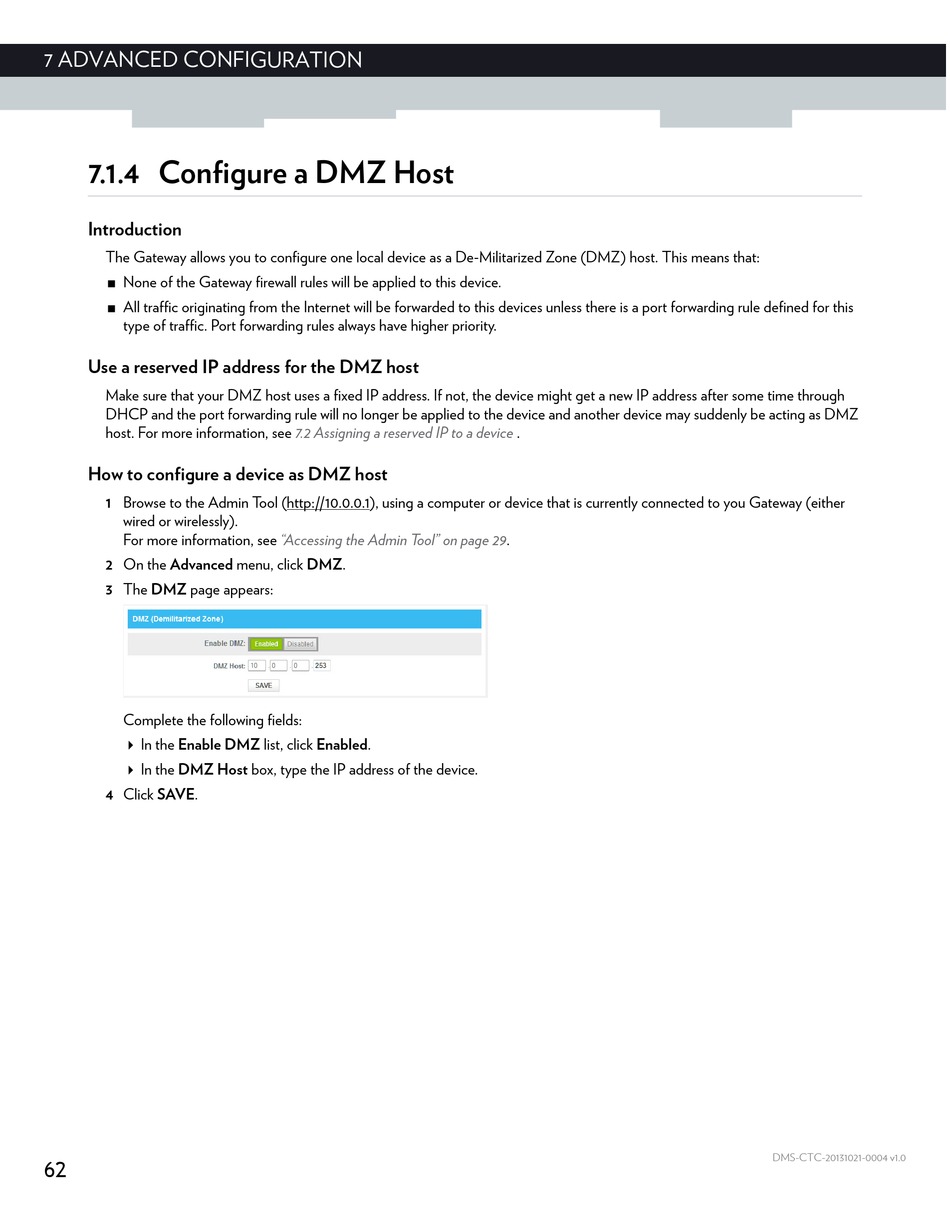

7.1.4 Configure a DMZ Host

Introduction
The Gateway allows you to configure one local device as a De-Militarized Zone (DMZ) host. This means that:
None of the Gateway firewall rules will be applied to this device.

All traffic originating from the Internet will be forwarded to this devices unless there is a port forwarding rule defined for this

type of traffic. Port forwarding rules always have higher priority.
Use a reserved IP address for the DMZ host
Make sure that your DMZ host uses a fixed IP address. If not, the device might get a new IP address after some time through
DHCP and the port forwarding rule will no longer be applied to the device and another device may suddenly be acting as DMZ
host. For more information, see
How to configure a device as DMZ host
1 Browse to the Admin Tool (http://10.0.0.1), using a computer or device that is currently connected to you Gateway (either
wired or wirelessly).
For more information, see
2 On the Advanced menu, click DMZ.
3 The DMZ page appears:
Complete the following fields:
In the Enable DMZ list, click Enabled.

In the DMZ Host box, type the IP address of the device.

4 Click SAVE.
62
7.2 Assigning a reserved IP to a device
"Accessing the Admin Tool" on page
.
29.
DMS-CTC-20131021-0004 v1.0
