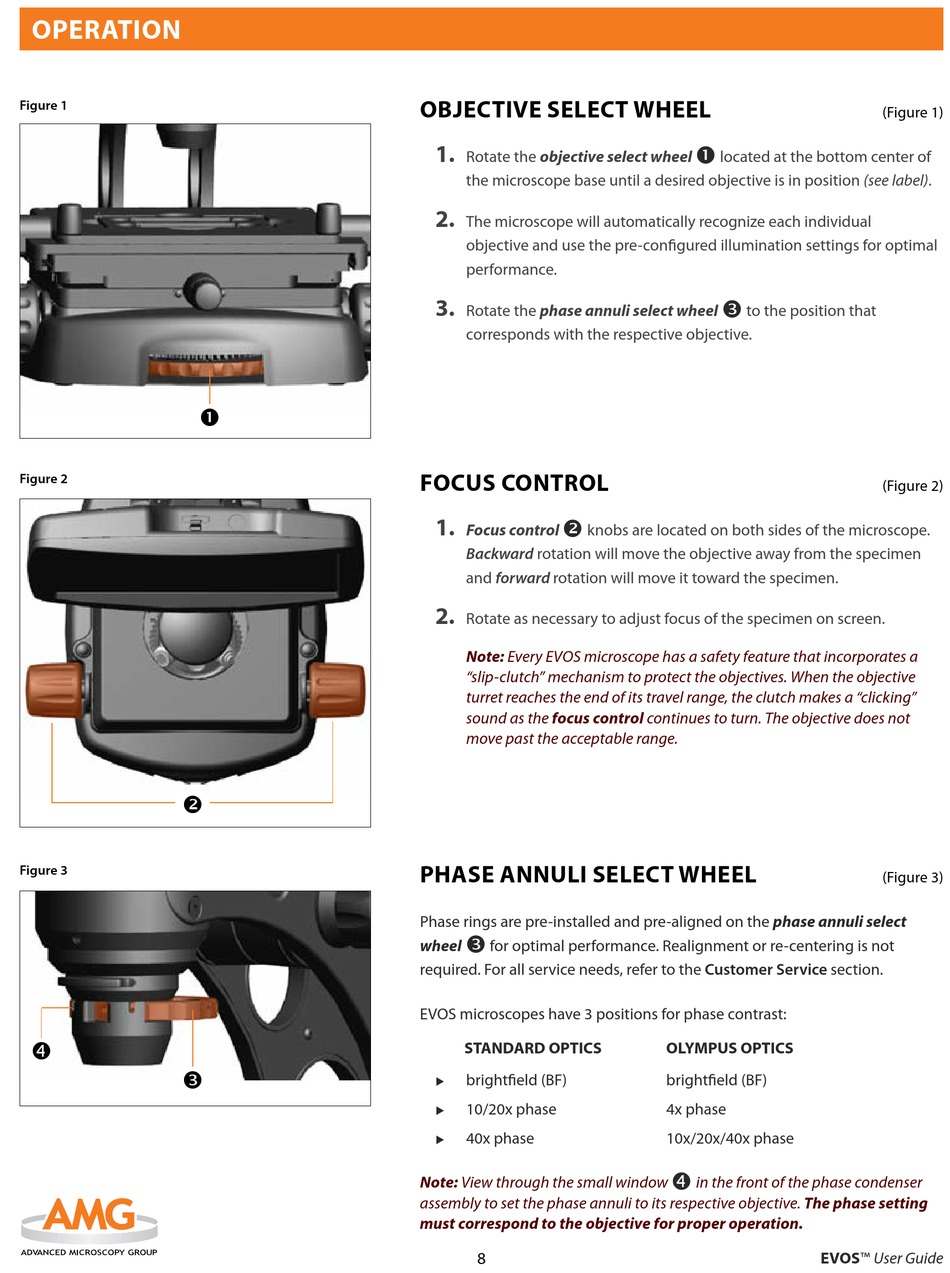

Objective Select Wheel; Focus Control; Phase Annuli Select Wheel - AMG evos User Manual

operation
Figure 1

Figure 2

Figure 3



objeCtiVe seleCt wHeel

1.
objective select wheel
Rotate the
the microscope base until a desired objective is in position (see label).
2.
The microscope will automatically recognize each individual
objective and use the pre-configured illumination settings for optimal
performance.
3.
Rotate the

phase annuli select wheel

corresponds with the respective objective.

foCUs Control

1.

Focus control
knobs are located on both sides of the microscope.
backward rotation will move the objective away from the specimen
and forward rotation will move it toward the specimen.
2.
Rotate as necessary to adjust focus of the specimen on screen.
Note: Every EVOS microscope has a safety feature that incorporates a
"slip-clutch" mechanism to protect the objectives. When the objective
turret reaches the end of its travel range, the clutch makes a "clicking"
sound as the focus control continues to turn. The objective does not
move past the acceptable range.
pHase annUli seleCt wHeel
Phase rings are pre-installed and pre-aligned on the phase annuli select

wheel
for optimal performance. Realignment or re-centering is not
required. For all service needs, refer to the Customer Service section.
EVOS microscopes have 3 positions for phase contrast:
standard optiCs
brightfield (BF)
X
10/20x phase
X
40x phase
X
Note: View through the small window
assembly to set the phase annuli to its respective objective. The phase setting
must correspond to the objective for proper operation.
8

located at the bottom center of

to the position that
olympUs optiCs
brightfield (BF)
4x phase
10x/20x/40x phase

in the front of the phase condenser
eVos™ User Guide
(Figure 1)
(Figure 2)
(Figure 3)
