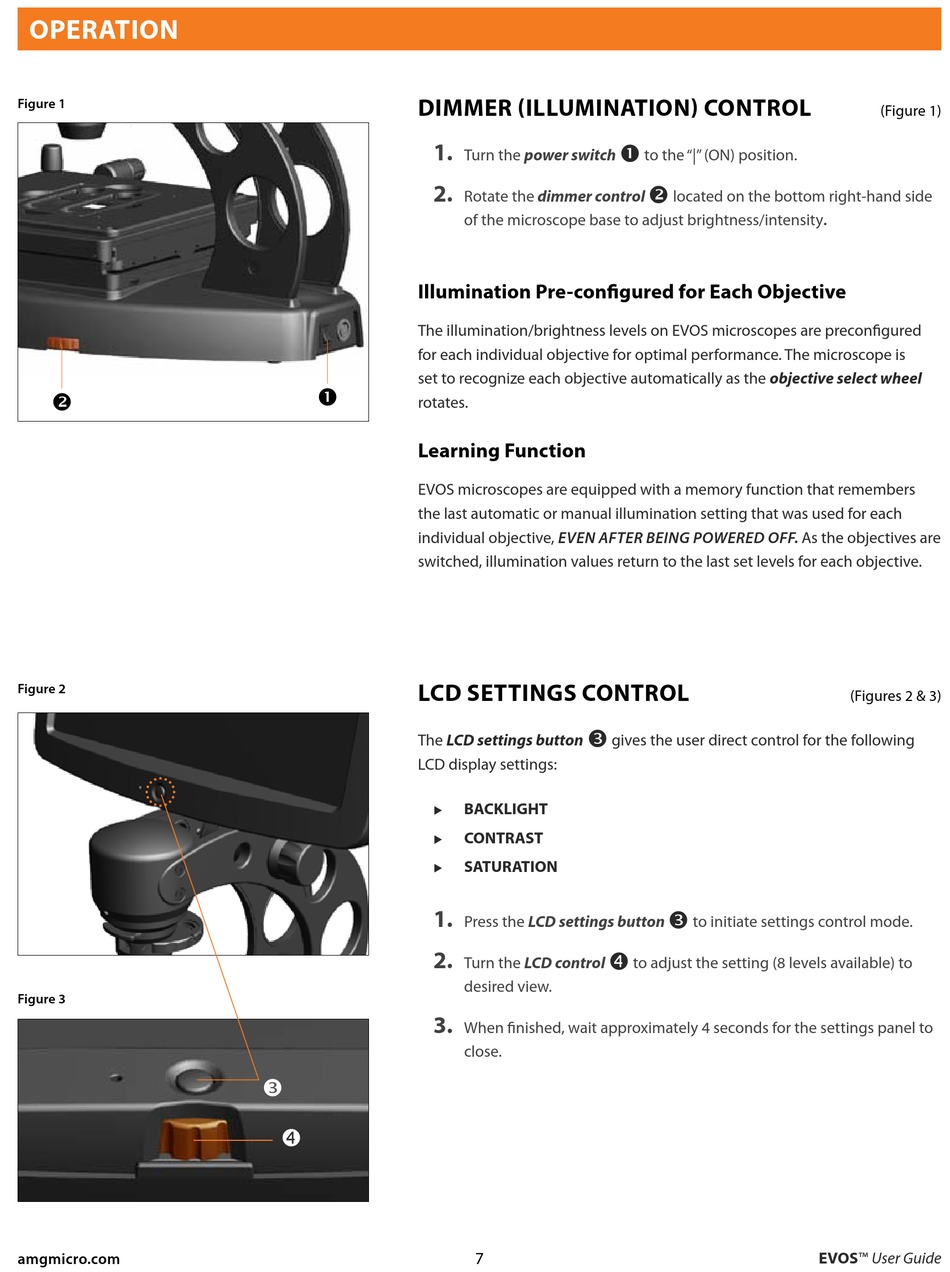

operation

Figure 1

Figure 2
Figure 3
amgmicro.com

dimmer (illUmination) Control

1.
2.

illumination pre-configured for each objective

The illumination/brightness levels on EVOS microscopes are preconfigured
for each individual objective for optimal performance. The microscope is
set to recognize each objective automatically as the objective select wheel

rotates.

learning function

EVOS microscopes are equipped with a memory function that remembers
the last automatic or manual illumination setting that was used for each
individual objective, even after being powered off. As the objectives are
switched, illumination values return to the last set levels for each objective.

lCd settinGs Control

The LCD settings button
LCD display settings:
X
X
X
1.
2.
3.



Turn the power switch to the "|" (ON) position.
dimmer control
Rotate the
of the microscope base to adjust brightness/intensity.

gives the user direct control for the following
baCKliGHt
Contrast
satUration
Press the LCD settings button

LCD control
Turn the to adjust the setting (8 levels available) to
desired view.
When finished, wait approximately 4 seconds for the settings panel to
close.
7

located on the bottom right-hand side

to initiate settings control mode.
eVos™ User Guide
(Figure 1)
(Figures 2 & 3)
