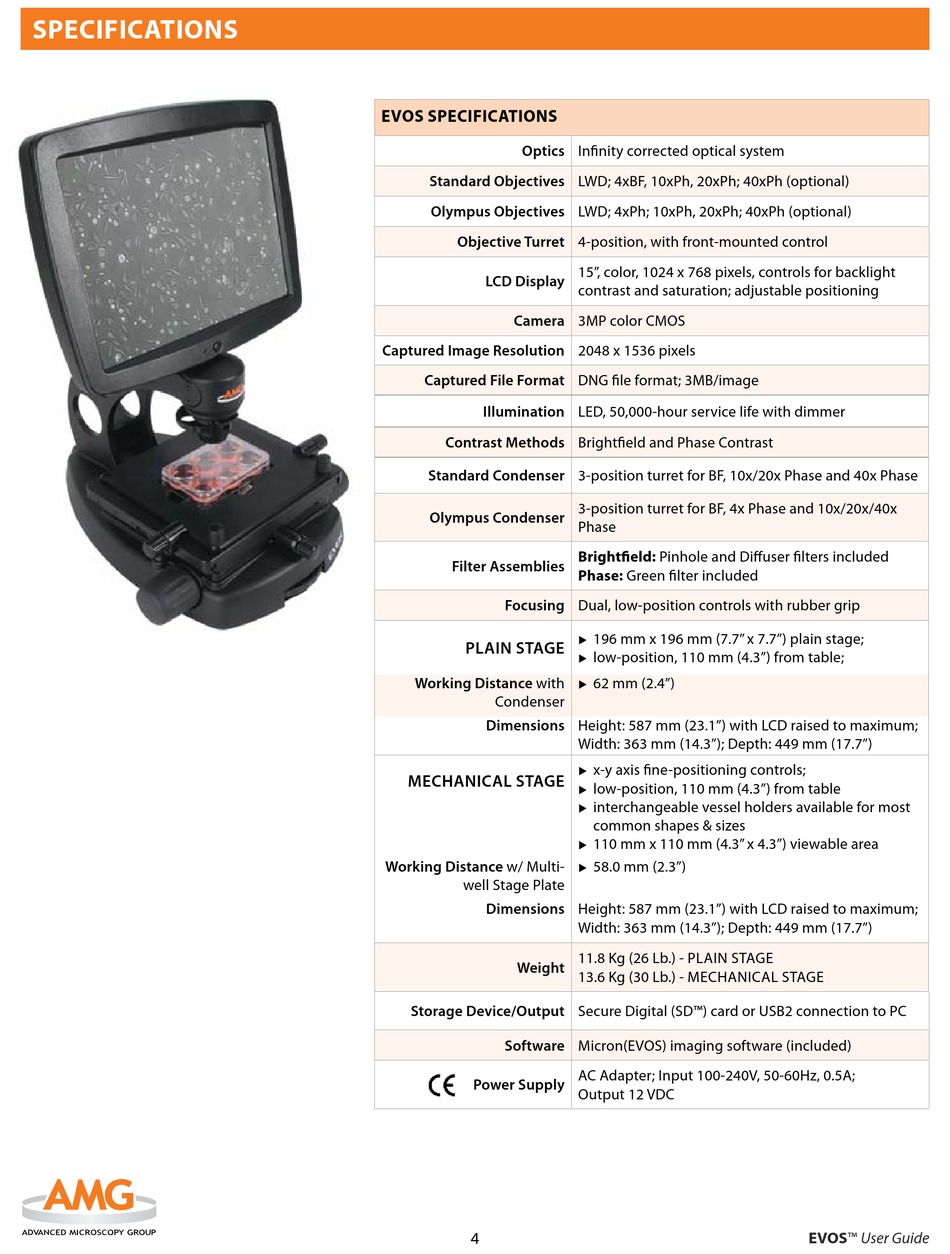

speCifiCations

eVos speCifiCations
Optics Infinity corrected optical system
Standard Objectives LWD; 4xBF, 10xPh, 20xPh; 40xPh (optional)
Olympus Objectives LWD; 4xPh; 10xPh, 20xPh; 40xPh (optional)
Objective turret 4-position, with front-mounted control
lCD Display
Camera 3MP color CMOS
Captured Image Resolution 2048 x 1536 pixels
Captured File Format DNG file format; 3MB/image
Illumination LED, 50,000-hour service life with dimmer
Contrast Methods Brightfield and Phase Contrast
Standard Condenser 3-position turret for BF, 10x/20x Phase and 40x Phase
Olympus Condenser
Filter assemblies
Focusing Dual, low-position controls with rubber grip
PlaIn StaGE
Working Distance with
Condenser
Dimensions Height: 587 mm (23.1") with LCD raised to maximum;
MEChanICal StaGE
Working Distance w/ Multi-
well Stage Plate
Dimensions Height: 587 mm (23.1") with LCD raised to maximum;
Weight
Storage Device/Output Secure Digital (SD™) card or USB2 connection to PC
Software Micron(EVOS) imaging software (included)
Power Supply
4
15", color, 1024 x 768 pixels, controls for backlight
contrast and saturation; adjustable positioning
3-position turret for BF, 4x Phase and 10x/20x/40x
Phase
brightfield: Pinhole and Diffuser filters included
phase: Green filter included
196 mm x 196 mm (7.7" x 7.7") plain stage;
X
low-position, 110 mm (4.3") from table;
X
62 mm (2.4")
X
Width: 363 mm (14.3"); Depth: 449 mm (17.7")
x-y axis fine-positioning controls;
X
low-position, 110 mm (4.3") from table
X
interchangeable vessel holders available for most
X
common shapes & sizes
110 mm x 110 mm (4.3" x 4.3") viewable area
X
58.0 mm (2.3")
X
Width: 363 mm (14.3"); Depth: 449 mm (17.7")
11.8 Kg (26 Lb.) - PLAIN STAGE
13.6 Kg (30 Lb.) - MECHANICAL STAGE
AC Adapter; Input 100-240V, 50-60Hz, 0.5A;
Output 12 VDC
