maintenanCe
Figure 1
Figure 2
EVOS Firmware Updater Version 1.01
EVOS Model: AME-I
Hardware Rev: 1.00
Firmware Rev: 1.01
Waiting for SD Card Insertion
Found Card -> Loading firmware
Loaded firmware.bin file
Firmware Rev on SD Card: 1.01
Push Right Button to Start Update
Figure 3
Push Right Button to Start Update
Updating Unit -> DO NOT POWER OFF <-
Chip Erase Starting
Chip Erase Complete - verifying
Erase verified
FPGA Configuration Data being written to flash
Updater Firmware being written to flash
Diag Routine being written to flash
Fonts Bitmap being written to flash
Application Firmware being written to flash
Verifying Firmware
Firmware Verified
Reset Power to complete firmware upgrade

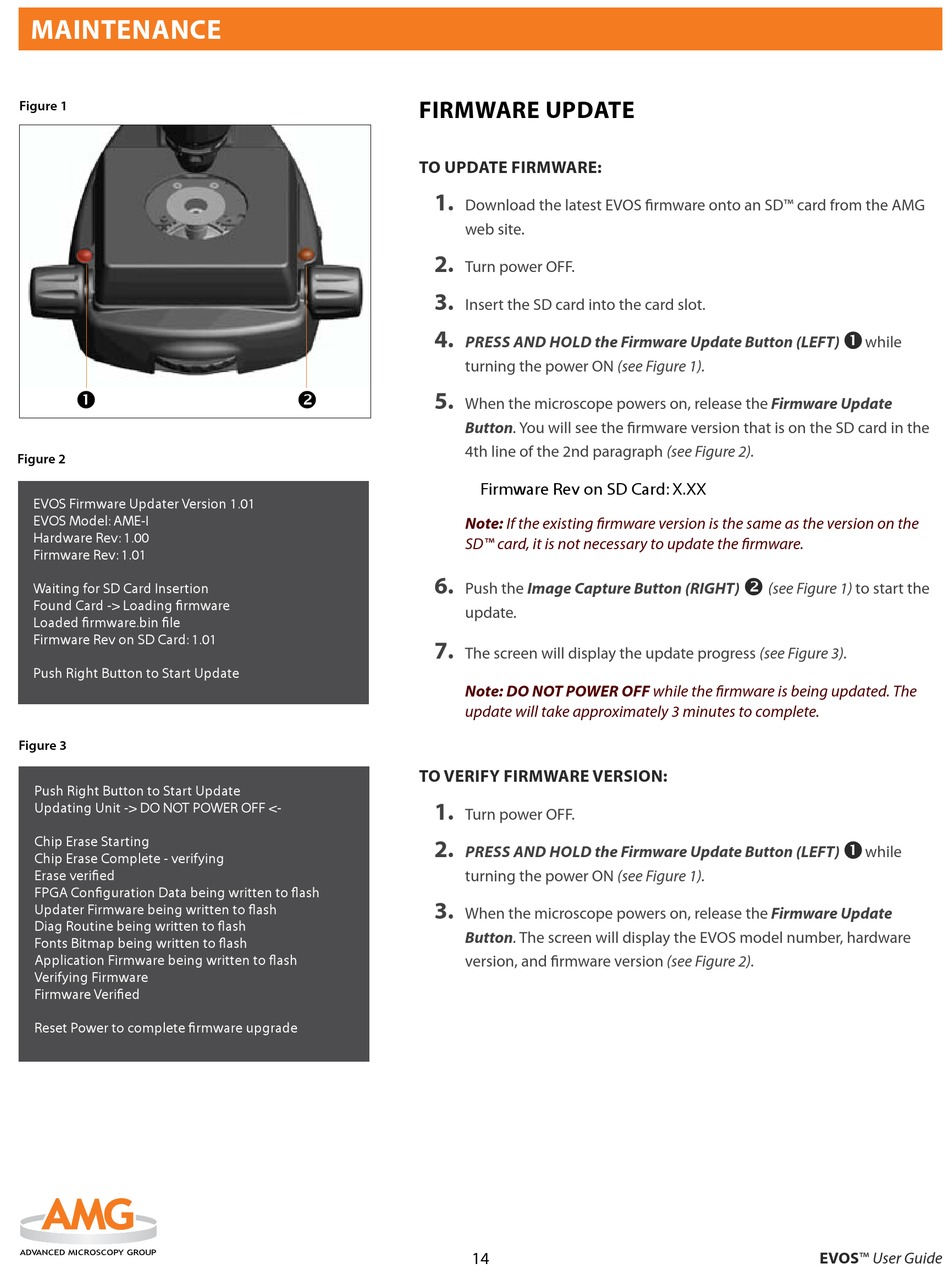

firmware Update

to Update firmware:
1.
Download the latest EVOS firmware onto an SD™ card from the AMG
web site.
2.
Turn power OFF.
3.
Insert the SD card into the card slot.
4.
PrESS AND hOLD
turning the power ON (see Figure 1).
5.
When the microscope powers on, release the
Button. You will see the firmware version that is on the SD card in the
4th line of the 2nd paragraph (see Figure 2).
Note: If the existing firmware version is the same as the version on the
SD™ card, it is not necessary to update the firmware.
6.
Push the
update.
7.
The screen will display the update progress
Note: DO NOT POWEr OFF while the firmware is being updated. The
update will take approximately 3 minutes to complete.
to Verify firmware Version:
1.
Turn power OFF.
2.
PrESS AND hOLD
turning the power ON (see Figure 1).
3.
When the microscope powers on, release the
Button. The screen will display the EVOS model number, hardware
version, and firmware version (see Figure 2).
14
the Firmware Update Button (LEFT)
Firmware Rev on SD Card: X.XX
Image Capture Button (rIGhT)
the Firmware Update Button (LEFT)
 
w hile
Firmware Update
(see Figure 1) to start the
(see Figure 3).
 
w hile
Firmware Update
eVos™ User Guide
