operation
Figure 1
Figure 2

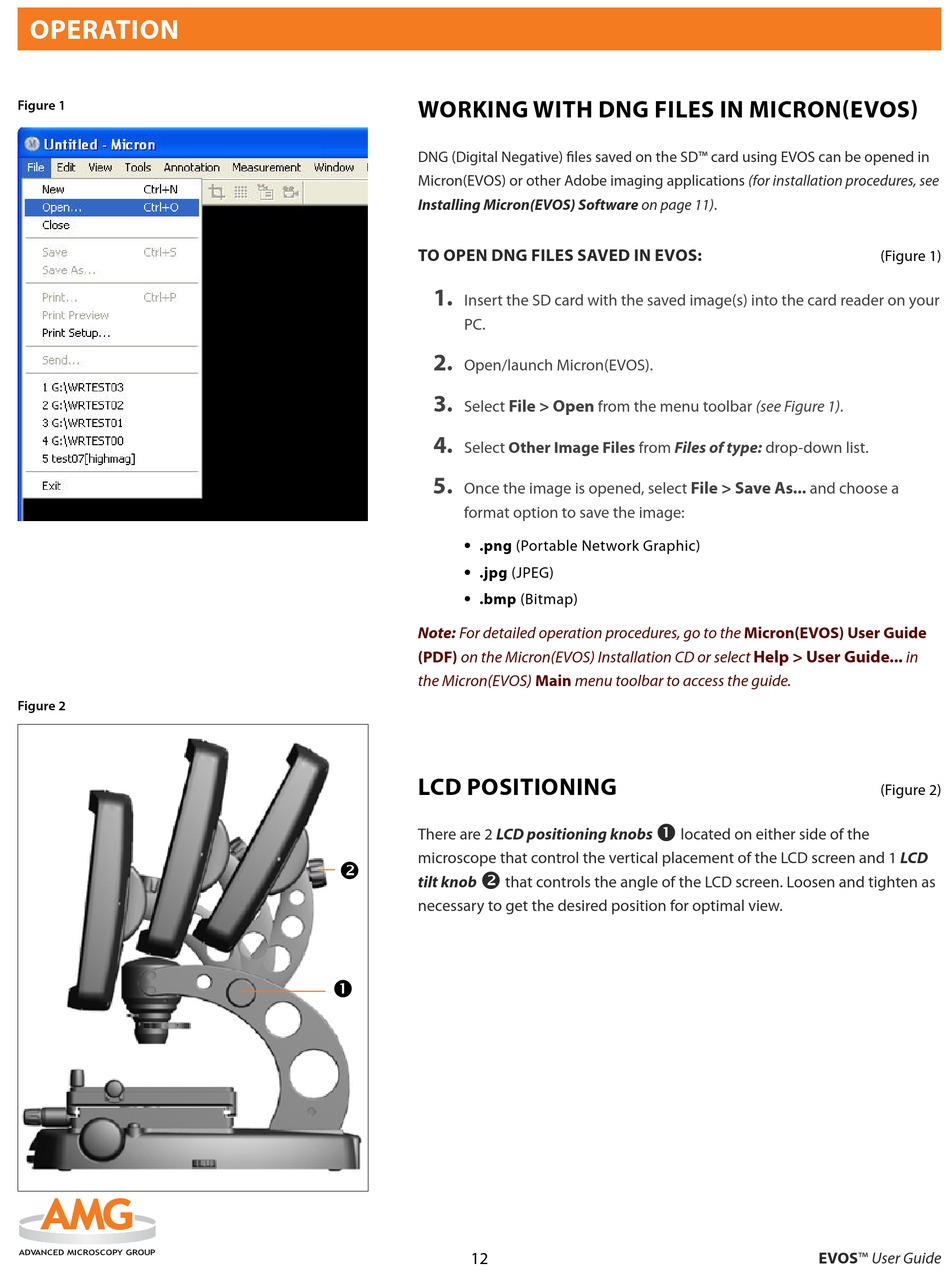

worKinG witH dnG files in miCron(eVos)

DNG (Digital Negative) files saved on the SD™ card using EVOS can be opened in
Micron(EVOS) or other Adobe imaging applications (for installation procedures, see
Installing Micron(EVOS) Software on page 11).
to open dnG files saVed in eVos:
1.
Insert the SD card with the saved image(s) into the card reader on your
PC.
2.
Open/launch Micron(EVOS).
3.
file > open from the menu toolbar (see Figure 1).
Select
4.
Select other image files from Files of type: drop-down list.
5.
Once the image is opened, select
format option to save the image:
•
.png
•
.jpg (JPEG)
•
.bmp
Note: For detailed operation procedures, go to the micron(eVos) User Guide
(pdf) on the Micron(EVOS) Installation CD or select
the Micron(EVOS) main menu toolbar to access the guide.

lCd positioninG

There are 2 LCD positioning knobs
microscope that control the vertical placement of the LCD screen and 1 LCD


tilt knob
that controls the angle of the LCD screen. Loosen and tighten as
necessary to get the desired position for optimal view.

12
file > save as... and choose a
(Portable Network Graphic)
(Bitmap)

located on either side of the
(Figure 1)
Help > User Guide... in
(Figure 2)
eVos™ User Guide
