Summary of Contents for IGS Audio DTL

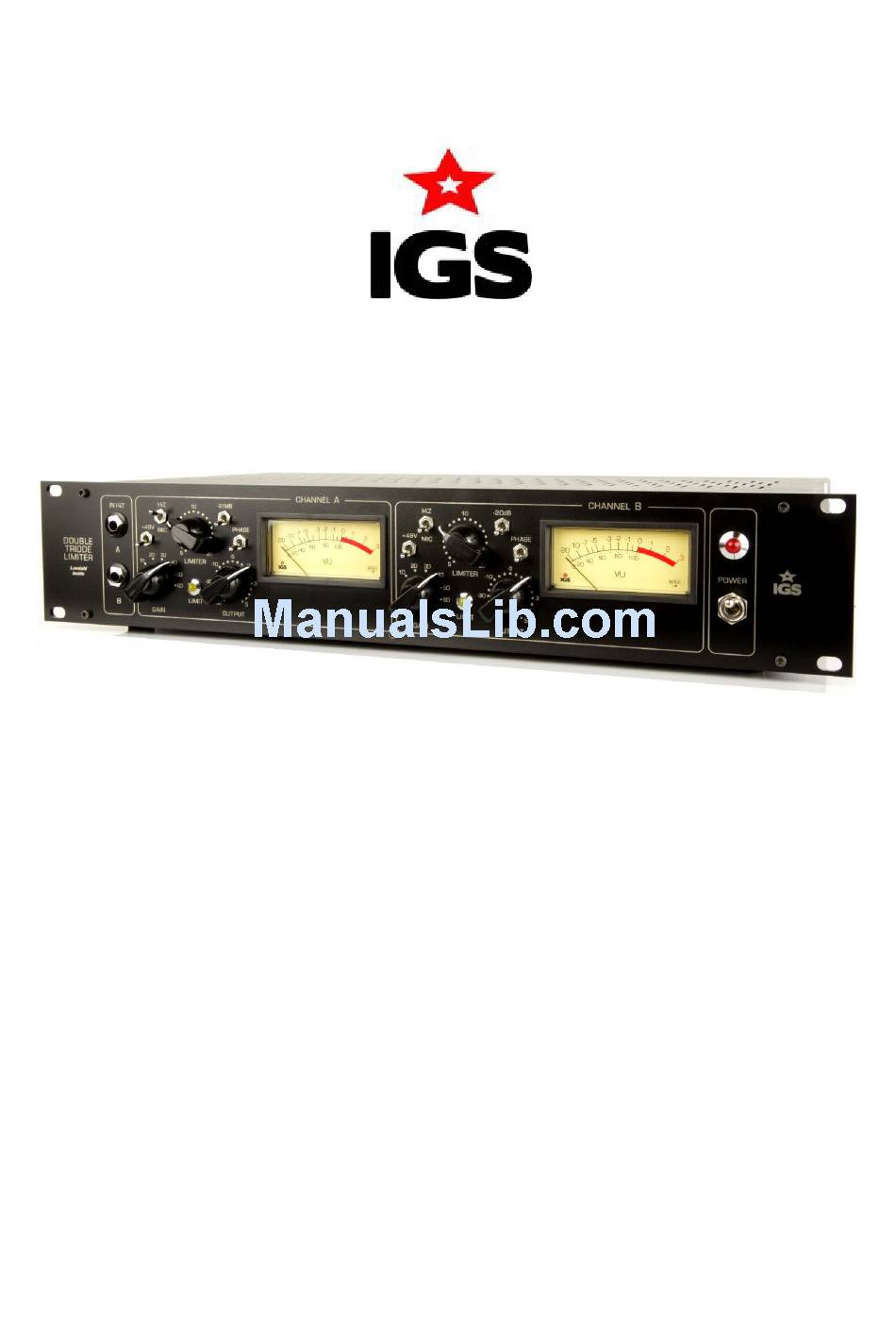

- Page 1 USER'S MANUAL IGS Audio Igor Sobczyk 3 Maja 76d, 41-400 Mysłowice, Poland e-mail: igs@o2.pl ph: +48 601 597 592 www.igsaudio.com...
- Page 2 The information in this document is subject to change without notice. IGS Audio makes no warranty of any kind with respect to the material in this document and shall not be liable for errors contained herein or for incidental or consequential damages related to the use of the material.
- Page 3 If any signs of mishandling are found please notify the carrier and your dealer immediately. Your DTL packing should contain an DTL with IGS Audio tag and power cord and this manual with the Warranty and RoHS/CE/WEEE Declaration attached.
- Page 4 The limiter controls the louder parts and prevents from the digital clipping at the inputs of you ADC. Another trick could be using the DTL as a drum compressor or mix buss compressor. It can improve the overall dynamics of the mix and give it a brighter sound.
- Page 5 PAD & INPUT LIMITER HiZ INPUT VU METER PHASE SELECTOR LIMITER INDICATOR GAIN KNOB OUTPUT VU METER Big VU meter showing the level of output signal. GAIN KNOB Preamplifier gain setting. LIMITER Allows to adjust the amount of limiting applied to the signal. HIZ INPUT High impedance guitar input.
- Page 6 DTL technical specification: – Inputs: 2 Mic/Line XLR and 2 Hi-Z Jacks on the front – Outputs: 2 balanced XLR – Tube Only audio path – Meters read Output VU – Soft Start Power Tube Timer Operating Level +4dBu Maximum Output...
-
Page 7: Troubleshooting
Troubleshooting My unit doesn't light up (the VU meter is dark): – Please check the power cord and the switch at the front of the unit is in ON position – Check the fuses The signal plays thru when i plug a microphone in: –... - Page 8 Warranty: This device is declared to be free from defects in material and workmanship for a period of three years. Any device found defective within three years from the delivery date and returned to the factory, will be repaired, adjusted, or replaced and sent to the customer with no charge.
