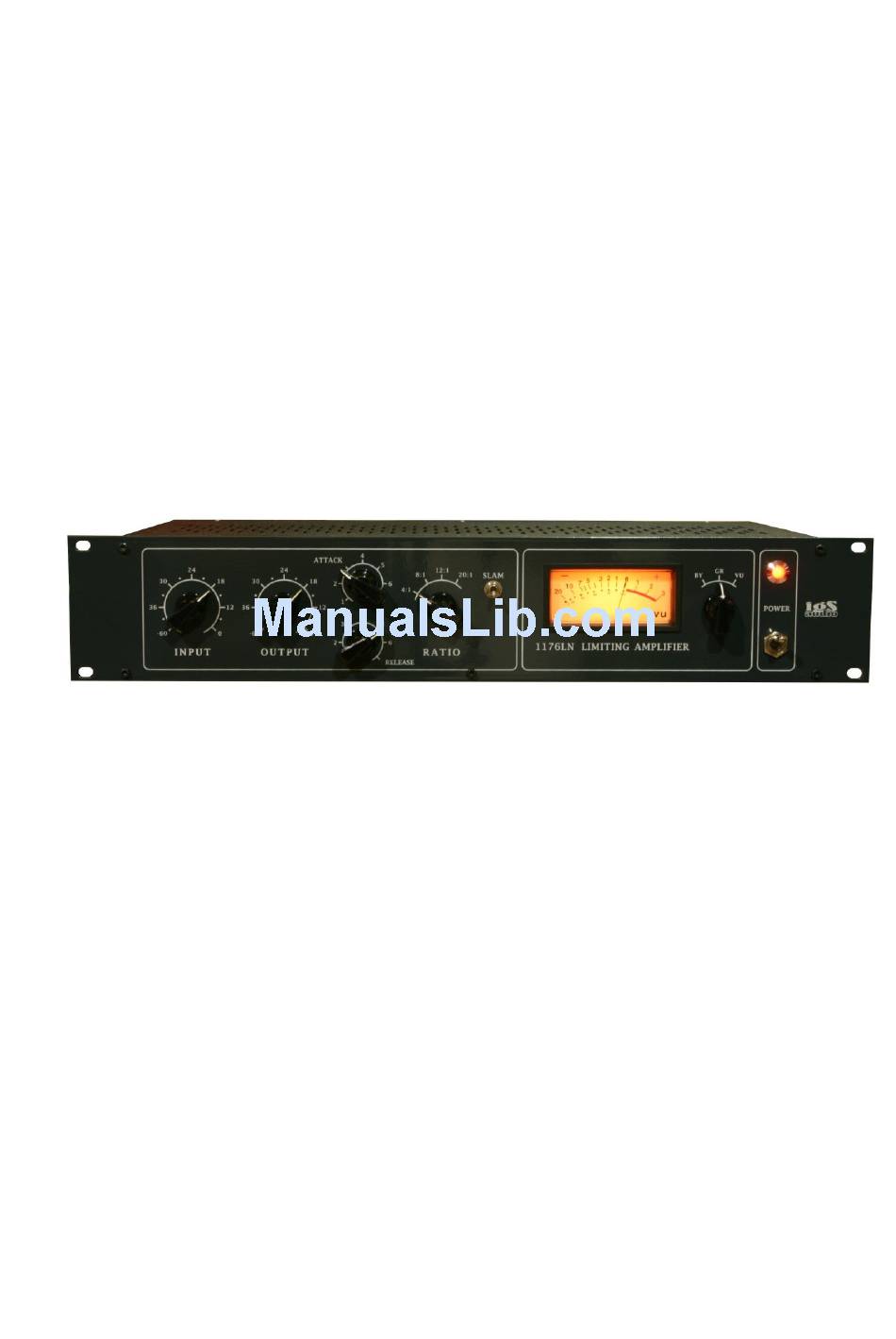

IGS Audio
1176
Limiting Amplifier
User's Manual.

Description

The 1176 is a very well known and appreciated compressor in
professional recording studios all over the world. Whoever heard how
this compressor works with vocals will never be able to manage without
one. It is a 45dB transistor amplifier equipped with a remarkable
limiter. Compression is achieved with the FET controlled transistor. The
unique feature of the unit is the implementation of traditional BC107B
transistors known well from the original circuit. That's right! They may
cause noise – but this is what gives the sound its power. At extreme
settings the 1176 adds some pleasant distortion to the output. The core
of versatility in sound of the 1176 lies in the balance between the Input,
Output, and Release knobs. It is a pure A class circuit.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1176 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IGS Audio 1176

  • Page 1 – but this is what gives the sound its power. At extreme settings the 1176 adds some pleasant distortion to the output. The core of versatility in sound of the 1176 lies in the balance between the Input, Output, and Release knobs. It is a pure A class circuit.
  • Page 3 Identification plate Output Input Getting started Connect the 1176 to your sound interface (one input and one output) with two symmetrical XLR wires Send your desired audio file to the selected output Activate the selected input channel on your local mixer...
  • Page 4 To control transients turn the Attack knob If you’re looking for aggressive compression based on fast release, turn your Release knob clockwise Remember that the Bypass switch is not a hard wire bypass Typical usage: • Great vocal compressor • Good for compressing instruments (guitar, bass, mono synth) •...
  • Page 5 Specification: • 1 balanced XLR Line Input • 1 balanced XLR Output • +4dB operating level • Maximum Output +29 dBV • Gain reduction up to 20dB • Max Gain 45dB • Output impedance 600 Ohm • Pure class A audio path •...
  • Page 6 Warranty Warrants this device to be free from defects in material and workmanship for a period of three years. Any device found defective within three years from the delivery date and returned to the factory with transportation charges prepaid will be repaired, adjusted, or replaced at no charge to the original purchaser.
