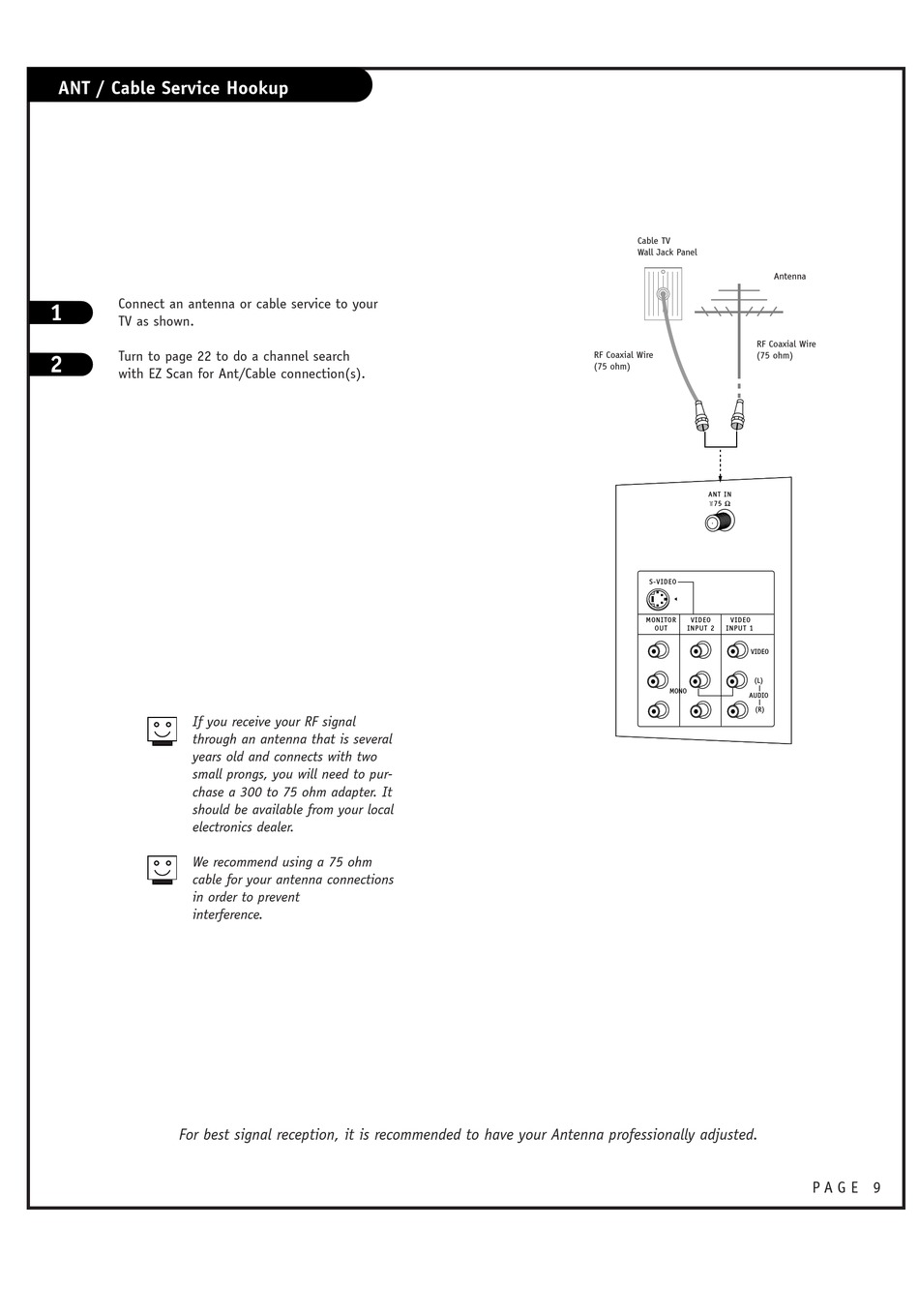

ANT / Cable Service Hookup
Connect an antenna or cable service to your
1
TV as shown.
Turn to page 22 to do a channel search
2
with EZ Scan for Ant/Cable connection(s).
If you receive your RF signal
through an antenna that is several
years old and connects with two
small prongs, you will need to pur-
chase a 300 to 75 ohm adapter. It
should be available from your local
electronics dealer.
We recommend using a 75 ohm
cable for your antenna connections
in order to prevent
interference.
For best signal reception, it is recommended to have your Antenna professionally adjusted.
Cable TV
Wall Jack Panel
RF Coaxial Wire
RF Coaxial Wire
(75 ohm)
(75 ohm)
ANT IN ANT IN
+75 Ω +75 Ω
S-VIDEO S-VIDEO
MONITOR MONITOR VIDEO VIDEO VIDEO VIDEO
OUT OUT INPUT 2 INPUT 2 INPUT 1 INPUT 1
VIDEO VIDEO
(L) (L)
MONO MONO
AUDIO AUDIO
(R) (R)
