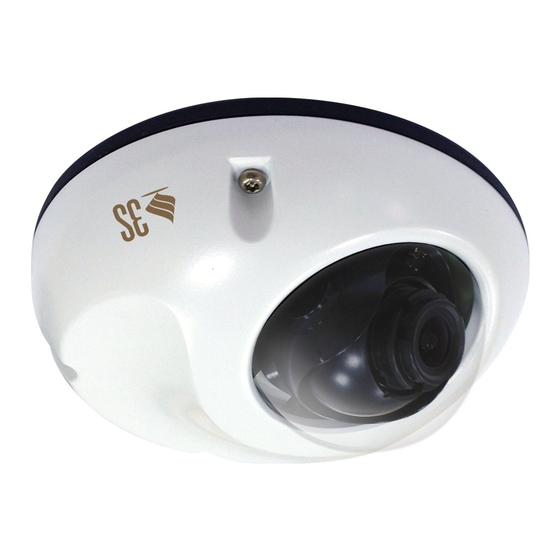

3Svision N9071 User Manual

Mini dome network camera 2 megapixel + h.264
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N9071 and is the answer not in the manual?

Questions and answers

Related Manuals for 3Svision N9071

Summary of Contents for 3Svision N9071

  • Page 2: Table Of Contents

    ......................................4 EATURES .................................... 5 ACKAGE ONTENTS SYSTEM REQUIREMENTS ................................6 VIEW OF N9071 MINI DOME NETWORK CAMERA ........................7 Outer View ....................................7 Inner View ....................................7 MAKING CONNECTIONS ................................9 Power ......................................9 Lan ......................................10 HARDWARE INSTALLATION ............................... 11 .....................................
  • Page 3 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Snapshot ......................................... 39 Record ........................................39 Shortcut Bar Message ..................................... 39 ................................41 ETTING REFERENCES Basic Setting .................................... 42 System ........................................42 System Setting ....................................42 System Log ......................................43 Video/Image ......................................44 Video .........................................

  • Page 4: Introduction

    Features N9071 can operate smoothly without the need to install additional software or hardware. All you need is a PC that is equipped with IE browser (6.0 or above) and connect the Internet Camera to the network to monitor the pre-set places remotely. It provides you with protection of your personal, home, and property security.

  • Page 5: Package Contents

    Mini Dome Network Camera 2 Megapixel + H.264 Package Contents After unpacking, check that if all the following items have been included:  N9071 Mini Dome Network Camera  Installation CD (Manual & Software)  Installation Guide  Mounting position sheet ...

  • Page 6: System Requirements

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 System Requirements Before installing N9071 Mini Dome Network Camera, please make sure your system has the following recommended minimum hardware requirements. Internet Environment Ethernet 10/100M Ethernet Monitor System Requirements OS support Windows 2000, XP, Vista and 7 Browser support Internet Explorer 6.x or later...

  • Page 7: View Of N9071 Mini Dome Network Camera

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 View of N9071 Mini Dome Network Camera Outer View Dome Cover Top Cover Inner View - 7 -...
  • Page 8 N9071 Mini Dome Network Camera 2 Megapixel + H.264  Dimension Diagram - 8 -...

  • Page 9: Making Connections

    Mini Dome Network Camera 2 Megapixel + H.264 Making Connections Before you connect your N9071, please make sure your PC has the LAN port available for connect to the network. Follow these instructions to connect the N9071 into your PC and LAN Port.

  • Page 10: Lan

    2 Megapixel + H.264 Connect to the Switch HUB. Use a network cable and plug it into the LAN port of the N9071. Plug the other end of the cable in the LAN port of the HUB. Connect to the Switch HUB to PC.

  • Page 11: Hardware Installation

    2 Megapixel + H.264 Hardware Installation Before getting to start N9071 Mini Dome Network Camera, please adjust N9071 in accordance with the following steps first. Make sure that no steel bars or power cables exist behind the position where the product is to be fixed.
  • Page 12 6. Installation Completed. NOTE: You can install N9071 Mini Dome Network Camera on the holder and hang it on the wall or ceiling. Please do not install it in locations of poor ventilation. This will result in poor operation. Attention: The horizontal angle is important when you hang the product from the ceiling. Excessive inclination may bring about abnormal rotation of the camera lens.

  • Page 13: Adjust The Lens Focus Range

    Adjust the Lens focus range Use a screw driver to release the screw securing the N9071 Mini Dome Network Camera. The following diagram illustrates will show you how to adjust the tripod of N9071 Mini Dome Network Camera.  Front View ...

  • Page 14: Factory Reset

    2 Megapixel + H.264 Factory Reset N9071 provides a function for you to reset the N9071 to the factory default settings. If there is still system problems remain after rebooting, factory reset can return the camera to normal operation after resetting.

  • Page 15: Getting Started

    2 Megapixel + H.264 Getting Started After you have finished install the N9071 Mini Dome Network Camera. Please check if it is ready to use by the Led indicator as below: The LED Indicator will light in green when the network connected.

  • Page 16: Software Installation

    After the hardware has been installed, insert the installation CD into the CD-ROM driver and run the “Cam Finder.exe” following the steps below to search and change the IP address of N9071 Mini Dome Network Camera. NOTE： If the network environment has the router, please refer to Appendix: Set up the Router Setting with IP Camera for different environment description.
  • Page 17 (such as “PI IP”). You can change the settings for IP, Gateway Address and Network Mask to meet the requirements of your network environment. N9071 Mini Dome Network Camera uses HTTP Port1 and does not support Port2 settings.

  • Page 18: Ready To Use

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Ready To Use Access to the IP Camera You can access the IP Camera through web browsers, follow the instructions to install the required plug-in on your computer. 1. Using Web Browsers Launch your web browser.
  • Page 19 N9071 Mini Dome Network Camera 2 Megapixel + H.264 2. Installation of Internet Explorer ActiveX Controller After the Username and Password are confirmed, a control setup screen pops up under the IE address bar. Click “Install ActiveX Control” to continue.

  • Page 20: View Of Camera Main Page

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 View of Camera Main Page Once you have installed the software from the IE and you are ready to start the setup menu. The Camera utility enables you to change language, video settings. And you can also change the other setting by “Setting”.

  • Page 21: Product Name

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Product Name Display the product name. The default name follows the product, and it not releases the permission of modification to customer. Product Name Mode Select the display mode between Live View and Setting.

  • Page 22: Language

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Language It supports 7 kinds of different languages in web browser and the default setting is English. Click the pull-down menu to select the language for web browser from English, 简体中文...

  • Page 23: Video Format

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Video Format It provides the triplex streaming, but it can use one streaming on the live view. The default setting is the MPEG.264 (Main). Click the pull-down menu to select the video format from H264(Main Stream), H264 (Sub Stream) and Motion JPEG.

  • Page 24: View Size

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 View Size It can fix well the resolution when enlarge or reduce the live view image. Click the pull-down menu to select the video format from 1/2X, 1X, 2X and 4X.

  • Page 25: Streaming

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Streaming It provides 3 kinds of different streaming protocols. Click the pull-down menu to select the video format from UDP, TCP, and HTTP to apply or integrate on different requirement and environment.

  • Page 26: Color

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 2. TCP Provide reliable data transmission, because the transmission will check the receiver first. Video streams are transmitted through RTSP 554 Port to avoid video fragment or mosaics, but this protocol will affect the FPS to reduce.

  • Page 27: Brightness

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Brightness 100 Brightness 0 Brightness Adjust the brightness of image. Contrast Adjust the contrast of colors. Saturation Adjust the saturation of colors. Set to default Reset all of the color settings to default figures.

  • Page 28: Alert

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Alert The alert flash will be changed from green to red in order to warning users immediately when any event is triggered. This smart design can prevent the user omitting from any event.

  • Page 29: Alert Message

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Alert Message It will display the event message when receiving the event. And some controls and applications will be available. Please see the detail illustration as below: Alert Message Text Disable...

  • Page 30: Disable

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Disable Enable/Display the Alert Message The function of displaying message in field of Alert Message Text can be hidden when Alert is triggered. Alert Message Text field will keep previous values before Alert being triggered if there is a message already recorded.

  • Page 31: Shortcuts

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Shortcuts Click the right-button of your mouse in Live View mode to display the Shortcuts List. Choose the option directly depend on different system requirements. The detail function illustration as below: +ZOOM IN Click the right button of your mouse and select +ZOOM IN to enlarge the image.

  • Page 32: Zoom Out

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 -ZOOM OUT Click the right button of your mouse and select +ZOOM out to reduce the image. 8 Levels of zoom in/out are supported. NOTE： You can also ZOOm In/Out the image by press the scroll wheel button of your mouse.

  • Page 33: Full Screen

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Full Screen Click the right button of your mouse and select Full Screen to change the screen to full screen mode and release it by click the button again. You can also release it by click the “ESC”...

  • Page 34: Record

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Record Click the right button of your mouse and select Record to start to record the image and the file will saved at the default path. Stop the recording by click the button again.

  • Page 35: Snapshot

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Snapshot Click the right button of your mouse and select Snapshot to Snapshot the image and the file will save at the default path. You can also take snapshot by press on the shortcut bar.

  • Page 36: Shortcut Bar

     Transmit the voice into the N9071 Mini Dome Network Camera by using the PC’s microphone. Buzzer Click the thumbnail of the Buzzer on the shortcut bar to enable/disable it (one-way audio).  It can receive the voice of the microphone from the N9071 Mini Dome Network Camera. - 36 -...

  • Page 37: Path

    N9071 Mini Dome Network Camera 2 Megapixel + H.264  Enable the Microphone and Buzzer at the same time to achieve the two-way audio application if you like it. NOTE： Adjust the parameter of the audio according to the Audio Setting.
  • Page 38 3. Record Limit The Record Path Setting supported only and it has limit of file size. N9071 Mini Dome Network Camera will create the fixed recording file according to this setting. It provides two kinds of setting for record file size as below: Record File Size Record Duration.

  • Page 39: Snapshot

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Snapshot Snapshot the Live View image Click the thumbnail of the Snapshot on the shortcut bar to Snapshot the image in Live View and the file will save at the default path.
  • Page 40 N9071 Mini Dome Network Camera 2 Megapixel + H.264  Snapshot Snapshot: C:\Snapshot\Snapshot__20091102-181620-804.jpg has been saved. Fail to snapshot in path C:\Snapshot NOTE： The setting of the path and filename will follow the Path Setting. - 40 -...

  • Page 41: Setting User Preferences

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Setting User Preferences The Setting menu let you change the following settings: Basic Setting System Video/Image Audio User Network Date/Time IP Filtering Application Setting Event Motion Detection Blind Detection Privacy Mask...

  • Page 42: Basic Setting

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Basic Setting The Basic Setting menu lets you view the Basic Setting for N9071 Mini Dome Network Camera and change the following setting: System System System Log Video Image Video PreProc/Overlay...

  • Page 43: System Log

    IP, changes, and the date/time information. You can save the entries to a Word document by manual. Notice all of the information is deleted when you turn off the N9071 Mini Dome Network Camera.

  • Page 44: Video/Image

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Video/Image Video  Video Setting Sensor Mode: Set the mode of the sensor from UXGA Mode (1600x1200) and WXGA Mode (1280x720).  H264 Resolution: Set the resolution of the image from 1600x1200, 1280x720, 640x480, 640x352, 320x240 and 320x176.

  • Page 45: Preproc/Overlay

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 PreProc/Overlay  PreProc Camera Position: Set the position of the camera from Default, Flip, Mirror and Rotate 180.  Overlay Setting Language: Set the language for the overlay. Display mode: Set the display mode from Date, Time and Txt or not.

  • Page 46: Sensor

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Sensor  AE Setting Backlight: Click Enable to set the backlight for the image. Slow Shutter: Set the Slow Shutter from OFF, X2, X4, X8 and X16.  AGC: Set the AGC from Low, Mid and High.

  • Page 47: Audio

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Audio Audio Set the Audio mode from Full-Duplex, Half Duplex, Simplex-Speaker Only, Simplex-Microphone Only and Audio Off. Full duplex: Microphone and Amplifier using allowed of at the same time, or turning them off.

  • Page 48: User

    2 Megapixel + H.264 User N9071 Mini Dome Network Camera provides the administrator to set the privileges for administrator, operator and viewer that ensure the security and control of the camera. According to the requirements of the users, administrator owns the authority to define the privilege for each user.
  • Page 49 N9071 Mini Dome Network Camera 2 Megapixel + H.264 User List Use this menu to set the following setting: Add: Add a new user and to define a different privilege. Update: Change the privilege or password of a user. User name changed is not allowed.
  • Page 50 N9071 Mini Dome Network Camera 2 Megapixel + H.264 The root can not be deleted but can be updated. Activate the anonymous view and camera rotation functions; define the number of viewers who are allowed for on-line review simultaneously. Attention: The default user name and password have been set as “root”.

  • Page 51: Network

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Network Network Setting  IP Assignment DHCP DHCP (Dynamic Host Configuration Protocol) is a protocol that enables automatic assignment of TCP/IP information to the client. Each DHCP client connects to the DHCP server to access its network setting information, including IP address, gateway, and DNS server.

  • Page 52: Stream Setting

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Stream Setting Set the video streaming port here. (HTTP and factory default are recommended)  Streaming HTTP: Port 80 can pass through most firewalls. Video streams are transmitted through HTTP Port (80 by default) to ensure passage through firewalls.

  • Page 53: Pppoe Setting (Dial-Up Networking Setting)

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 PPPoE Setting (Dial-up Networking Setting) Point-to-Point Protocol over Ethernet is a protocol that supports access to a high-speed wideband network using a PC and a wideband modem (such as xDSL, Cable, Wireless modem).
  • Page 54 N9071 Mini Dome Network Camera 2 Megapixel + H.264  PPPoE Dial: You can select whether or not to dial when you boot the Camera. (On boot or Off). Username: Enter the username provided by your ISP. Password: Enter the password.

  • Page 55: Ddns (Dynamic Domain Name Server)

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 DDNS (Dynamic Domain Name Server) The IP address (Ex. 210.168.0.22) is like a telephone number, while the website address is like a name in an address book. The DDNS allows the user to access the website by entering the name of the website without memorizing a bunch of cold numbers.

  • Page 56: Upnp (Universal Plug And Play)

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 UPnP (Universal Plug and Play) If you connect your camera to a router, IP allocator, or wireless AP, your camera will possibly be blocked by the NAT and can’t be located on the Internet. To penetrate the firewall, activate the supportive item- UPnP.
  • Page 57 N9071 Mini Dome Network Camera 2 Megapixel + H.264 To Activate the UPnP function in Windows OS Windows XP 1. Windows component installation. Step 1 Select Control Panel. Step 2 Select Add/Remove Programs. Step 3 Select Add/Remove Windows Components. Step 4 Select Networking Services.
  • Page 58 N9071 Mini Dome Network Camera 2 Megapixel + H.264 2. Open Windows firewall option Step 1 Select Windows Firewall in the Control Panel. Step 2 Select Exceptions. Step 3 Select UPnP Framework. 3. View the connection device using “My Network Place”...

  • Page 59: Smtp (Mail Server Setting)

    2 Megapixel + H.264 SMTP (Mail Server Setting) N9071 Mini Dome Network Camera provides you to transmit images to a particular email address when a motion detection event occurred or a sensor is triggered. A mail server setting for the camera is required, if you want to use this function.

  • Page 60: Samba

    Mini Dome Network Camera 2 Megapixel + H.264 Samba N9071 Mini Dome Network Camera provides you to upload the snapshots to a specified shared folder when an event is triggered. A Samba setting is required, if you want to use this function.

  • Page 61: Notification

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Notification For a dynamic IP, you need to update the IP address every time when you connect to the camera via internet. This setting allows you to update the IP address by automatic notification of IP address change.

  • Page 62: Multicast

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Multicast This function allows multiple people to watch video streaming without limited in the number of users, but is only applicable to the LAN environment. Video streaming format (H.264) is depended on the selected image format setting in Basic Setting →...

  • Page 63: Date/Time

     Click NTP in the Time Setting.  Enter the IP address in the NTP server. (1~3)  Press the SAVE to apply it. Once the NTP time obtain, the N9071 Mini Dome Network Camera will updated the time. NOTE：...

  • Page 64: Ip Filter

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 IP Filter N9071 Mini Dome Network Camera provides you to allowed or deny the visitors from particular/target address by IP Filter Setting.  General IP Filtering: Enable/disable Policy: Allow/deny  Filter IP Address (Overview of the setting for IPs) Add: Enter the IP address that you allowed or denied it.

  • Page 65: Application Setting

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Application Setting The Application Setting menu lets you view the Application Setting for N9071 Mini Dome Network Camera and change the following setting: Event Event Trigger Event Server Motion Detection Blind Detection...

  • Page 66: Event

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Event  Event List Add Event: Click Add Event to enter the Trigger Even Setting. NOTE： It can provide up to 10 event settings. - 66 -...
  • Page 67 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Add Schedule: Click Add Schedule to add a new schedule. NOTE： It can provide up to 10 schedule settings. - 67 -...
  • Page 68 N9071 Mini Dome Network Camera 2 Megapixel + H.264 General: Name: Name the trigger event. Response to event trigger: Time setting for the trigger event Always: Always monitoring During time: Check the date you want to monitor (Sun.~Sat.) and the duration of monitoring.

  • Page 69: Trigger

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Trigger Whenever the camera detected abnormal events during the scheduled time, it will respond by active trigger automatically. There are 2 types for the trigger response: Alarm messages sending and emailing.
  • Page 70 N9071 Mini Dome Network Camera 2 Megapixel + H.264  Trigger mail After you enter the email address and subject in the field, click the Set to test the mail sending completely.  Trigger FTP Click the Set to upload AVI files to FTP server to test completely.

  • Page 71: Event Servers (Upload Server)

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Event Servers (Upload Server) You can make a setting to upload files to the server completely. Please make a setting for servers in the Event Server Setting by following setting: - 71 -...
  • Page 72 N9071 Mini Dome Network Camera 2 Megapixel + H.264  Event Server List Add FTP Enter the information of the FTP server you specified. Name: The name of the FTP Network Address: IP address of the FTP Login: Log-in name...

  • Page 73: Motion Detection

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Motion Detection Click the Area to open the setting frame and the setting frame will show on your screen. You can adjust the frame size by move and drag the edge of the frame on the arrow of your mouse, after adjusted click the left button of your mouse.

  • Page 74: Blind Detection

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Blind Detection Blind Detection means that you can set the inside/outside area for detect. Blind Detection triggered if any object activity in the area that you have set. Click the Area to open the setting frame and the setting frame will show on your screen.

  • Page 75: Privacy Mask

    Mini Dome Network Camera 2 Megapixel + H.264 Privacy Mask To ensure the confidential, N9071 Mini Dome Network Camera provides the Privacy Mask for you to mask the image in the masked zone. The following diagram illustrates how to set the Privacy Mask.
  • Page 76 N9071 Mini Dome Network Camera 2 Megapixel + H.264 - 76 -...

  • Page 77: Firmware Upgrade

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Firmware upgrade Contact with your dealer for more information about firmware upgrade. Please follow the steps below to upgrade the firmware. Attention: Important! Read Carefully!! 1. Please close all of the application that you are using on your PC.
  • Page 78 2 Megapixel + H.264 5. The progressing status of the firmware upgrade will show on your screen. 6. N9071 Mini Dome Network Camera reboots automatically after the firmware has been upgrade completed. Reconnect to the server after 60 seconds. NOTE：...
  • Page 79 N9071 Mini Dome Network Camera 2 Megapixel + H.264 It is not recommend you to upgrade the firmware in a wireless network environment because of the unstable packet transmission may conduce to data loss. It is not necessary for you to restart the camera by manual after the firmware upgrade completed.

  • Page 80: Factory Default

    2 Megapixel + H.264 Factory Default You can use this setting to reset N9071 Mini Dome Network Camera to the factory default value without any changes. Including the IP address all of you have set will be invalid.  Factory Default...
  • Page 81 N9071 Mini Dome Network Camera 2 Megapixel + H.264  Backup Back all parameters: Use this setting to backup all of the changes you have set. Click Backup and a file download inquired windows will pop up. Back up the file named param.bin.
  • Page 82 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Restore backup parameters: Use this setting to restore the changes that you have set. Click Browse to select a backup file and click Submit to confirm it. Select a backup file to restore.

  • Page 83: Reboot

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Reboot Use the setting to reboot the camera automatically by click Reboot. - 83 -...

  • Page 84: Appendix

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Appendix Change the Internet Explorer Settings Change the security setting of IE browser to allow the ActiveX Control be plug-in to the IE browser. Please follow the steps as below: 1. Open the IE browser from Desktop or State Menu.

  • Page 85: Set Up The Router Setting With Ip Camera

    Set up the Router setting with IP Camera Use DHCP if you want to use N9071 Mini Dome Network Camera via the Internet (LAN). However, the IP must be set to fixed when you want to use the camera on a WAN. For this application, it is required to set up the function of the virtual server on the ADSL router.

  • Page 86: Ddns Application

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 DDNS Application How to apply and setup the DDNS service? The DDNS (Dynamic DNS) is an application for network service. It can help you to solve the problem of dynamic IP change in network device. You can assign a name for favorable website to correspond with device IP address through DDNS.
  • Page 87 N9071 Mini Dome Network Camera 2 Megapixel + H.264 1. Please enter the website address of “DynDNS” (http://www.dyndns.com/) through Browser. 2. Please click Create Account. (Skip step 2~9 if you have an account with DynDns.org already.) 3. Please fill in all the required information in the table such as: Username, Password, Email and Security Image Number etc.
  • Page 88 N9071 Mini Dome Network Camera 2 Megapixel + H.264 4. A confirmation letter will send to your mailbox after you click Create Account. Please acknowledge the confirmation letter by clicking on the link provided in the mail to continue with the steps 5.
  • Page 89 N9071 Mini Dome Network Camera 2 Megapixel + H.264 6. Please click Dynamic DNS then select Dynamic DNS Free service. 7. Click Get Started button to add the new Hostname. 8. Set up the Hostname and IP Address by yourself. You can enter your favorite domain name as your Hostname, and input correct IP address (e.g.
  • Page 90 N9071 Mini Dome Network Camera 2 Megapixel + H.264 9. After add new hostname, click Next to enter the next step. (Note: as you are using Dynamic DNS Free service; so you can ignore the information of Shopping Cart. 10. Please click Activate Services button to enable DDNS service.

  • Page 91: How To Check If The Ddns Service Is Successful

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 How to check if the DDNS service is successful? 1. If you can not connect the IP devices through the domain name, which you have set up, you can test the DDNS service on your PC.

  • Page 92: Mobile Application

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Mobile Application Our Mini Dome Network Camera can support the 3GPP(RTSP) connection through the mobile phone. Please check your ISP to provide the mobile networking service which working on your mobile phone first. And modify the setting of Video server to enable the application.
  • Page 93 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Click the “Setting” on right-upper to enter the setting mode. Step3: Check the RTSP streaming setting H.264 Type Click “Video/Image“ of Basic Setting  “Video“ Set up the sub streaming resolution (e.g. Please see the suggestion parameter as below picture)  Click Save to finish the setting.
  • Page 94 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Step4: View limit Setting According to the requirement, you can pass the live view limit. Please see the illustration as below. Without Password With Password  With password Don’t need to enable the “anonymous login” function, but you need to input the account information every login.
  • Page 95 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Step5: Try to connect Video server through the mobile phone Check the mobile phone can support the streaming media player and internet service, and then see the example operation as below: NOTE：...

  • Page 96: Symbain System

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Symbain System Example: Nokia N71. Follow these steps to set up the viewing function 1. Enter multimedia data from the main screen. 2. Select a streaming link 3. Add a new link.
  • Page 97 N9071 Mini Dome Network Camera 2 Megapixel + H.264 4. Enter the link name. 5. Enter the IP address of the camera e.g. (Without Password) rtsp://xxx.xxx.xxx.xxx:554/cam1/3gpp e.g. (With Password) rtsp://xxx.xxx.xxx.xxx:554/cam1/3gpp?user=root&pwd=root 6. Select OK to save the setting. NOTE： Some mobile phone can only support the without password application 7.
  • Page 98 N9071 Mini Dome Network Camera 2 Megapixel + H.264 8. Select “Yes” to connect. 9. Connecting. 10. Loading the image 11. Show the video stream on the mobile screen. NOTE： If the software cannot receive the stream from the video server, please try to check the Internet setting of software is correctly.

  • Page 99: Iphone System

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 iPhone System Example: iPhone 3GS. Follow these steps to set up the viewing function 1. Download and install the free video streaming software through iPhone(App Store) or iTune. (e.g. iPhone(App Store)) 2.
  • Page 100 N9071 Mini Dome Network Camera 2 Megapixel + H.264 4. Tap “Streamer” to enter the download page 5. Tap FREE button to change the selection. 6. Tap INSTALL to install the software. - 100 -...
  • Page 101 N9071 Mini Dome Network Camera 2 Megapixel + H.264 7. Go back the main screen then select Steamer icon to open the software 8. Tap “Bookmarks” icon. 9. Tap “+” signal to add the bookmark. - 101 -...
  • Page 102 N9071 Mini Dome Network Camera 2 Megapixel + H.264 10. Input your URI link of the video server (e.g. rtsp://xxx.xxx.xxx.xxx/cam1/mpeg), and tap Save button to save the link. NOTE： The software can only support the Without Password mode. The video server need to set more then QVGA(320 x 240) resolution.
  • Page 103 N9071 Mini Dome Network Camera 2 Megapixel + H.264 12. Show the video stream on the mobile screen 13. Tap the screen to display the detail information, and the APP can support the audio application. NOTE： If the software cannot receive the stream from the video server, please try to check the setting is correctly.

  • Page 104: Support The Cellular / Mobile Phone List

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Support the Cellular / Mobile Phone List Please suggest the list to buy the applicable cellular / Mobile Phone which to use. Brand Type Brand Type Nokia 6630 Vibo Win II...

  • Page 105: Multicast Application

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Multicast Application The Multicast function is a technique for one-to-many communication over an IP infrastructure in a network. The PC can be given the network package after login the account, so the function can use one network package to copy many packages to PCs. It allows multiple people to watch video streaming without limitation on the number of users, but is only applicable in the LAN environment.
  • Page 106 N9071 Mini Dome Network Camera 2 Megapixel + H.264 N.O. Item Illustration H264 (Main) Display the multicast setting of H264 (Main) H264 (Sub) Display the multicast setting of H264 (Sub) Motion JPEG Display the multicast setting of Motion JPEG The function will display the different streaming mode from IP device. No matter how many modes to display, the content is the same setting to the user.
  • Page 107 N9071 Mini Dome Network Camera 2 Megapixel + H.264 NOTE： The function can only enable one streaming to use the application. - 107 -...

  • Page 108: H264 (Main)

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 H264 (Main) The function has some limit parameter, so please follow our limit parameter to set up it. All restrictions exist in the rear of each option. NOTE： Suggest using the default parameter to use the multicast function.

  • Page 109: H264 (Sub)

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 H264 (Sub) The setting is the same with the H264 (Sub). NOTE： Suggest using the default parameter to use the multicast function. Please make reference to the chapter of Basic Setting > Network > Multicast for further detailed description.

  • Page 110: Motion Jpeg

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Motion JPEG The setting is the same with the MJPEG. NOTE： Suggest using the default parameter to use the multicast function. Please make reference to the chapter of Basic Setting > Network > Multicast for further detailed description.
  • Page 111 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Please see the detailed steps to Set up the Multicast function as below: 1. First, check the LAN environment has the device of IGMP service. IGMP 2. Enter the device then enable the service.
  • Page 112 N9071 Mini Dome Network Camera 2 Megapixel + H.264 6. Click On button from Enable Selection to enable the Multicast function. 7. Go back the Live View Mode then click the of Stream to select the Multicast pull-down menu 8. Wait a 5~10 sec to re-display the live image via Multicast NOTE：...

  • Page 113: Troubleshooting And Faqs

    N9071 Mini Dome Network Camera 2 Megapixel + H.264 Troubleshooting and FAQs Question Answer and Solution Function The camera uses MJPEG or H264 compression technology to provide quality images. MJPEG is a standard image compression technology What encoder and decoder...
  • Page 114 N9071 Mini Dome Network Camera 2 Megapixel + H.264 • When the camera still can’t be located over 1 minute, re-activate the camera. • Do not connect the camera to more than one router. The IP Finder will not be able to detect the camera.
  • Page 115 N9071 Mini Dome Network Camera 2 Megapixel + H.264 • When using PC to connect to the camera for the first time, a security warning window will tell you that you need to download the ActiveX control. When you are using Windows 2000 or Windows XP, you might...
  • Page 116 N9071 Mini Dome Network Camera 2 Megapixel + H.264 Delay might occur when you are accessing a video stream and remotely I can't control the camera to moving the camera horizontally. Where significant delay is identified when move up, down, right, or left you move the camera horizontally or vertically deactivate the audio smoothly.
